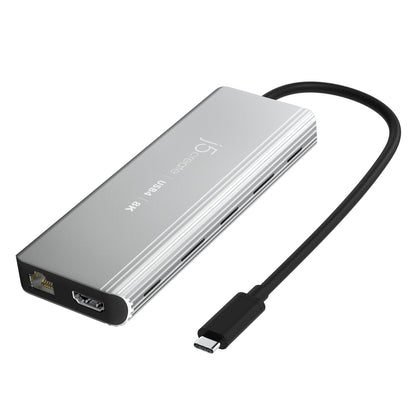

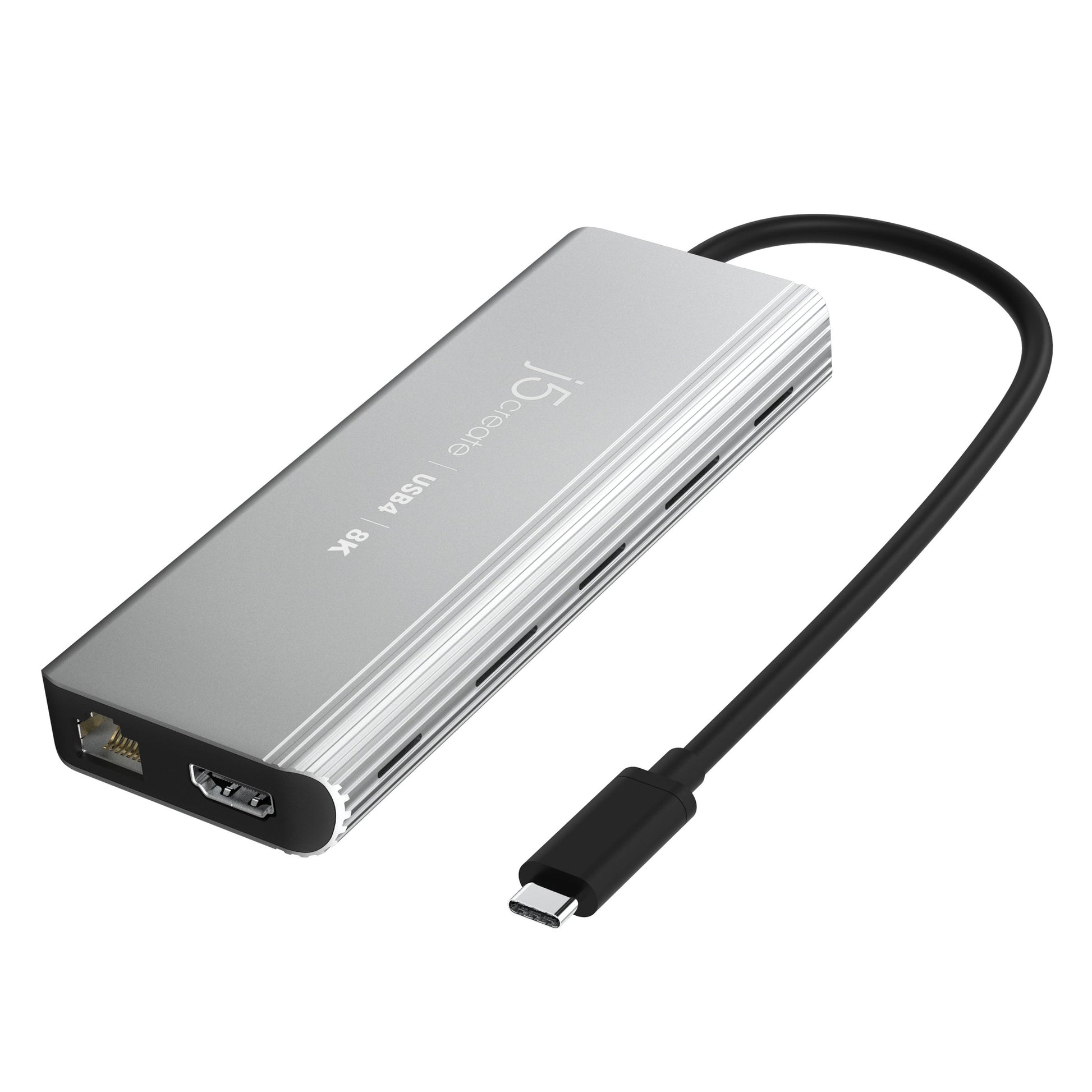

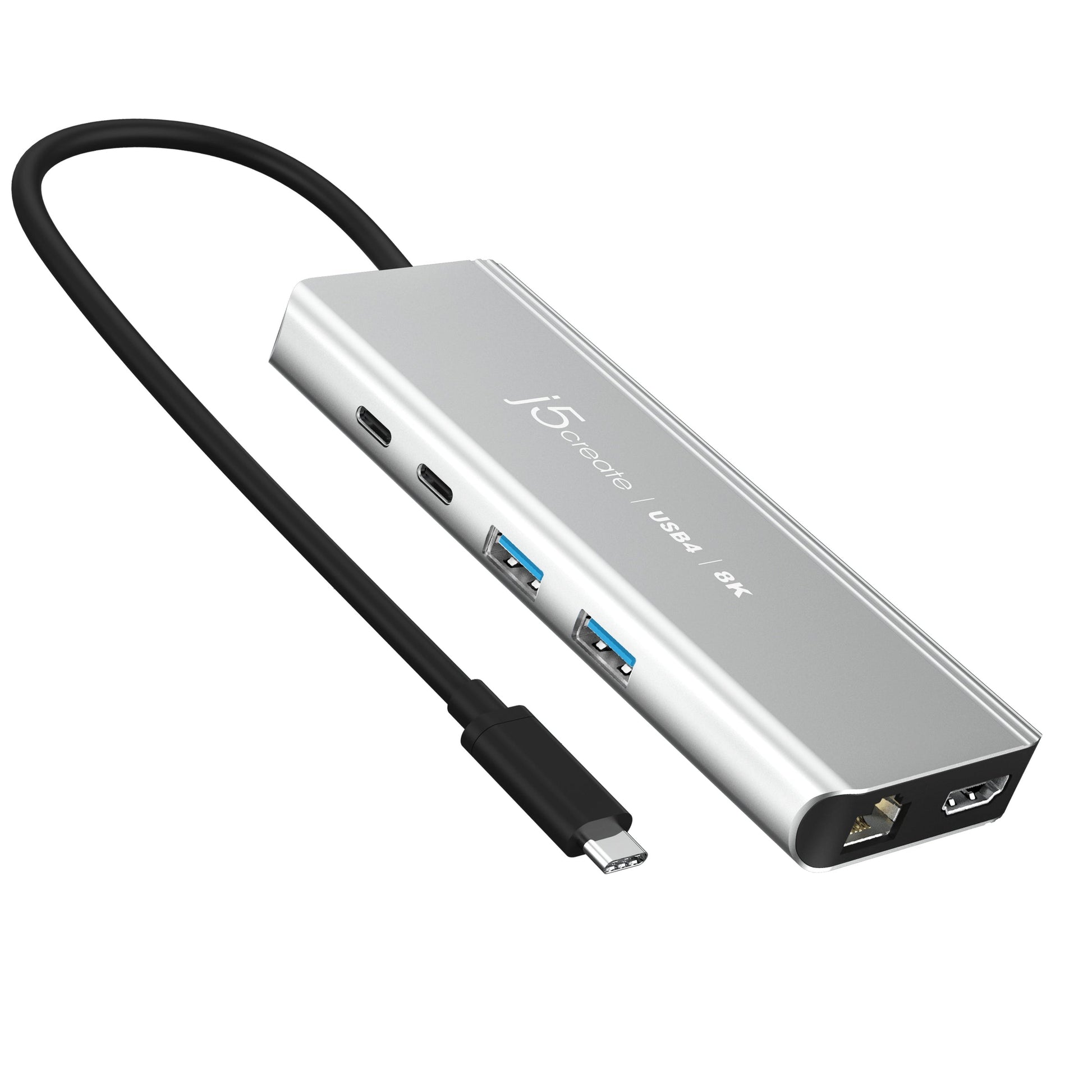

J5create USB4 8K Multi-Port Hub - JCD403

This high-performance USB4® multi-port hub incorporates the latest USB4® controller offering compatibility with Thunderbolt™ 4 and older USB™ specifications.

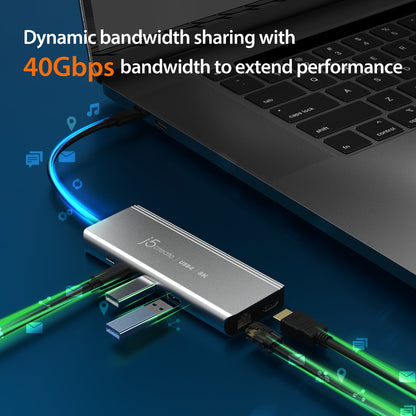

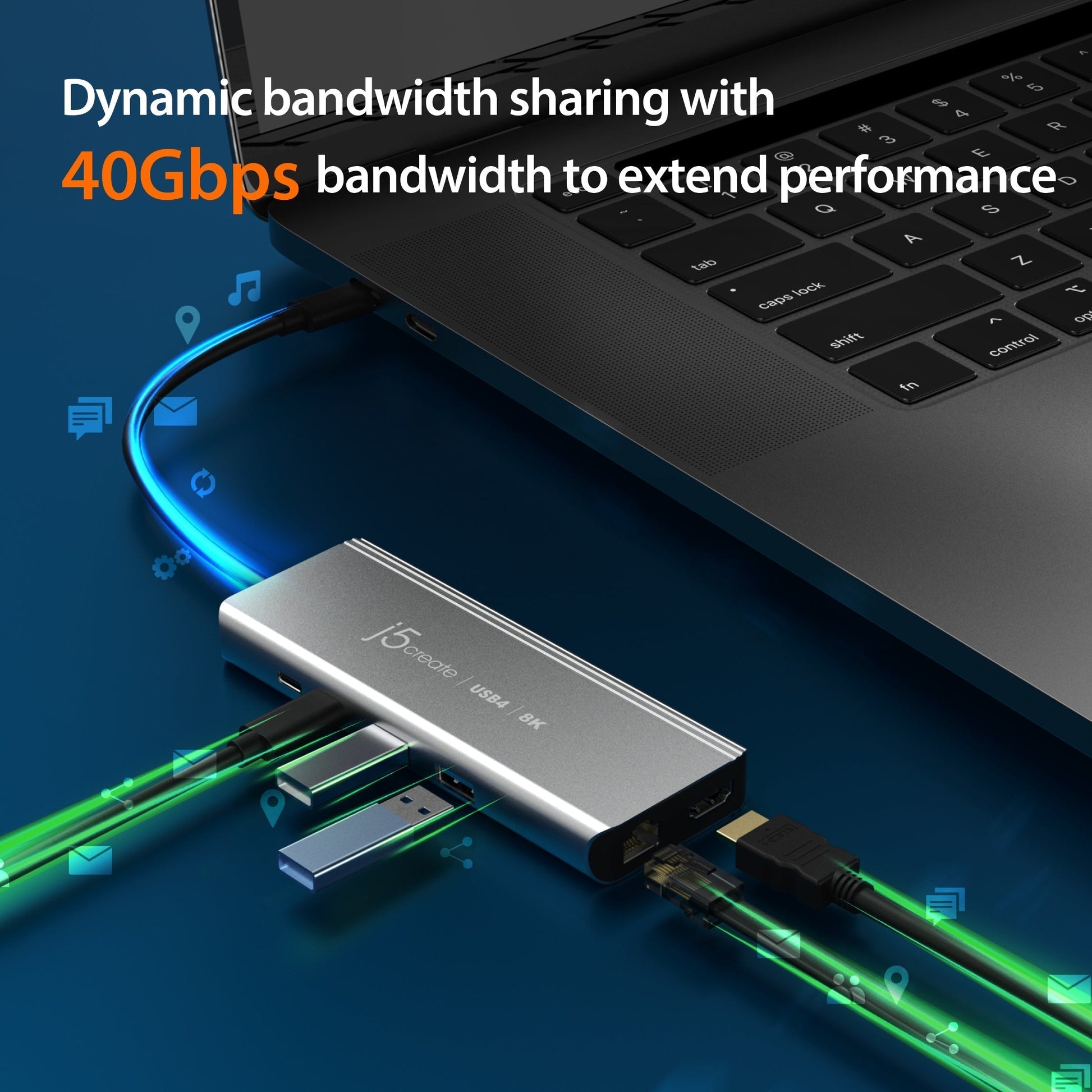

With up to 40Gbps of throughput, dynamic data, and display bandwidth allocation for efficient display data flow, you can easily create a high-definition monitor setup. Enjoy up to 8K resolution and access data faster without affecting system performance. Additionally, it has three USB™ SuperSpeed+ 10Gbps ports (1 USB-C® and 2 Type-A) for charging or connecting peripherals. It is also equipped a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 100W of pass-through power.

FEATURES:

•  Supports resolutions up to 8K
• Compatible with Thunderbolt™ 4, Thunderbolt™ 3 or other USB-C® host laptops
  • *Thunderbolt™ 4, USB4® is required to achieve 8K resolutions.
  • *Also supports other USB™ 3.2 host laptops and lower resolution monitors/displays

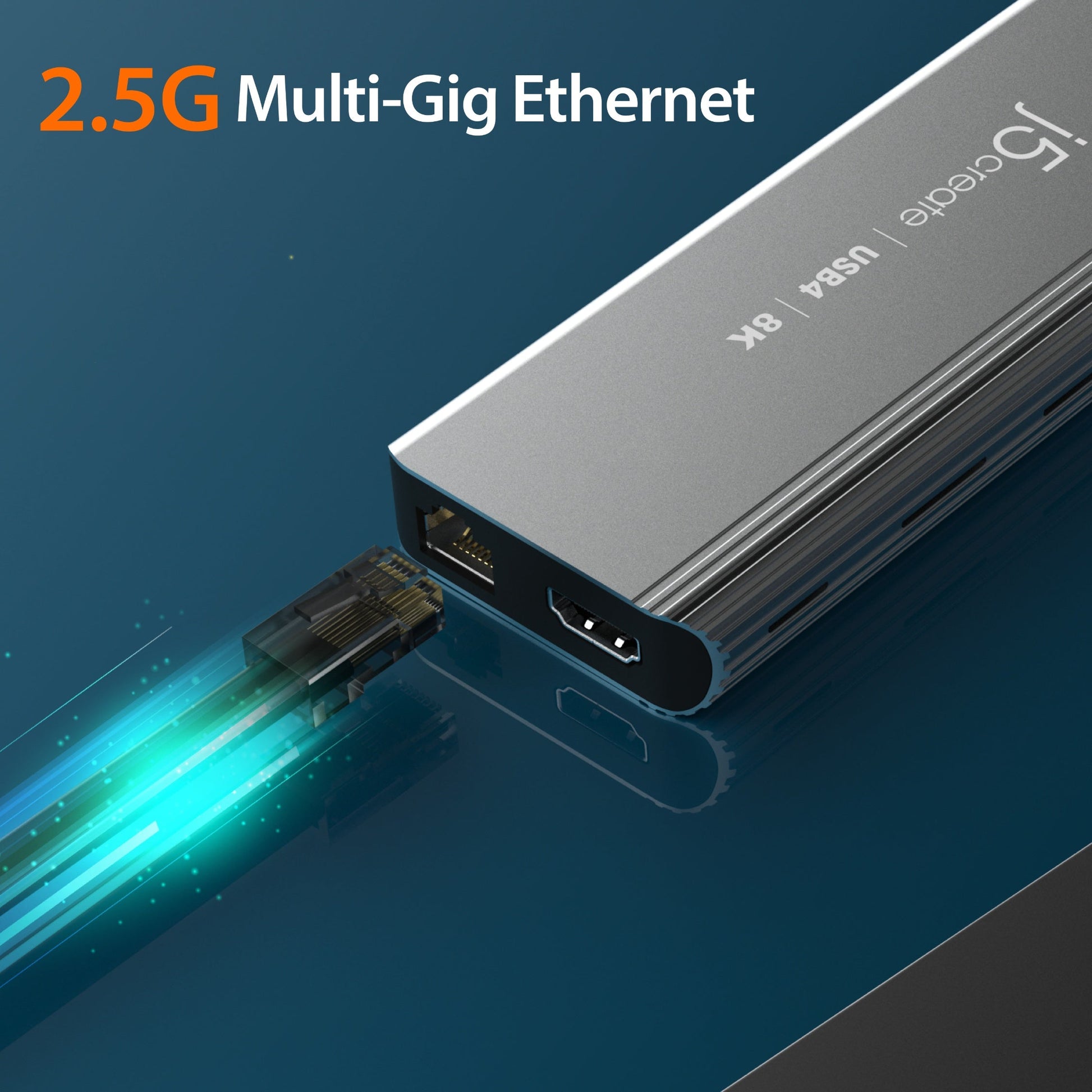

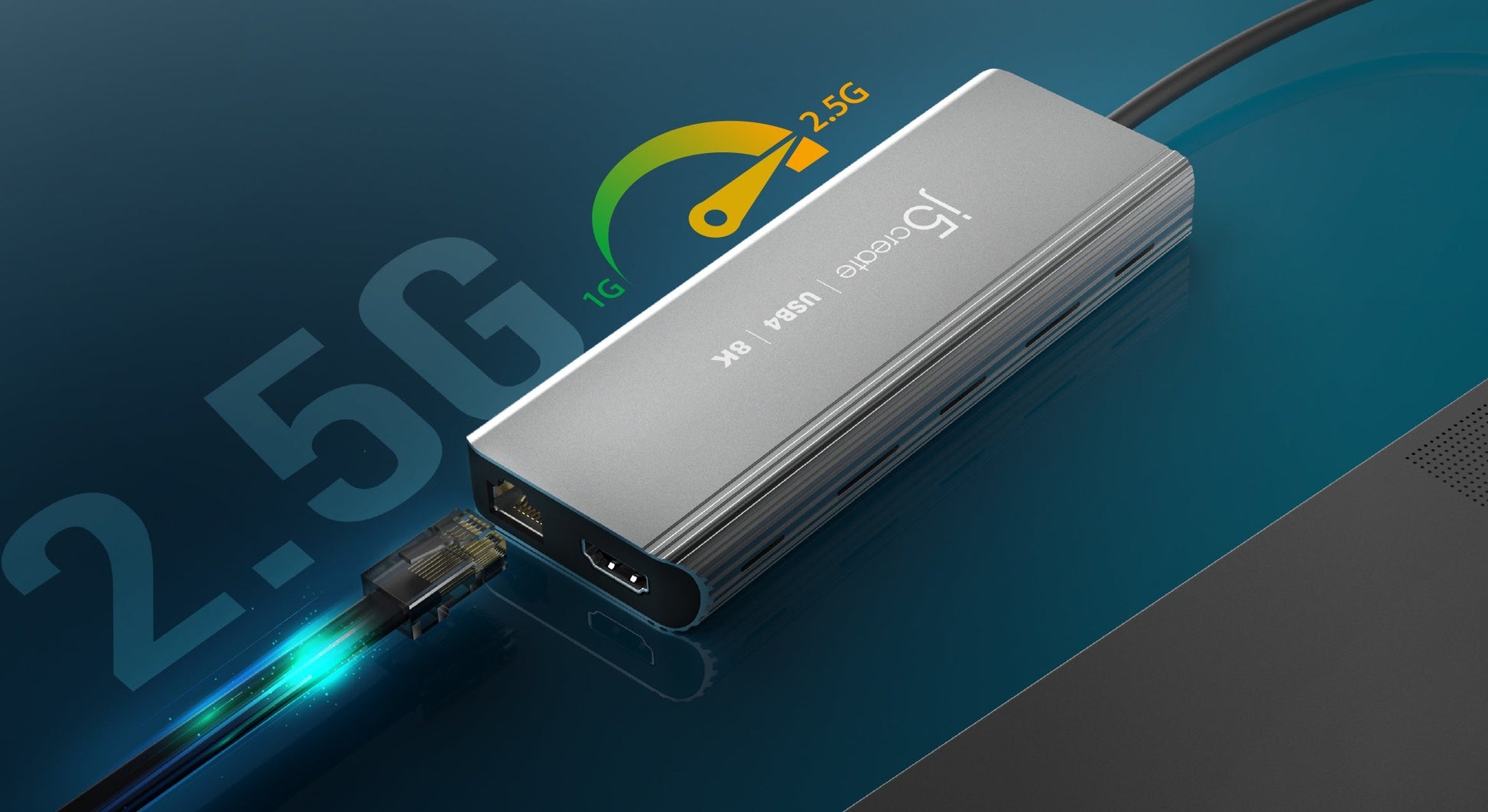

• One 2.5 Gigabit Ethernet port for a high-speed multi-gig network connection
• Two SuperSpeed+ USB™ Type-A 10Gbps port to accommodate your legacy peripheral
• One USB-C® downstream port supports up to 10Gbps data transmission

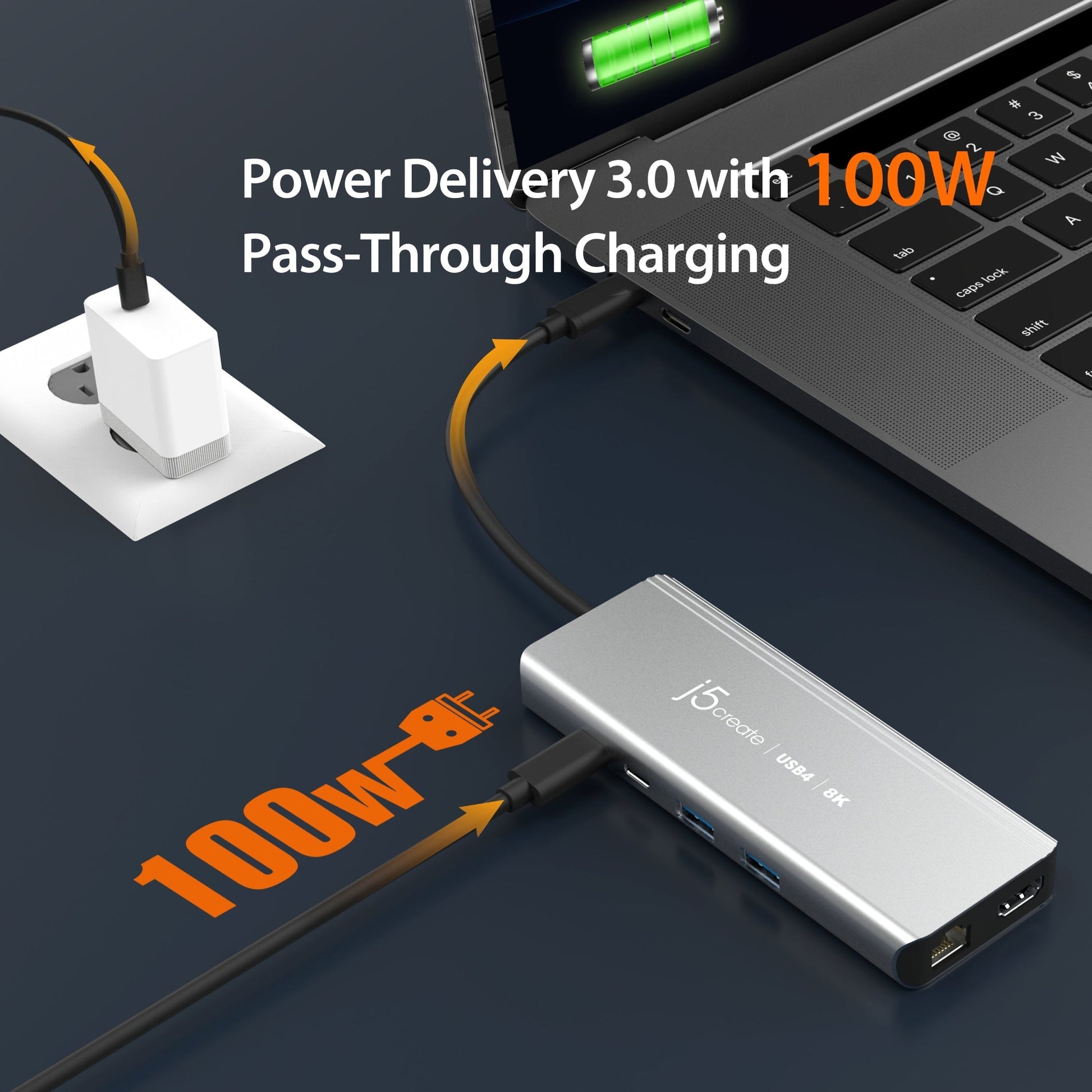

• Power Delivery 3.0 offers up to 100W of pass-through charging
• Multiple data and display protocols efficiently share bandwidth to offer optimal performance
• Wide compatibility with various operating systems and devices
• Plug-and-play, no driver installation required

System Requirements:

• Available Thunderbolt™ 4, Thunderbolt™ 3, USB4®, and USB-C® host laptops
• GPU and video source:
  • DisplayPort™ 1.4 alt mode with DSC supports 8K 60 Hz or 4K 144Hz
  • DisplayPort™ 1.4 alt mode without DSC supports 8K 30 Hz or 4K 120 Hz

* DSC = VESA® Display Stream Compression (DSC) Standard. Only available on NVIDIA® GeForce® RTX 20 Series and AMD™ Radeon™ RX 6000 Series GPUs or above

* Recommended Graphics Cards: Intel® HD Graphics 620, Intel'® HD Graphics 520 or above

• Notes: Macs supports up to 4K 60Hz on an 8K HDMI™ display

Special Notes:

• DisplayPort™ 1.4 is required on graphics card and video source to achieve 8K @ 30

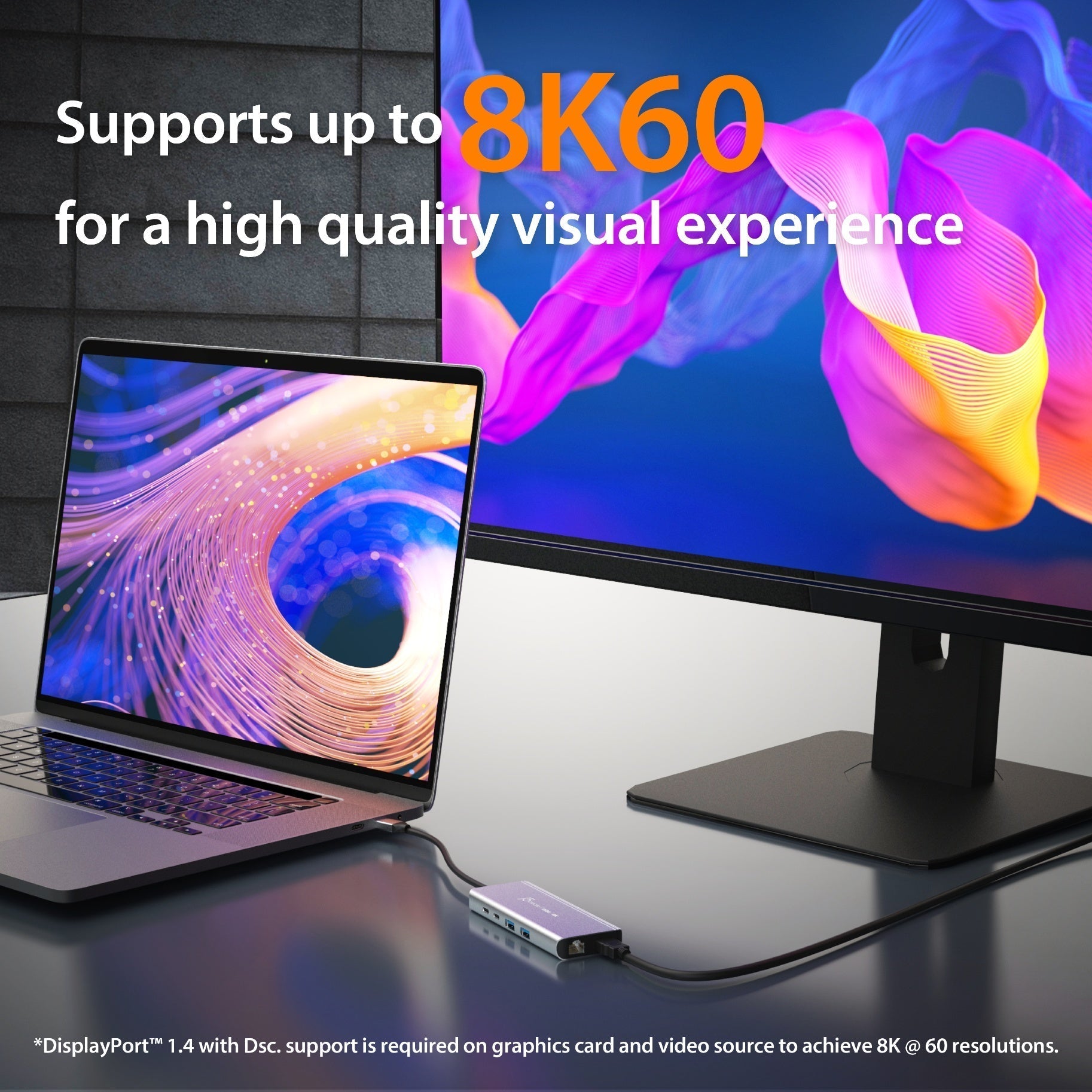

• DisplayPort™ 1.4 and Display Stream Compression (DSC) is required on graphics card and video source to achieve 8K @ 60
• A 4K-capable display and cable is required for obtaining the 3840 x 2160 resolution
• If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited
• The adapter can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device
• If you are using high-powered USB™ devices, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. To avoid disruption, do not remove the power adapter while copying files.
• We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the adapter at a time

SPECIFICATIONS:

• Host Connector: 1 × USB4® Male
• Video Output: 1 × HDMI™ Female
• Power Source: Bus-powered or self-powered
• Network Interface: Yes (RJ45 2.5 Gigabit Ethernet)
• Audio Supported: Yes

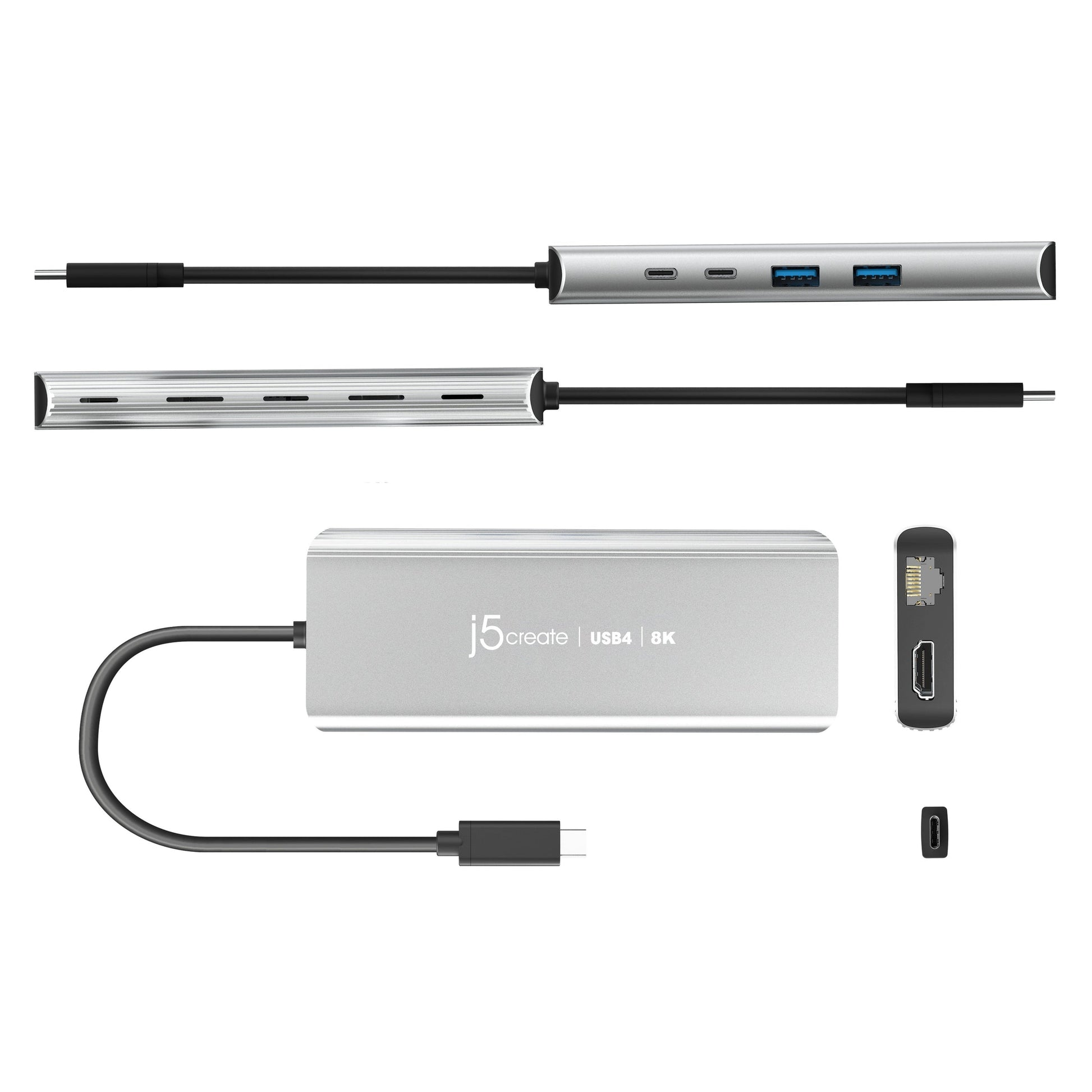

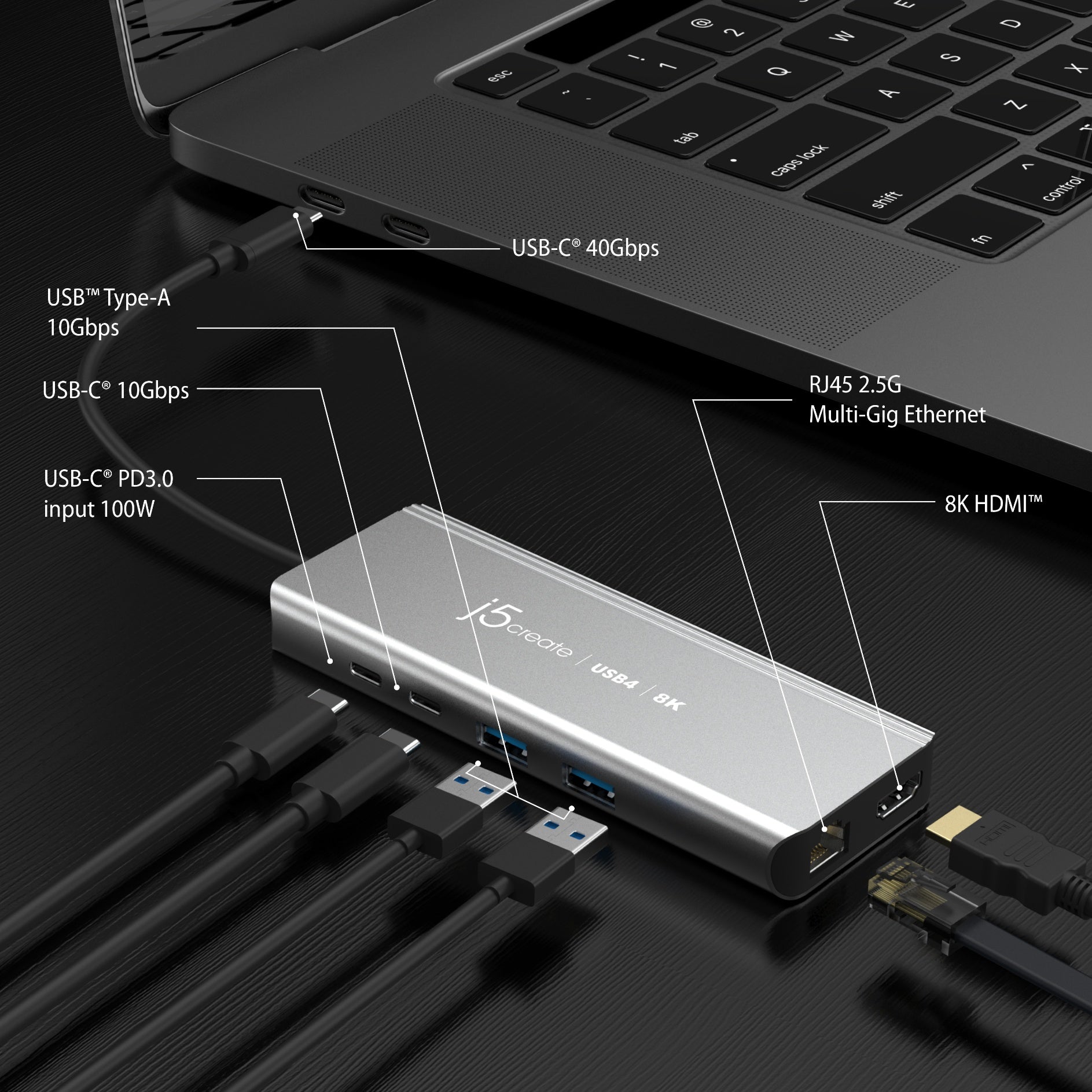

• Ports:
• 1 × USB-C® 3.2 Gen 2 (10Gbps data transmission)
• 1 × USB-C® Power Delivery 3.0 (100W)
• 2 × USB™ Type-A 3.2 Gen 2 (10Gbps data transmission)
• 1 × 8K HDMI™
• 1 × RJ45 2.5 Gigabit Ethernet
• Maximum Display Resolution: 7680 × 4320
• Maximum Display Refresh Rates:
  • 3840 × 2160 @ 60 Hz
  • 3840 × 2160 @ 144 Hz (DSC host required)
  • 7680 × 4320 @ 30 Hz
  • 7680 × 4320 @ 60 Hz (DSC host required)
• Maximum Data Transfer Rate: 10Gbps
• Displays Supported: 1 × HDMI™
• Compatible Networks: 10M / 100M / 1000M / 2.5 Gigabit
• Audio Channel: 2.1 via HDMI™
• Power Delivery: Up to 100W via USB-C®
• Power Consumption: ≤ 900 mA
• Input Current: Up to 5A
• Input Voltage: Up to 20V
• Output Current: Up to 4.75A
• Output Voltage: Up to 20V
• Color: Space Grey
• Enclosure Type: Aluminum
• Cable Length: 7.87 in. (200 mm)
• Product Height: 5.3 in. (135 mm)
• Product Width: 2 in. (51 mm)
• Product Depth: 0.59 in. (15 mm)
• Product Weight: 3.84 oz (109 g)
• Storage Temperature: 0 to 155°F (-17 to 68°C)
• Storage Humidity: < 85% non-condensing
• Operating Temperature: 30 to 116°F (-1 to 41°C)
• Operating Humidity: < 85% non-condensing

WHAT'S IN THE BOX:

• JCD403 USB4® 8K Multi-Port Hub x1
• Quick Installation Guide (QIG) x1

WARRANTY:

• 24 Months
