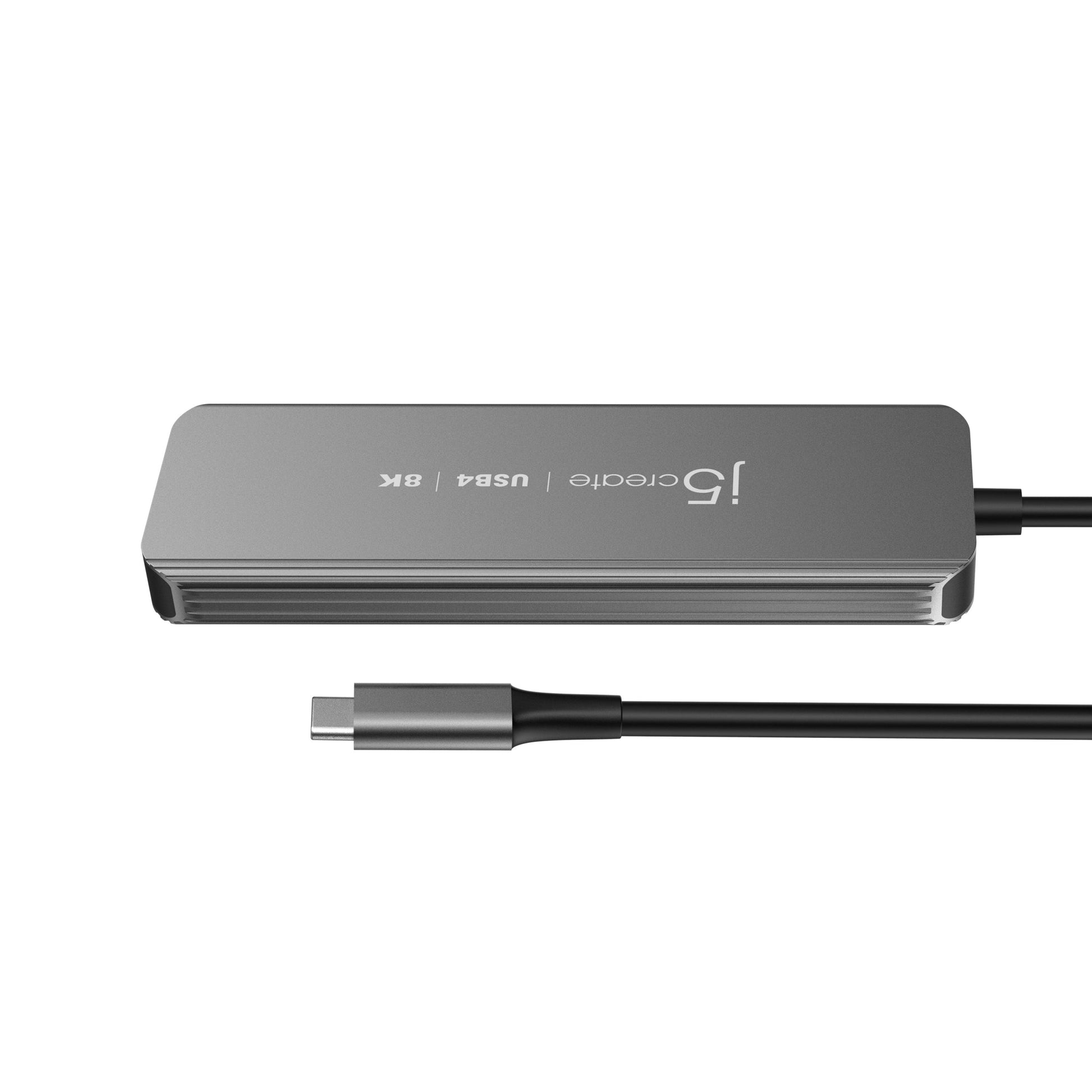

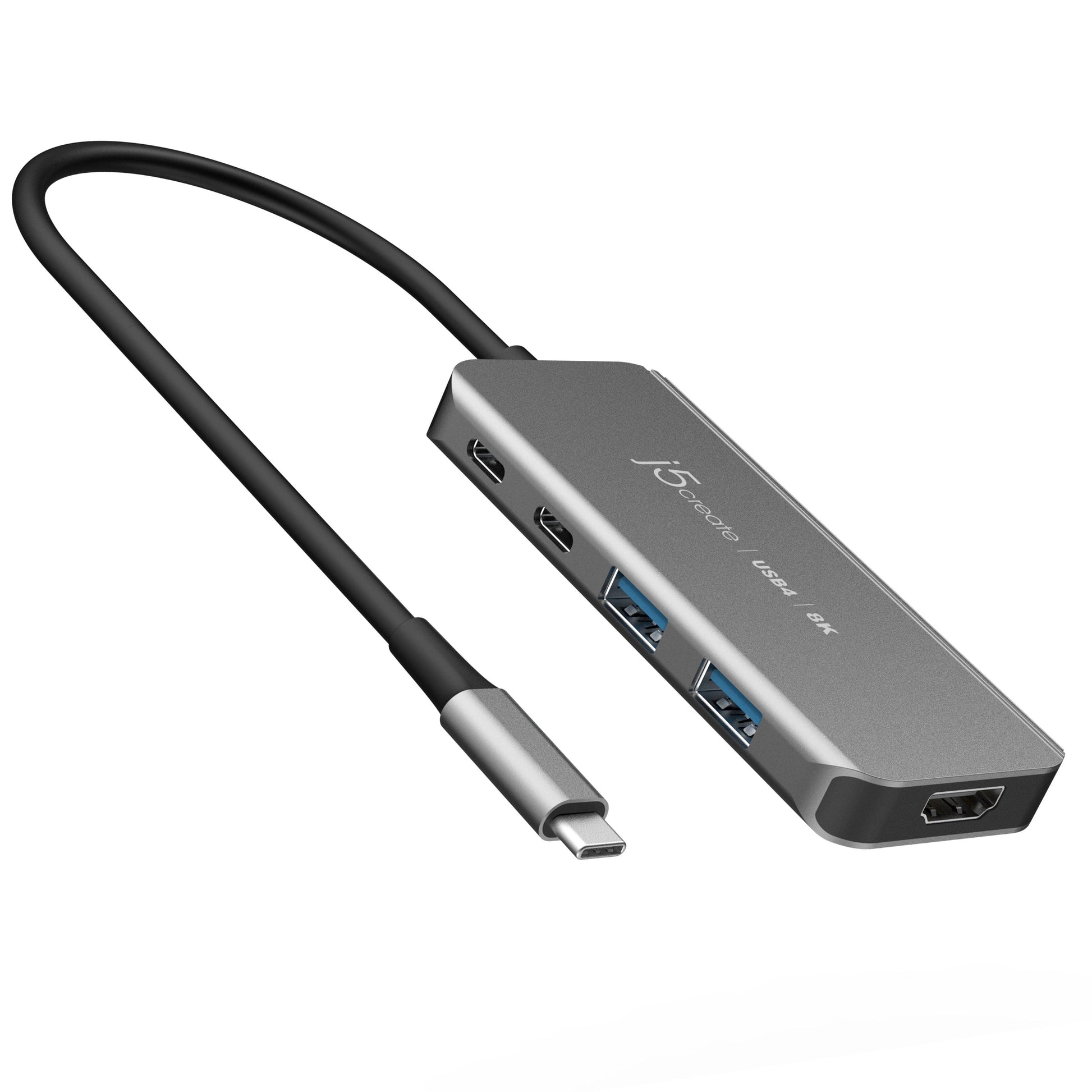

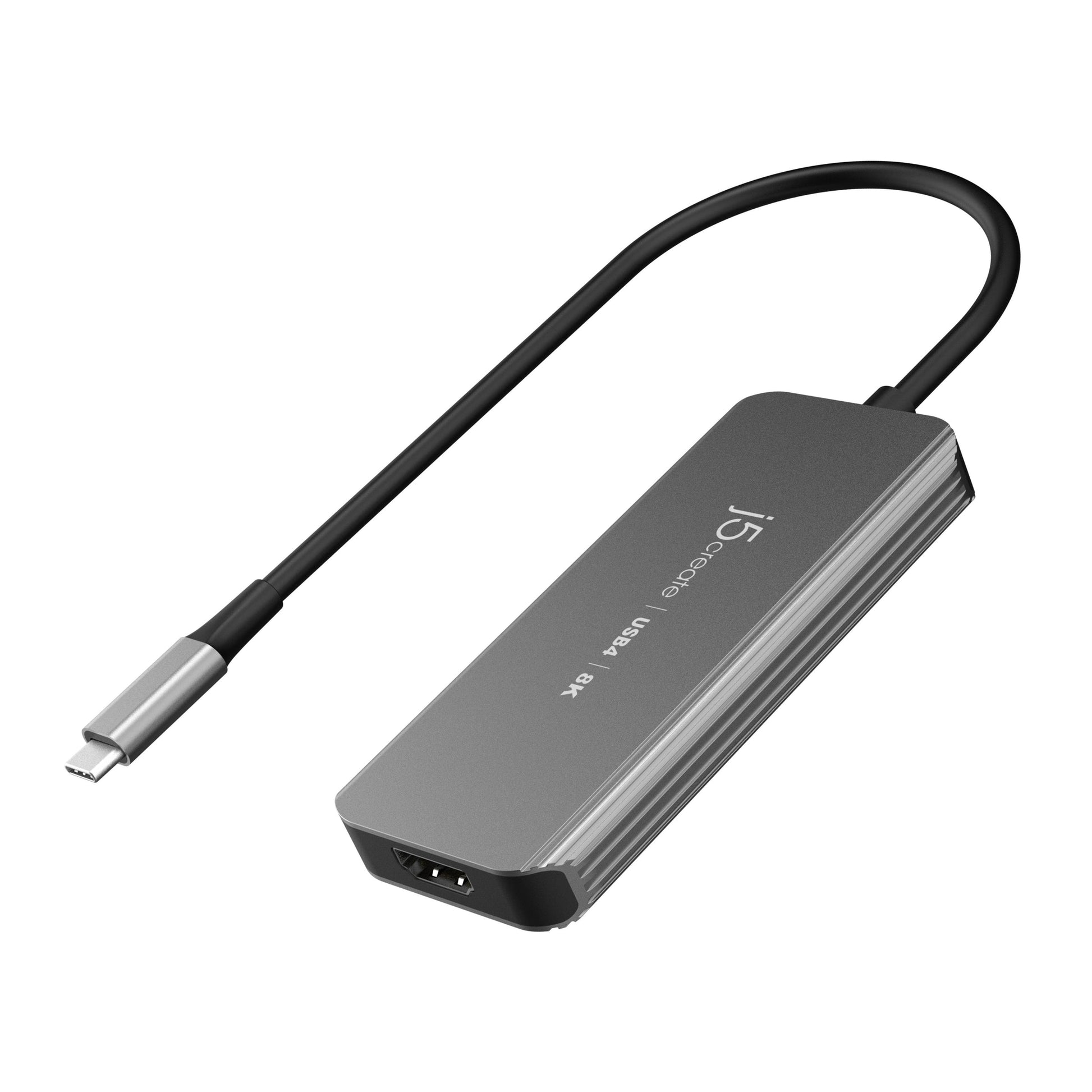

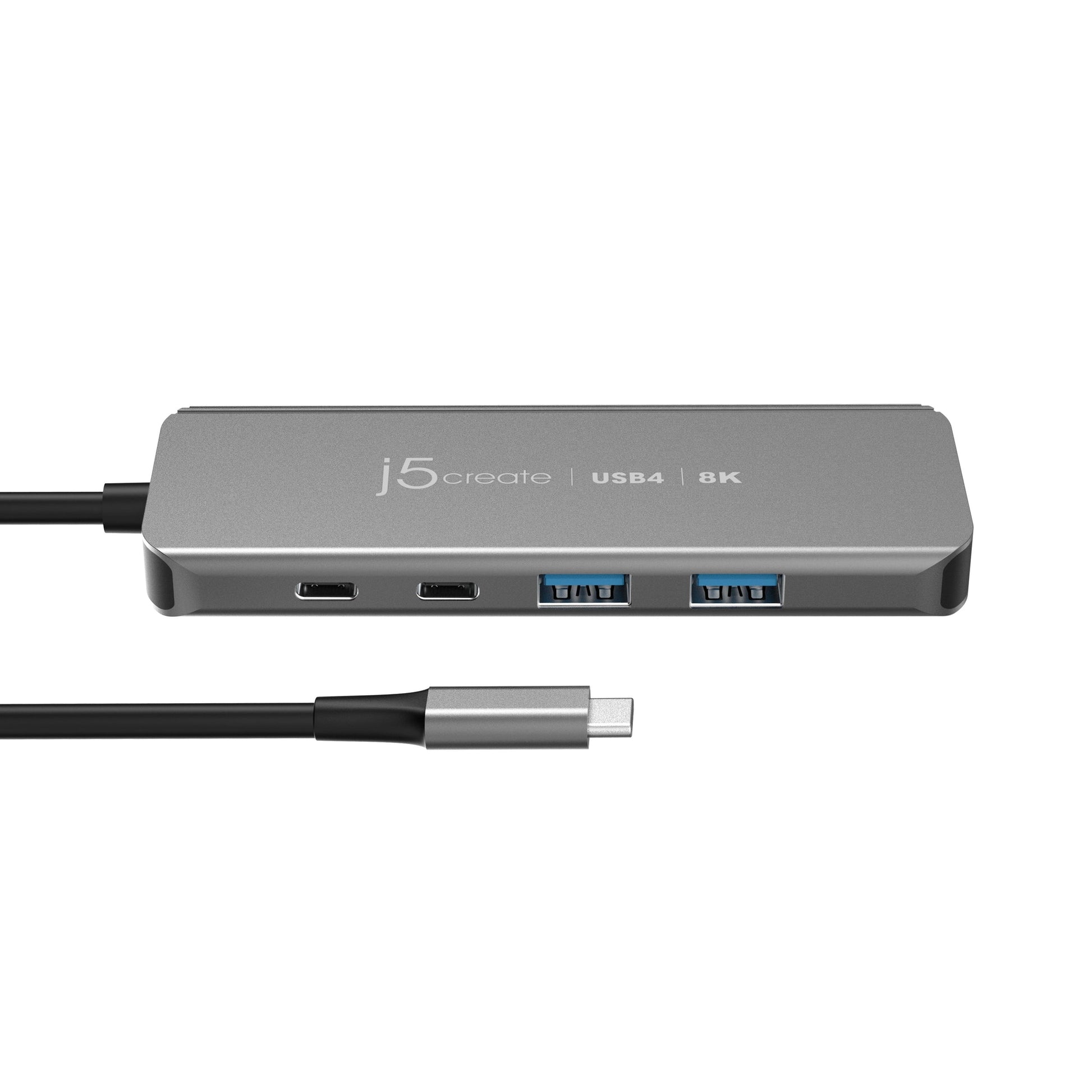

J5create USB4 8K60 Slim Hub - JCH453

A USB4® multi-port hub incorporates the latest USB4® controller offering compatibility with Thunderbolt™ 4 and older USB™ specifications.

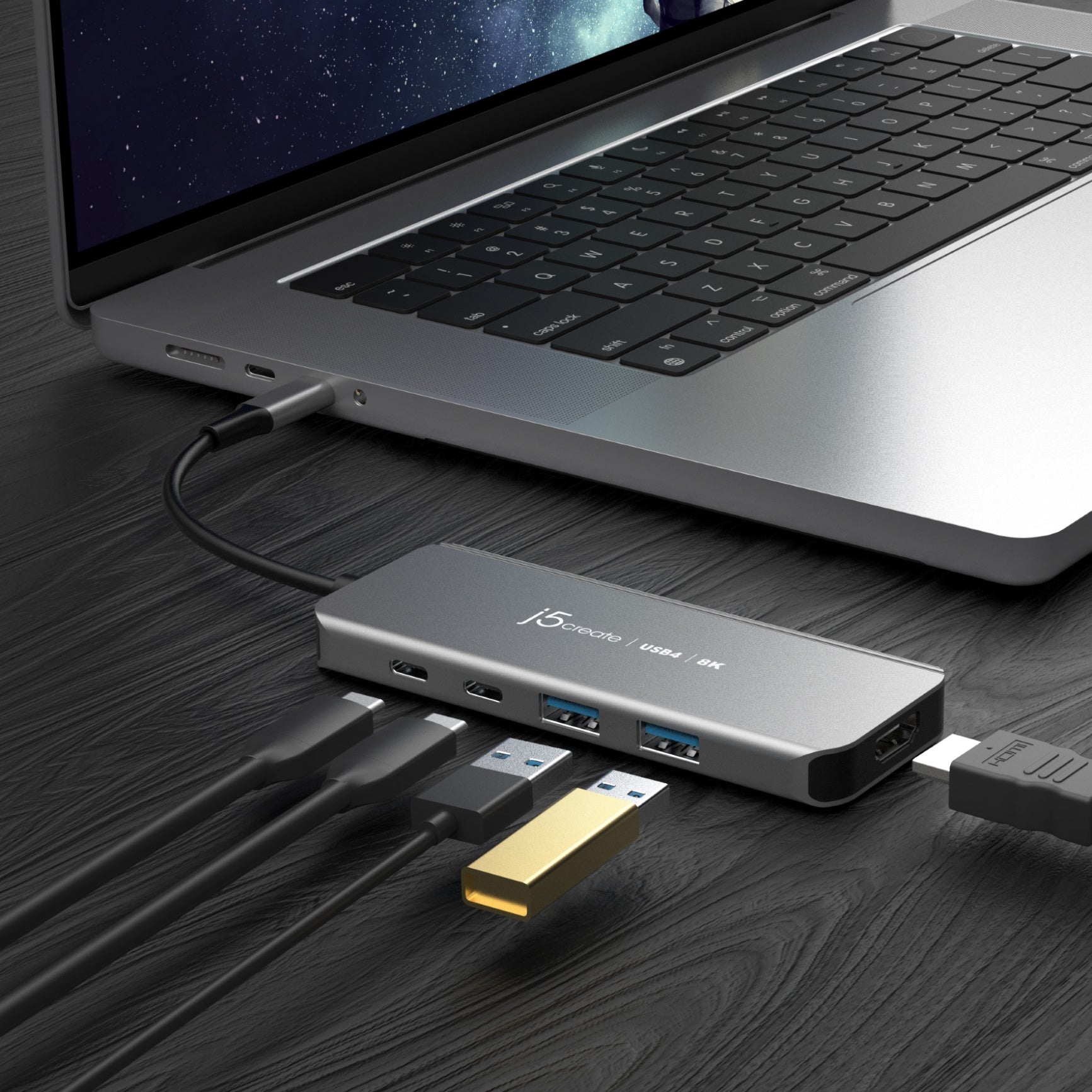

With up to 40Gbps of throughput, dynamic data, and display bandwidth allocation for efficient display data flow, you can easily create a high-definition monitor setup. Enjoy up to 8K resolution and access data faster without affecting system performance. Additionally, it has four USB™ SuperSpeed+ 10Gbps ports (2 USB-C® and 2 Type-A) for charging, connecting peripherals and high-speed data storage devices. It is also equipped a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 100W of pass-through power.

FEATURES:

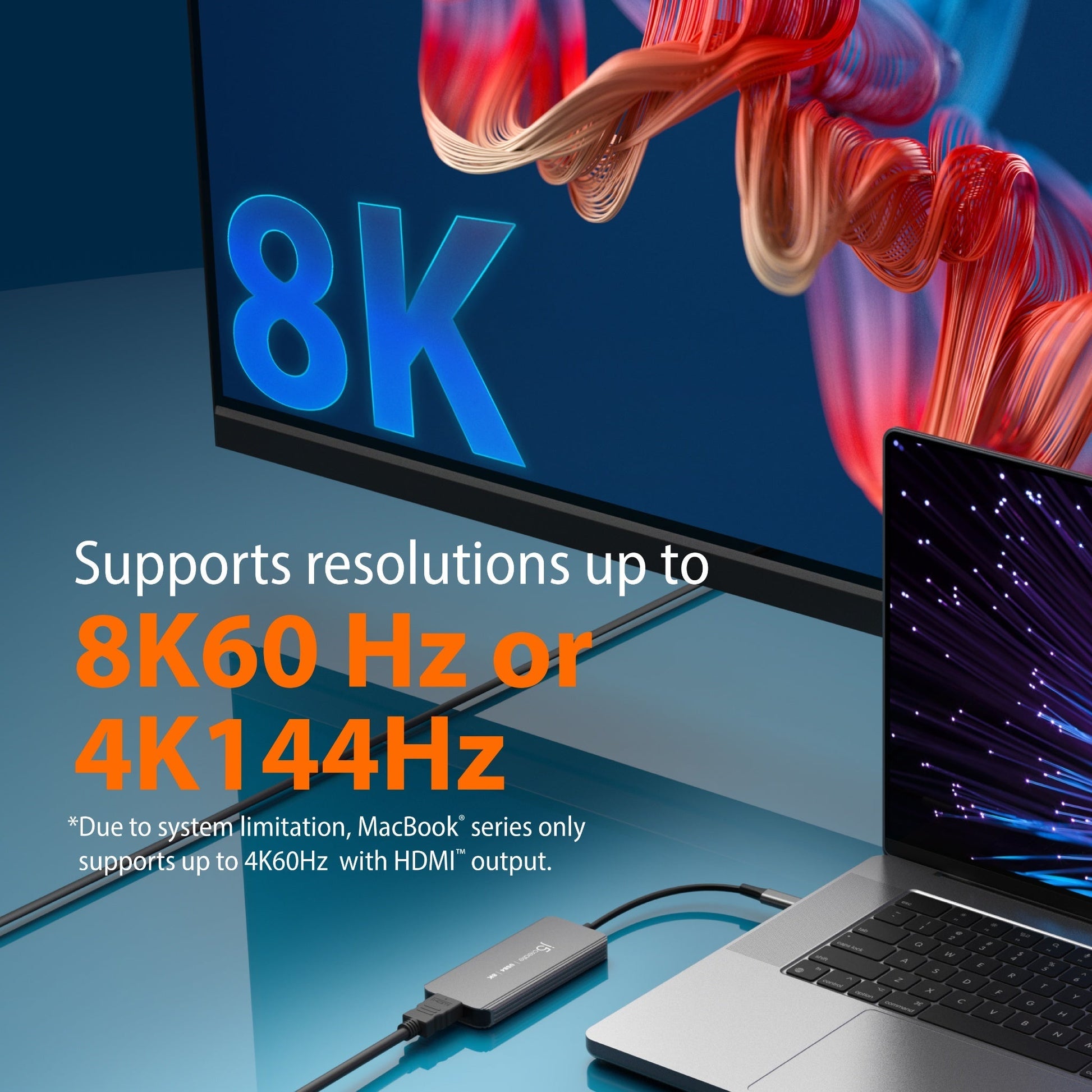

• Supports resolutions up to 8K60 and 4K144
• Compatible with Thunderbolt™ 4, Thunderbolt™ 3 or other USB-C® host laptops

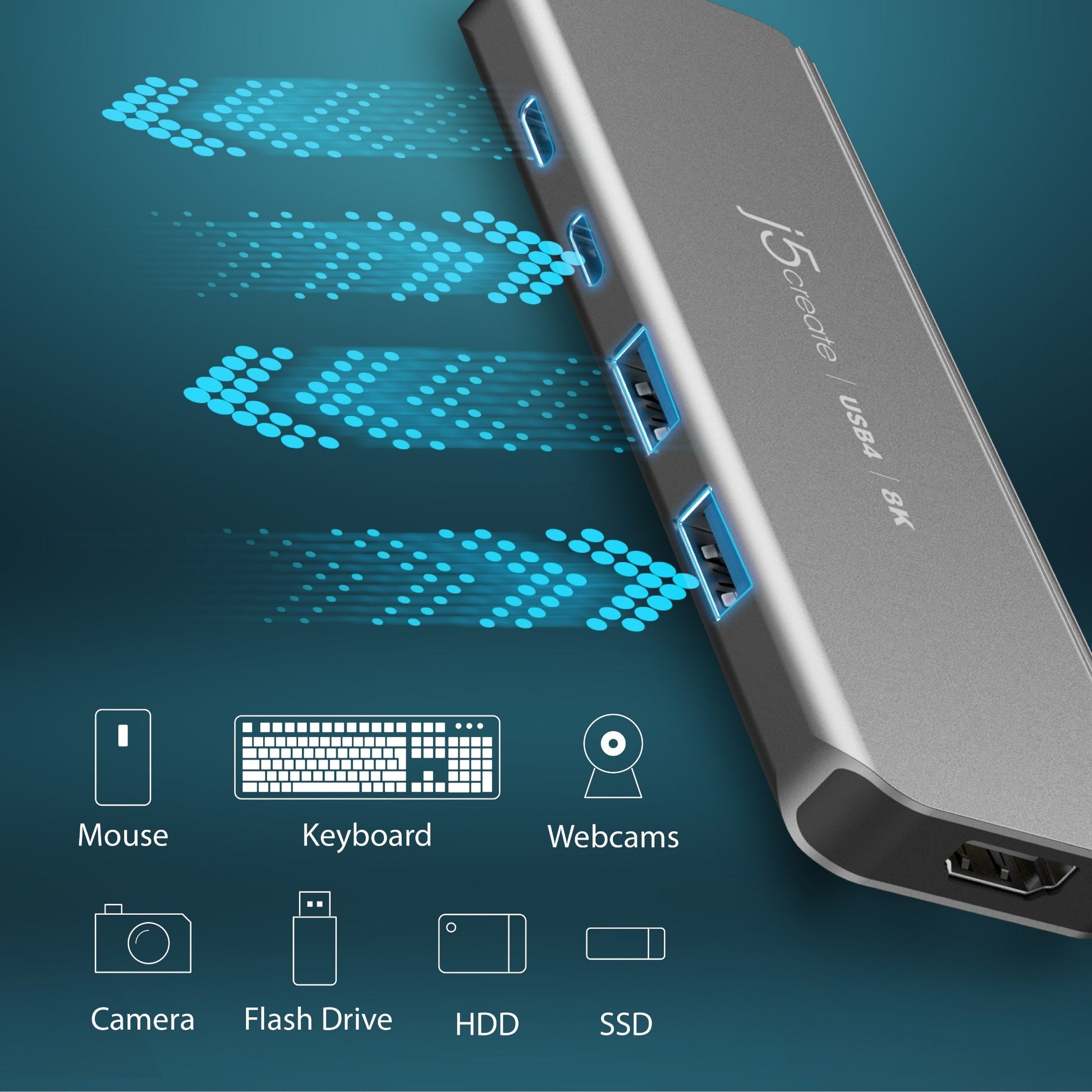

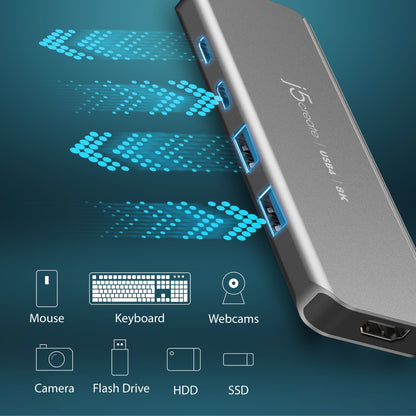

• Two SuperSpeed+ USB™ Type-A 10Gbps port to accommodate modern peripherals
• Two USB-C® port supports up to 10Gbps data transmission
• Power Delivery 3.0 offers up to 100W of pass-through charging
• Multiple data and display protocols efficiently share bandwidth to offer optimal performance

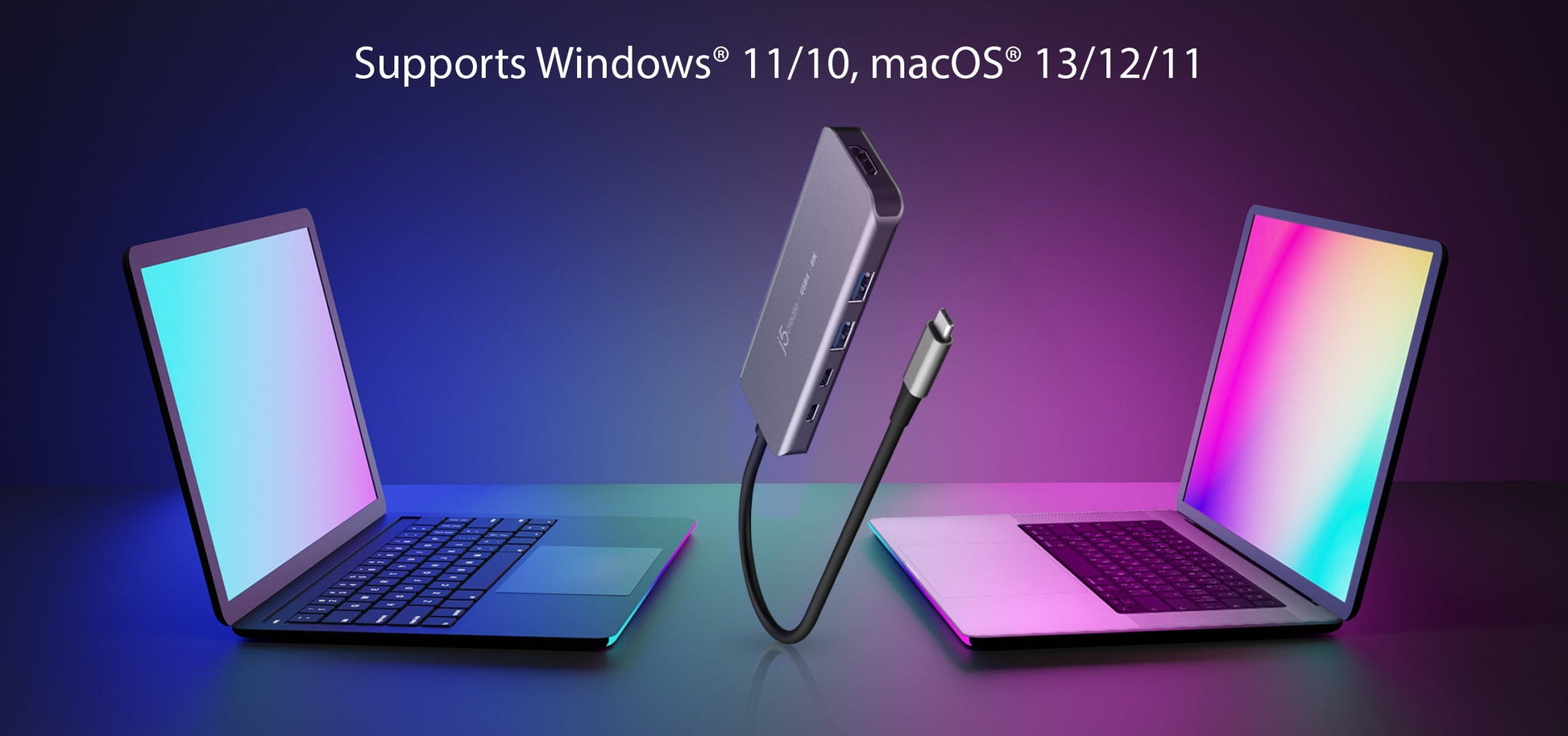

• Wide compatibility with various operating systems and devices
• Plug-and-play, no driver installation required

System Requirements:

• Available Thunderbolt™ 4, Thunderbolt™ 3, USB4®, and USB-C® host laptops
• GPU and video source:
  • DisplayPort™ 1.4 alt mode with DSC supports 8K 60 Hz or 4K 144Hz
  • DisplayPort™ 1.4 alt mode without DSC supports 8K 30 Hz or 4K 120 Hz

* DSC = VESA® Display Stream Compression (DSC) Standard. Only available on NVIDIA® GeForce® RTX 20 Series and AMD™ Radeon™ RX 6000 Series GPUs or above

* Recommended Graphics Cards
: Intel® UHD graphics for 11th Gen Intel® processors or above

• Notes: Macs supports up to 4K 60Hz on an 8K HDMI™ display

Special Notes:

• DisplayPort™ 1.4 and Display Stream Compression (DSC) is required on graphics card and video source to achieve 8K @ 60
• Thunderbolt™ 4 or USB4® is required to achieve 8K resolutions.
• Also supports other USB™ 3.2 host laptops and lower resolution monitors/displays
• The adapter can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device

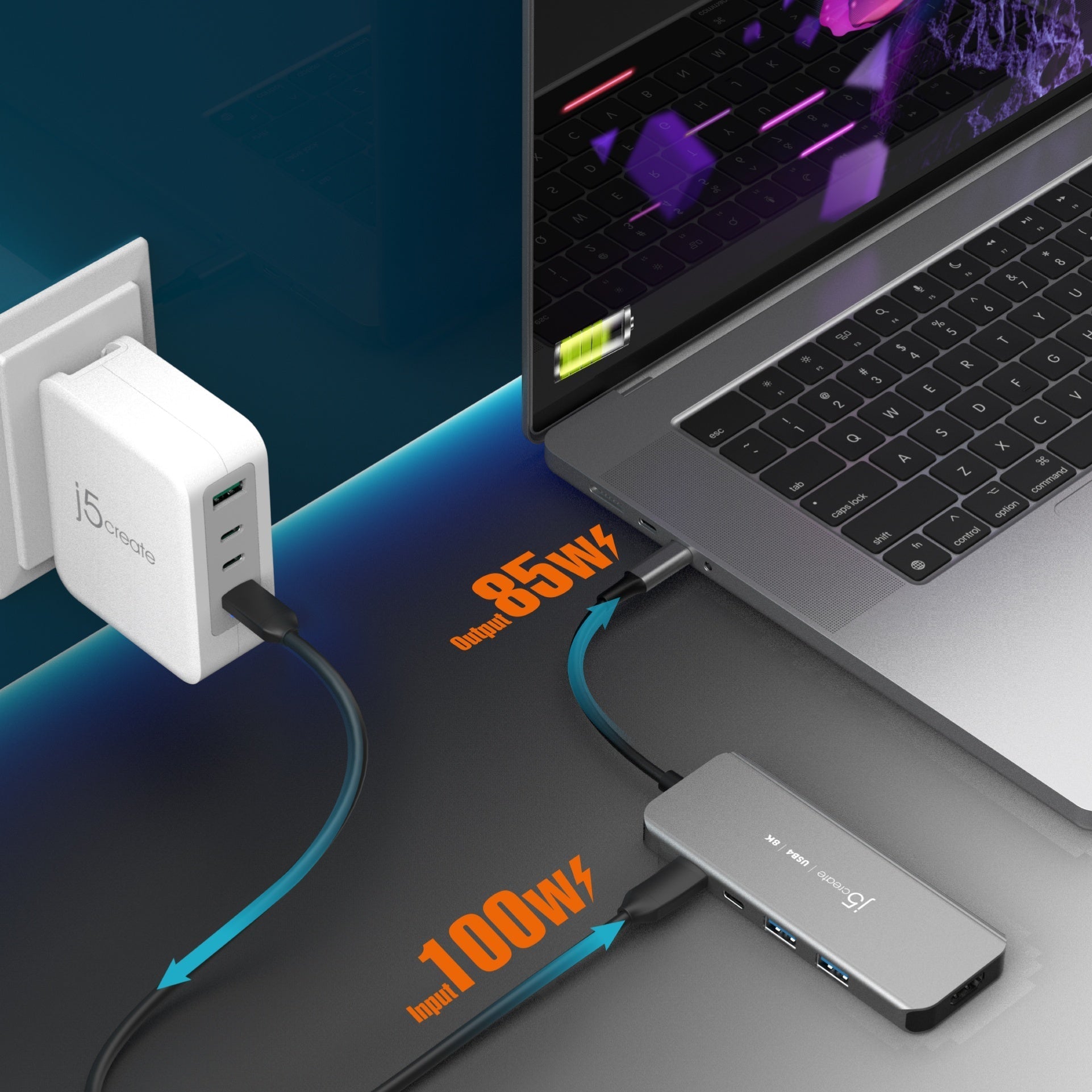

• If you are using high-powered USB™ devices, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. To avoid disruption, do not remove the power adapter while copying files.
• We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the adapter at a time

SPECIFICATIONS:

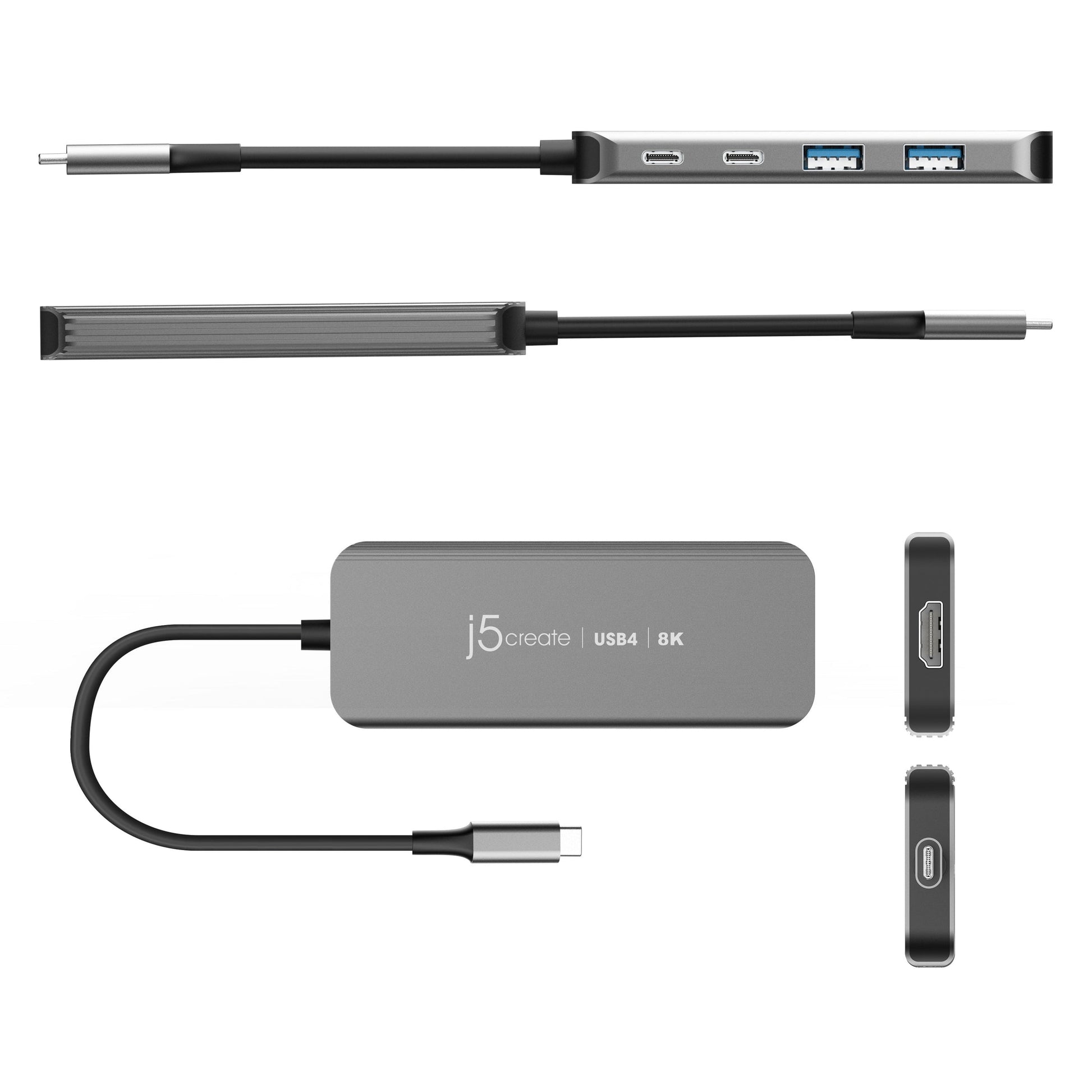

• Host Connector: 1 - USB4® Male
• Video Output: 1 - HDMI™ Female
• Audio Supported: Yes
• Power Source: Bus-powered or self-powered
• Network Interface: N/A

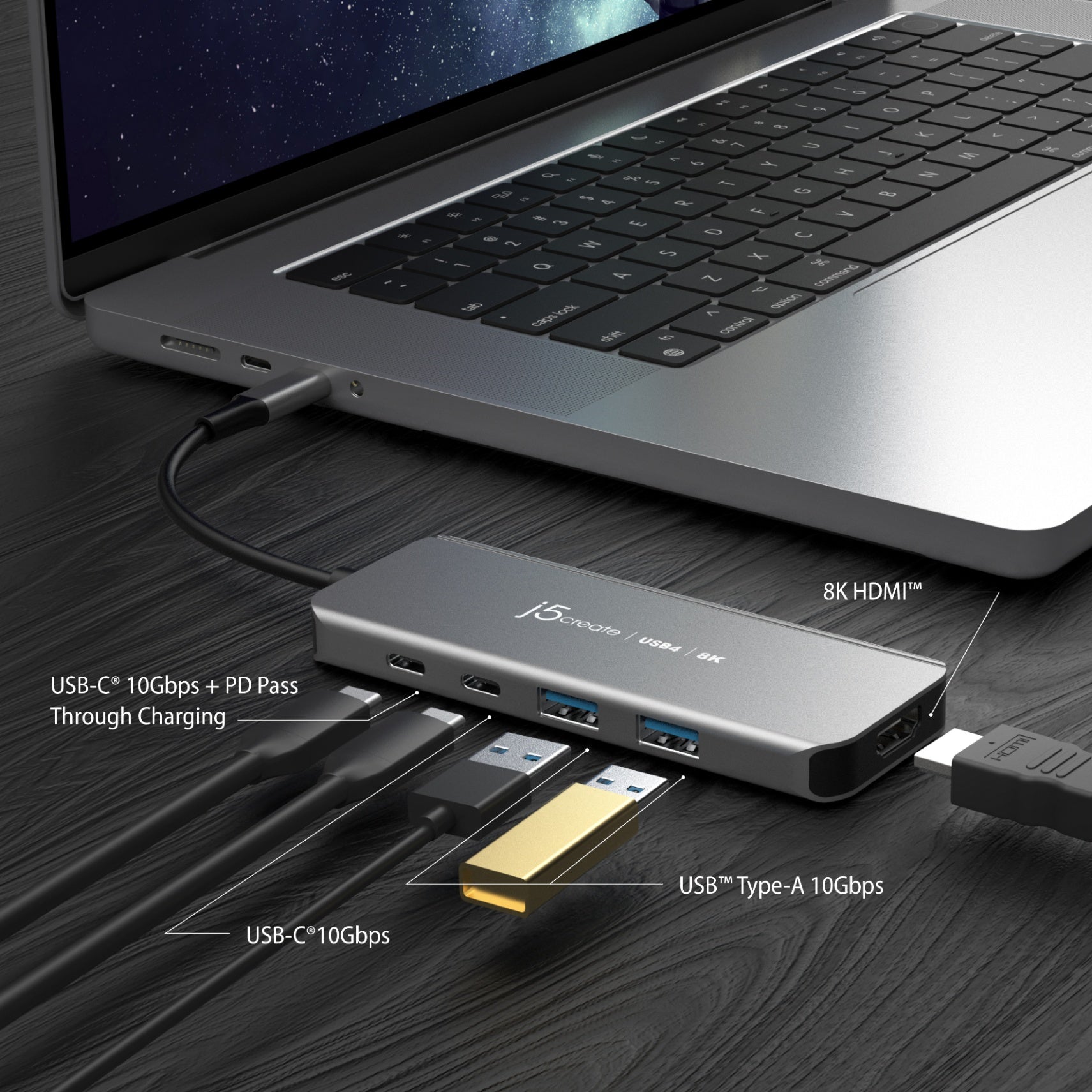

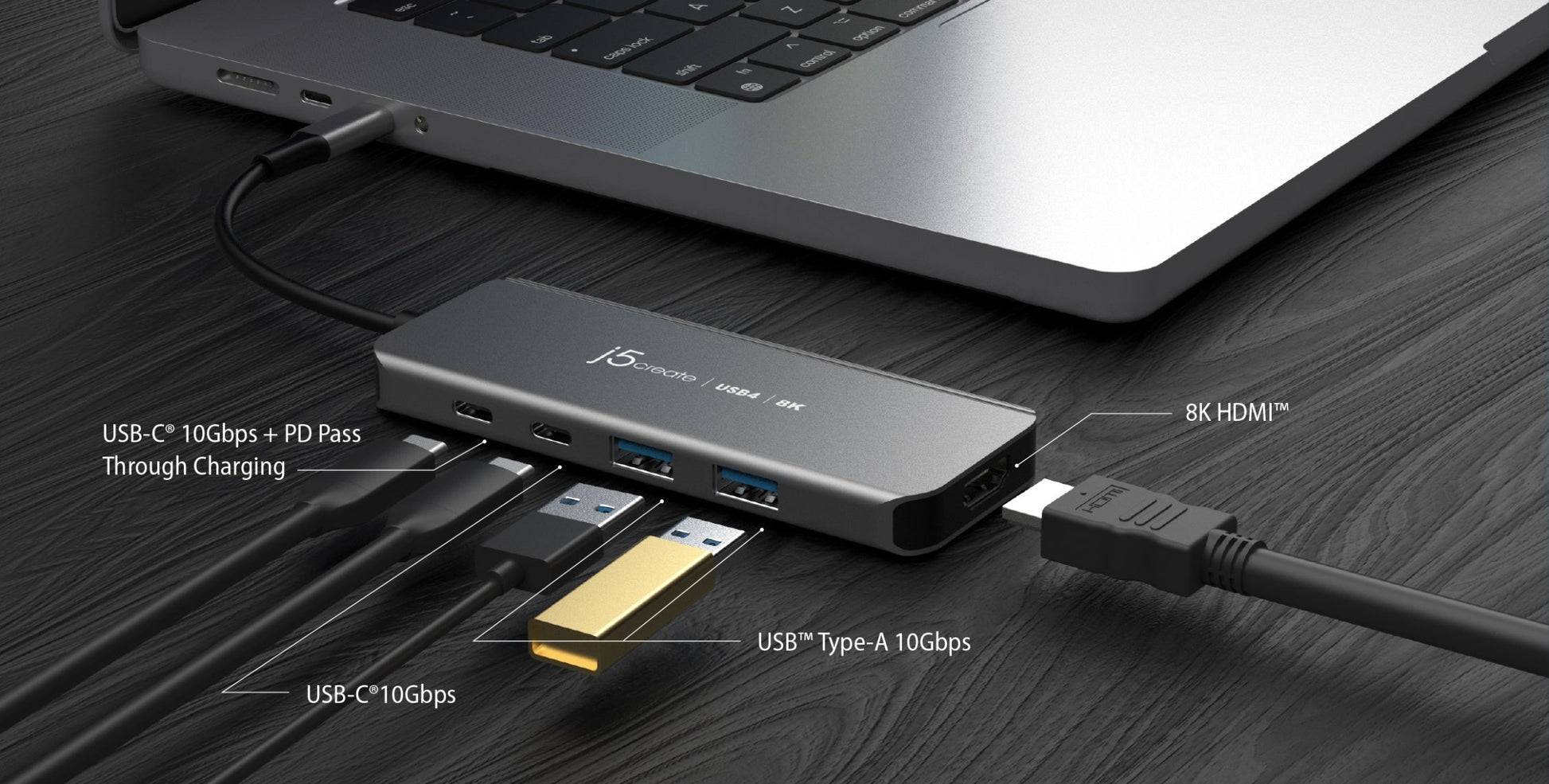

• Ports: 1 - USB-C® 3.2 Gen2 10Gbps data transmission; 1 - USB-C® power delivery 3.0 100W with 10Gbps data transmission; 2 - USB™ Type-A 3.2 Gen2 10Gbps data transmission; 1 - 8K HDMI™
• Maximum Display Resolution: 7680 x 4320
• Maximum Display Refresh Rate: 144 Hz @ 1920 x 1080; 144 Hz @ 2560 x 1440; 60 Hz @ 3840 x 2160; 144 Hz @ 3840 x 2160 (only for DSC host); 30 Hz @ 7680 x 4320; 60 Hz @ 7680 x 4320 (only for DSC host)
• Maximum Data Transfer Rate: 10 Gbps
• Displays Supported: 1
• Compatible Networks: N/A
• Audio Channel: 2.1 via HDMI™
• Power Delivery: Up to 100W via USB-C®
• Power Consumption: ≤ 900 mA
• Input Current: Up to 5A
• Input Voltage: Up to 20V
• Output Current: Up to 4.75A
• Output Voltage: Up to 20V
• Color: Space Grey
• Enclosure Type: Aluminum
• Cable Length: 7.87 in. (200 mm)
• Product Height: 0.43 in. (11 mm)
• Product Width: 4.58 in. (116.31 mm)
• Product Depth: 1.77 in. (45 mm)
• Product Weight: 2.6 oz (74 g)
• Storage Temperature: 0 to 155°F (-17 to 68°C)
• Storage Humidity: < 85% non-condensing
• Operating Temperature: 30 to 116°F (-1 to 41°C)
• Operating Humidity: < 85% non-condensing

WHAT’S IN THE BOX:

• JCH453 USB4® 8K60 Slim Hub x1
• Quick Installation Guide (QIG) x1

WARRANTY:

• 24 Months
