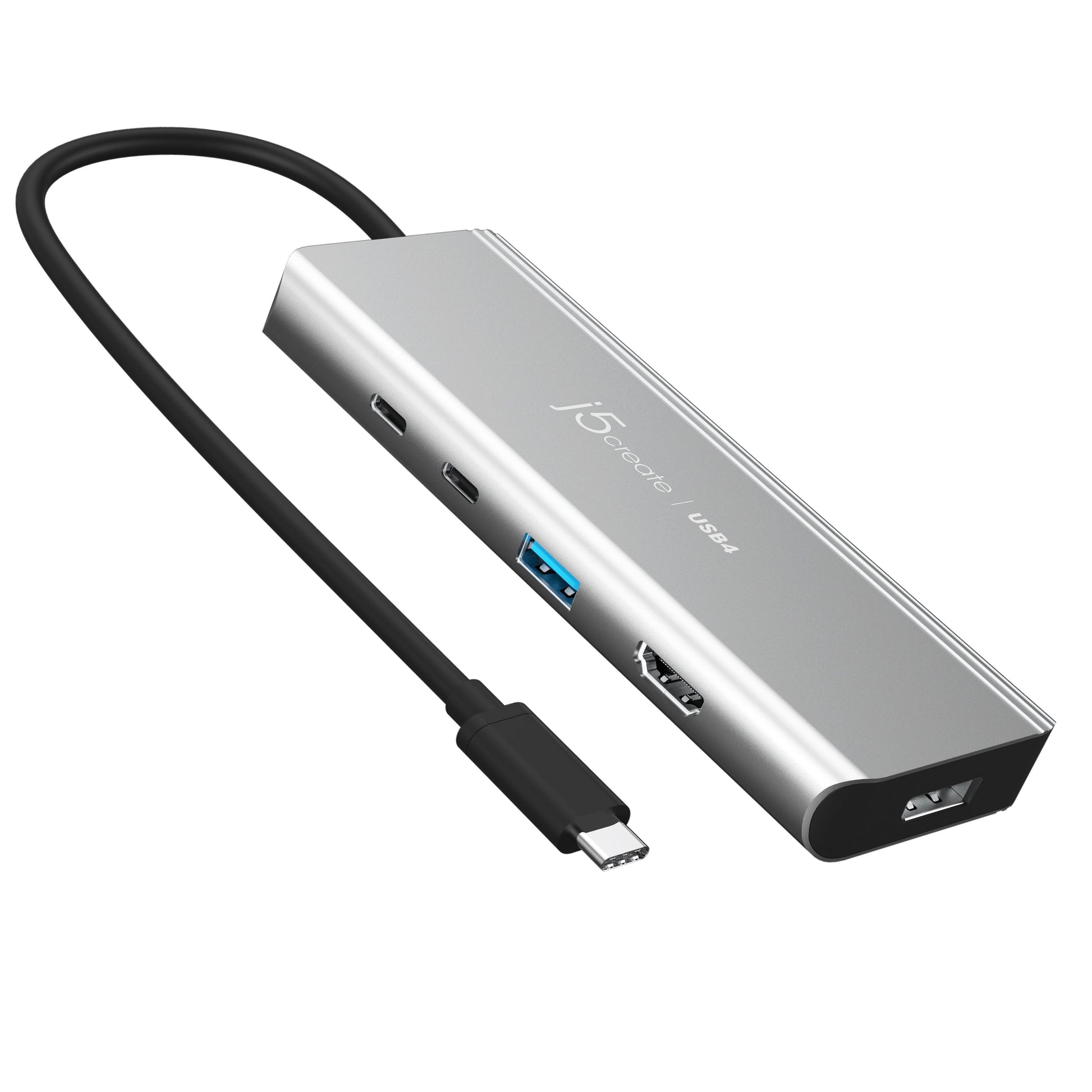

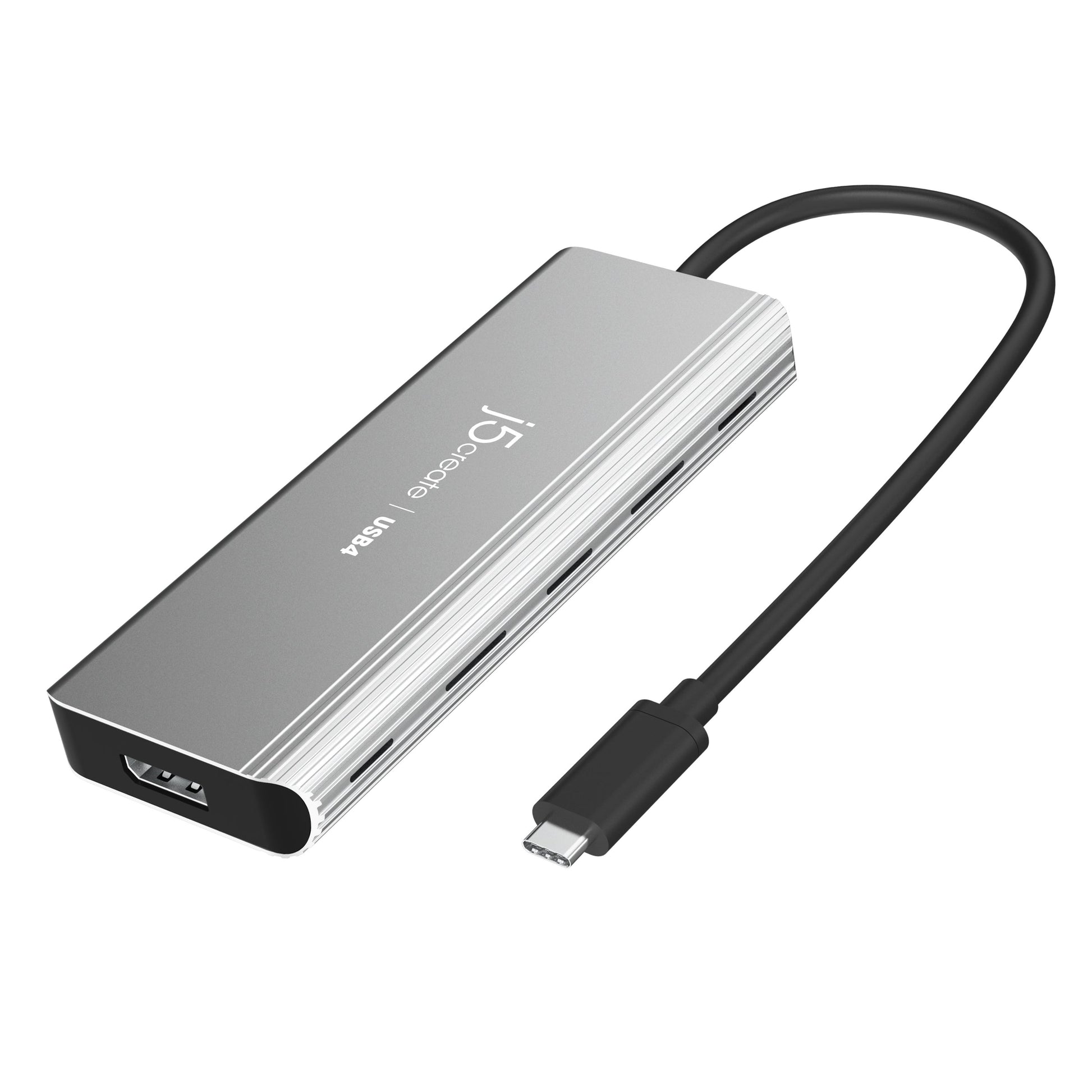

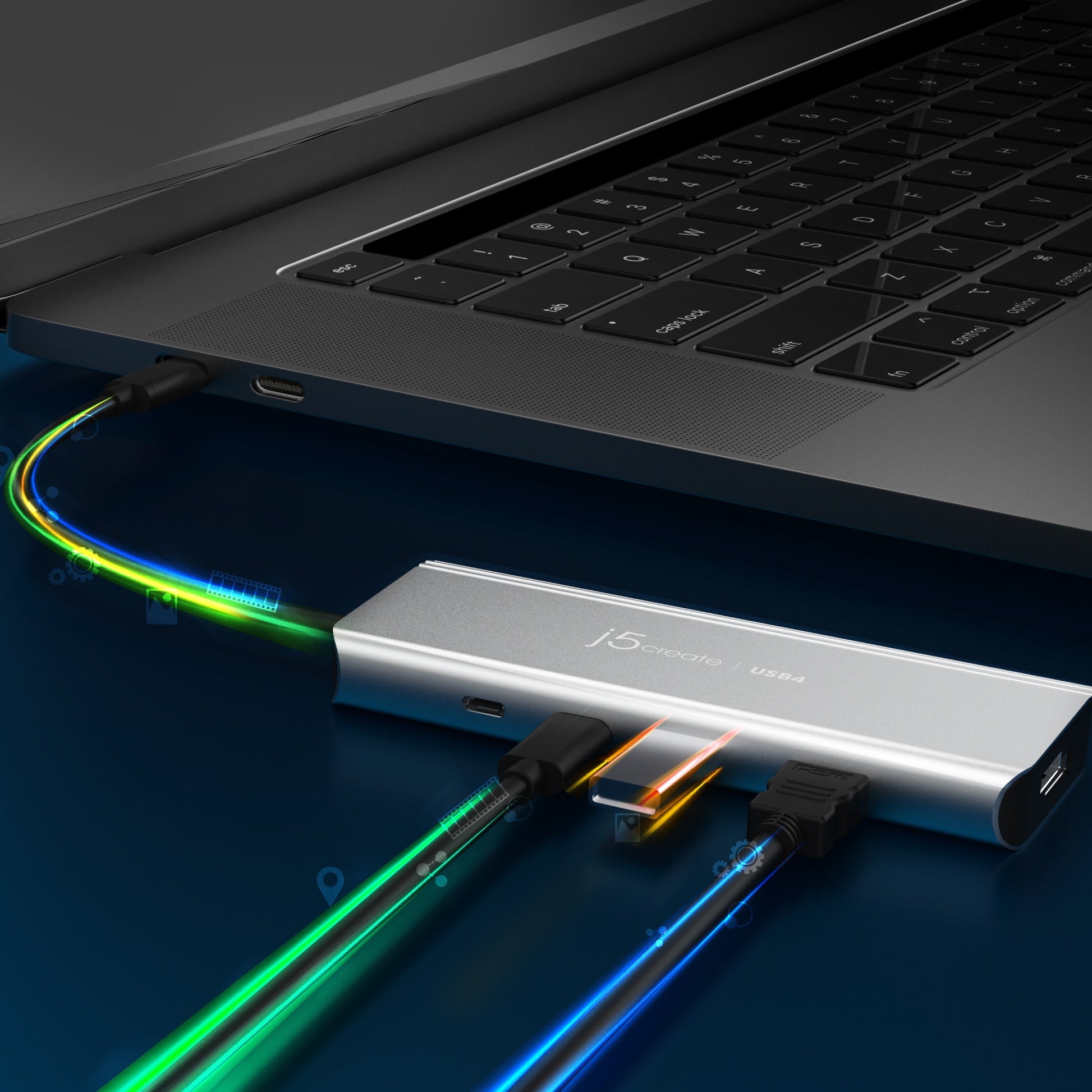

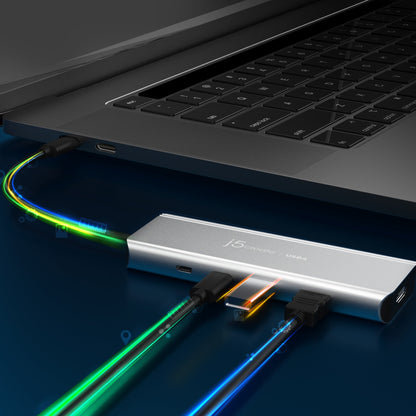

J5create USB4 Dual 4K Multi-Port Hub - JCD401

This high-performance USB4® multi-port hub is the first USB-C® hub to incorporate the latest USB4® controller from Intel®, offering compatibility with Thunderbolt™ and older USB™ specifications.

With up to 20Gbps of throughput, dynamic data, and display bandwidth allocation for efficient display data flow, you can easily create a dual-monitor setup. Enjoy up to 4K resolution using DisplayPort™, HDMI™, or USB-C® and access data faster without affecting system performance. Additionally, it has two USB™ SuperSpeed+ 10Gbps ports (1 USB-C® and 1 Type-A) for charging or connecting peripherals. It is also equipped with a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 85W pass-through power.

FEATURES:

•  Intel® USB4® controller ensures industry-leading quality and reliability
• Up to two 4K displays with flexible monitor connections
  • ◦ 1 DisplayPort™ + 1 HDMI™
  • ◦ 1 USB-C® + 1 DisplayPort™
  • ◦ 1 USB-C® + 1 HDMI™
• Multiple data and display protocols efficiently share bandwidth to offer optimal performance

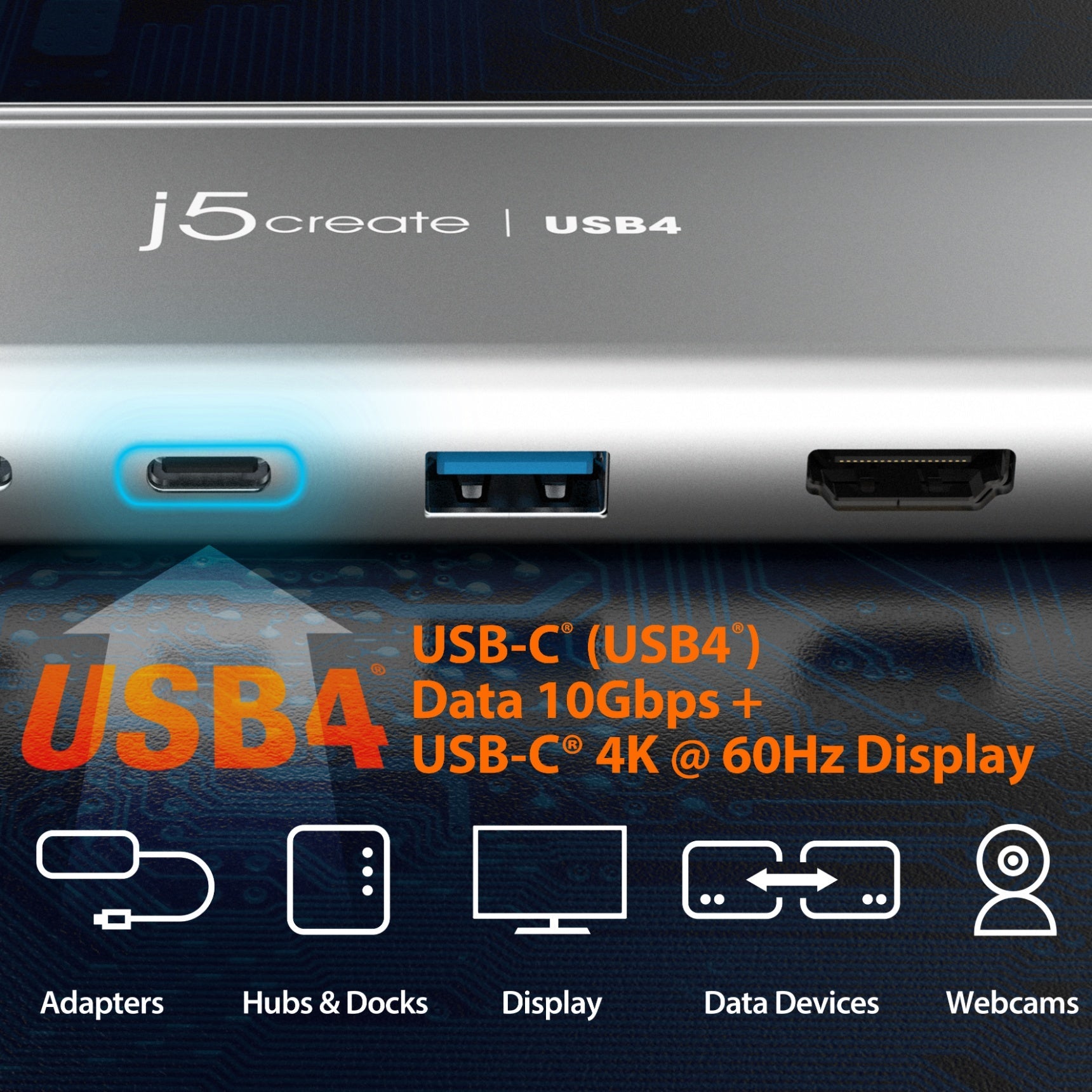

• One USB-C® downstream port supports up to 10Gbps data transmission and DP™ 1.2 support for 4K @ 60Hz video output

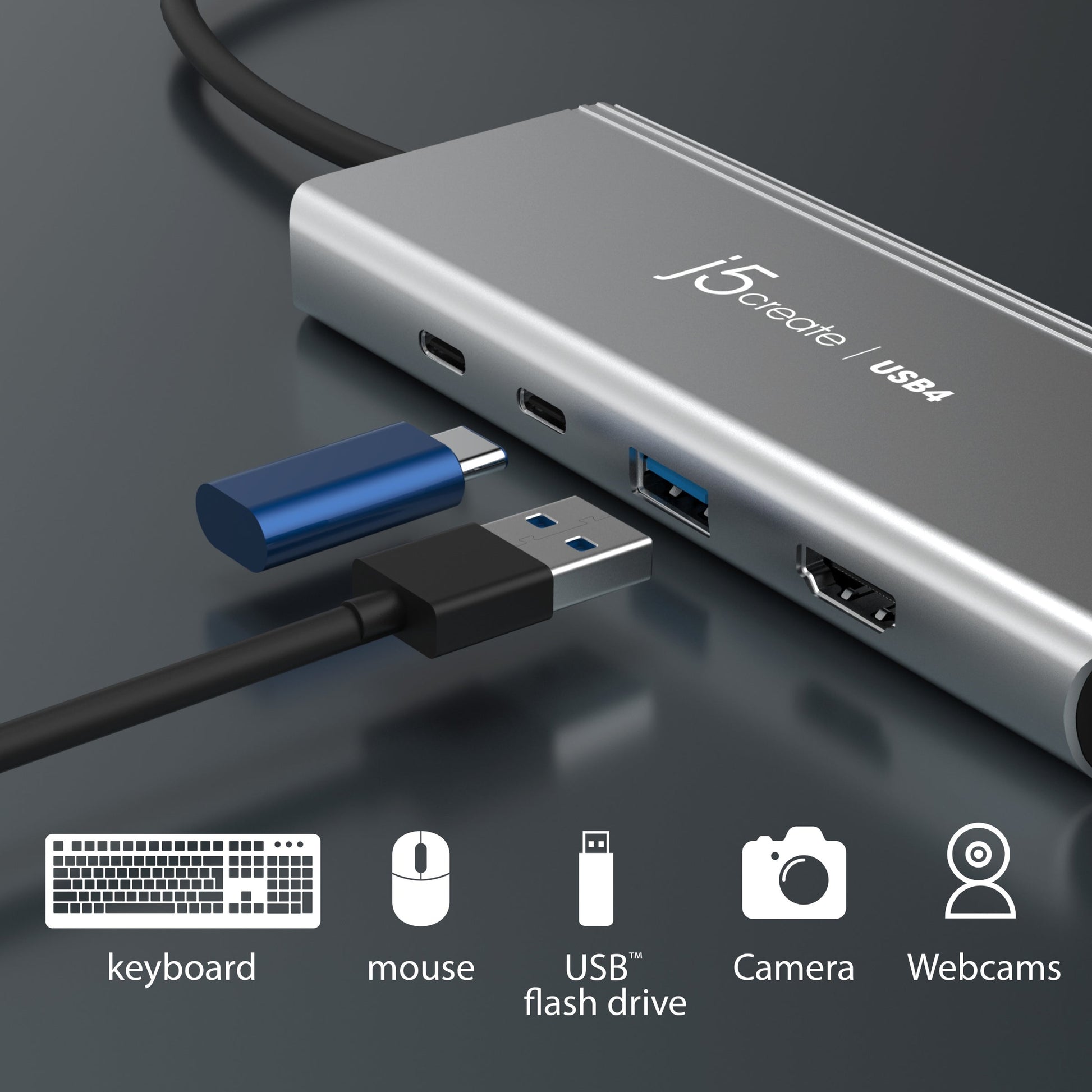

• One SuperSpeed+ USB™ Type-A 10Gbps port to accommodate your peripherals

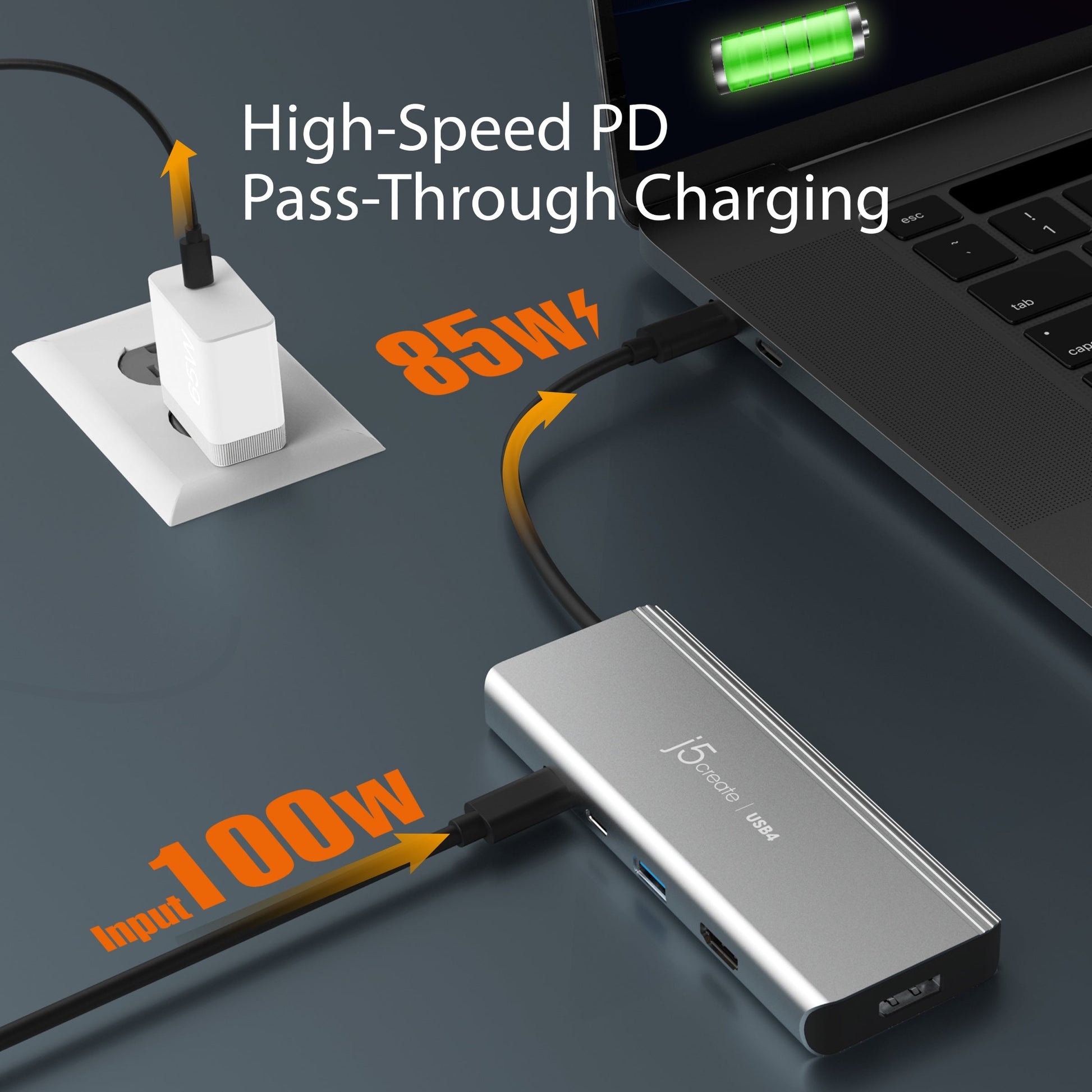

• Power Delivery 3.0 offers up to 85W of pass-through charging with a USB-C® power adapter
• Wide compatibility with various operating systems and devices
• Plug-and-play, no driver installation required

System Requirements:

• Available USB-C® port that supports Thunderbolt™ 4, Thunderbolt™ 3, or USB4®.

Special Notes:

•  A 4K-capable display and cable is required for obtaining the 3840 x 2160 resolution
• If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited
• The adapter can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device
• If you are using high-powered USB™ devices, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. To avoid disruption, do not remove the power adapter while copying files
• We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the adapter at a time
• Supports up to 1 external display when connected to legacy USB-C® laptops or M1 Mac®
• Mac® computers with the M1 and M2 chip only support 1 external display
• Mac® computers with the M1/M2 Pro, M1/M2 Max, or M1 Ultra chip will support 2 external displays
• If your dual monitors does not display properly, please manually set the resolution to a maximum of 4K30 to ensure dual 4K display output

SPECIFICATIONS:

• Host Connector: 1 × USB4® Male
• Video Output:
  • 1 × HDMI™ Female
  • 1 × DisplayPort™ Female
  • 1 × USB-C® (with DisplayPort™ Alt Mode)
• Power Source: Bus-powered or self-powered
• Network Interface: None
• Audio Supported: No

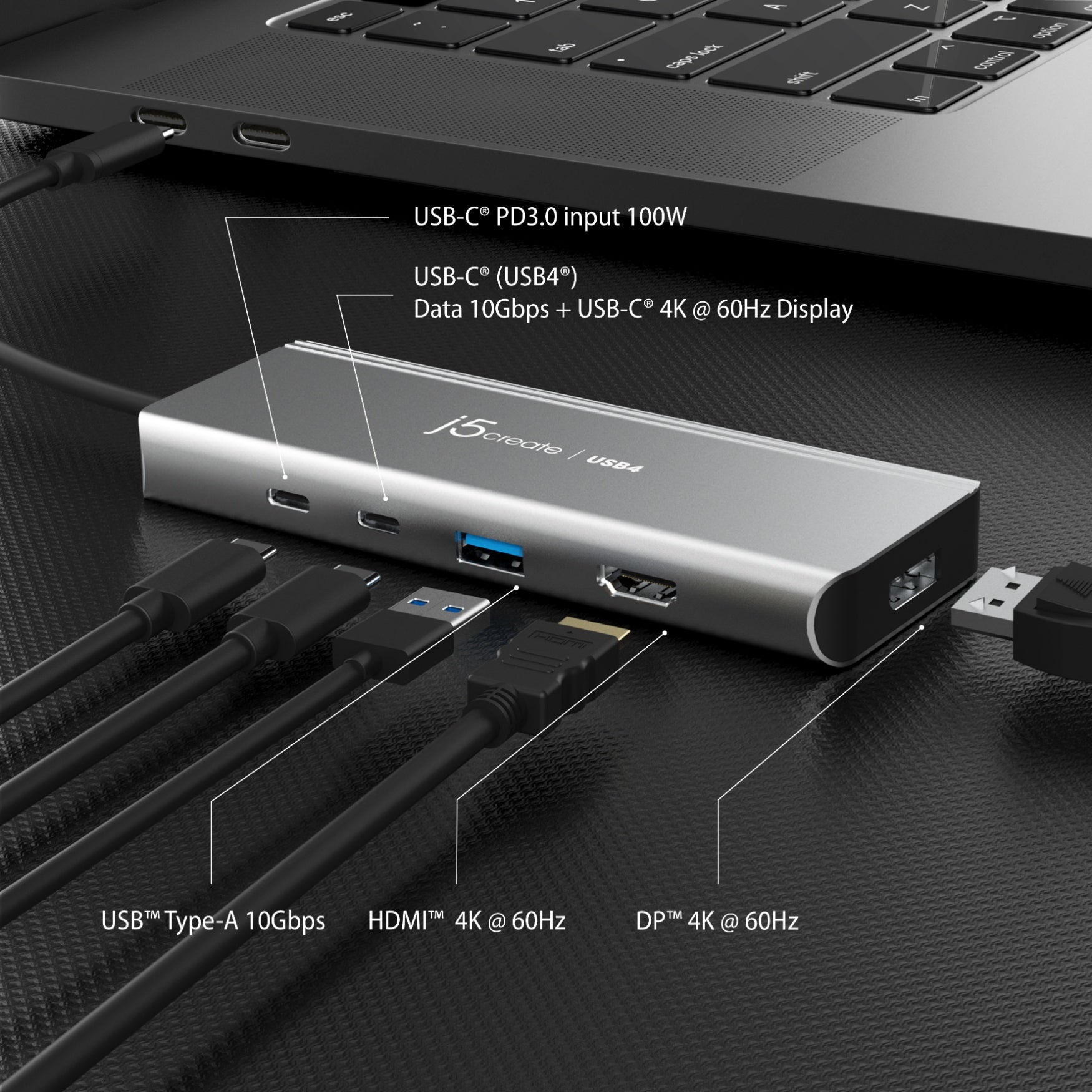

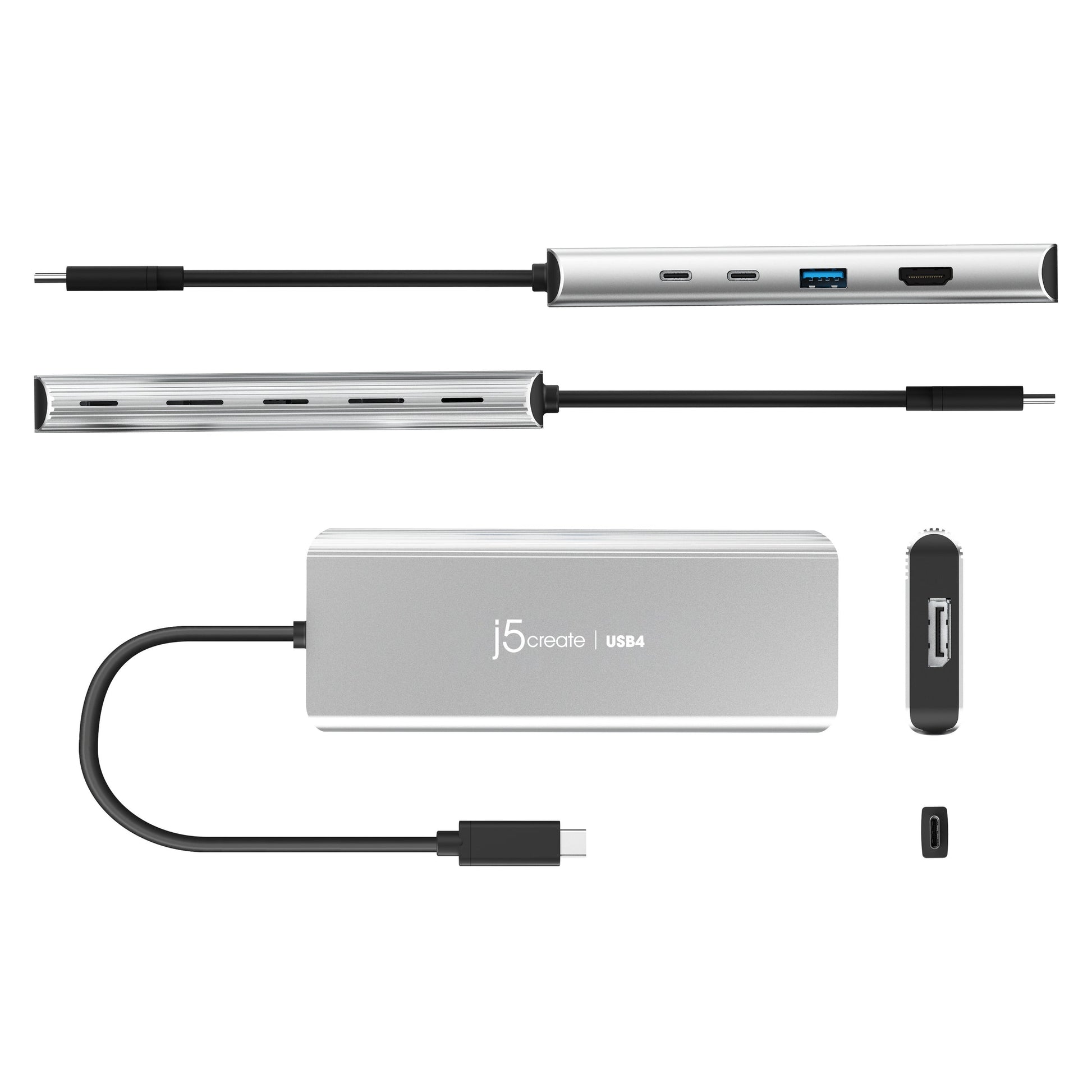

• Ports:
  • 1 × USB-C® 3.2 Gen 2 (10Gbps) with DisplayPort™ 1.2 support
  • 1 × USB™ Type-A 3.2 Gen 2 (10Gbps)
  • 1 × USB-C® Power Delivery 3.0
  • 1 × 4K HDMI™
  • 1 × DisplayPort™ 1.2
• Maximum Display Resolution: 3840 × 2160
• Maximum Display Refresh Rate: 60 Hz
• Maximum Data Transfer Rate: 10Gbps
• Displays Supported: 2
• Compatible Networks: N/A
• Audio Channel: N/A
• Power Delivery: Up to 85W via USB-C®
• Power Consumption: ≤ 900 mA
• Input Current: Up to 3A
• Input Voltage: Up to 20V
• Output Current: Up to 4.25A
• Output Voltage: Up to 20
• Color: Space Grey
• Enclosure Type: Aluminum
• Cable Length: 7.87 in. (200 mm)
• Product Height: 5.3 in. (135 mm)
• Product Width: 2 in. (51 mm)
• Product Depth: 0.59 in. (15 mm)
• Product Weight: 3.84 oz (109 g)
• Storage Temperature: 0 to 155°F (-17 to 68°C)
• Storage Humidity: < 85% non-condensing
• Operating Temperature: 30 to 116°F (-1 to 41°C)
• Operating Humidity: < 85% non-condensing

WHAT'S IN THE BOX:

• JCD401 USB4® Dual 4K Multi-Port Hub x1
• Quick Installation Guide (QIG) x1

WARRANTY:

• 24 Months
