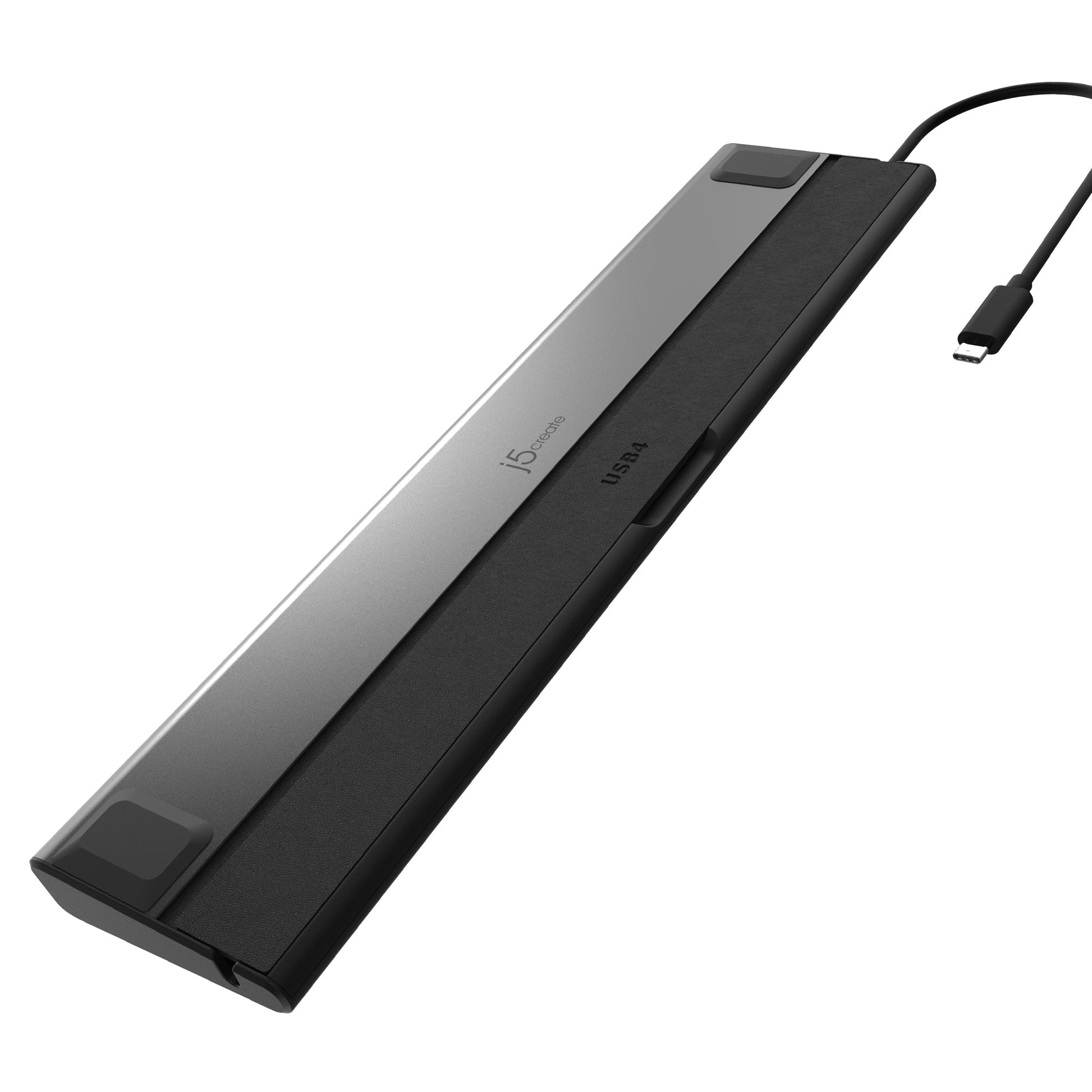

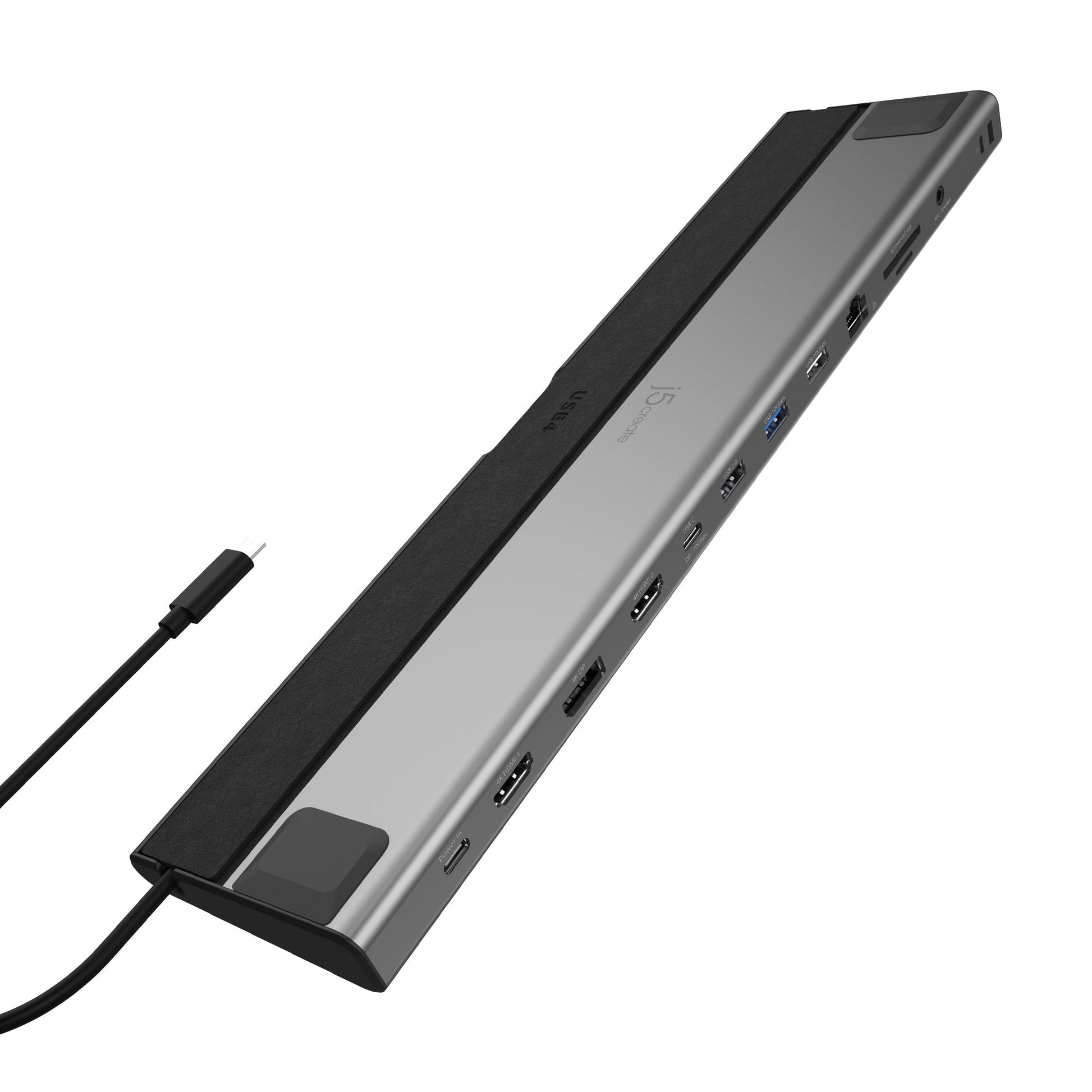

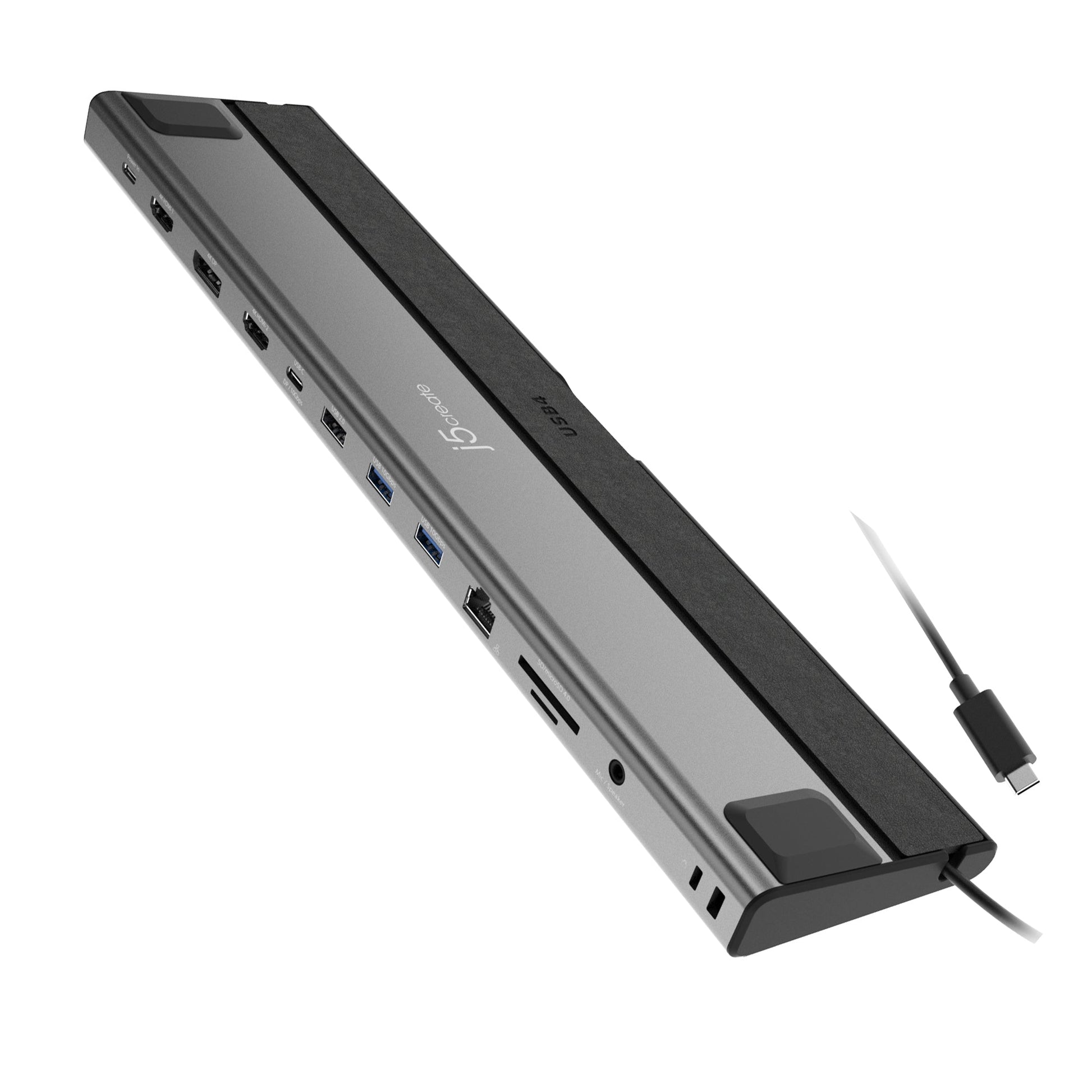

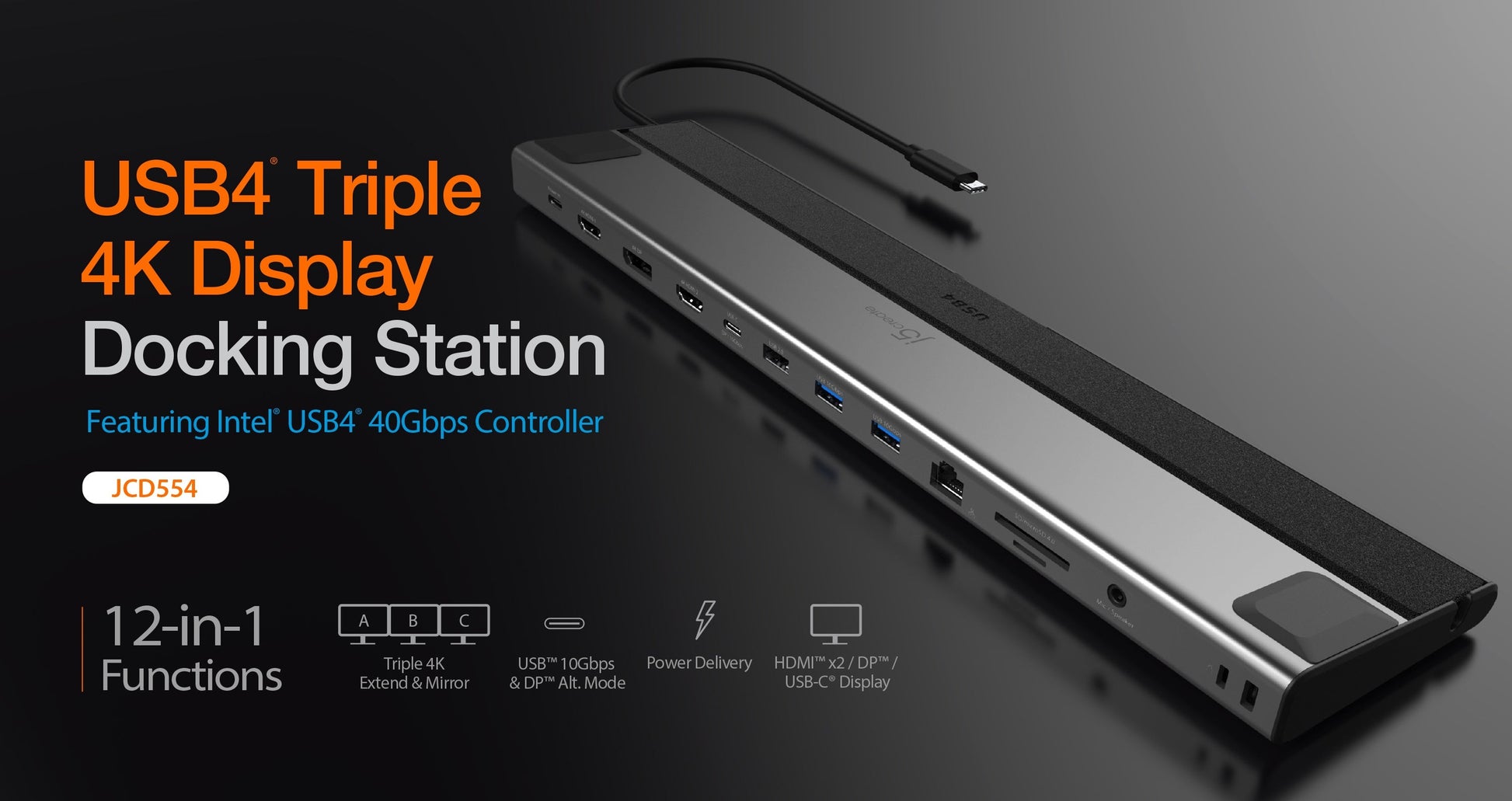

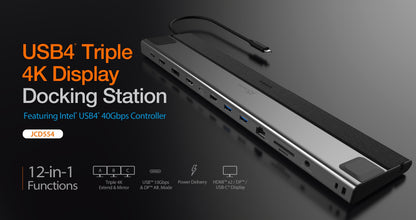

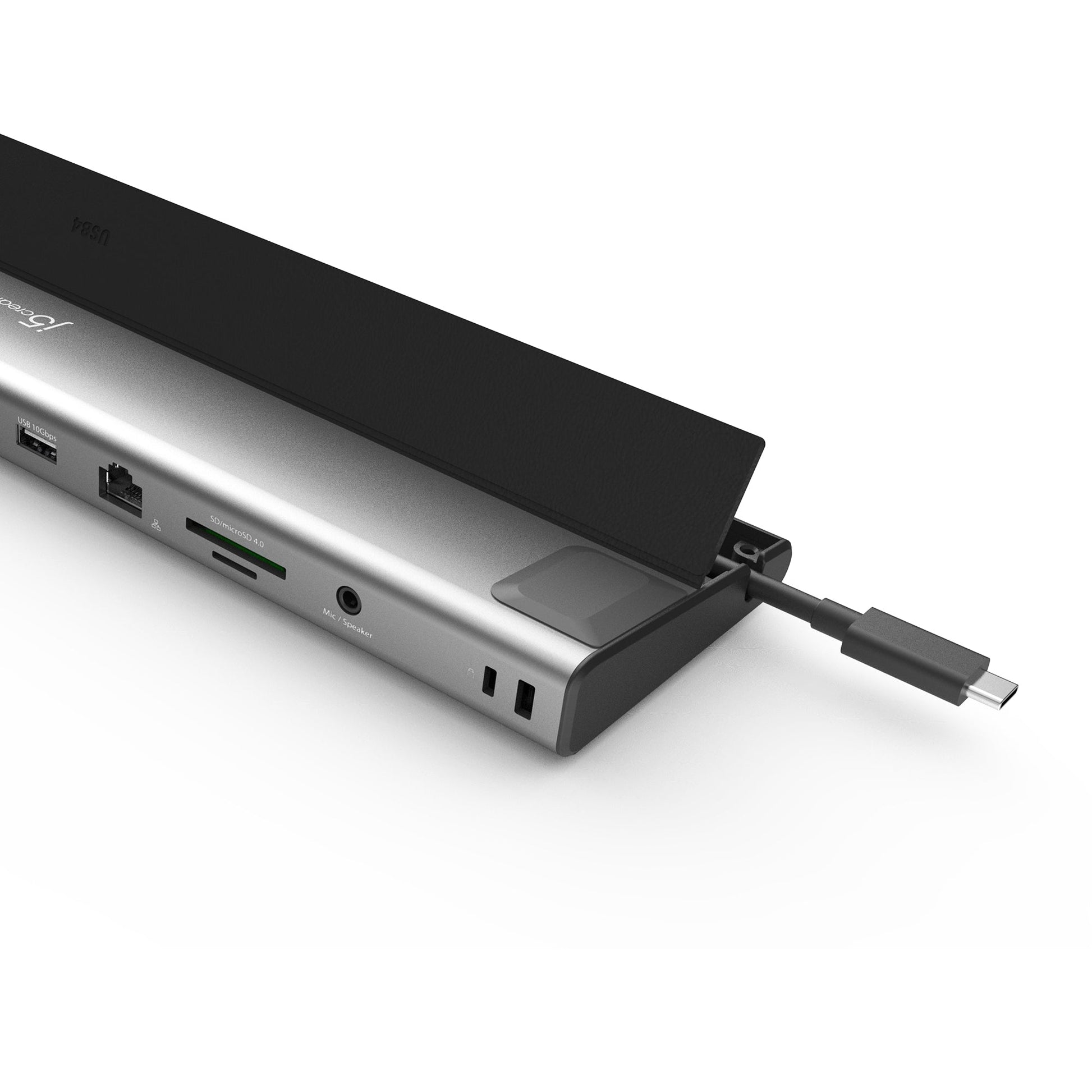

J5create USB4 Triple 4K Display Docking Station - JCD554

This high-performance USB4® Triple 4K Display Docking Station is the first USB-C® docking to incorporate a USB4® controller from Intel®, offering compatibility with Thunderbolt™ 4 and USB4® laptops. No driver installation is required for use making it an easy-to-use docking station solution.

With up to 40Gbps of throughput and dynamic data and display bandwidth allocation for efficient display data flow, you can easily create a Triple-monitor setup with up 4K resolution using DisplayPort™ , HDMI™ or USB-C® and access data faster without affecting system performance.

Additionally, it has three USB™ 3.2 10Gbps ports (1 USB-C® and 2 Type-A) for charging or connecting peripherals, as well as a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 85W pass-through power. A USB™ 2.0 port is also included for connecting your wireless USB™ mouse or keyboard with reduced latency.

FEATURES:

• Includes the latest Intel® USB4® controller ensures industry-leading quality
• Provides 3 USB™ ports and a USB-C® port to offer ultimate connectivity and performance

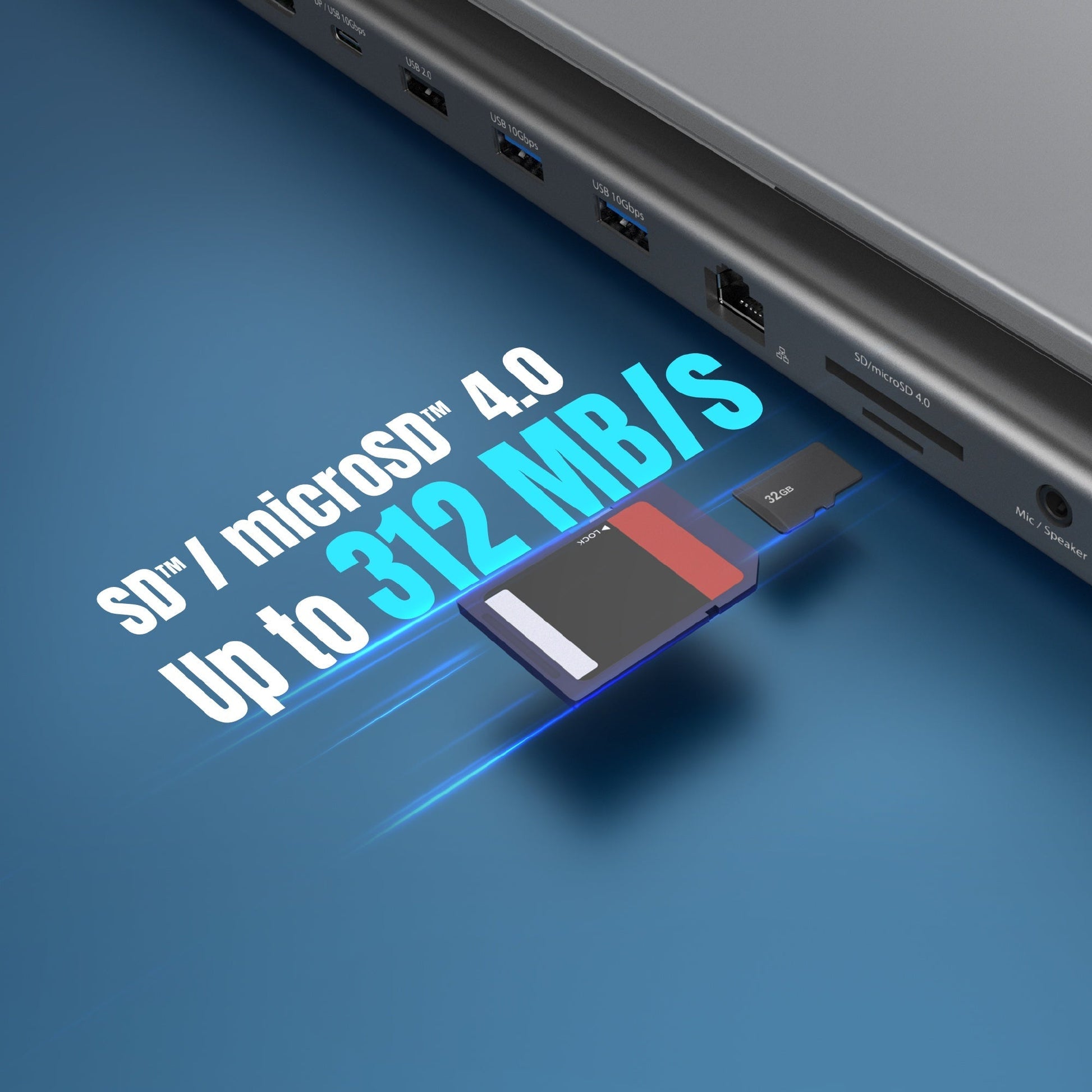

• Integrates a Gigabit Ethernet port, SD™ / microSD™ 4.0 card reader, and audio combo
• Offers up to 85W of pass-through charging
• Plug & Play, compatible with Windows® and macOS®
• Security Lock Design

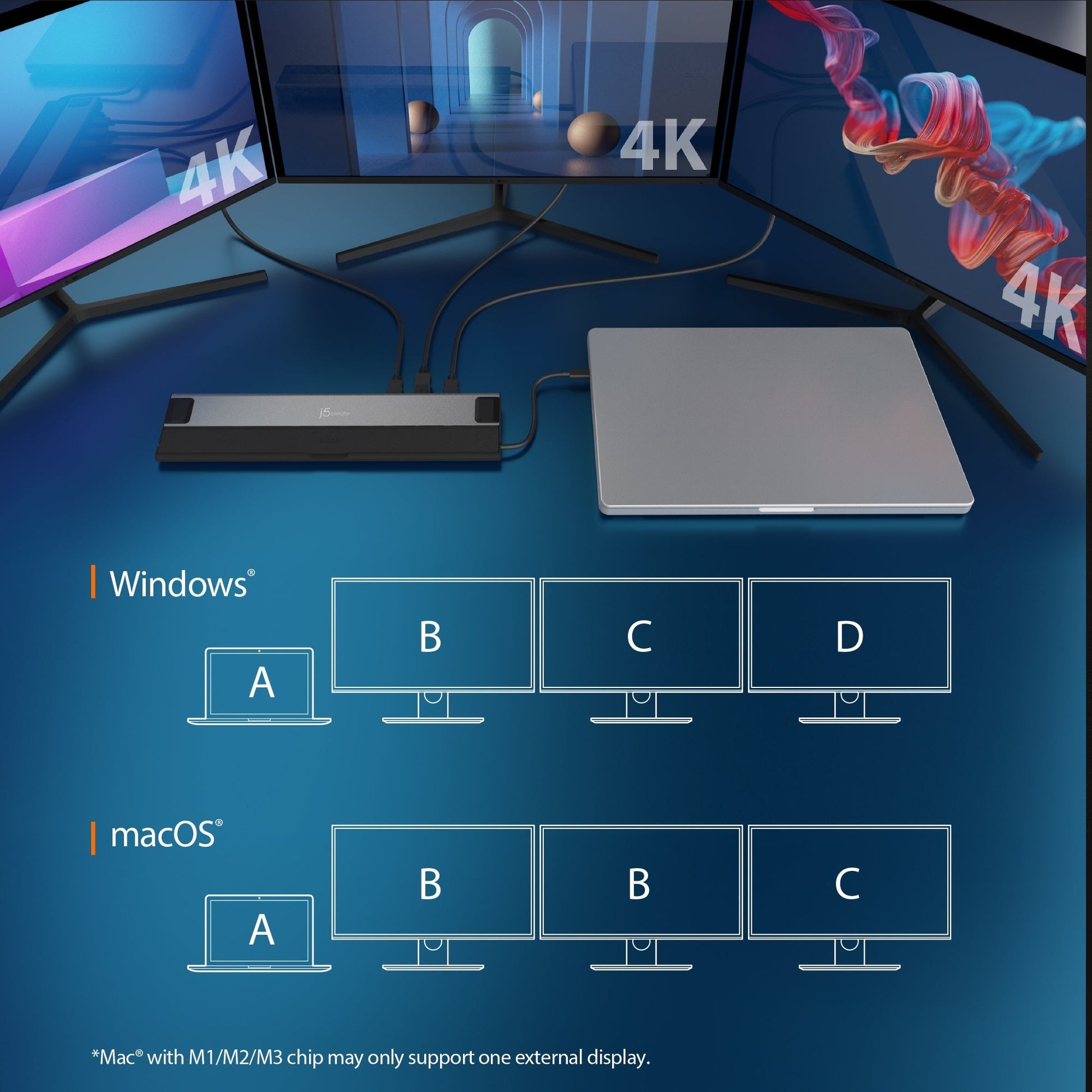

• Supports up to MST three 4K displays with Thunderbolt™ 4 or USB4® host laptops

• Reference Triple Display Combinations

  • HDMI™ 1 + DisplayPort™ + USB-C® (DP™ -Alt)
  • HDMI™ 1 + DisplayPort™ + HDMI™ 2
    *Mac® systems do not support MST, may only supports mirror screen on some external displays
    *Also supports other USB™ 3.2 host laptops and lower resolution monitors/displays
    *Supports DSC maximum resolution: Triple 4K60Hz monitors/display

System Requirements:

• Available USB4® or Thunderbolt™ 4 port on host

Special Notes:

• A 4K-capable display is required for obtaining the 3840 x 2160 resolution
• If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited
• The adapter can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device
• If you are using high-powered USB™ devices, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. Do not remove the power adapter while copying files to avoid disruption.
• MacBook® models with the M1 and M2 chip will only support 1 external display.

SPECIFICATIONS:

• Audio Supported: Yes
• Host Connector: USB4® male ×1
• Network Interface: RJ45 (Gigabit Ethernet)

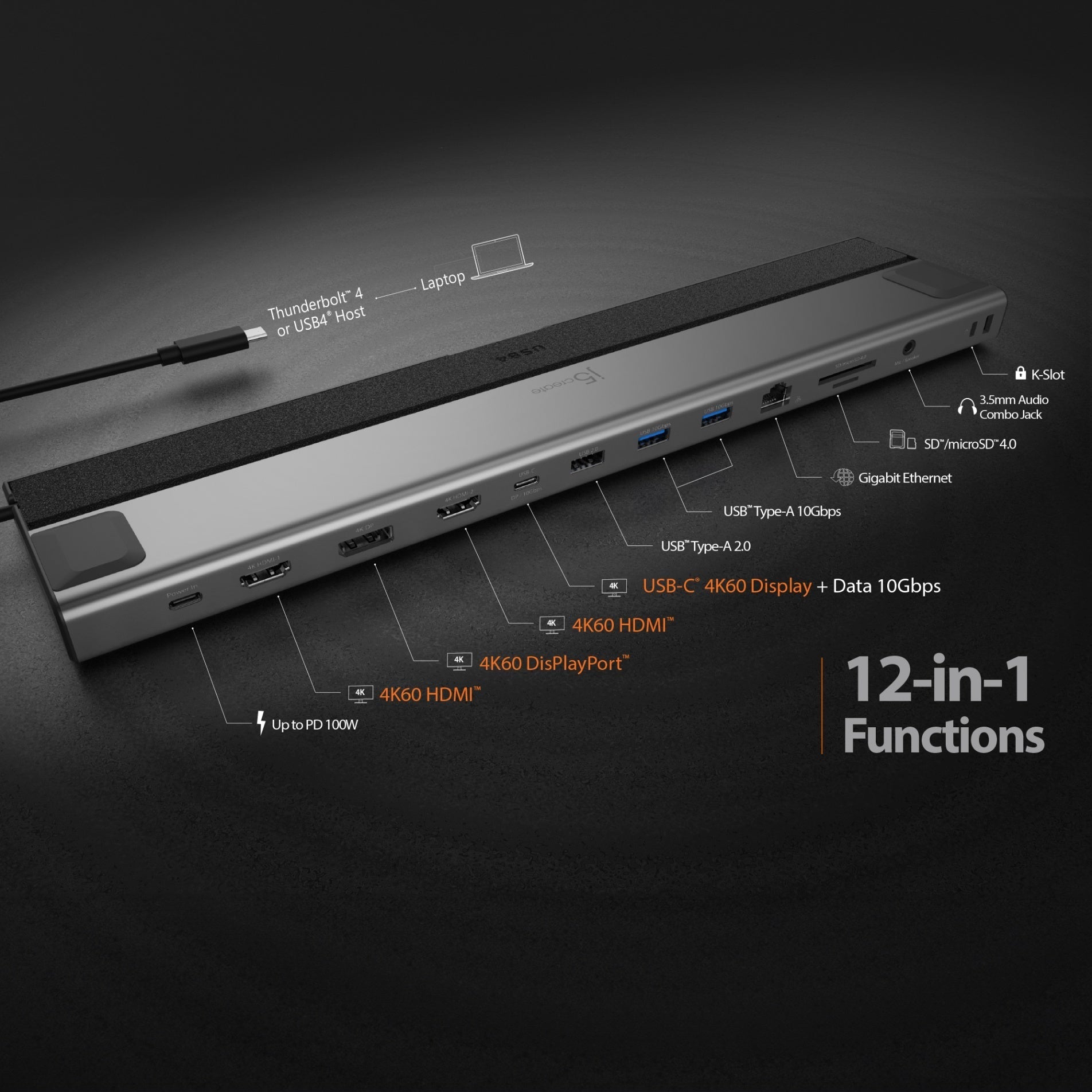

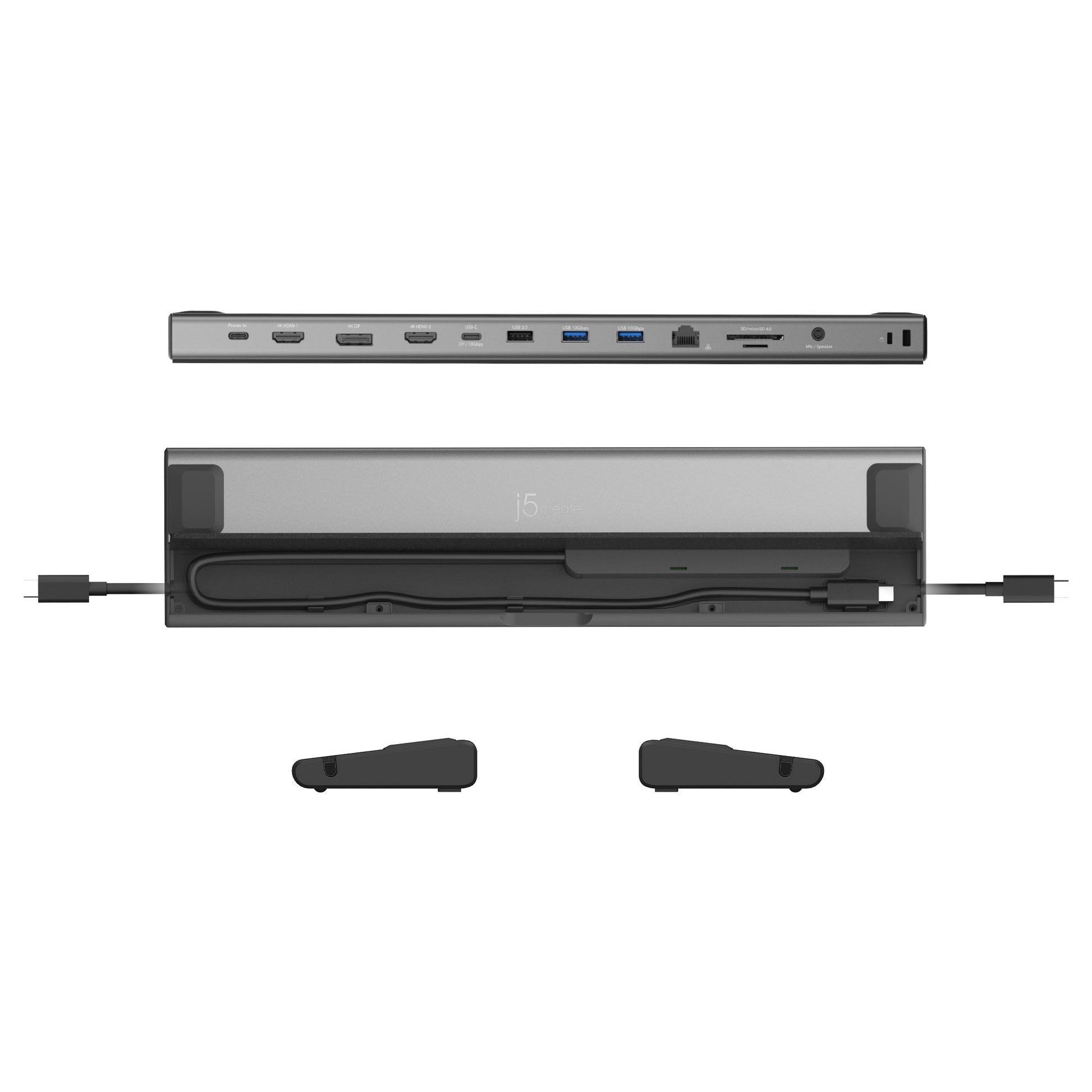

• Ports:

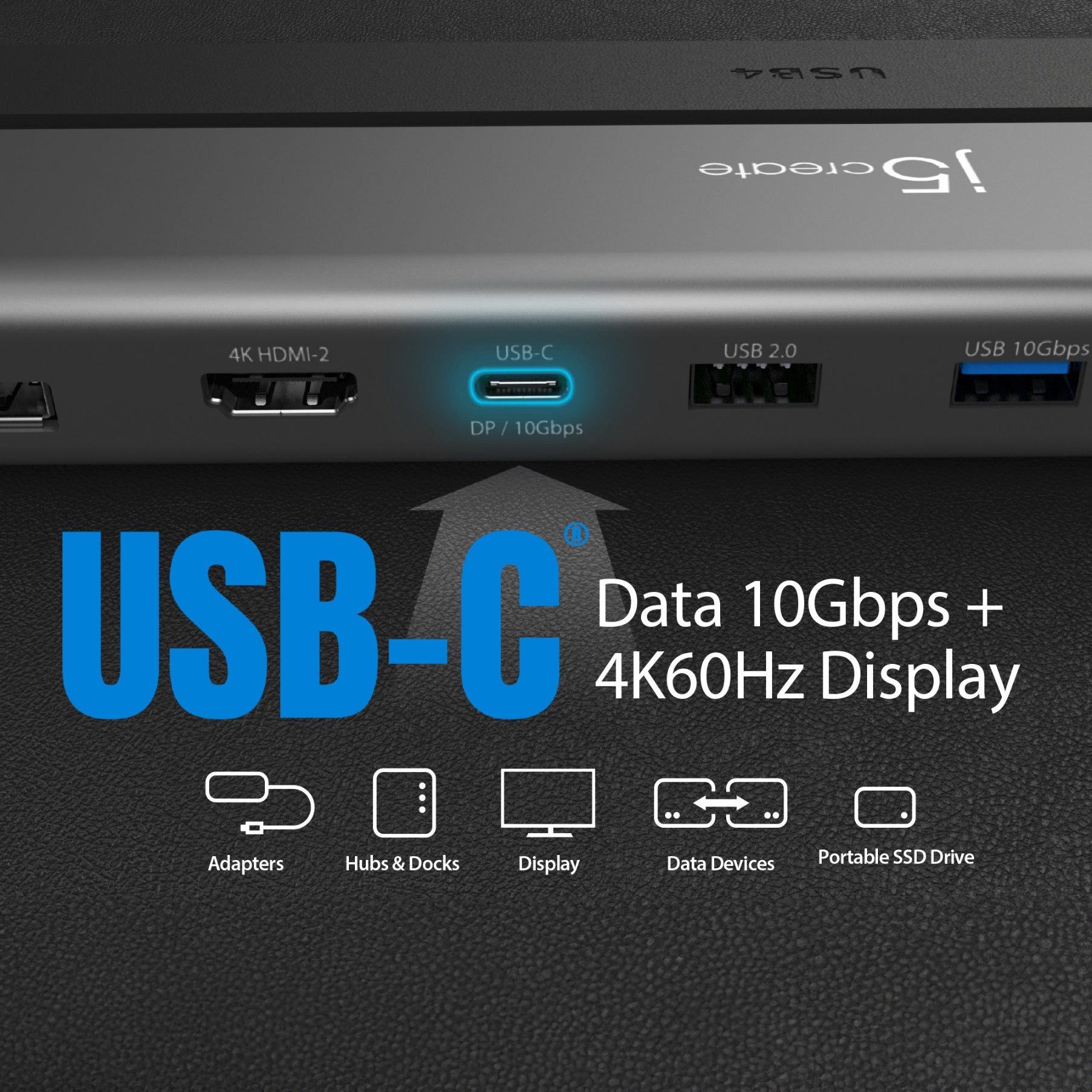

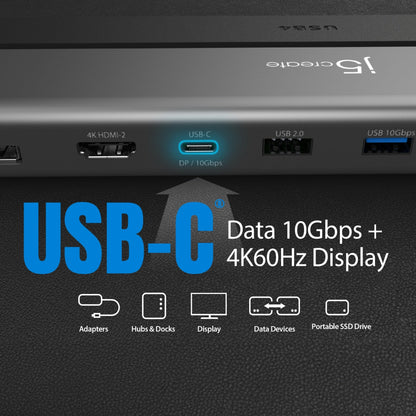

  • USB-C® (10 Gbps with DisplayPort™ Alt Mode) ×1
  • USB™ Type-A 2.0 (480 Mbps) ×1

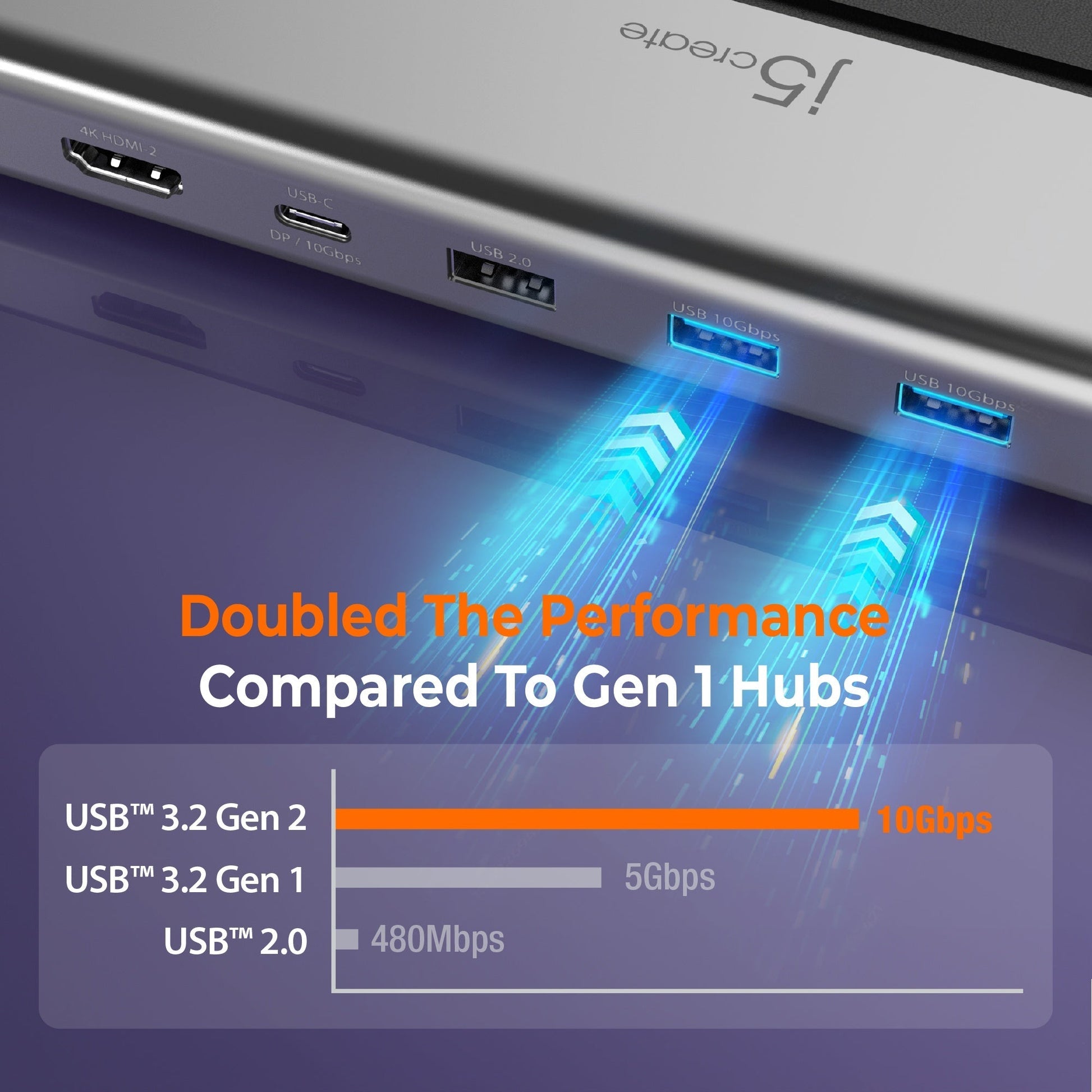

  • USB™ Type-A 3.2 Gen 2 (10 Gbps) ×2
  • DisplayPort™ (4K) ×1
  • HDMI™ (4K) ×2
  • SD™ / microSD™ 4.0 card slot ×1

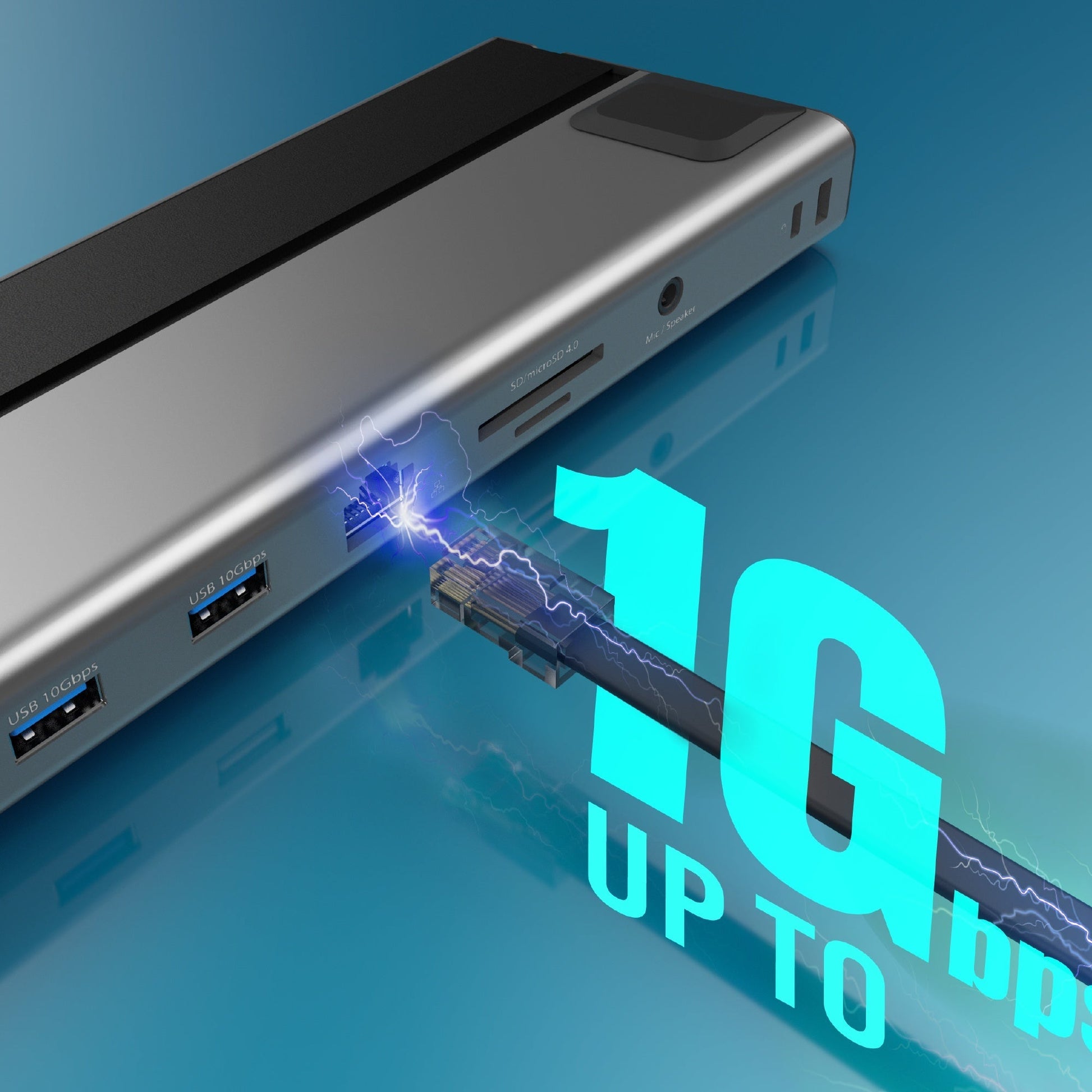

  • Gigabit Ethernet ×1
  • USB-C® Power Delivery 3.0 ×1
  • 3.5 mm audio combo jack ×1
• Power Source: Bus-powered or self-powered

• DisplayPort™ female ×1
• HDMI™ female ×2
• USB-C® with DisplayPort™ Alt Mode ×1
• Audio: 2.1 channel via HDMI™ / DisplayPort™ / USB-C®
• Network Compatibility: Supported
• Displays Supported: Up to 3
• Max Data Transfer Rate: 10 Gbps
• Max Display Refresh Rate: 4K @ 60 Hz
• Max Display Resolution:
  • Single Display (with DSC):
    • 3840 × 2160 @ 60 Hz
    • 2560 × 1440 @ 120 / 144 Hz
    • 1920 × 1080 @ 144 Hz
  • Dual Display (with DSC):
    • 3840 × 2160 @ 60 Hz ×2
  • Triple Display (with DSC, Windows® TBT4 / USB4® + MST):
    • 3840 × 2160 @ 60 Hz ×3
• Power Delivery: Up to 85W via USB-C®
• Power Consumption: 900 mA
• Input:
  • Voltage: up to 20V
  • Current: up to 3A
• Output:
  • Voltage: up to 20V
  • Current: up to 4.25A
• Space Gray & Black
• Enclosure: Aluminum

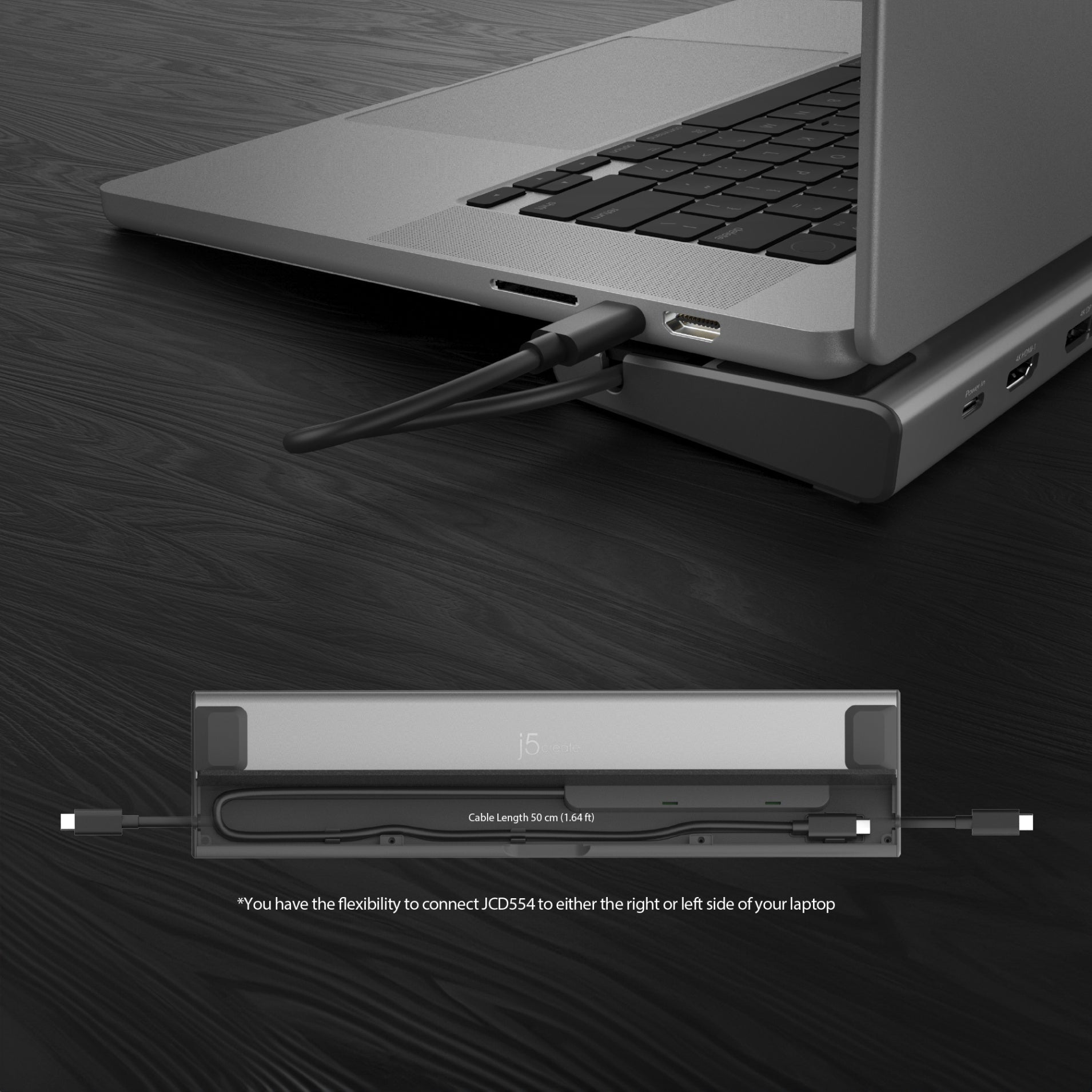

• Cable Length: 1.64 ft (50 cm)
• Dimensions:
  • Width: 13.54 in (344 mm)
  • Depth: 3.20 in (81.39 mm)
  • Height: 0.93 in (23.56 mm)
• Weight: 16.33 oz (463 g)
• Operating:
  • Temperature: 30 to 116°F (-1 to 41°C)
  • Humidity: < 85% (non-condensing)
• Storage:
  • Temperature: 0 to 155°F (-17 to 68°C)
  • Humidity: < 85% (non-condensing)

WHAT'S IN THE BOX:

• JCD554 USB4® Triple 4K Display Docking Station x1
• Quick Installation Guide (QIG) x1

WARRANTY:

• 24 Months
