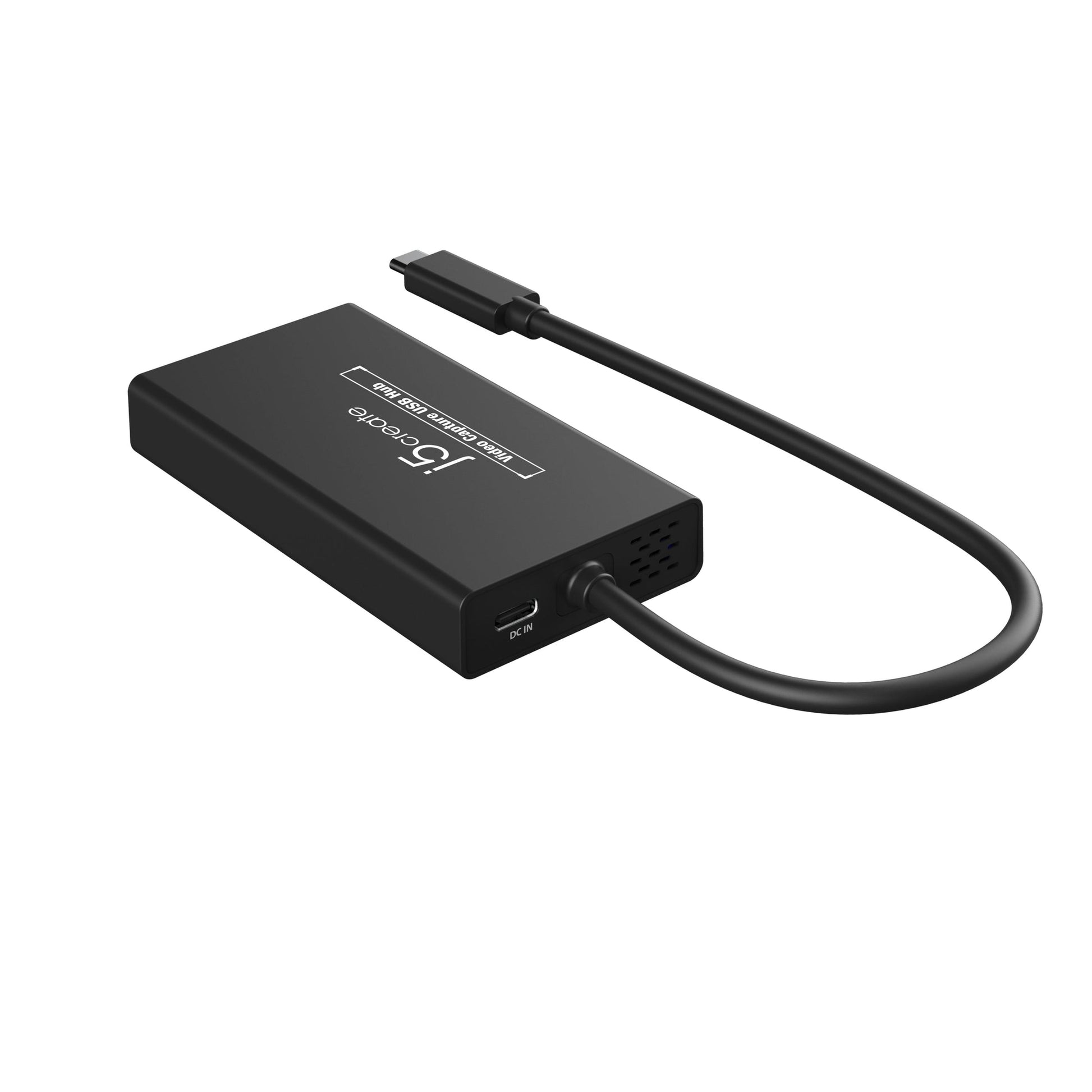

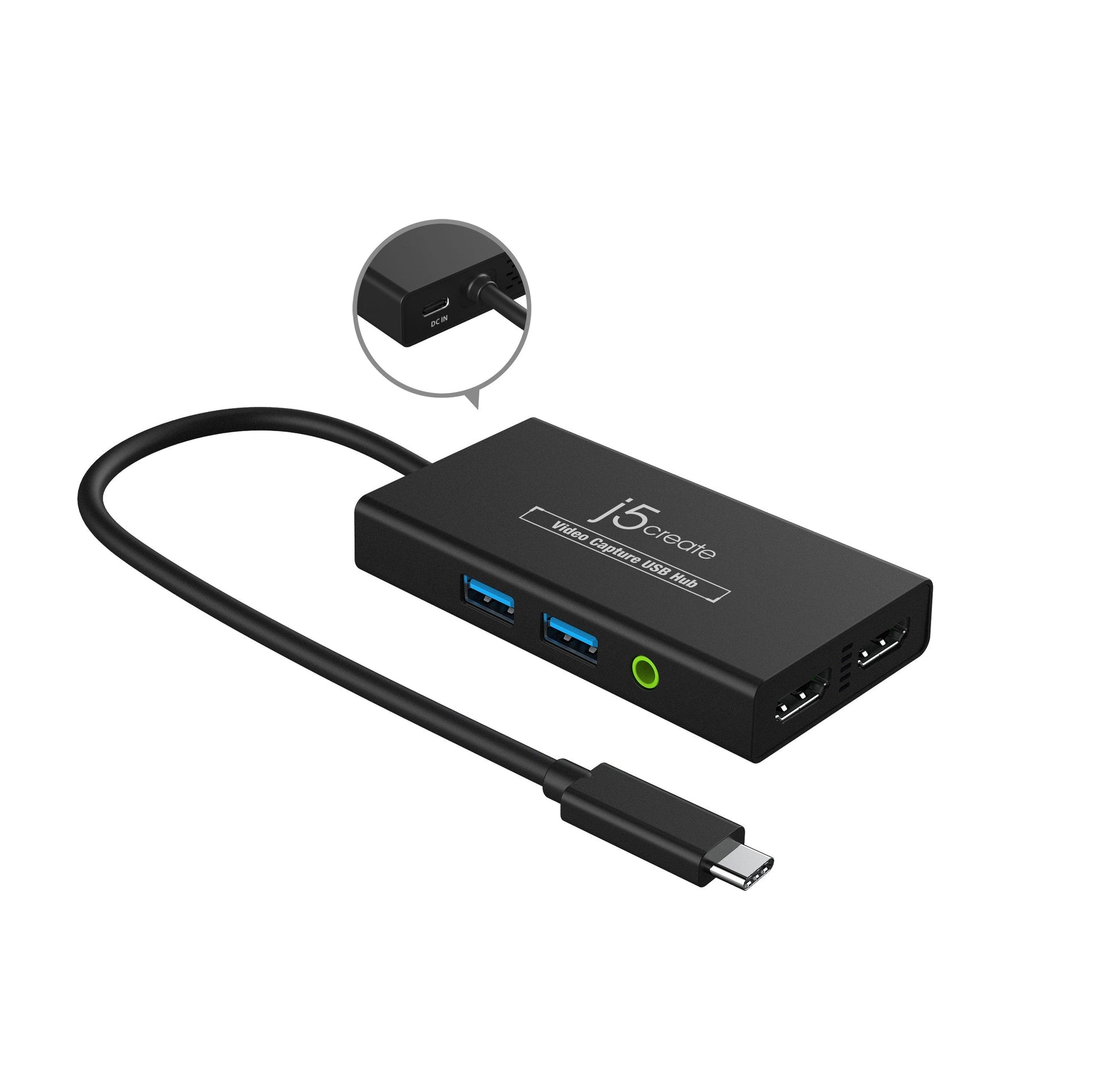

J5create Video Capture USB Hub - JVA01

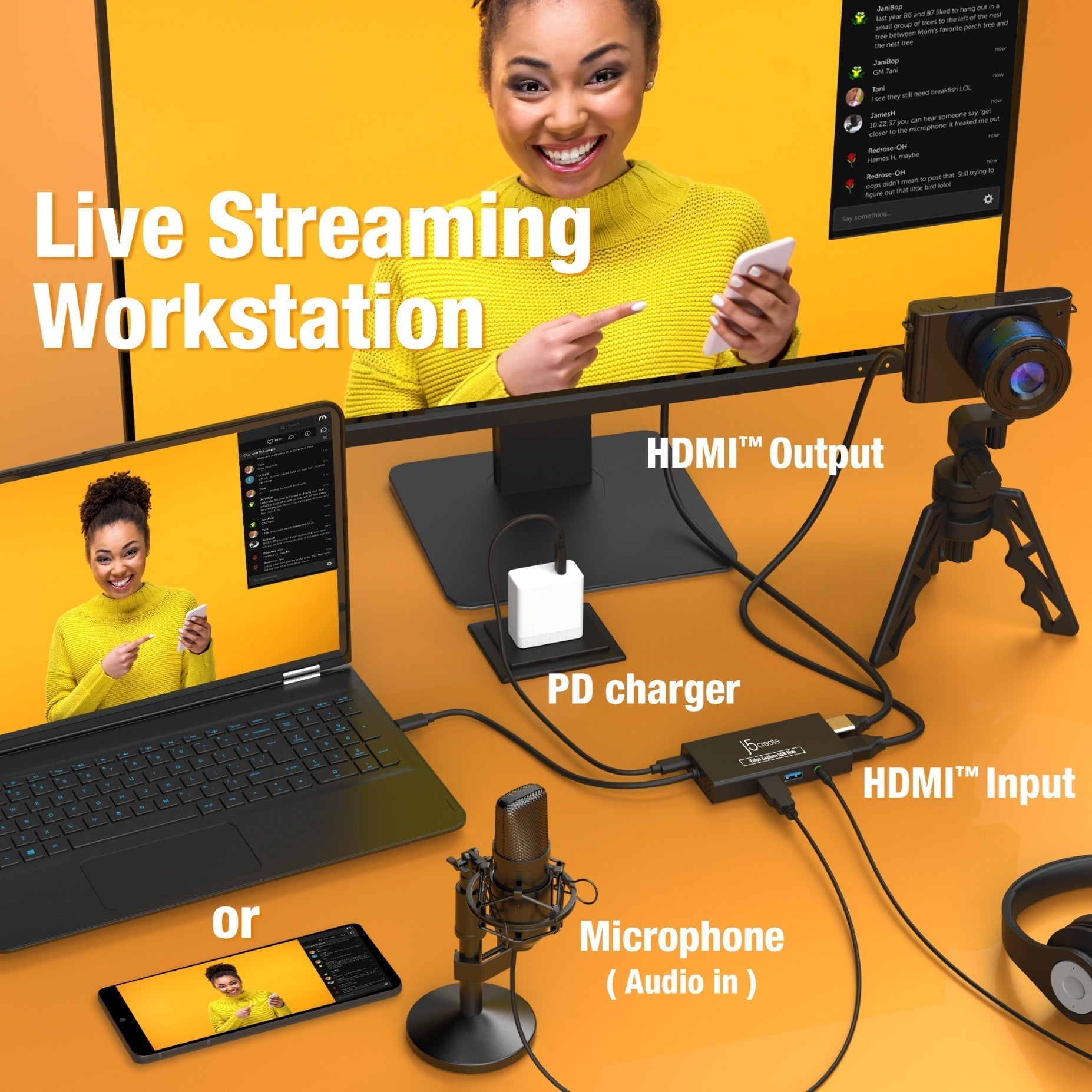

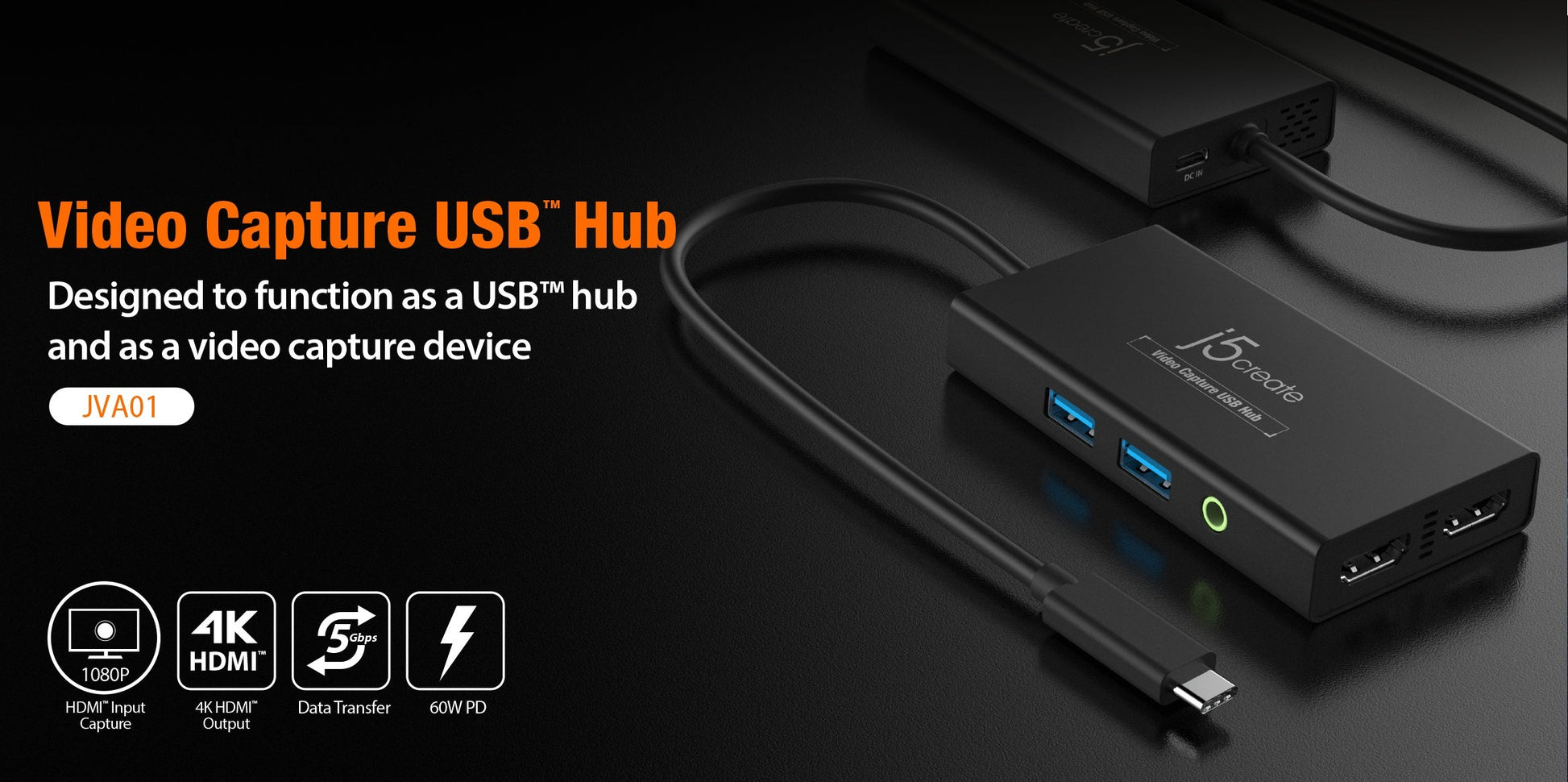

The Video Capture USB™ Hub is a dual-purpose device that combines an HDMI™ capture card with a USB-C® hub. With the 1080p video capture and 4K USB-C® display, as well as Power Delivery 3.0, you can stream in UHD without interruptions while charging your connected device. It also includes two SuperSpeed USB™ 5Gbps ports for further peripheral connectivity. The compact and lightweight design makes this video capture hub perfect for mobile streaming. When not used for streaming, it acts as a standard USB-C® hub, allowing you to add two additional USB™ peripherals and a 4K HDMI™ display. It also supports upstream charging to keep your laptop powered while in use.

FEATURES:

• UVC Capture:

  • HDMI™ to USB-C® with 60W Power Delivery
  • Power Delivery 3.0 lets you stream live without interruption
  • Ultra-low latency stream through USB-C® 3.2 connection

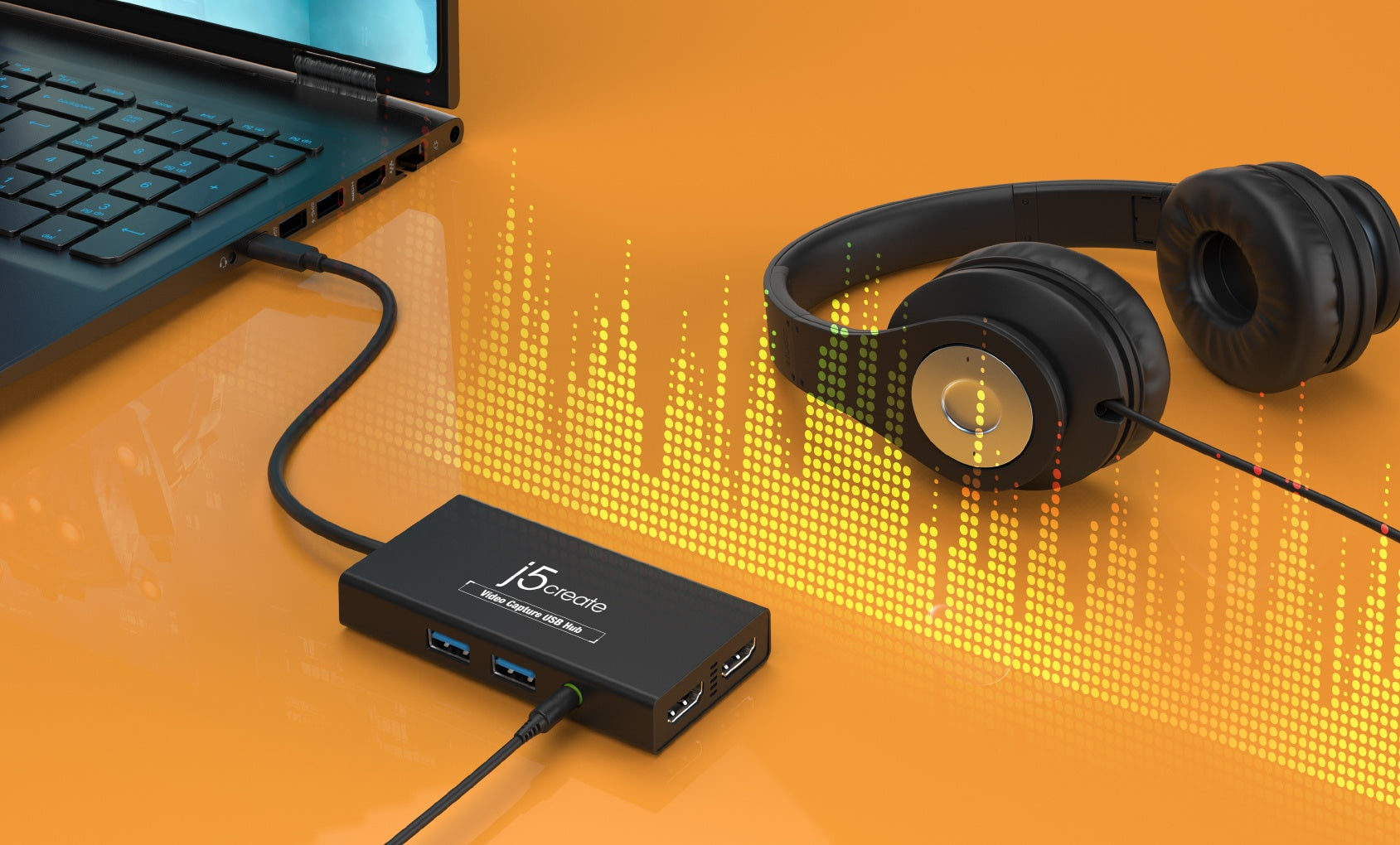

  • 3.5 mm audio jack allows you to connect headphones or speakers

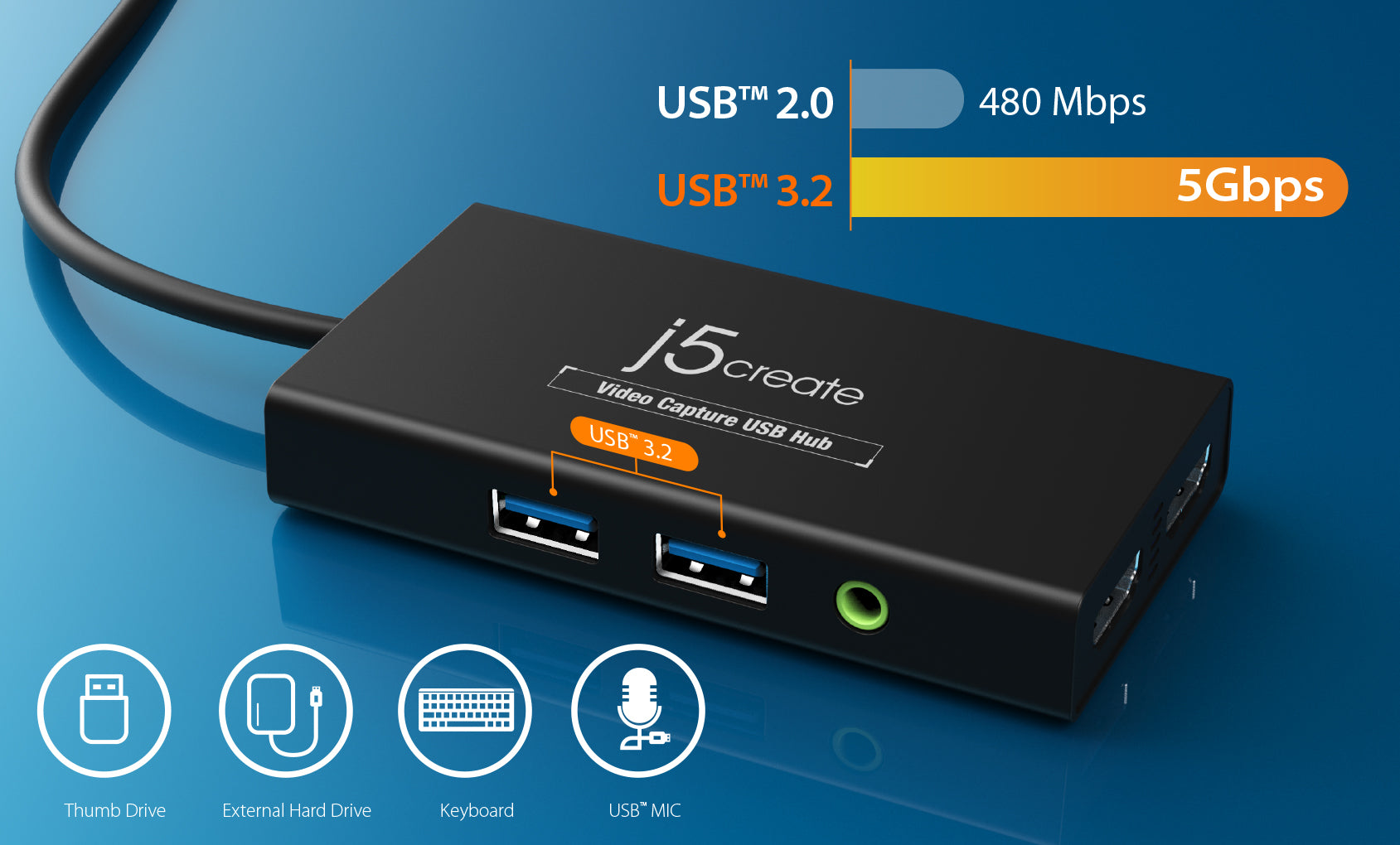

  • 2 x SuperSpeed USB™ 5Gbps ports to connect additional peripherals
  • UVC standard - No driver installation required

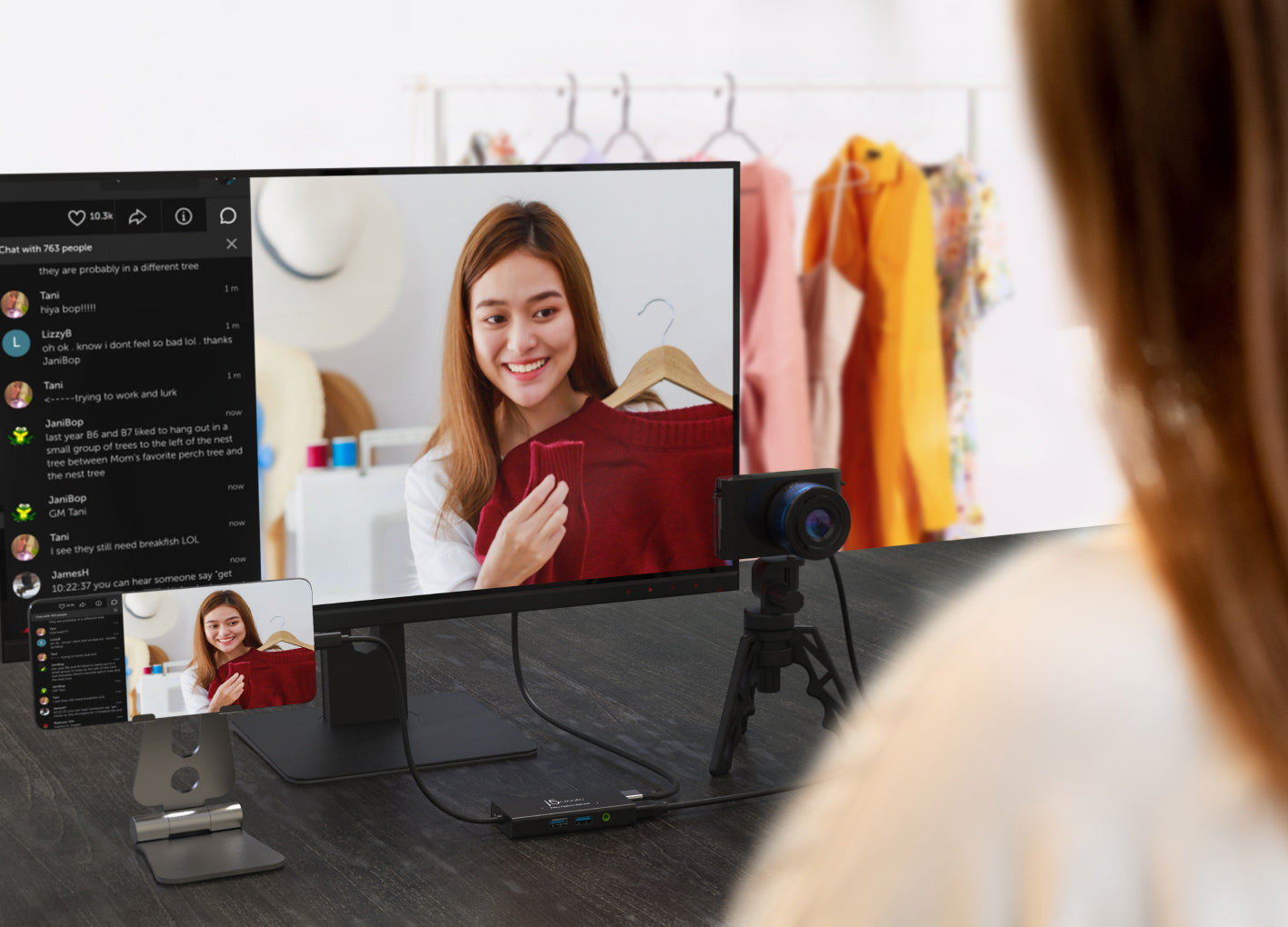

  • Field production made easy with its compact size
• USB-C® Hub with 4K HDMI™:

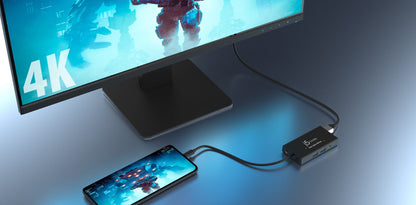

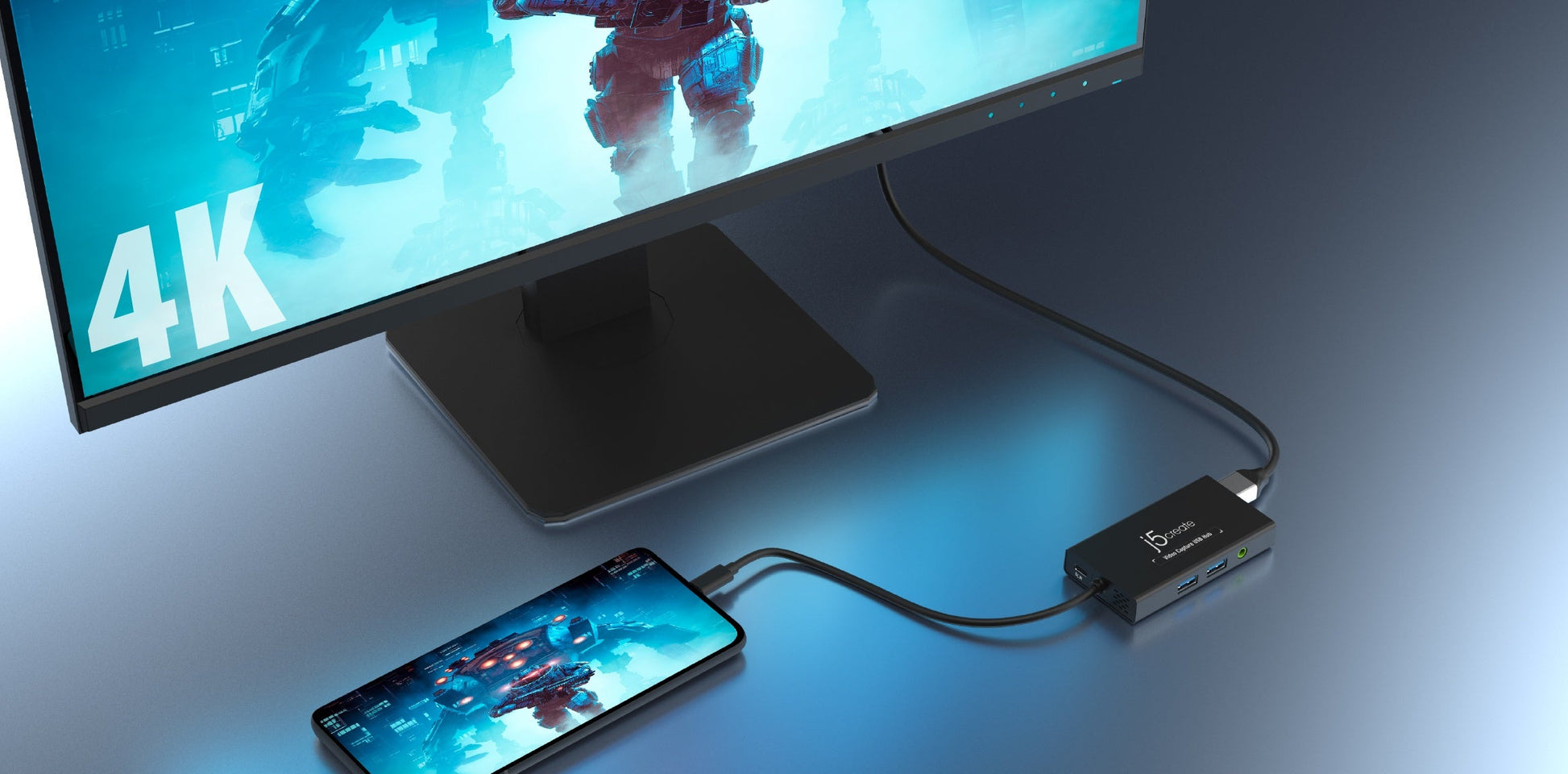

• • Easily add an HDMI™ video output with resolutions up to 4K @ 30 Hz

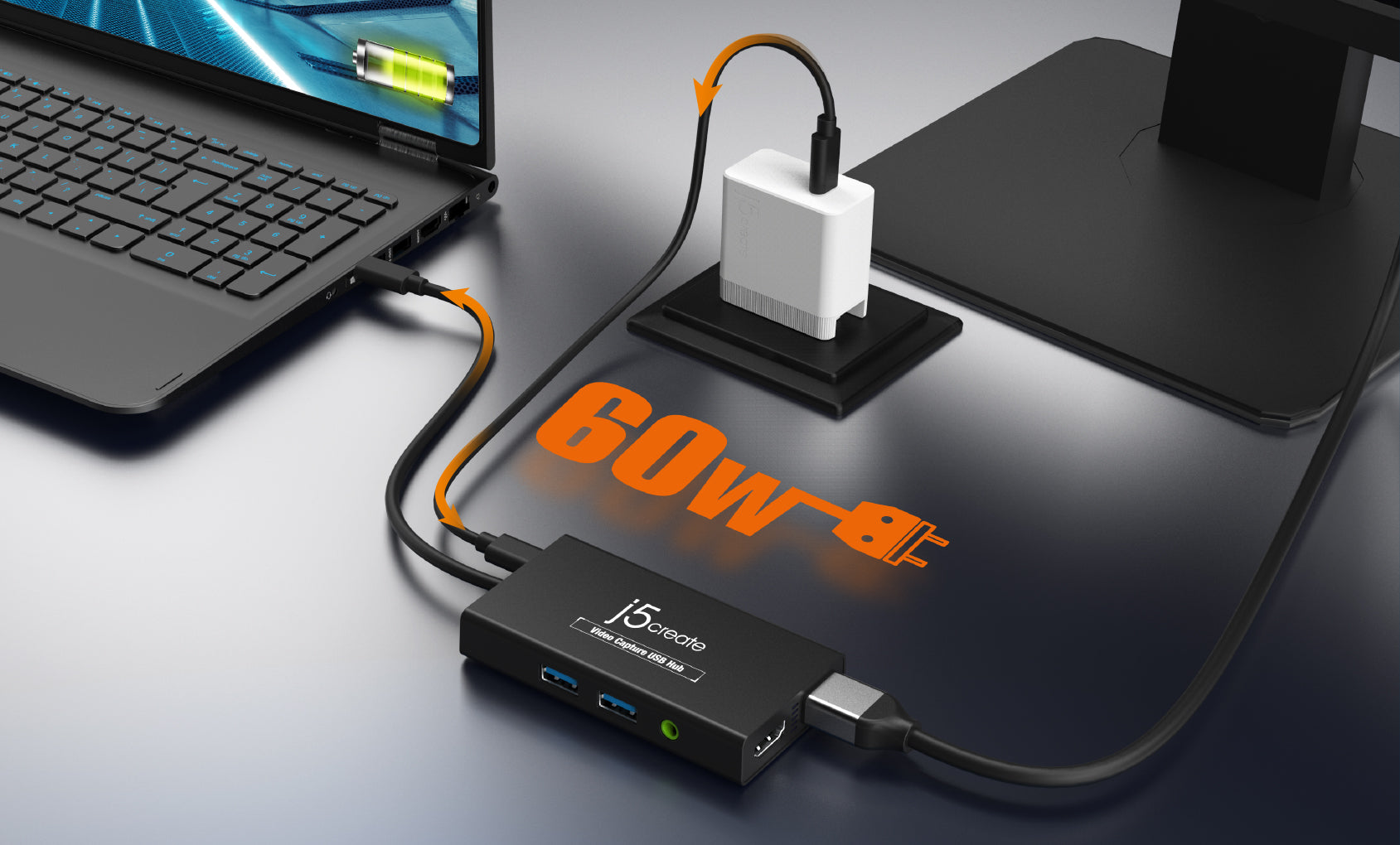

  • USB-C® Power Delivery provides up to 60W pass-through charging to the connected devices
  • 2 x USB™ Type-A ports provide up to 5Gbps transfer speed
  • 3.5 mm audio jack allows you to connect headphones or speakers
  • No driver installation required for Windows® or macOS®

System Requirements:

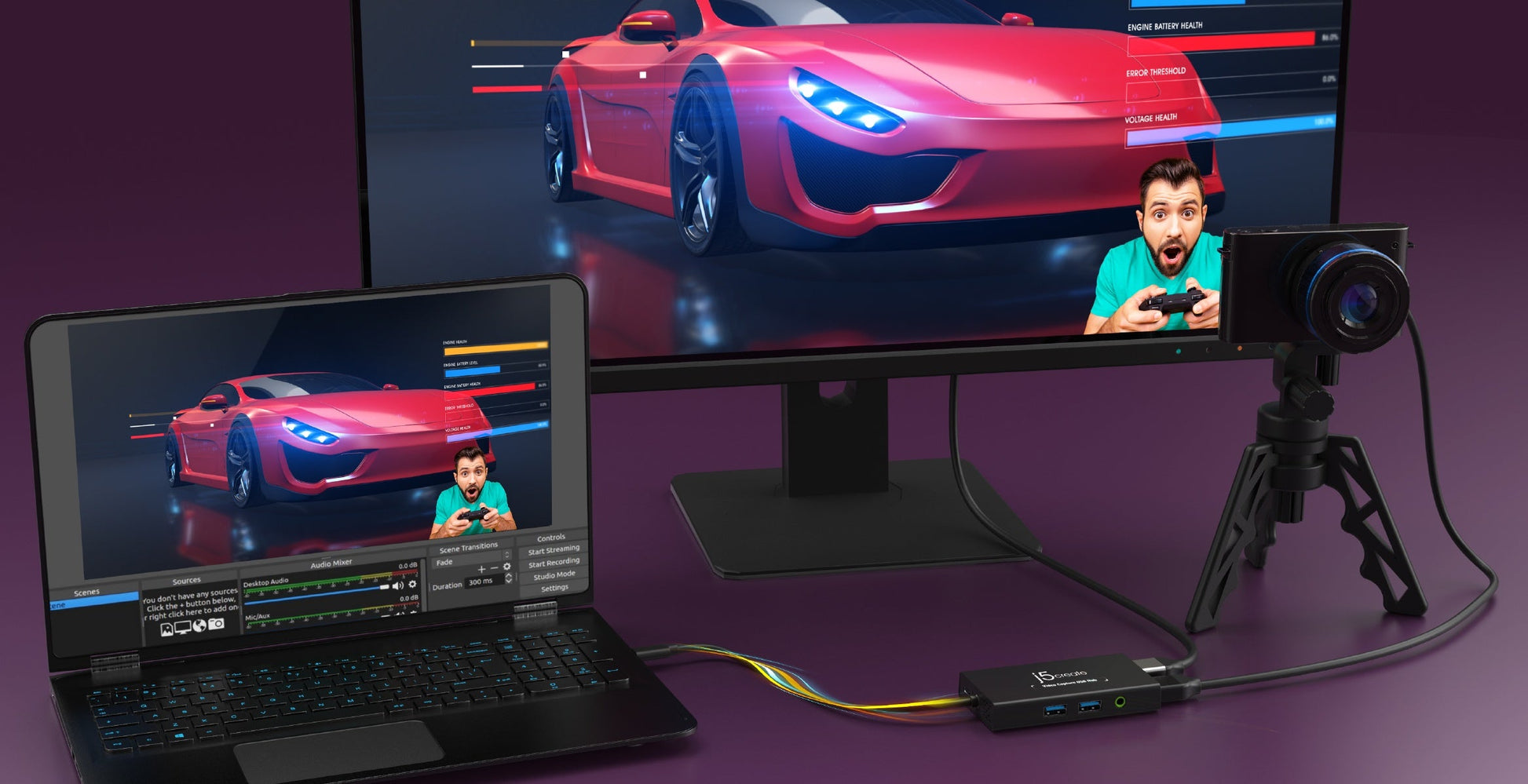

• For UVC Capture - Recommended software: OBS™ / CameraFi™ Live
• Available USB-C® port that supports USB™ Power Delivery 2.0 or 3.0

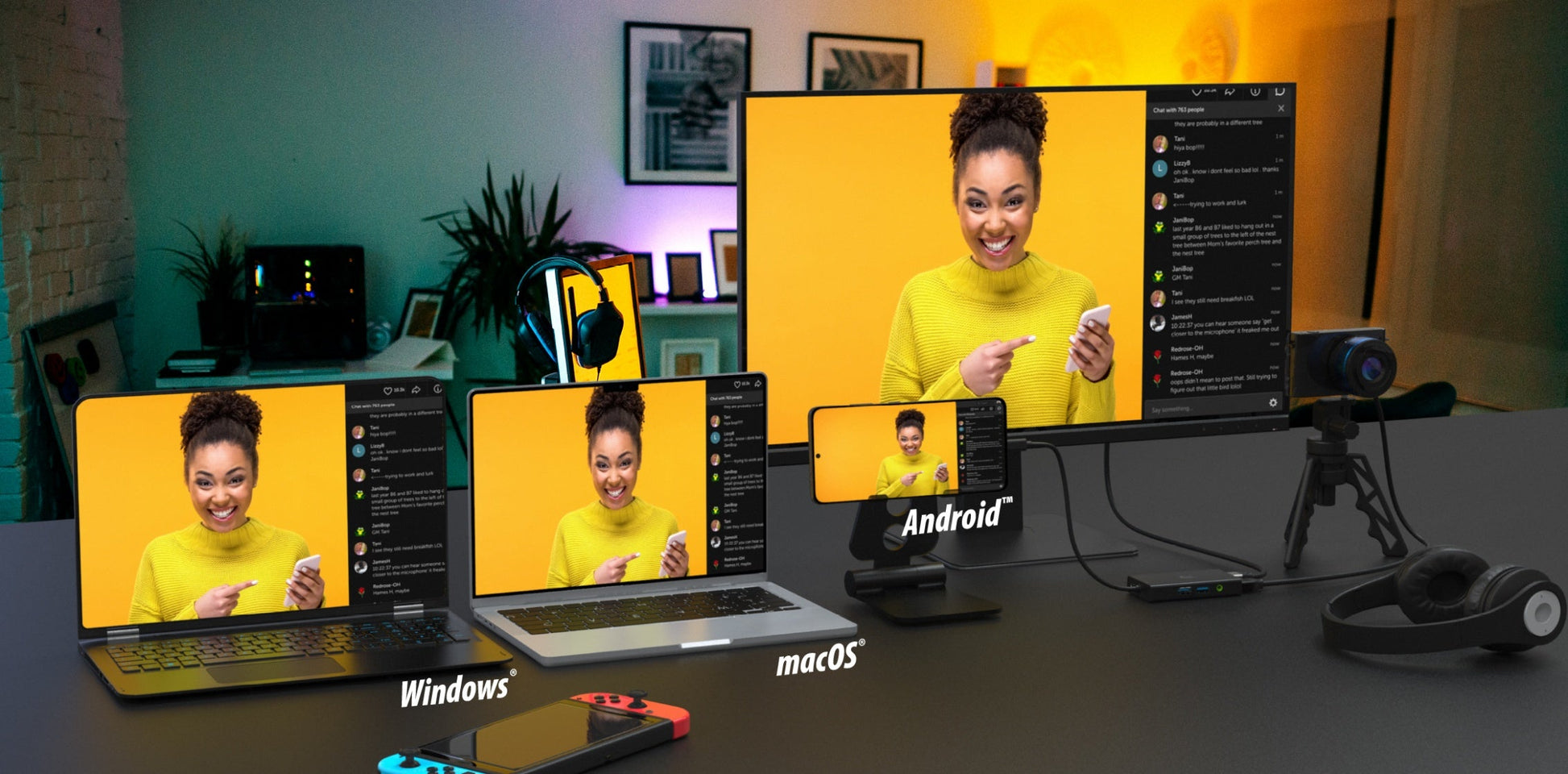

• Windows® 10 / 11
  macOS® X 10.10 or later with UVC support
  Chrome OS™ with UVC support
  Android™ 7 and higher
• For USB-C® Hub
• Available USB-C® port that supports DisplayPort™ alt mode and USB™ Power Delivery 2.0 (USB™ 3.2 is recommended). Please refer to the manufacturer of your hardware for more information on your device.
• DisplayPort™ v1.2 required on graphics card or video source to support 4K @ 30 Hz resolution

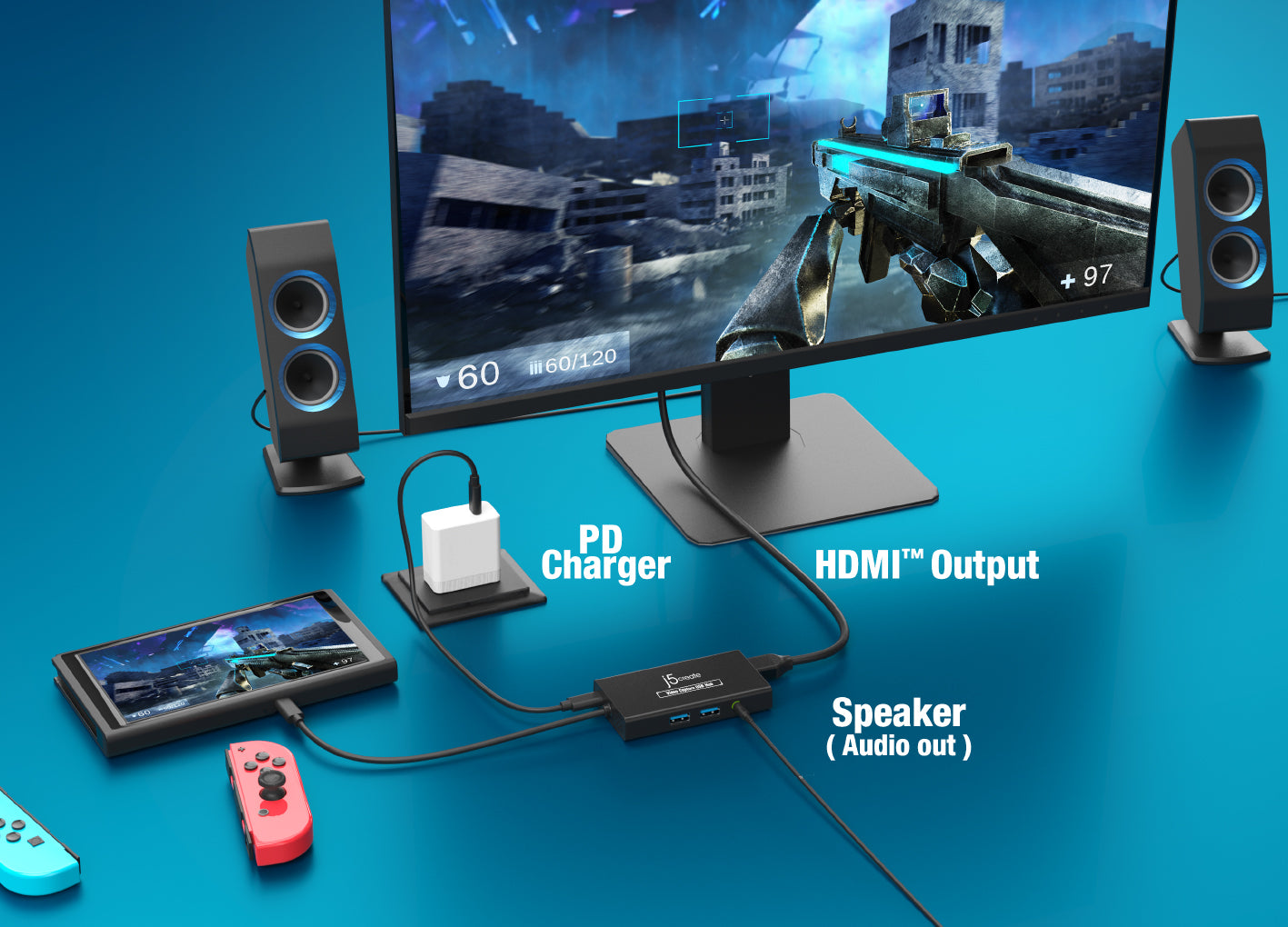

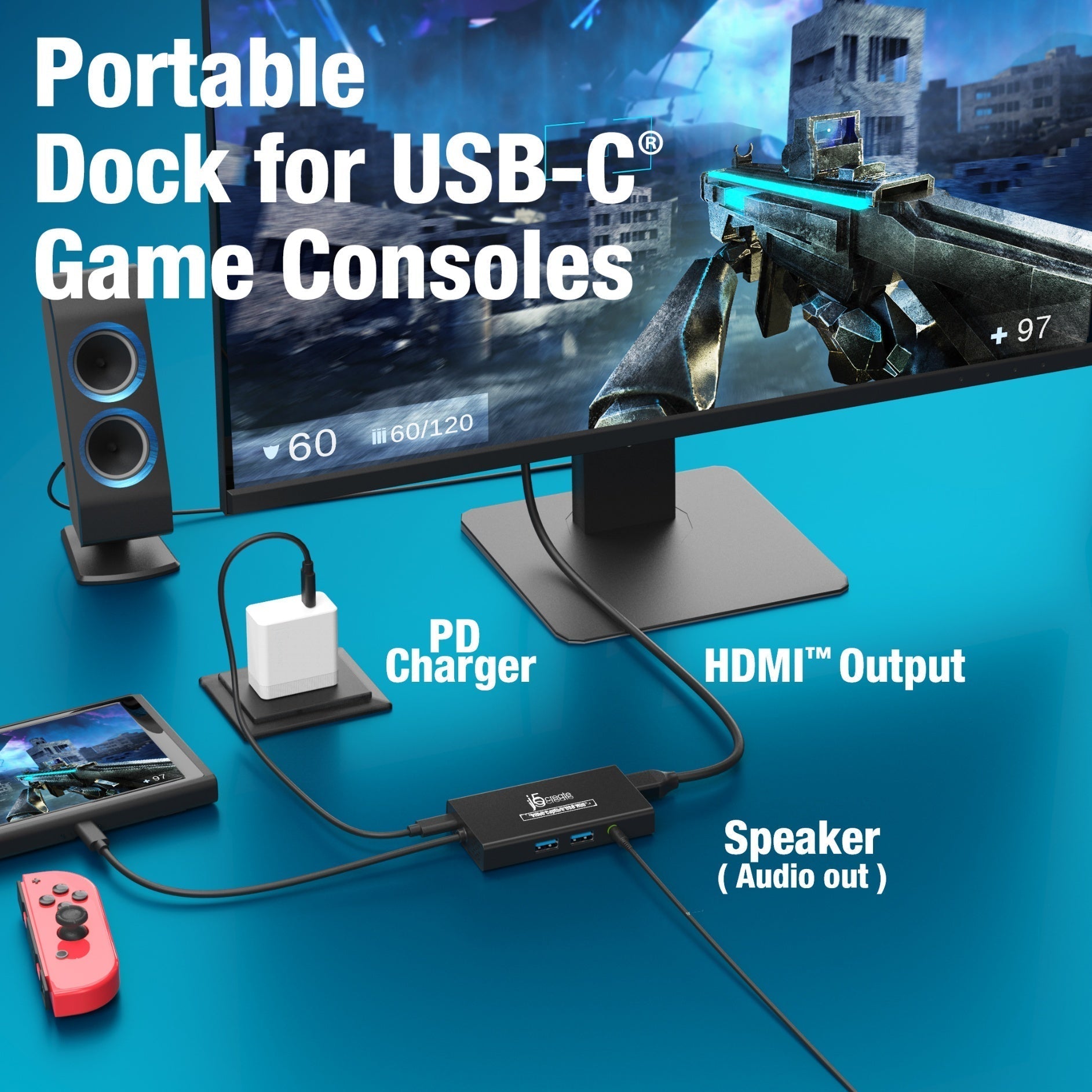

• For USB-C® Game Consoles
• When using your game console, we recommend using a charger higher than 30W PD USB-C® to charge your console.

Special Notes:

• The JVA01 can connect to a USB-C® port that does not support Power Delivery, but it will not pass power through the connected device.

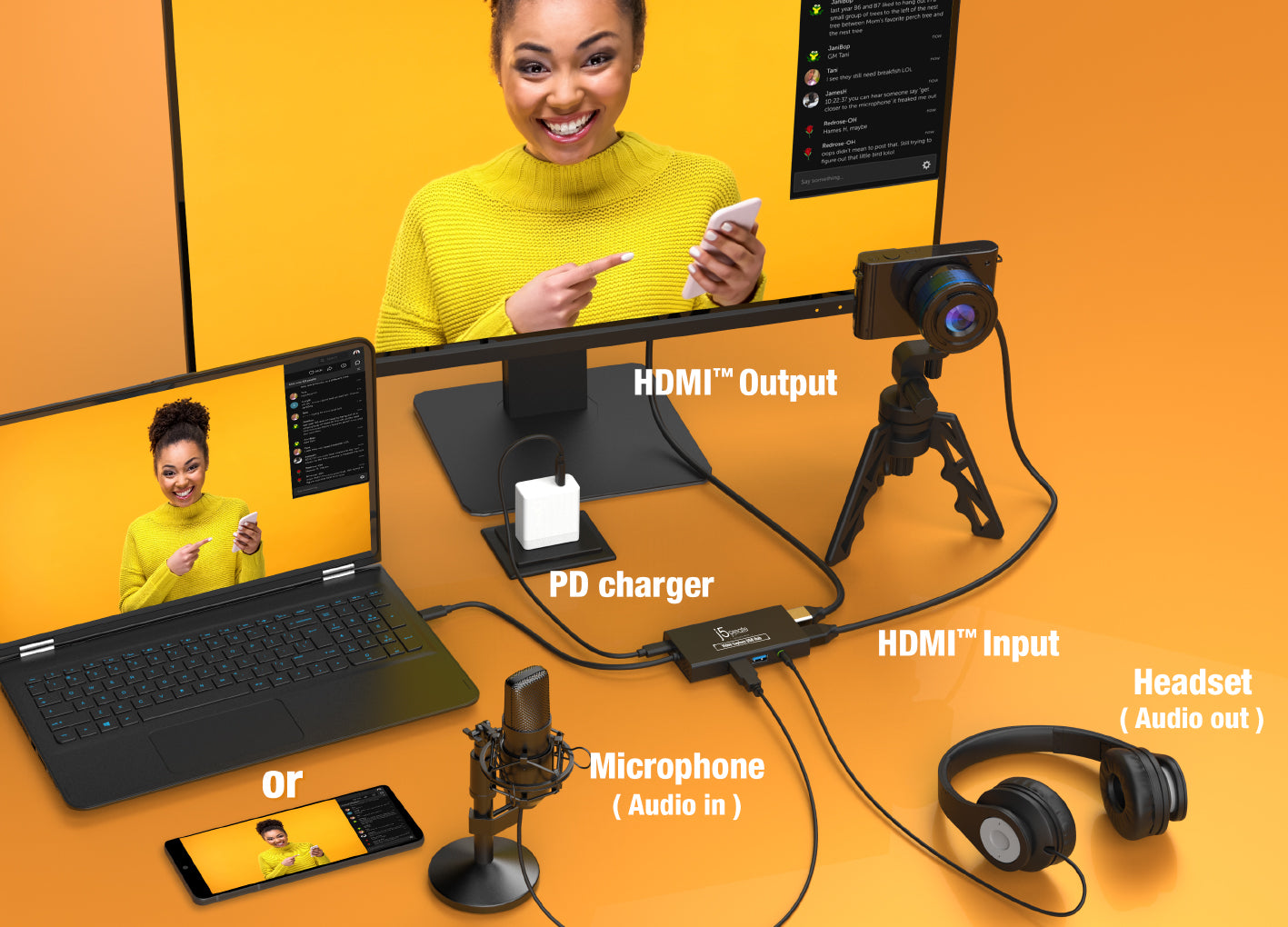

• The HDMI™ Input port is for capture only. Additional displays will not output from this port. An external display can be connected through the HDMI™ Output port instead.
• For UVC capture, the 3.5 mm audio jack only works if the host connected to the monitor has built-in speakers.

SPECIFICATIONS:

• Host Connector: 1 - USB-C® 3.2 Female
• Video Input: 1 - HDMI™ Female
• Video Output: 1 - HDMI™ Female
• Audio Input: No
• Audio Output: 1 - 3.5mm AUX
• Video Switcher: No
• Audio Switcher: No
• Power Source: Bus-powered or self-powered (USB-C® PD power)

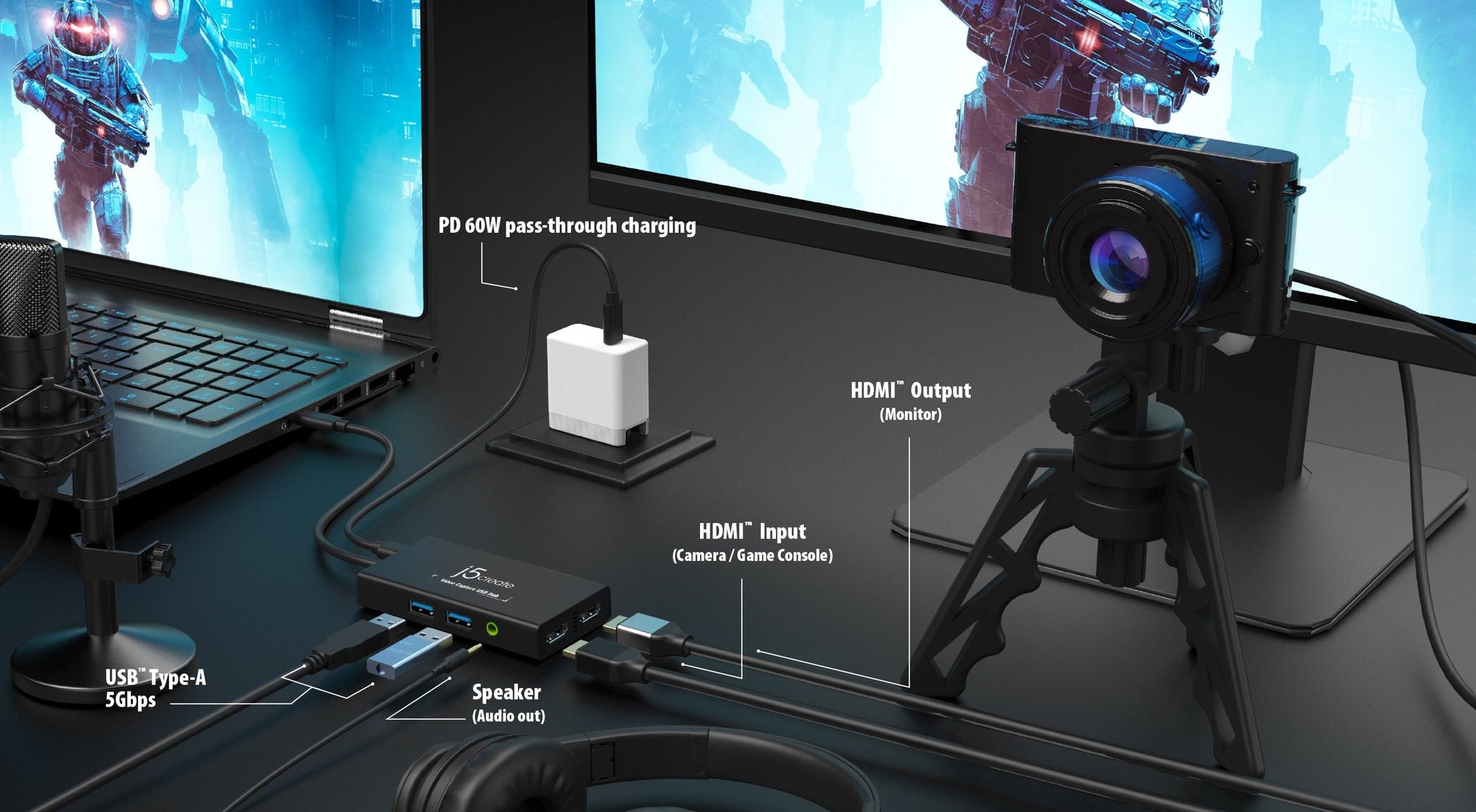

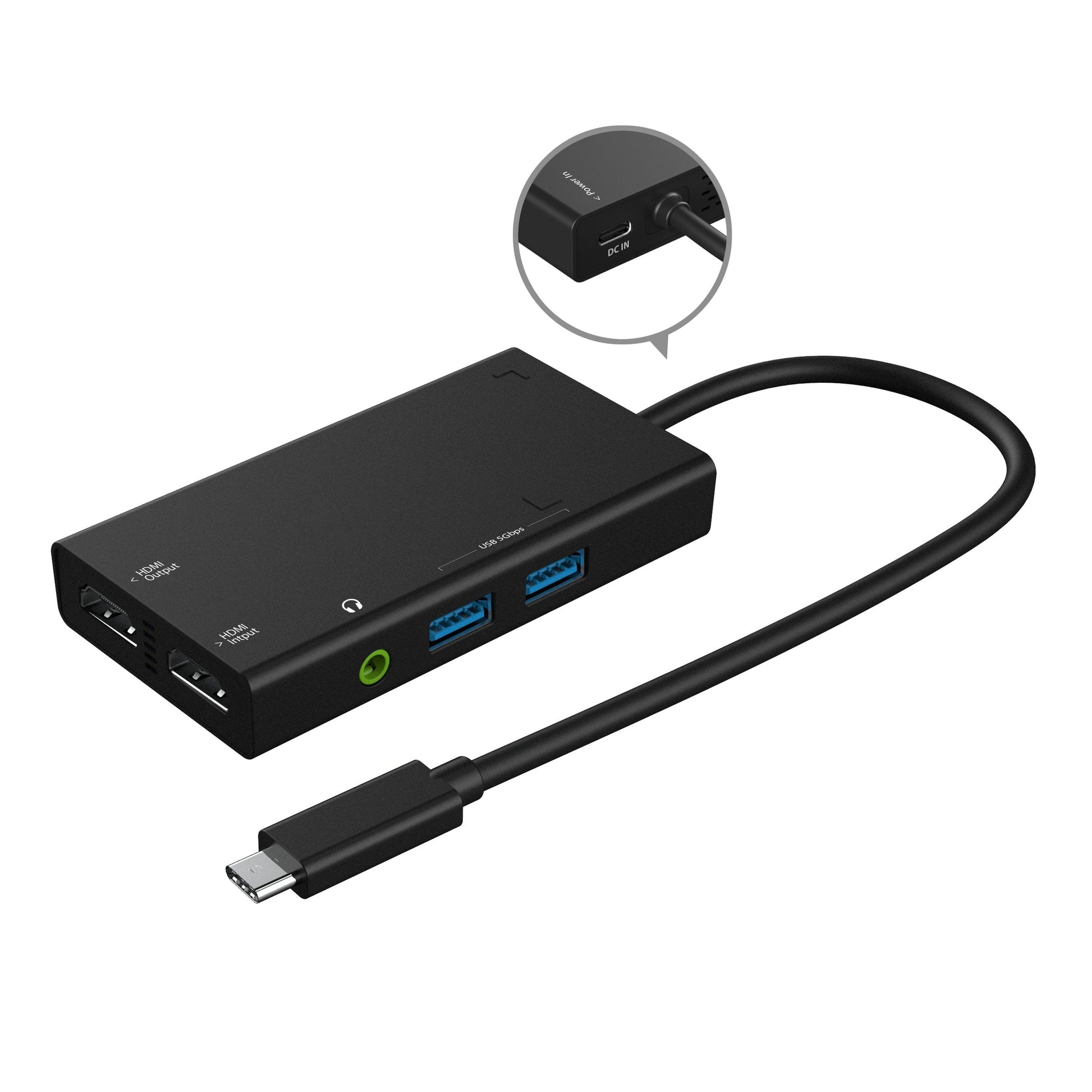

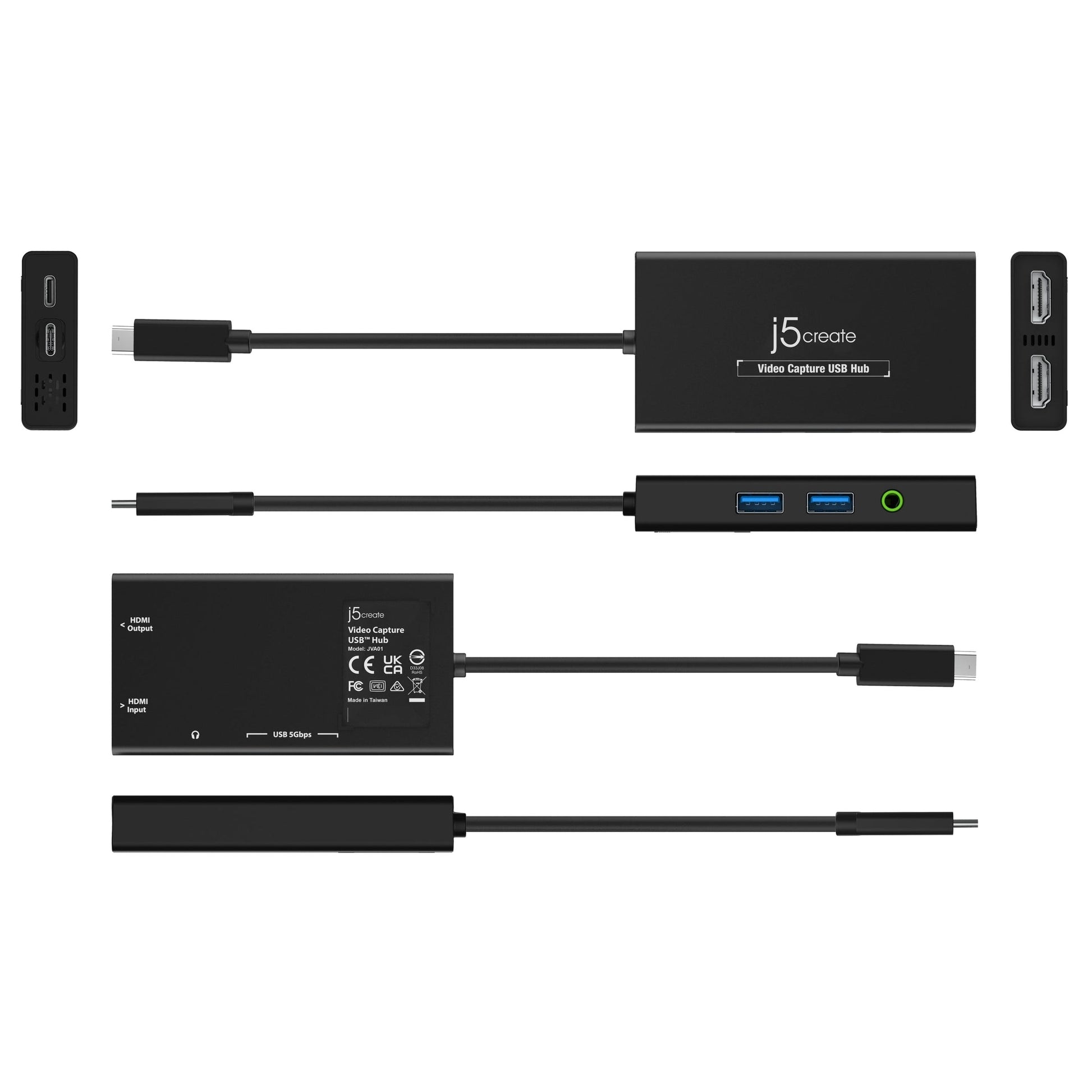

• Ports: 1 - USB-C® PD 3.0; 1 - HDMI™ Input; 1 - 4K HDMI™ Output; 1 - 3.5 mm audio jack; 2 - USB™ Type-A (5Gbps)
• Supported Resolutions: HDMI™ In 3840 x 2160; USB-C® display 3840 x 2160; Capture/Record 1920 x 1080
• Maximum Display Refresh Rate: 30 Hz
• Audio Channel: 2.1 via HDMI™
• Audio Frequency: 48 kHz
• Microphone: N/A
• Headset: 2.1 Stereo
• Compression: USB™ 2.0 MJPEG
• Encode Format: MJPEG
• HDR Supported: No
• Power Delivery: Up to 60W via USB-C®
• Power Consumption: ≤ 450 mA
• Input Current: 3A
• Input Voltage: 20V
• Output Current: 3A
• Output Voltage: 20V
• Color: Black
• Enclosure Type: Plastic
• Cable Length: 11.8 in / 30 cm
• Product Height: 0.59 in / 15 mm
• Product Width: 1.98 in / 50.5 mm
• Product Depth: 3.79 in / 96.5 mm
• Product Weight: 2.43 oz (69g)
• Storage Temperature: 14 to 149°F (-10 to 65°C)
• Storage Humidity: < 85% non-condensing
• Operation Temperature: 32 to 104°F (0 to 40°C)
• Operation Humidity: < 80% non-condensing

WHAT’S IN THE BOX:

• JVA01 Video Capture USB™ Hub x1
• Quick Installation Guide (QIG) x1

WARRANTY:

• 24 Months
