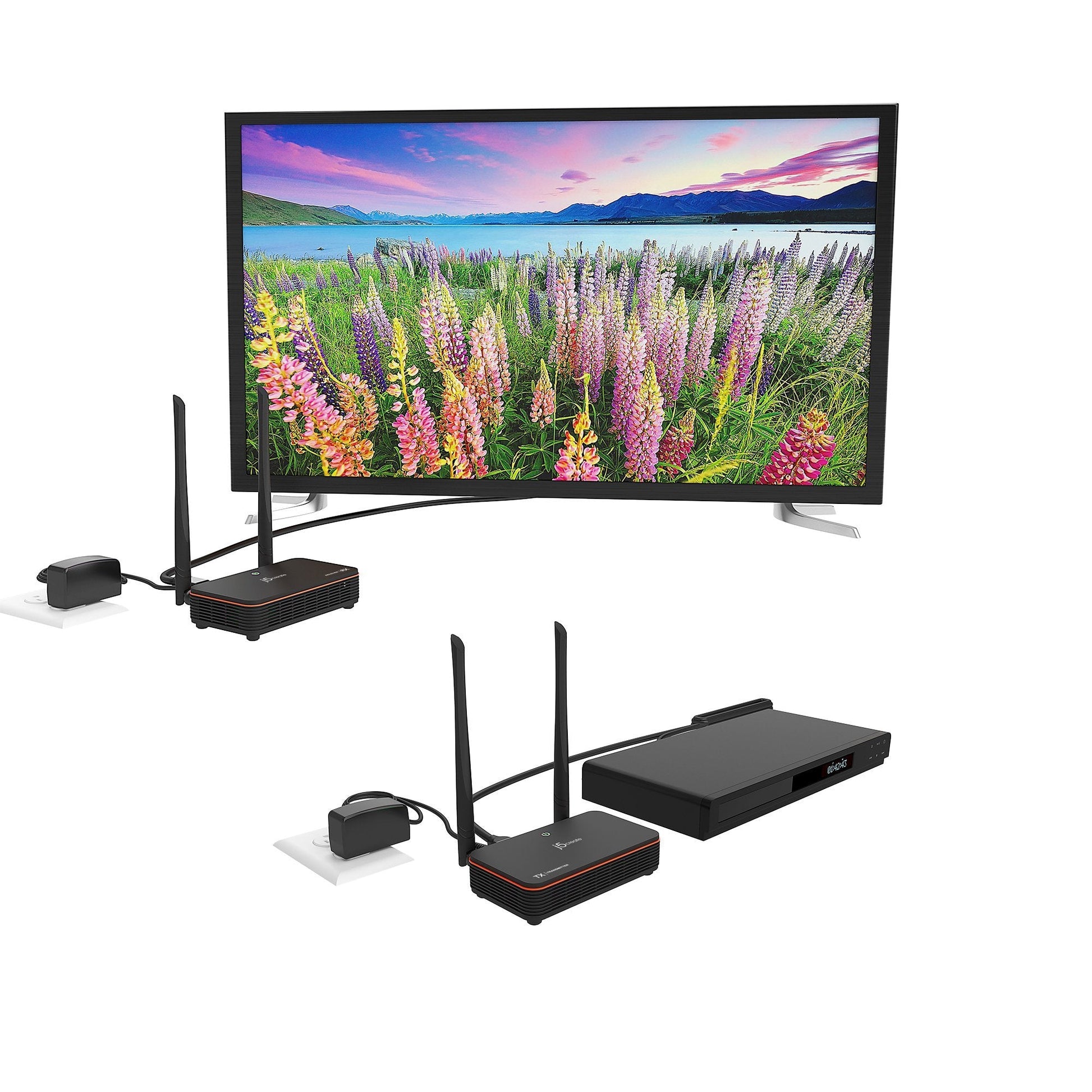

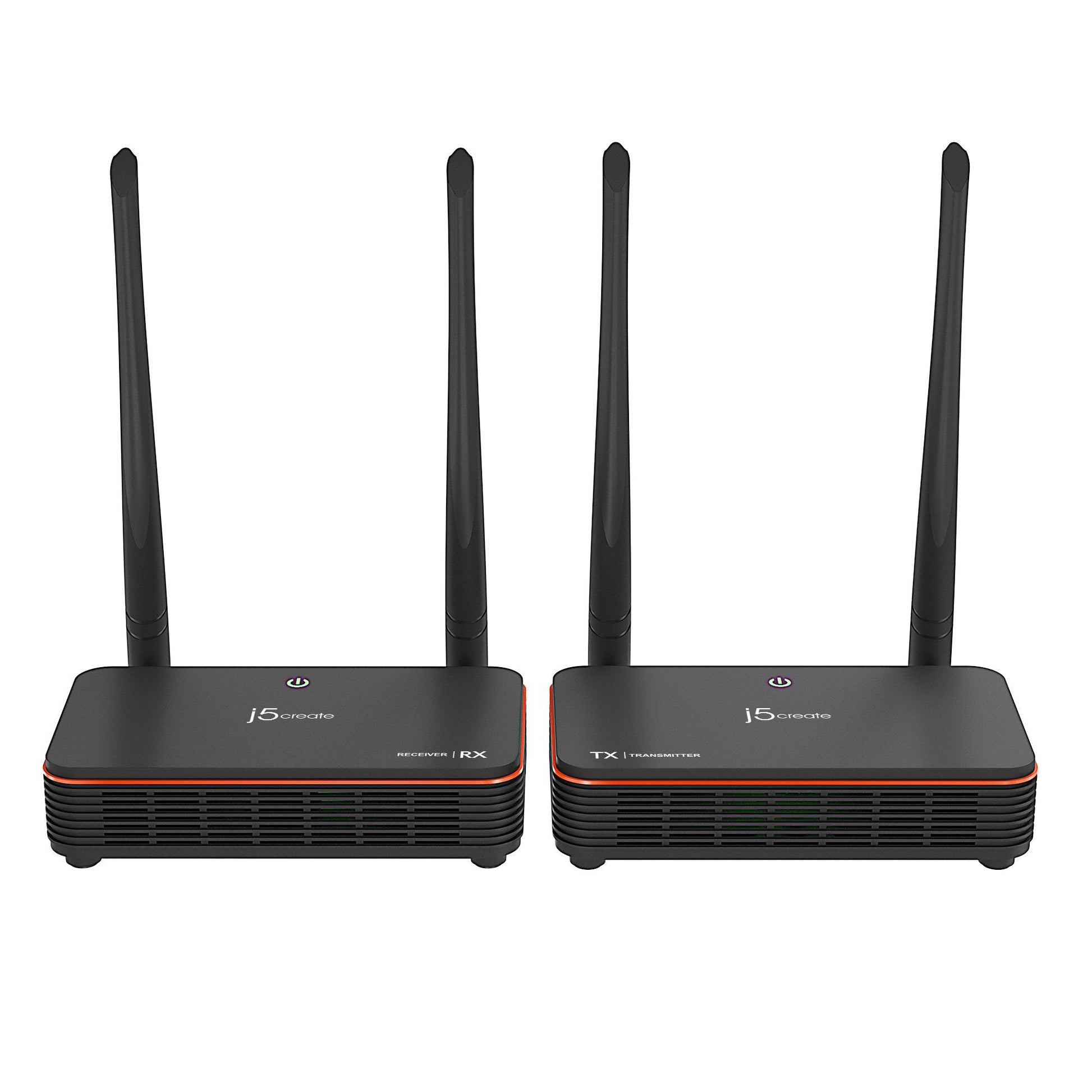

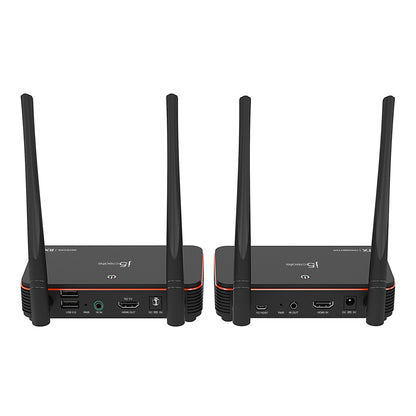

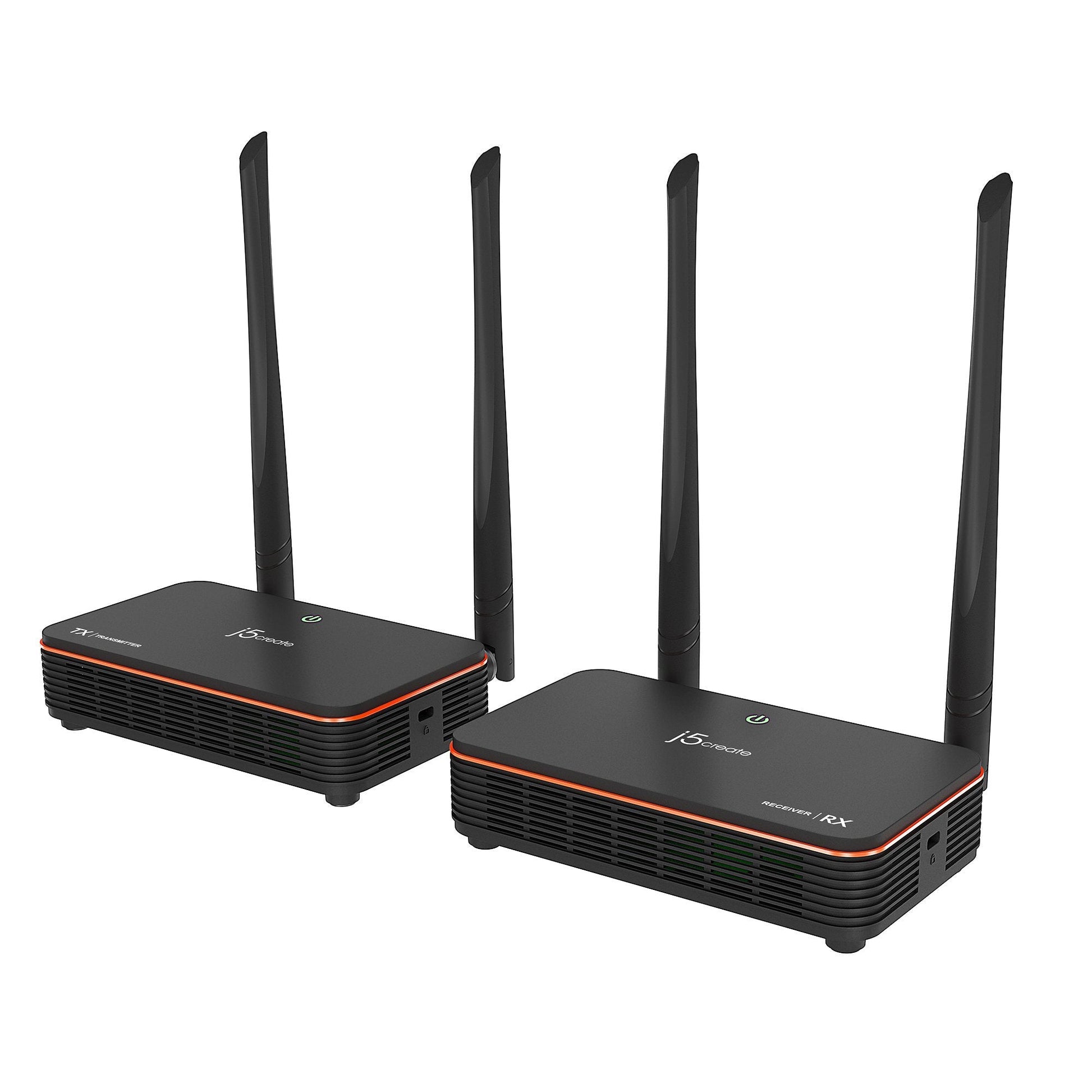

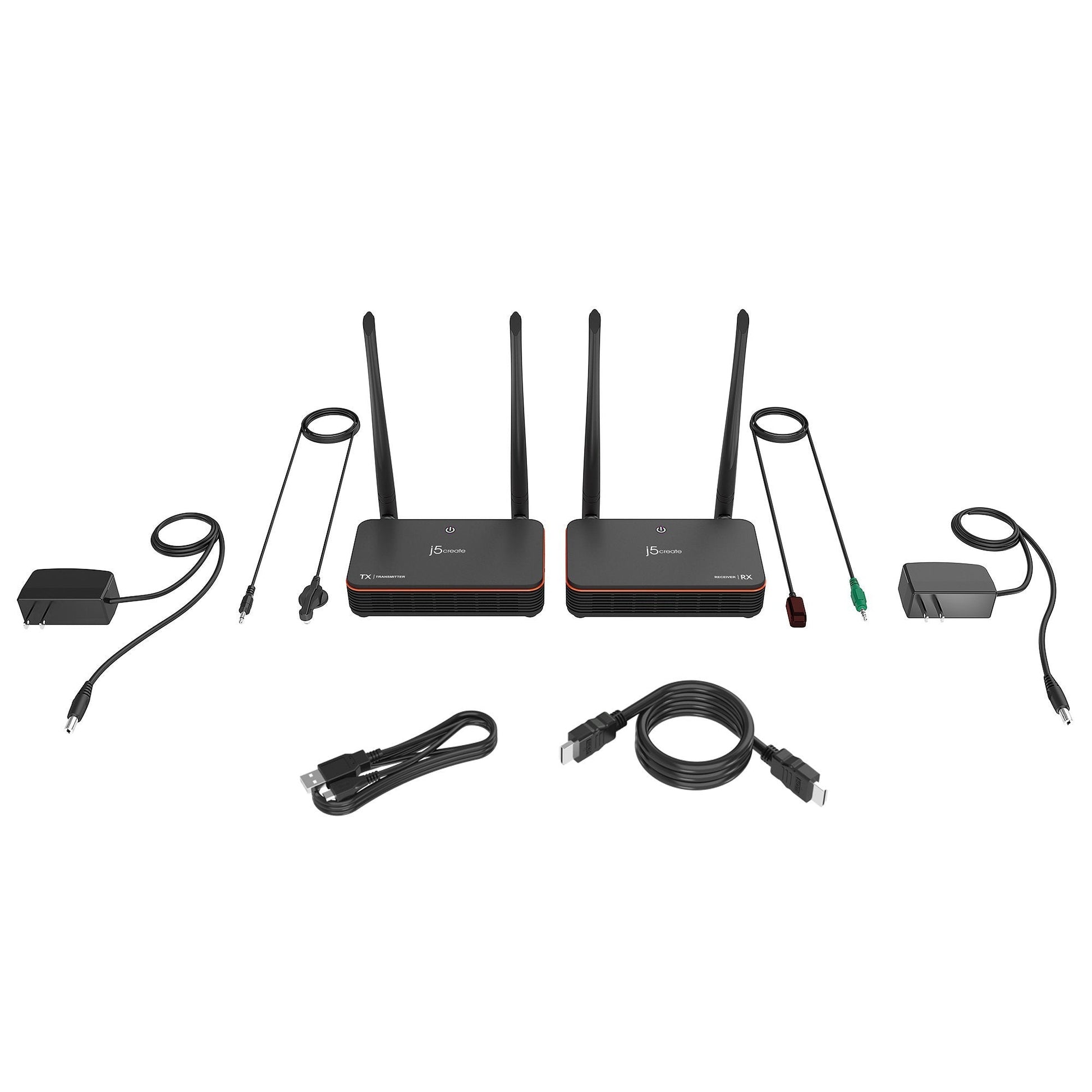

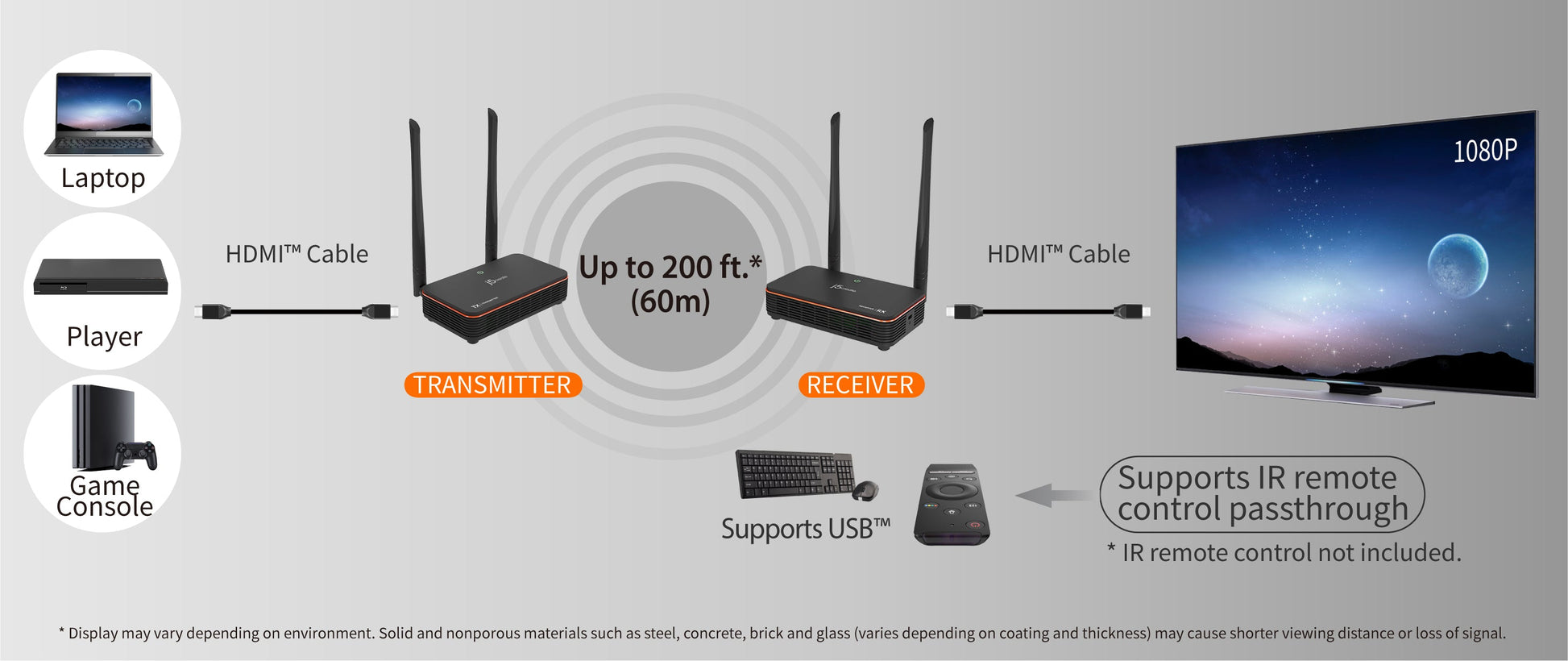

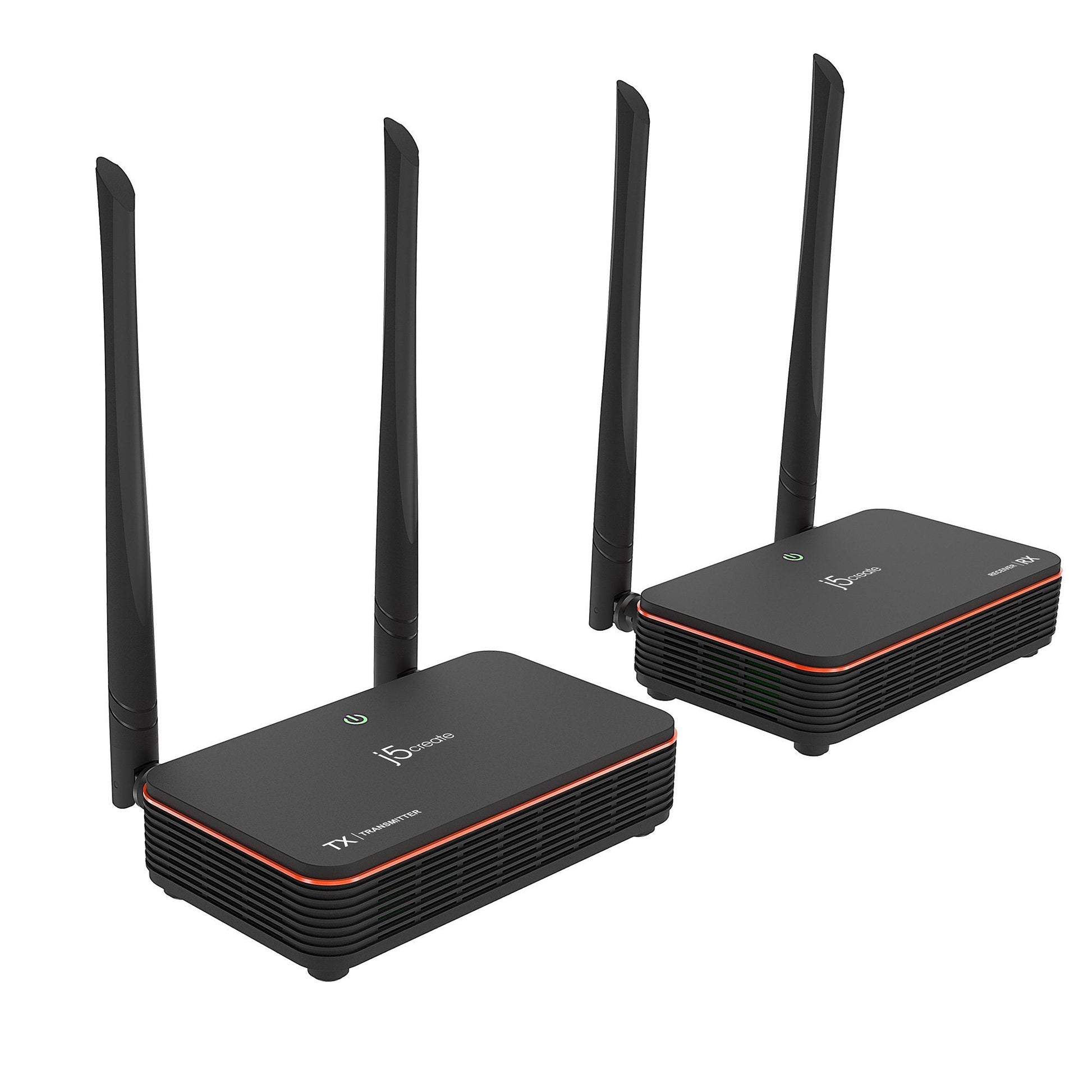

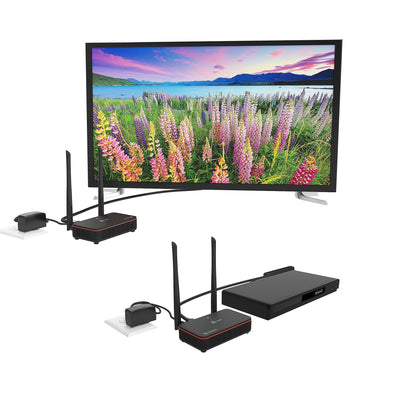

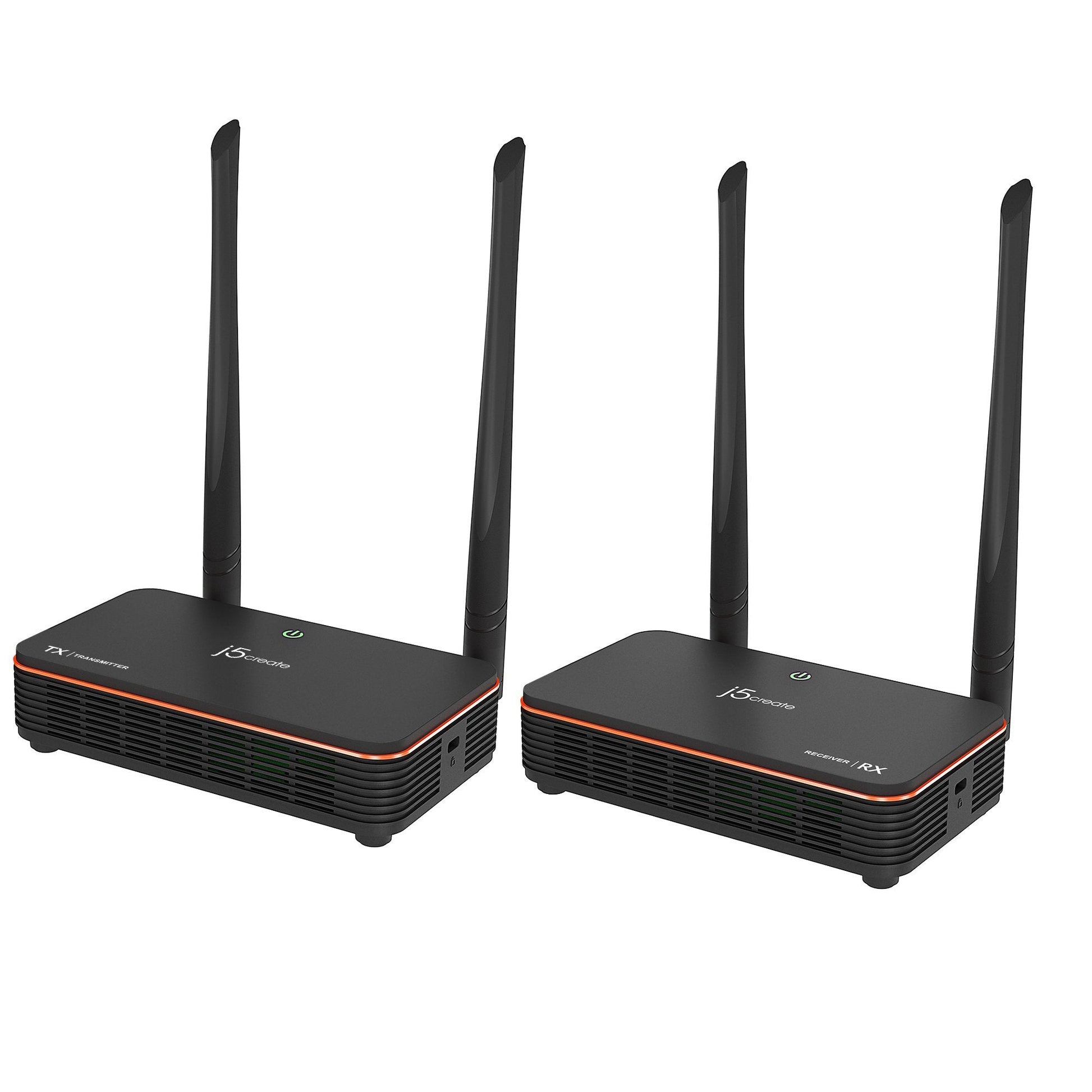

TheJVAW50 HDMI™ over Wireless Extenderincludes a transmitter and receiver kit. It can send a high definition video and audio signal to an HDMI™ enabled TV set, projector or LCD PC monitor display device with receiver distance up to 60 meters and nearly zero latency.
Users can extend other HDMI™ sources, including DVD players, Blu-ray™ players, PCs, notebooks and gaming machines (ex. Sony® PS4®, Nintendo Switch™). The JVAW50 is fully HDCP compliant via HDMI™, supporting resolutions up to 1080p and stereo digital audio. The extender also supports the transfer of IR remote control signals to the receiver side.
Application:

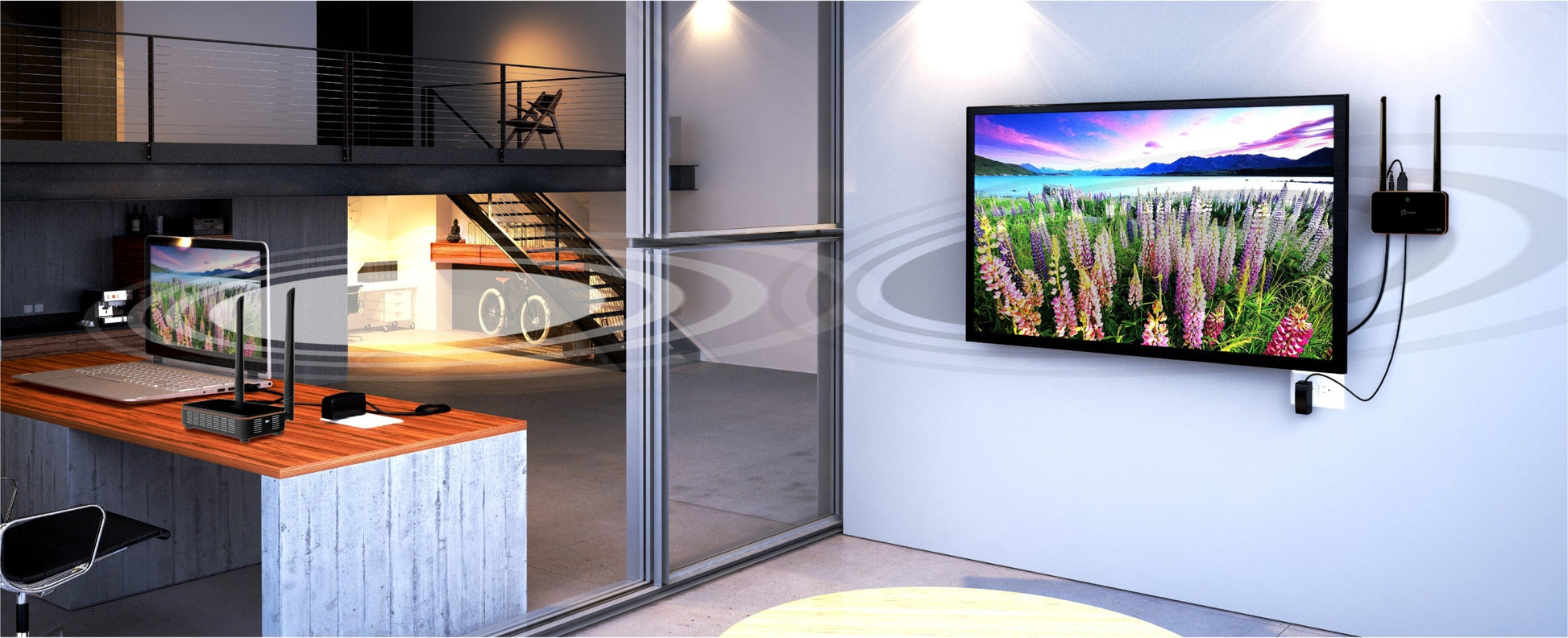

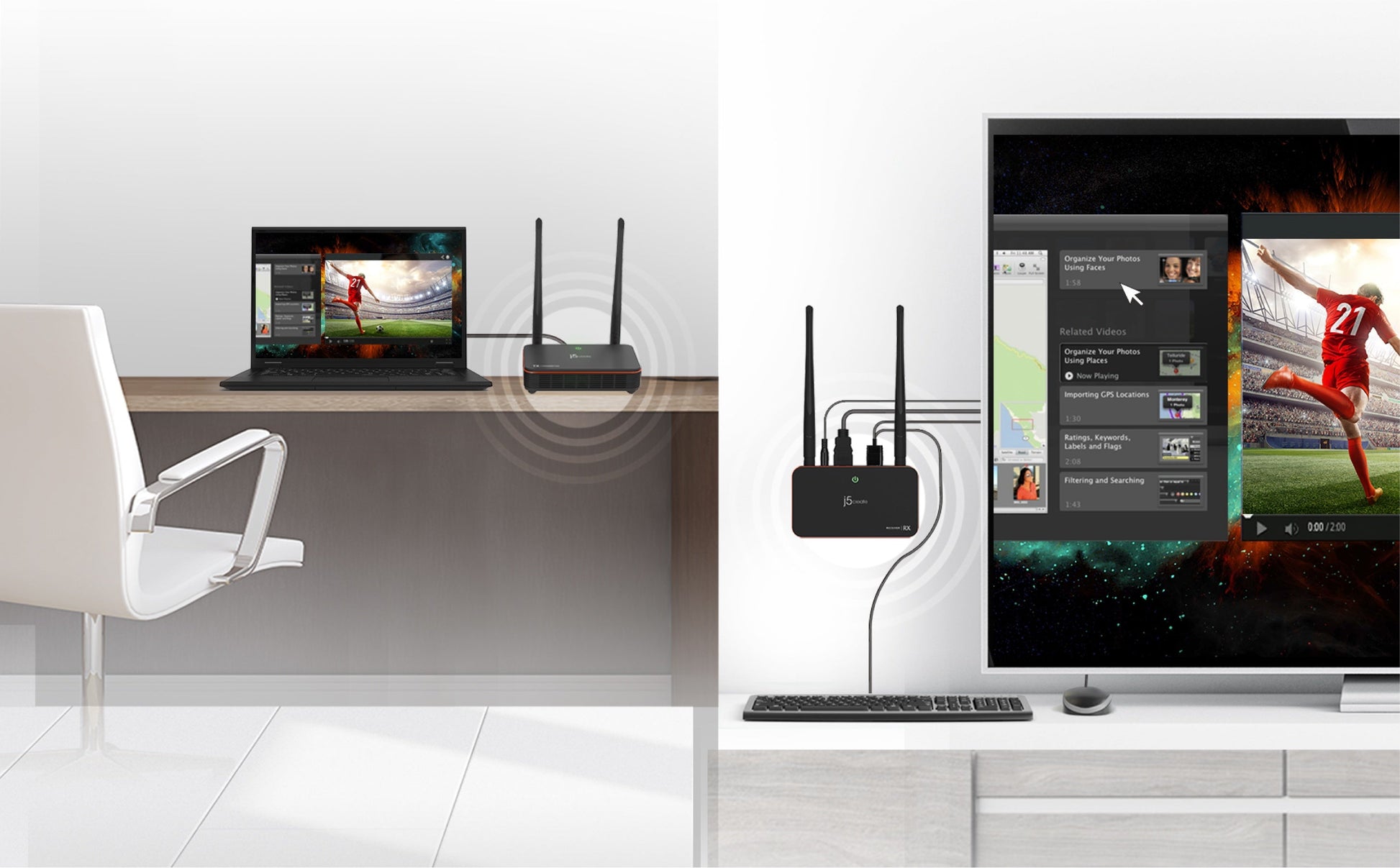

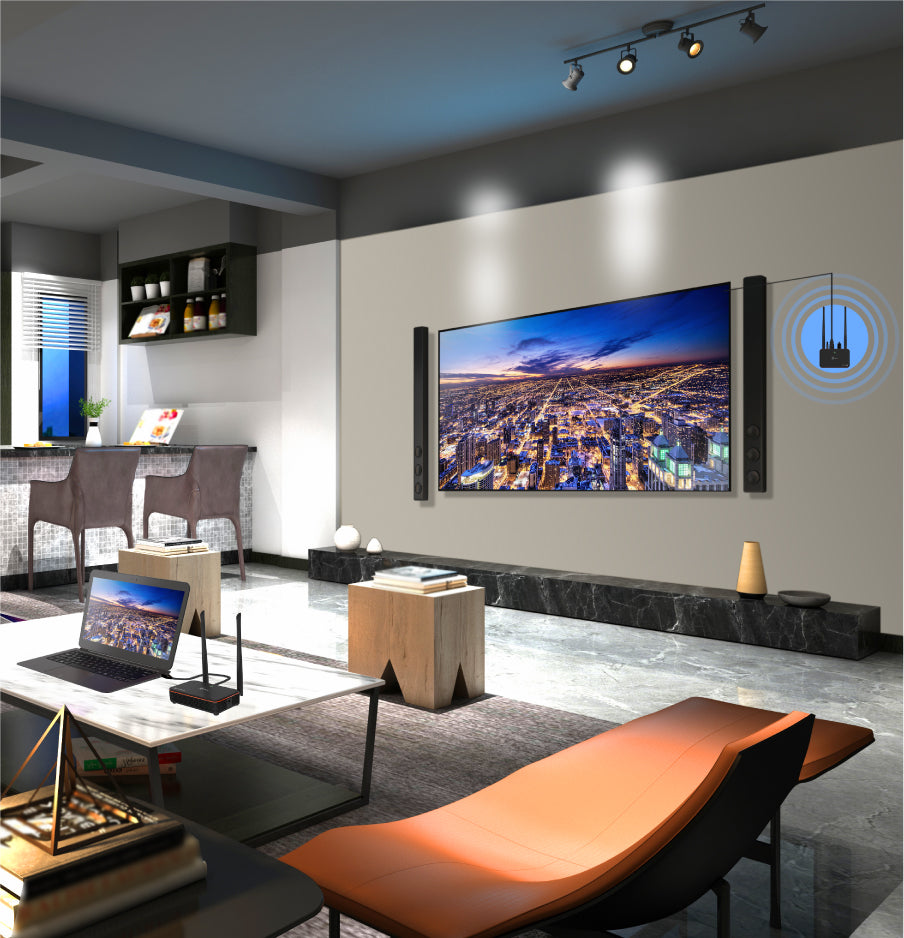

Basic product functions and application scenarios: converts the passage of the HDMI™ or IR signal into a wireless signal, converting it into a flexible means of transmission and reception. It addresses the issue of the TV being too far away from the host by eliminating the need for wires, allowing the TV to be moved outdoors for long distance use.
During meetings, projectors or large touch screens mounted high above can also be used to create a wireless conference room and/or a wireless media environment.
FEATURES:

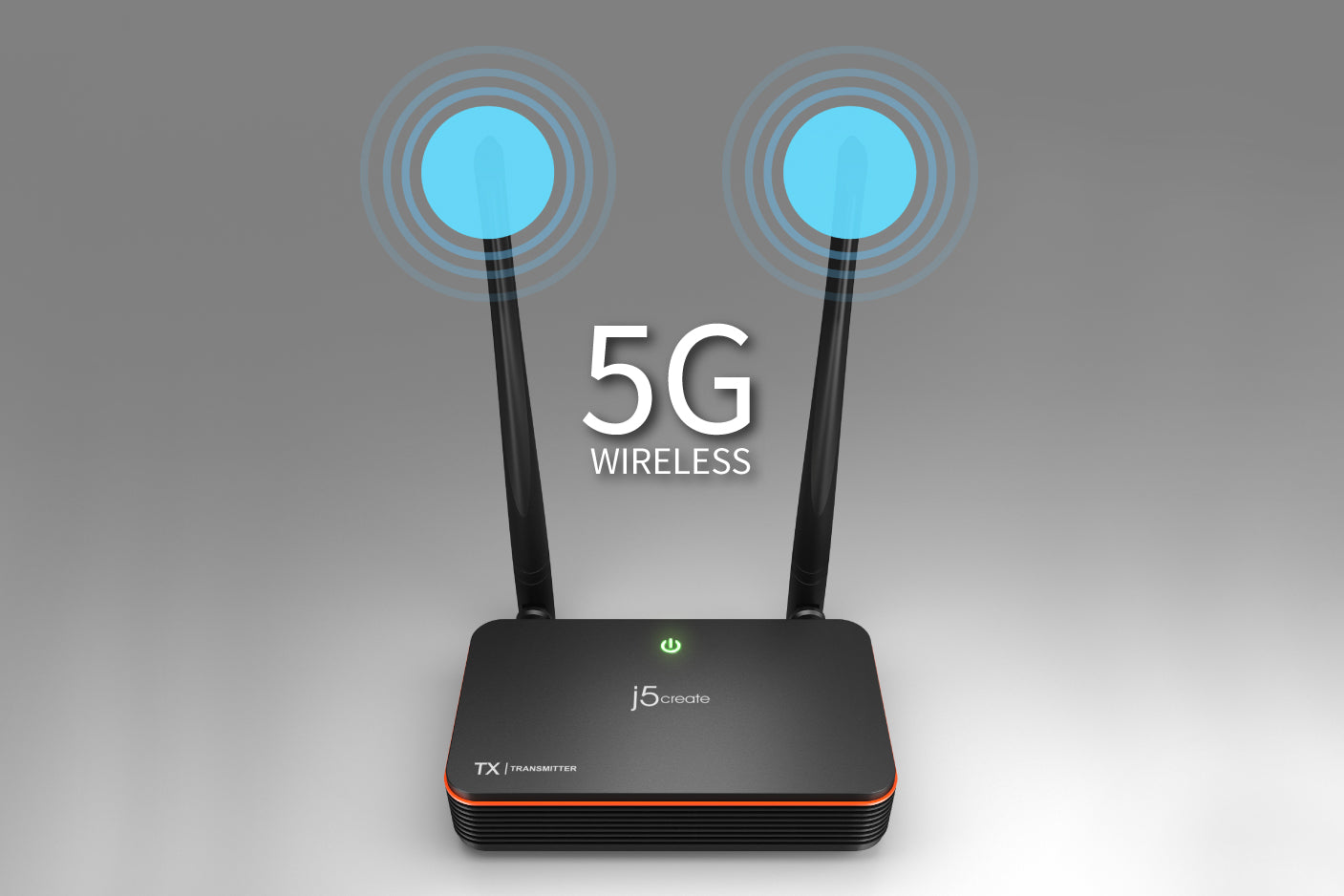

Wireless 5G: Stable connection, high quality, and low latency under 60 ms
Antenna 5 dB 2 x 2: Longer distance up to 200 ft (60m)
Supports the transfer of IR remote control signals
A flexible audio/video solution for conference rooms (when sharing ideas and data), digital signage (extending the distances between displays) and other applications

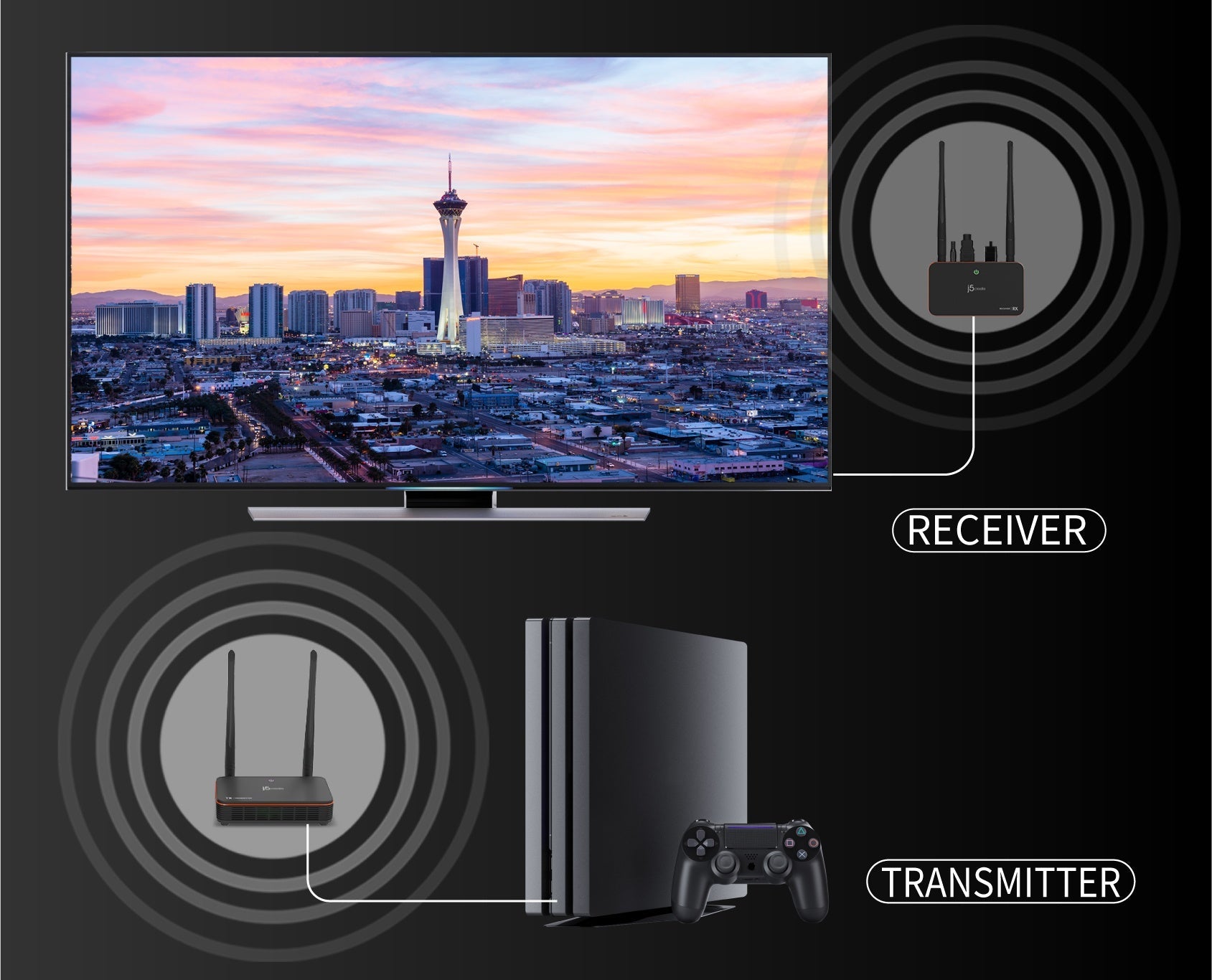

Compatible with PS4® and Nintendo Switch™ game systems, Blu-ray™ players, set-top boxes and more
Supports USB™ 2.0 wireless extender unit (works with USB™ keyboards and mice)
SPECIFICATIONS:

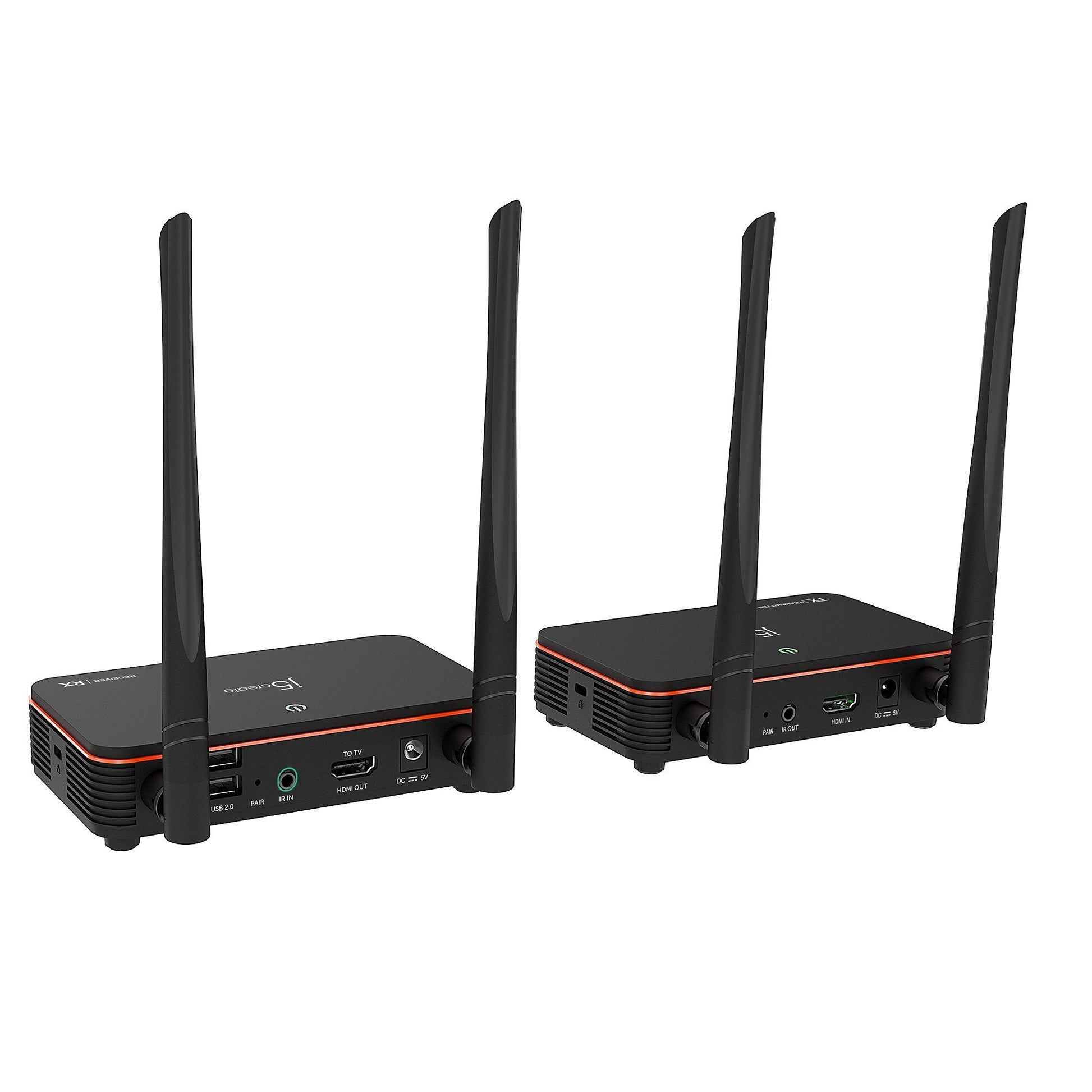

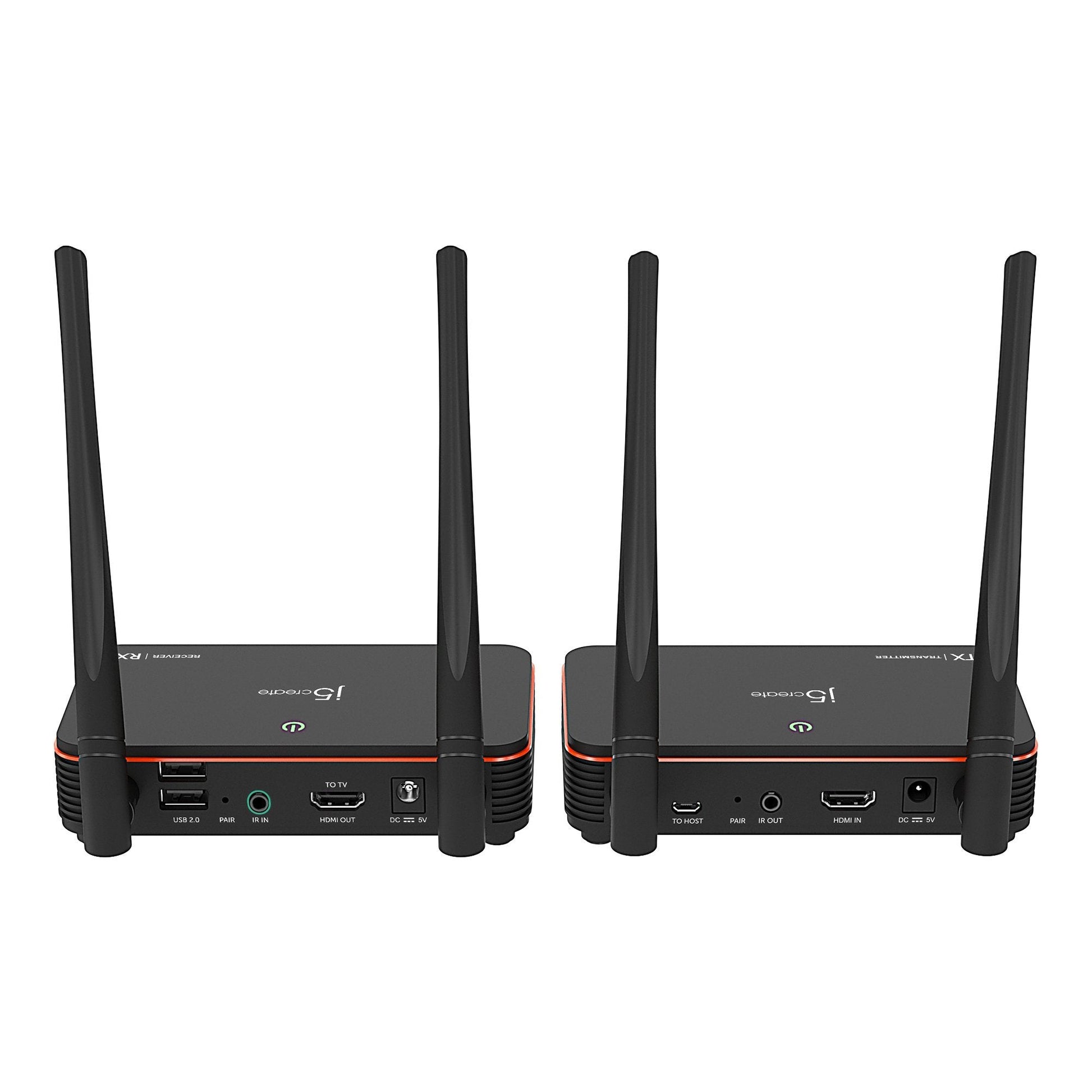

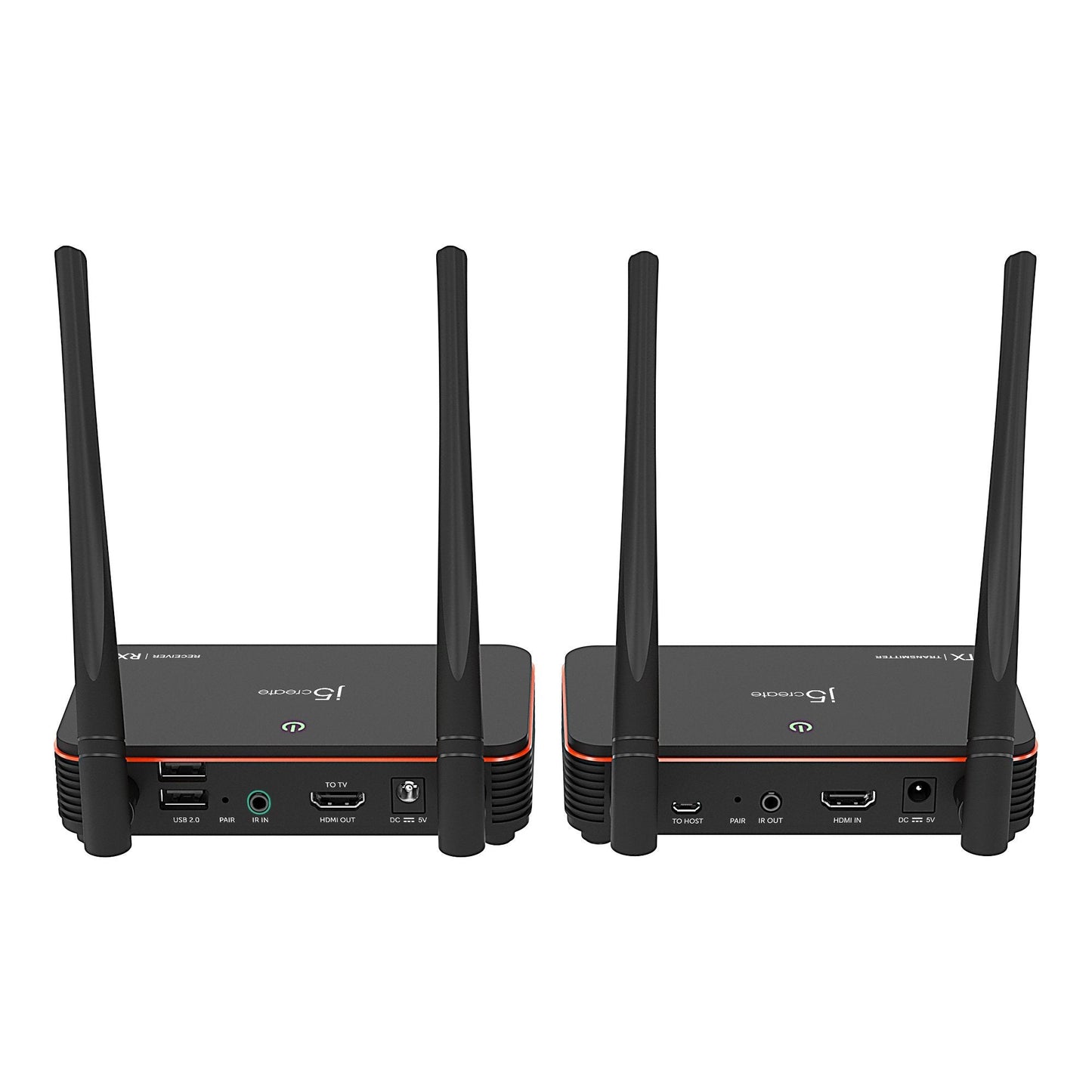

HDMI™ Connector: Type-A 19-pin female input × 1
Power Supply: DC jack 3.5 mm
LED: 1 × LED with 3 colors — Red: Power on, Orange: Waiting for pairing, Green: TX/RX pairing completed, Red flashing: TX/RX pairing in progress

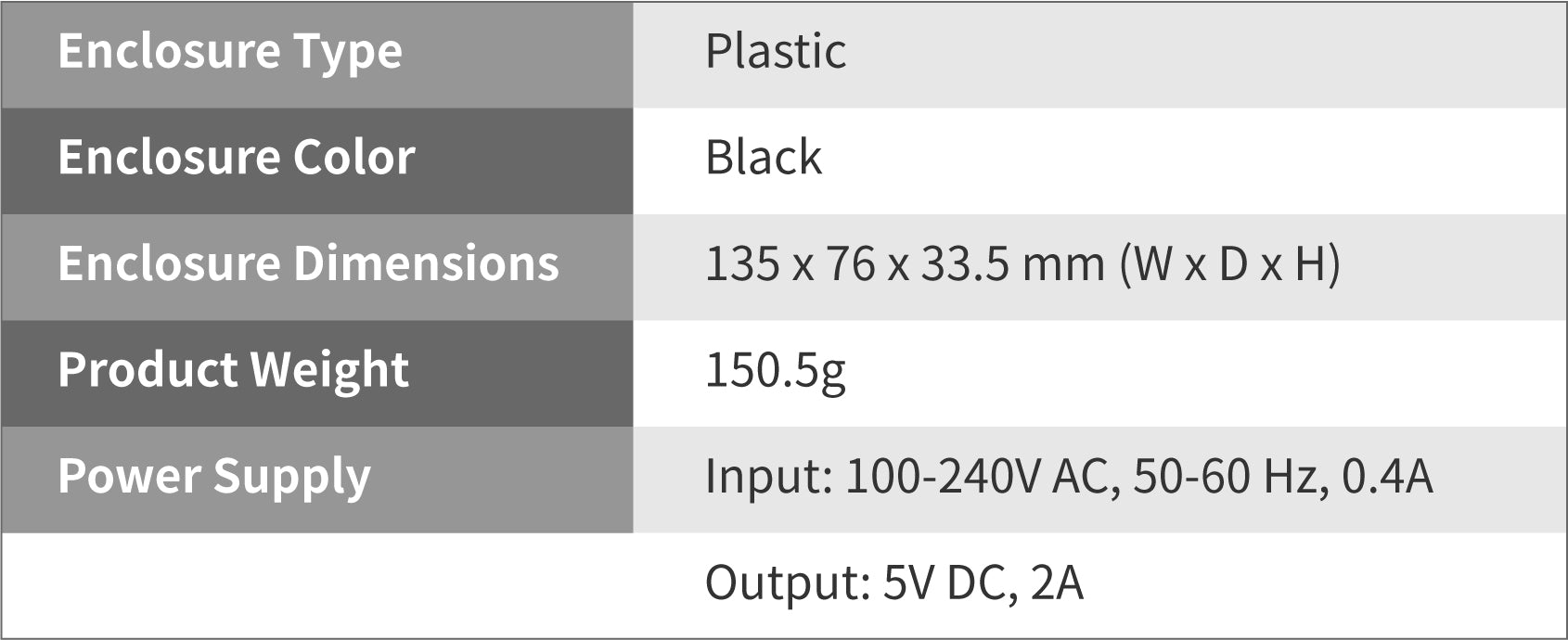

Enclosure Type: Plastic
Enclosure Color: Black

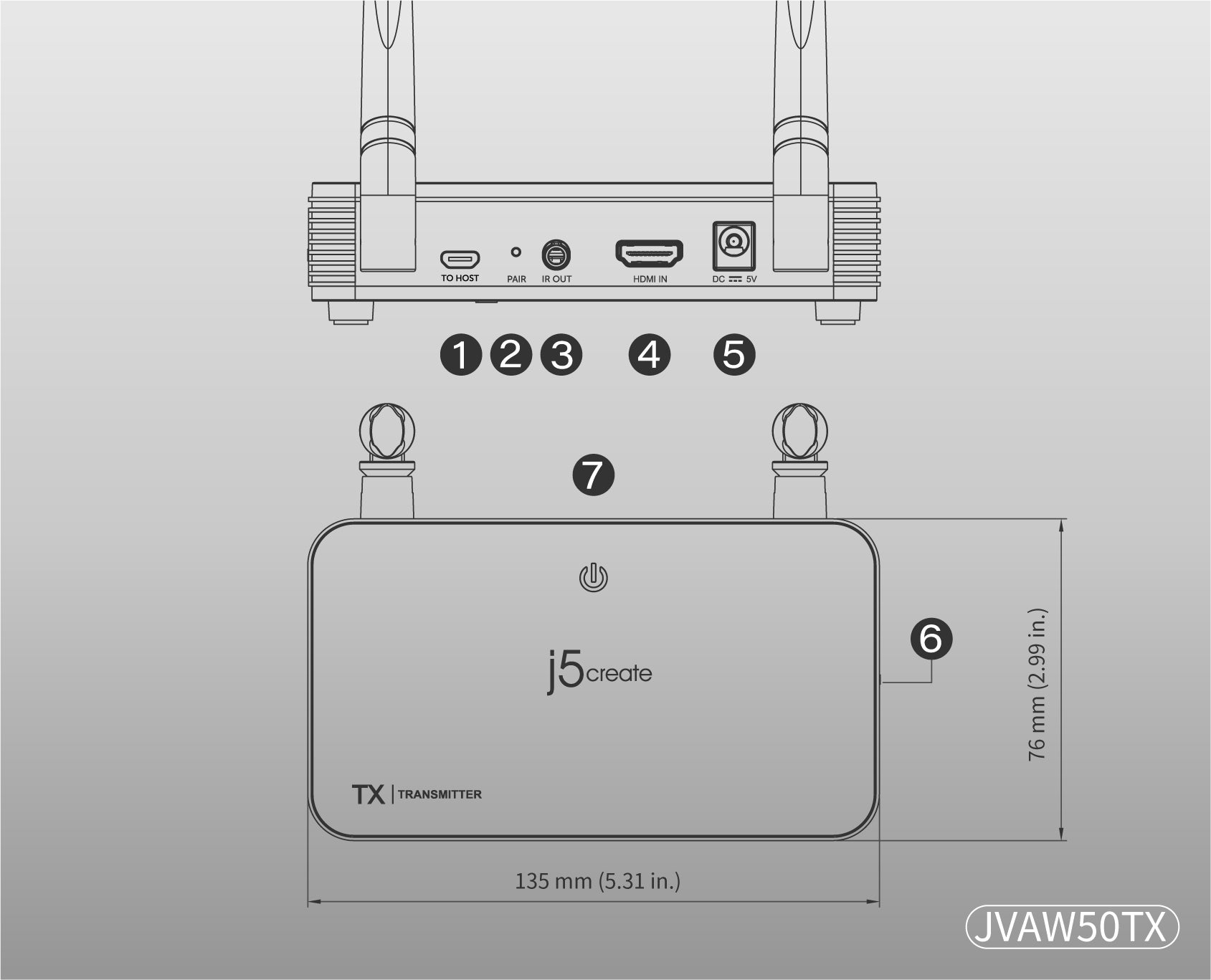

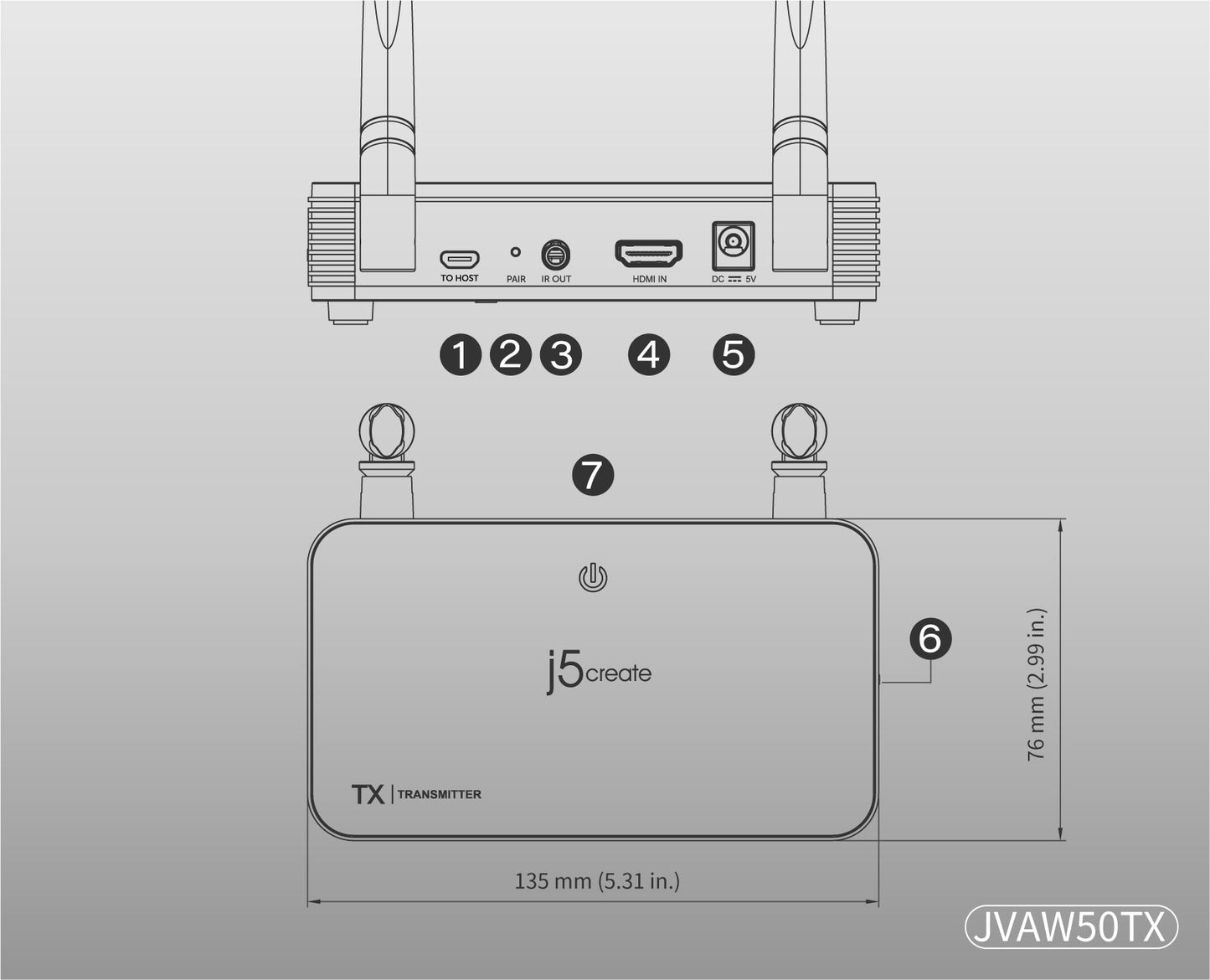

Enclosure Dimensions (W × D × H): 135 × 76 × 33.5 mm
