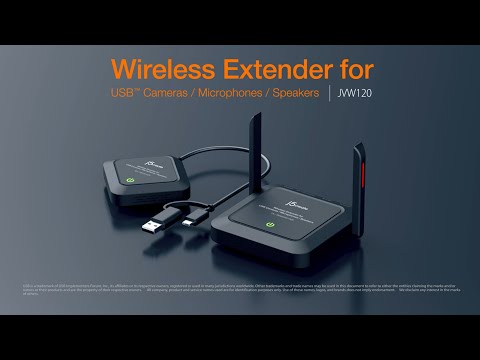

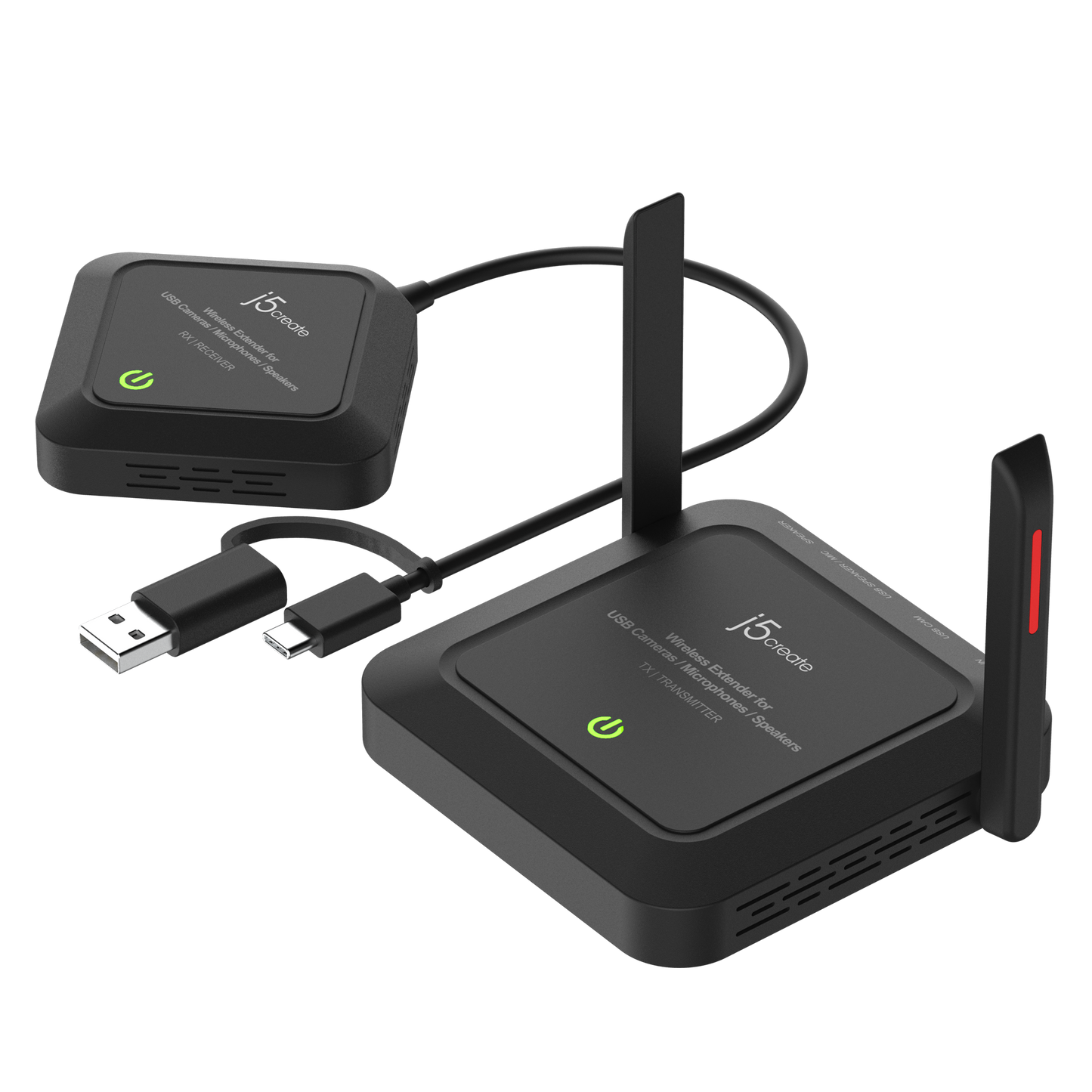

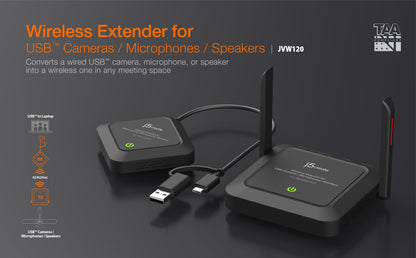

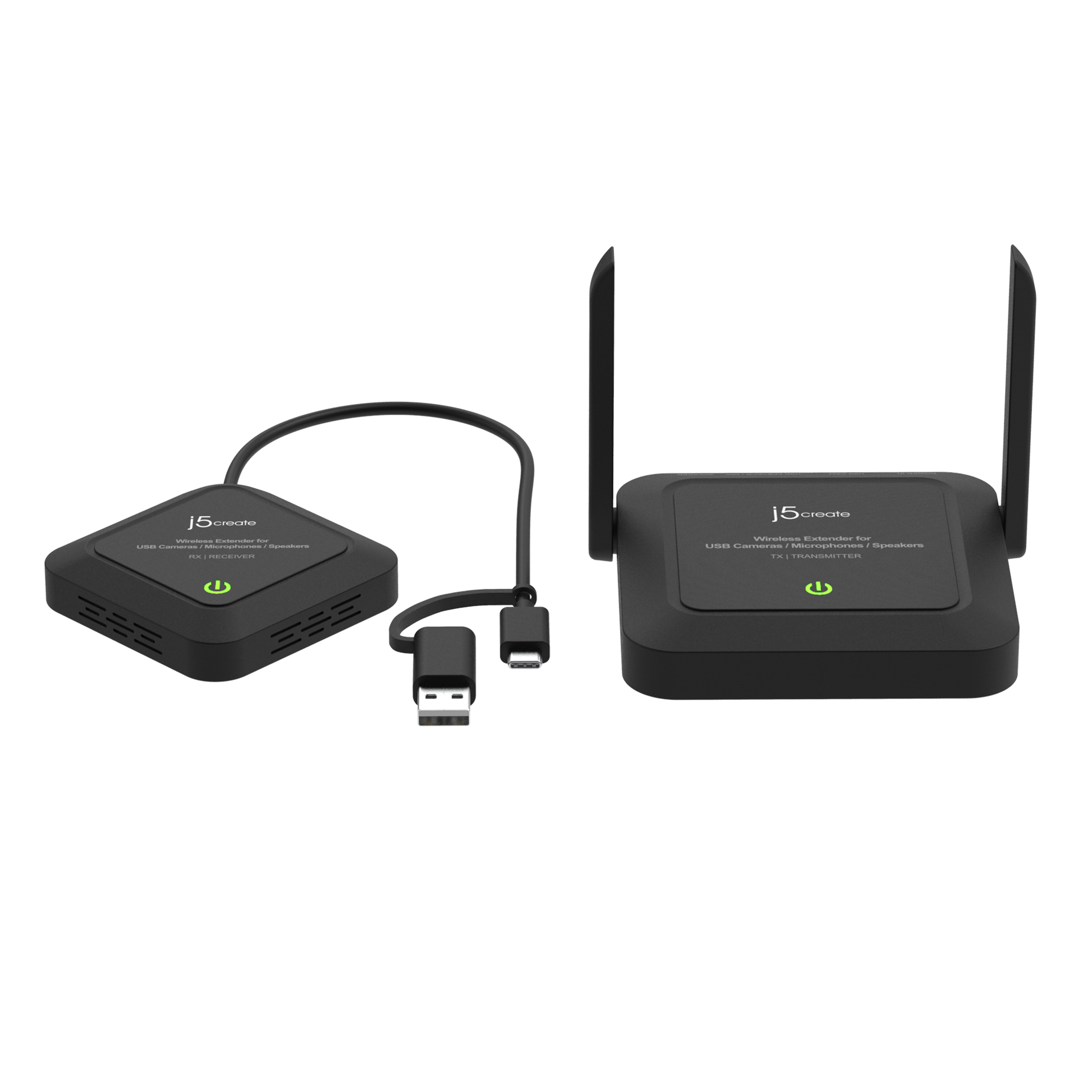

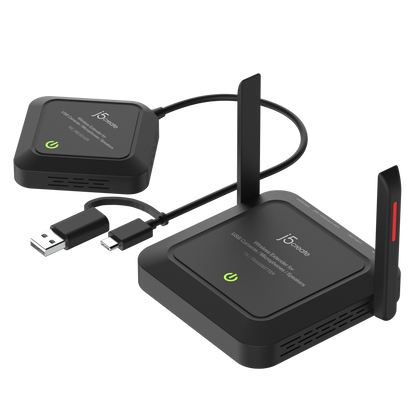

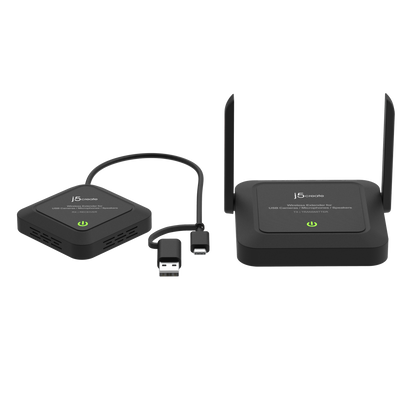

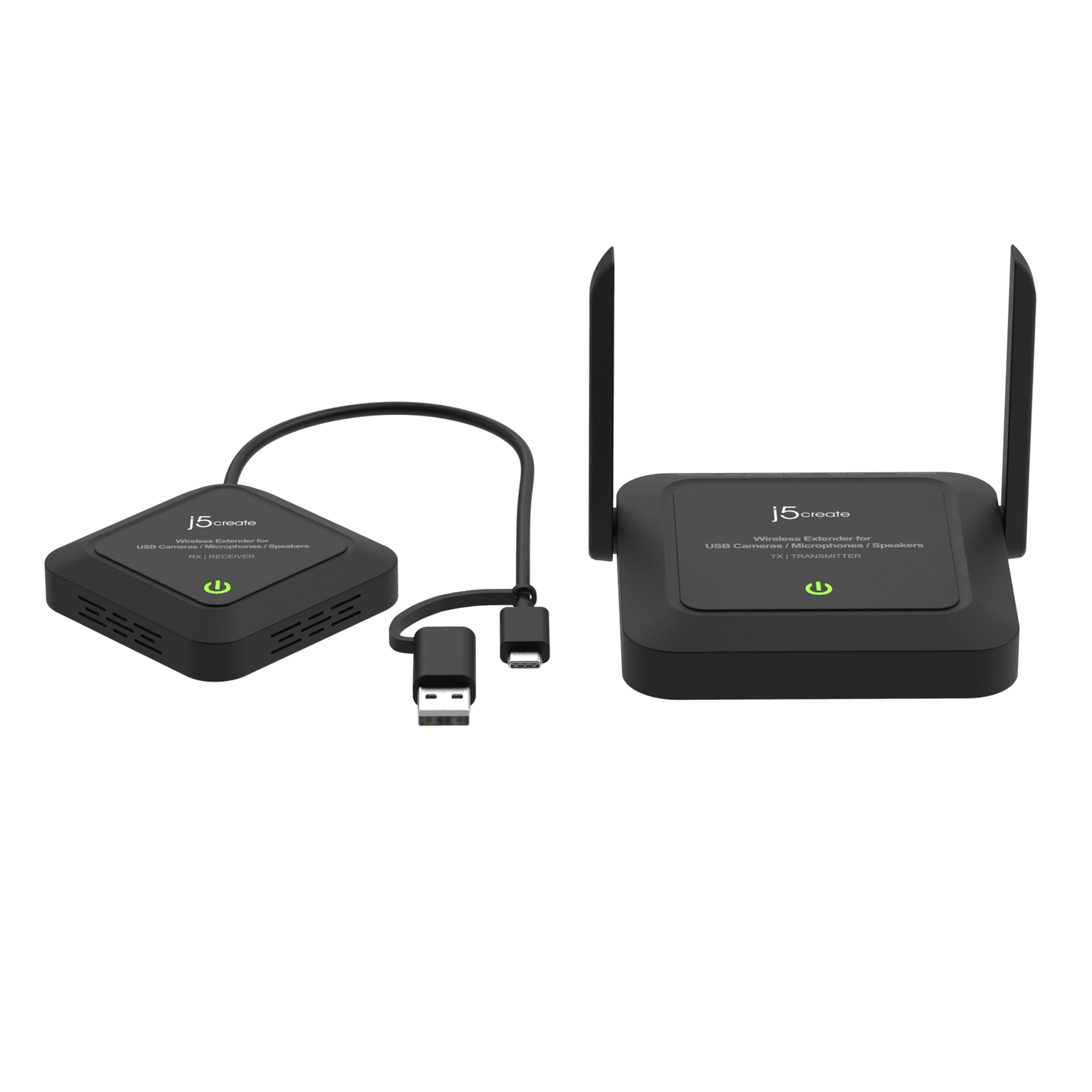

J5create Wireless Extender for USB Cameras / Microphones / Speakers - JVW120

J5create Wireless Extender for USB Cameras / Microphones / Speakers - JVW120

R 3,079.00 ZAR
R 3,079.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Ready to ship tomorrow

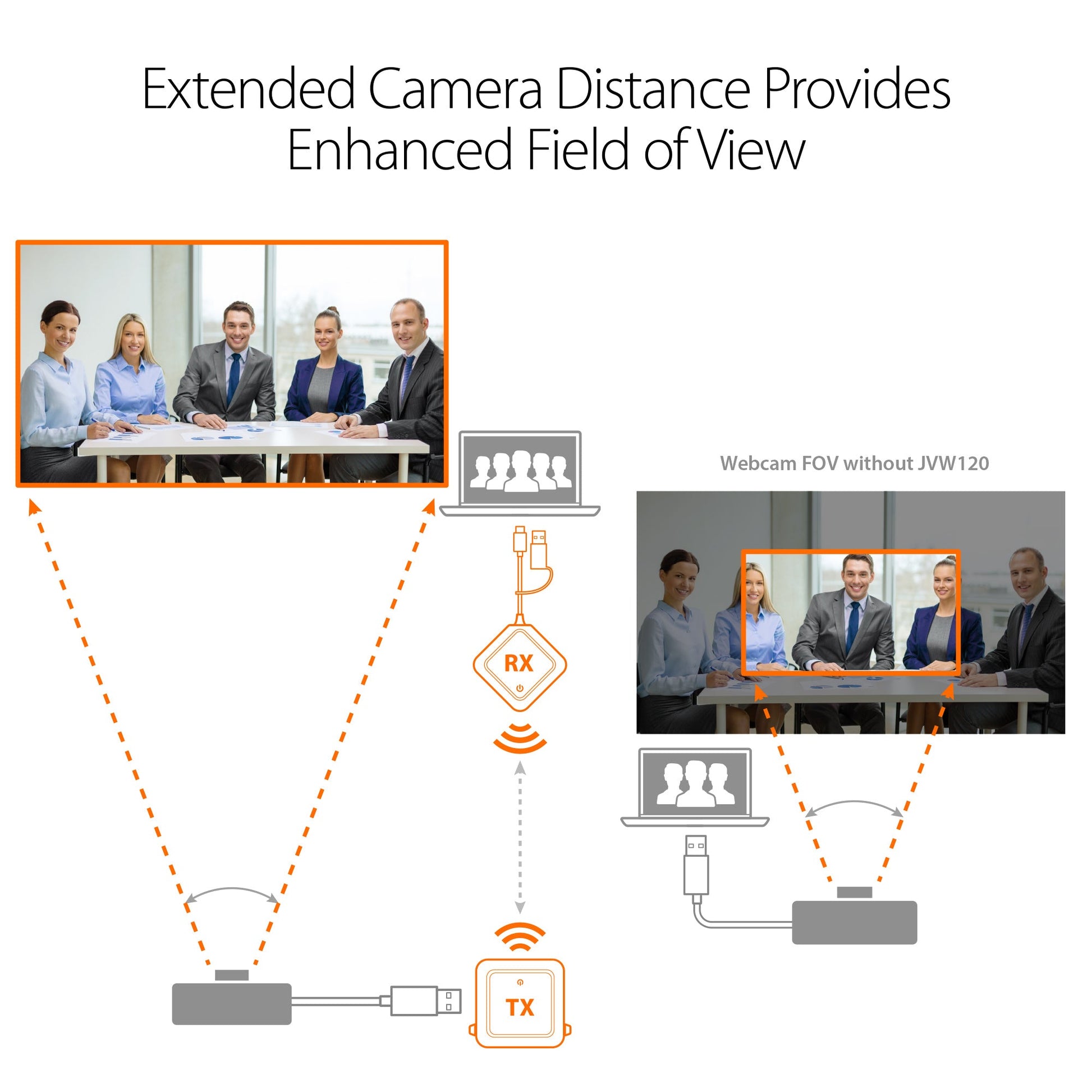

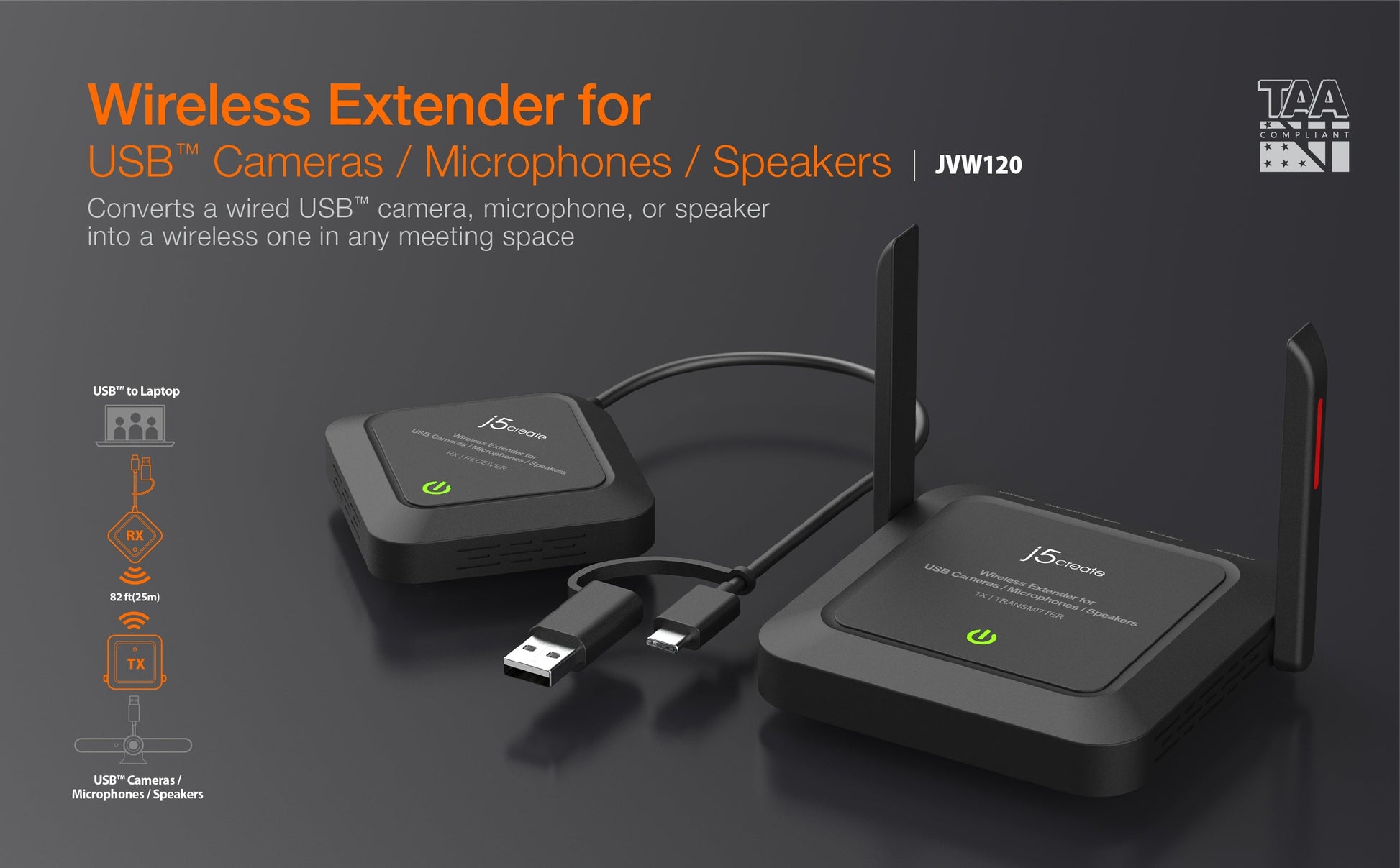

The j5create Wireless Extender for USB™ Cameras / Microphones / Speakers turn your wired USB™ camera into a wireless one. With a wireless transmission range of up to 82 ft. (25m) users can extend the range of their wired USB™ camera without having to deal with tangled cables regardless of the room layout. In addition to transmitting both video and audio wirelessly this compact and lightweight camera extender works with Windows® , macOS® , and Chrome OS™ devices, making it a great addition to any meeting room, streaming setup, and other similar environments.

FEATURES:

  • Low-latency audio and video transmission via USB™
  • Converts a wired USB™ camera into a wireless one
  • Provides support for USB™ camera with microphones/speaker

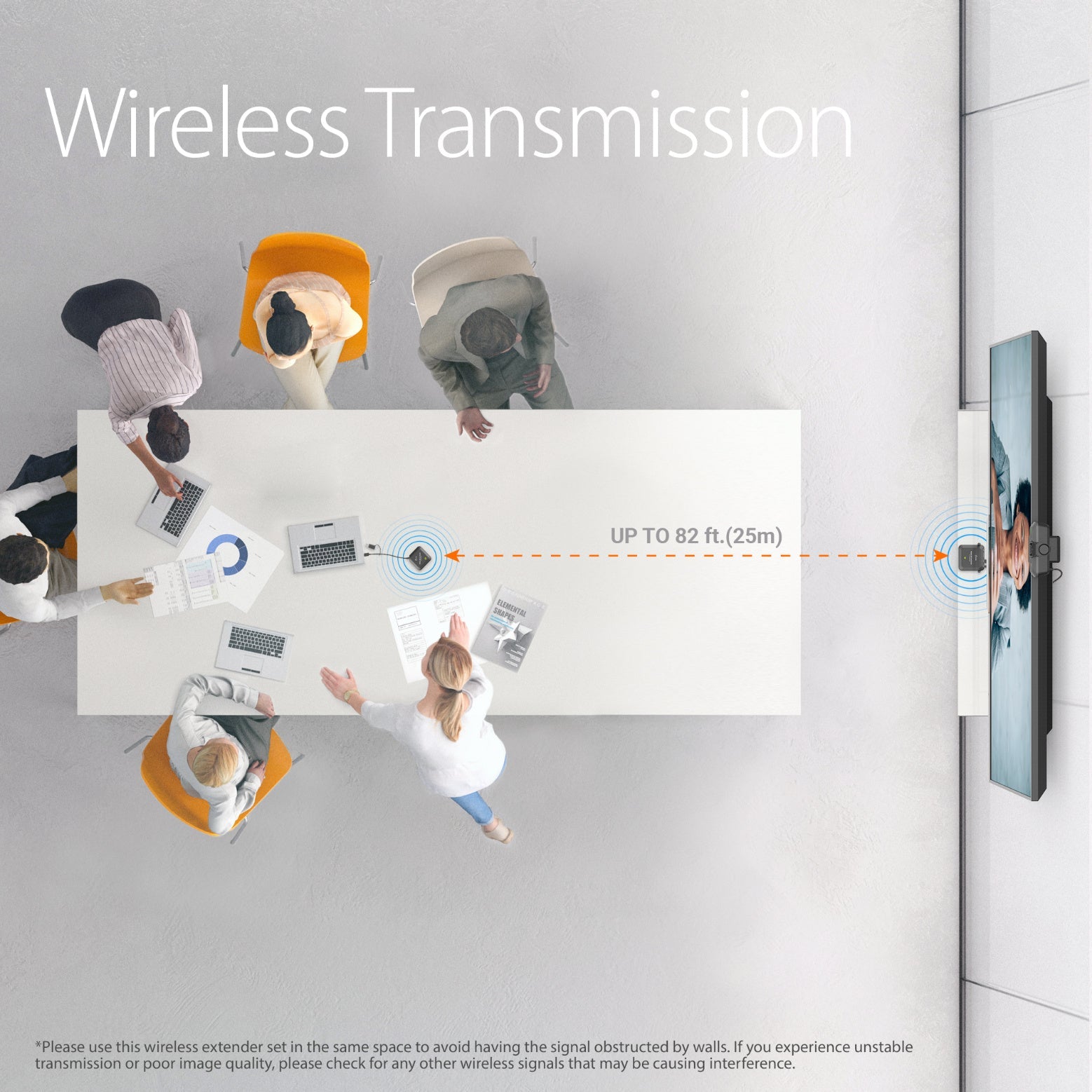

  • Wireless transmission distance can reach up to 82 ft. (25 m)
  • 5 GHz frequency ensures a stable connection
  • Supports resolution up to 1080p@30 in MJPEG format, and 1080p@60 and 4K@30 in H.264 format
  • Compatible with Windows®, macOS®, Chrome OS™

System Requirements:

  • Available USB-C® or USB™ Type-A port
  • Windows® 11 / 10
    macOS® 10.10 or later
    Chrome OS™

Special Notes:

  • Display may vary depending on environment. Solid and nonporous materials such as steel, concrete, brick and glass (varies depending on coating and thickness) may cause shorter viewing distance or loss of signal.
  • Priority of Audio-Output on the ports of TX would be “3.5mm Speaker→ USB™ Speaker/microphone → USB™ camera with speaker/microphone”
  • TX and RX devices will connect and pair each other automatically. If devices are properly be paired and USB™ camera has been connect with TX, then camera will be activated automatically

SPECIFICATIONS:

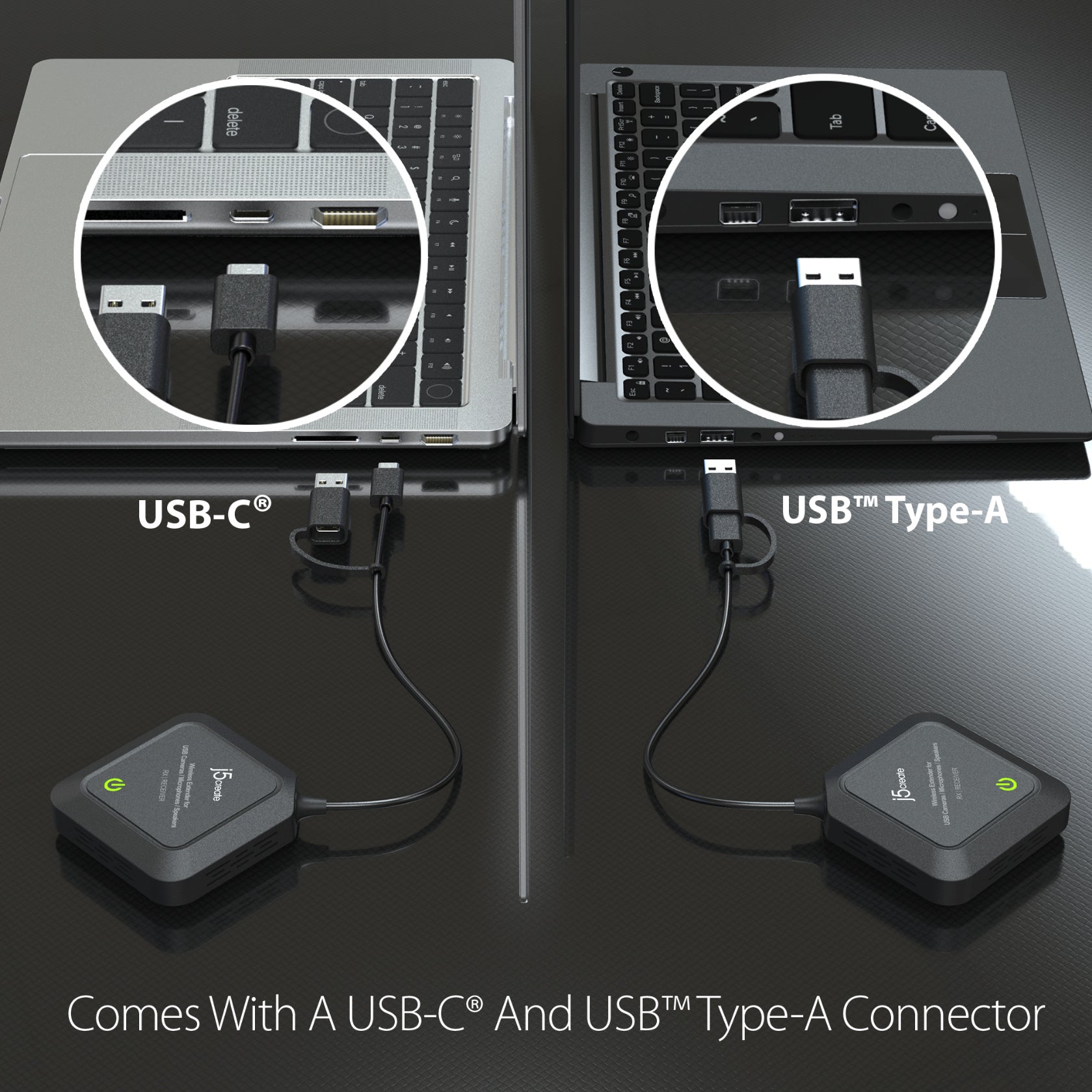

  • Host connector: RX (Receiver) uses USB-C® or USB® Type-A port
  • Power source: TX (Transmitter) uses 1 × DC 5V/3A power adapter; RX (Receiver) uses bus power via USB-C®
  • LED indicators (TX / RX): Red = power on; Orange = waiting to connect (TX and RX connected but no USB™ camera or speaker/microphone connected to TX); Orange flashing = pairing mode; Green = TX/RX connected and TX camera enabled
  • Pair button: Located on the bottom of both TX and RX; press and hold for 5 seconds to enter pairing mode (LED turns orange and blinks for 1 minute); once paired, LED turns green and stops blinking
  • Audio ON/OFF switch: RX (Receiver) bottom switch controls audio (ON = enabled, OFF = disabled)

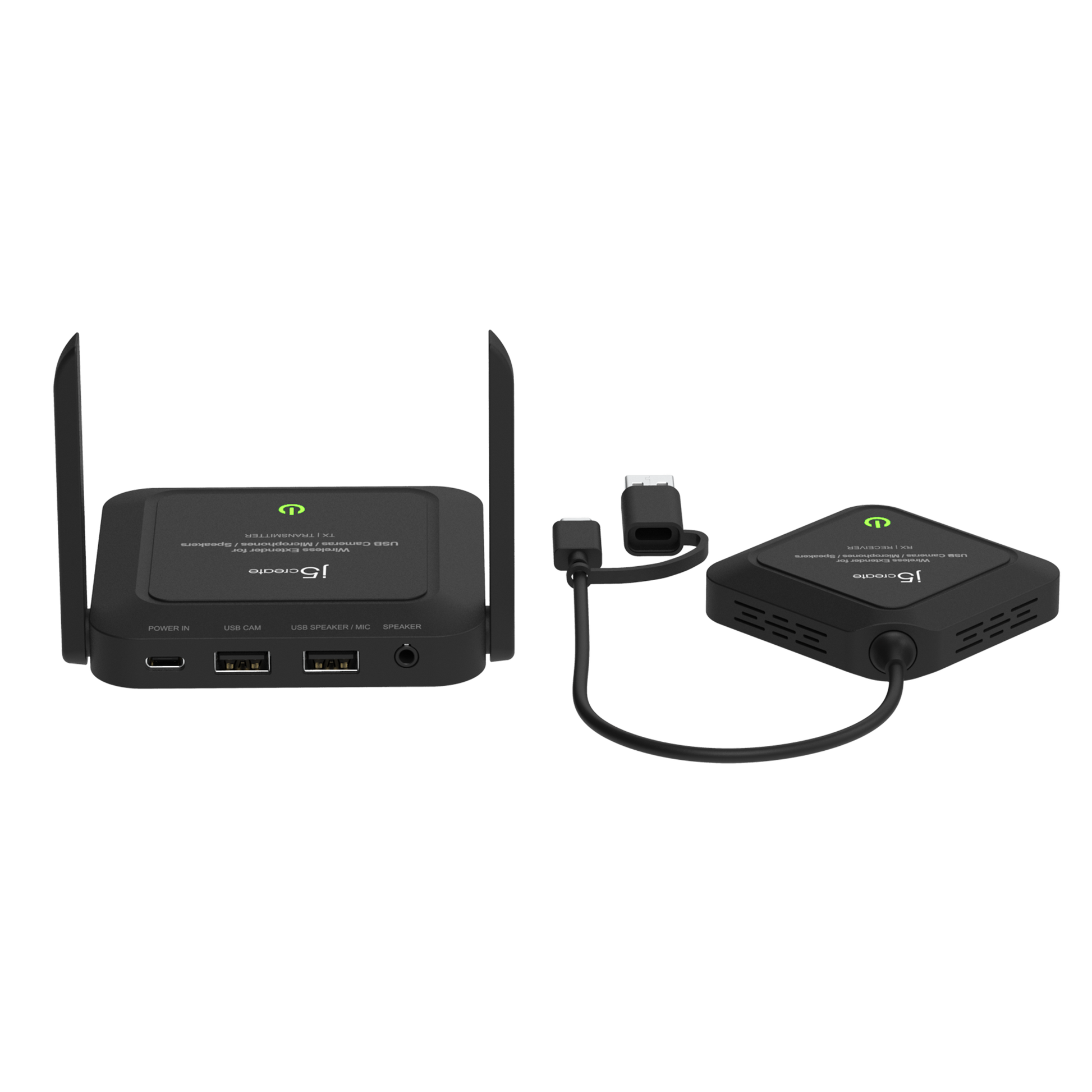

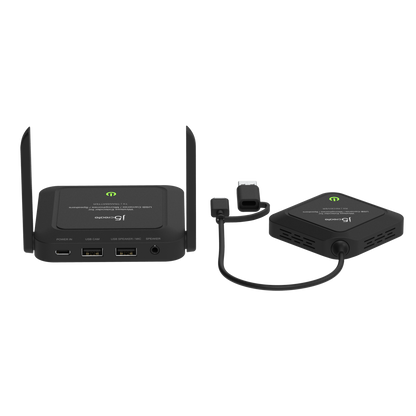

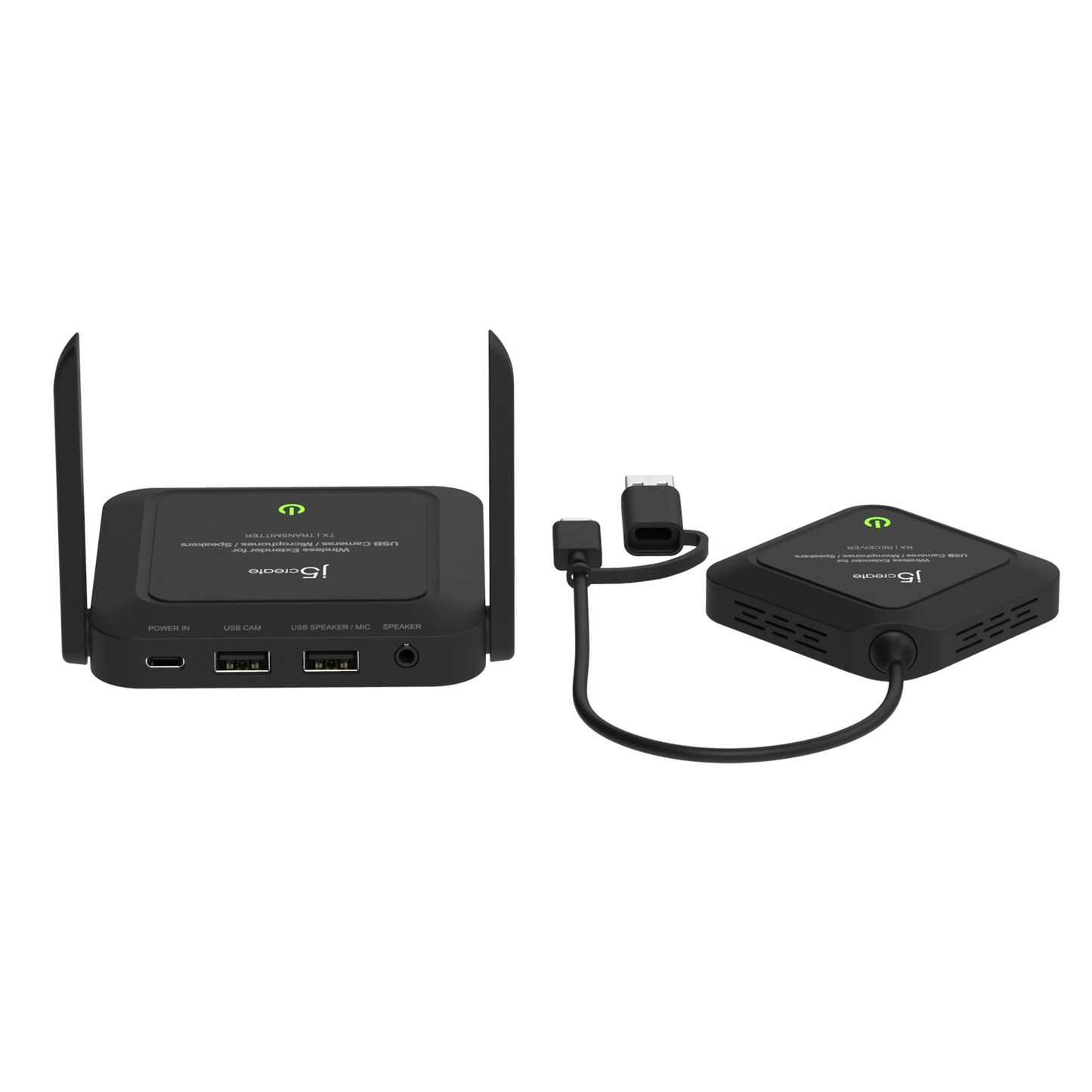

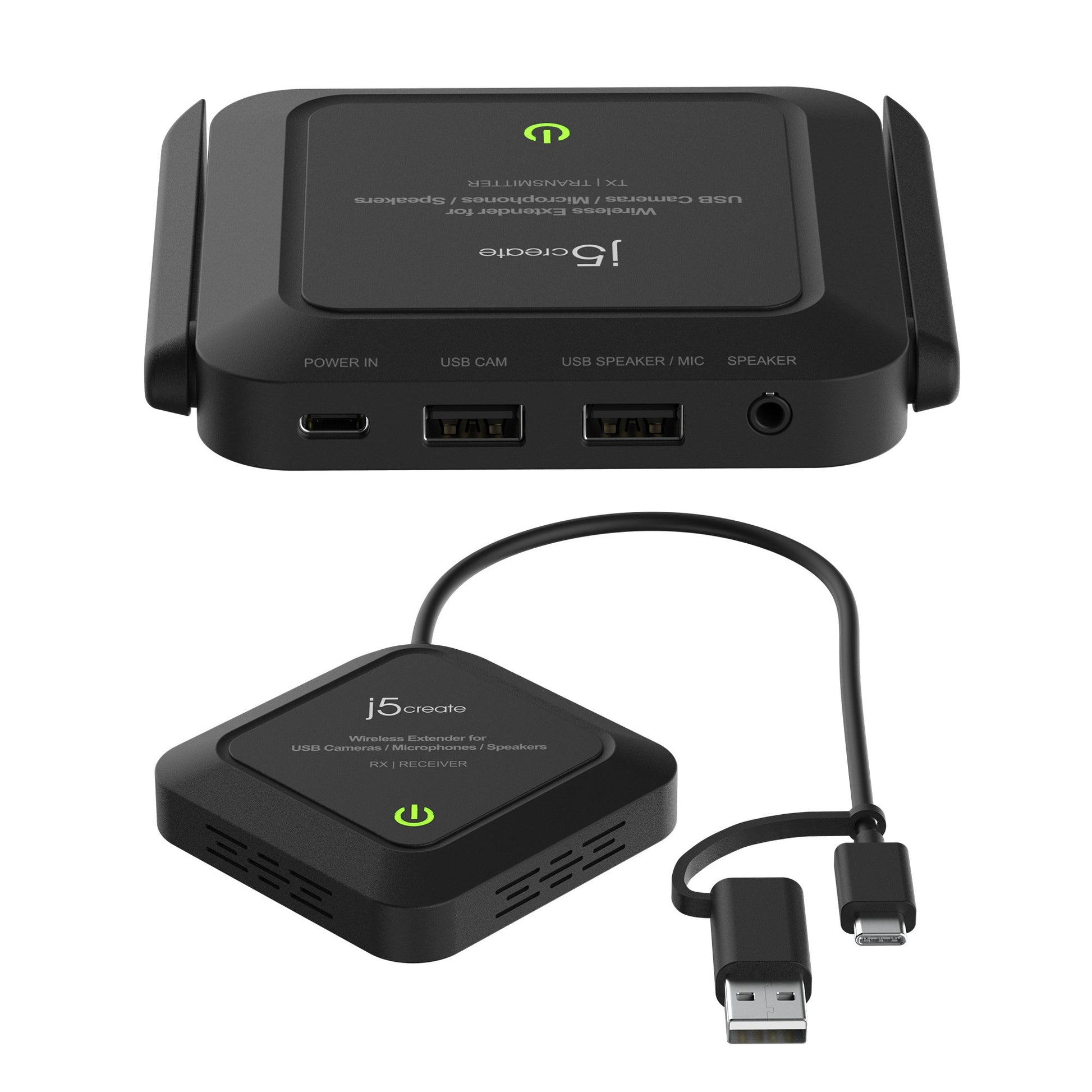

  • Ports (TX Transmitter): 1 × USB-C® power input; 1 × USB™ Type-A (camera); 1 × USB™ Type-A (speaker/microphone); 1 × 3.5 mm speaker out
  • IR: N/A
  • Audio channel: 2.1 channel stereo
  • Supported resolutions: H.264 supports 2160p, 1080p, 720p, 480p, 240p @ 30 FPS and 1080p @ 60 FPS; MJPEG supports 1080p, 720p, 480p, 240p @ 30 FPS; YUV supports 1080p, 720p, 480p, 240p
  • RF output power: +15 dBm ±1 dBm
  • Security: 128/256-bit AES encryption with WPA2 authentication
  • IR return frequency: N/A
  • ESD protection: N/A
  • OVP protection: N/A
  • Wireless standard: IEEE 802.11ac
  • Frequency: 5 GHz Band I and Band IV (CE only Band I)
  • Range: Up to 82 ft (25 m)
  • Channel width: 80 MHz
  • Antenna: TX has 2 external antennas; RX has built-in antenna
  • Color: Black
  • Enclosure type: Plastic
  • Cable length: RX (Receiver) 6.5 in (16.5 cm)
  • Product height: TX 0.9 in (23 mm); RX 0.83 in (21 mm)
  • Product width: TX 3.74 in (95 mm); RX 2.63 in (67 mm)
  • Product depth: TX 3.74 in (95 mm); RX 2.63 in (67 mm)
  • Product weight: TX 3.95 oz (112 g); RX 1.95 oz (55.5 g)
  • Operating temperature: 32 to 104°F (0 to 40°C)
  • Operating humidity: <85% non-condensing
  • Storage temperature: -4 to 122°F (-20 to 50°C)
  • Storage humidity: <85% non-condensing

WHAT'S IN THE BOX:

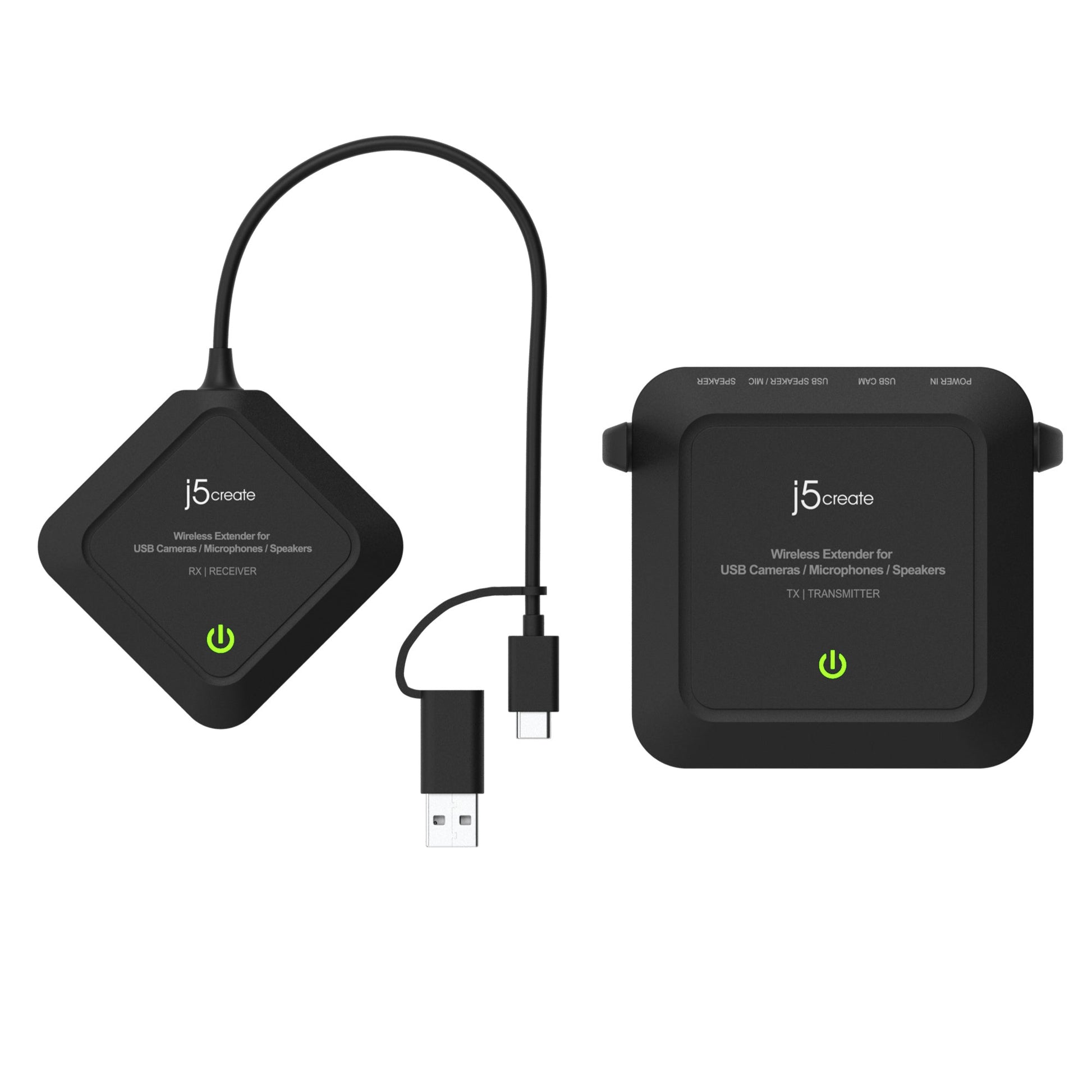

  • JVW120 Wireless Extender for USB™ Cameras / Microphones / Speakers set (1 x Transmitter & 1 x Receiver) x1
  • DC 5V/3A Power Adapter x1
  • Hook and loop fastener x1
  • Quick Installation Guide (QIG) x1

WARRANTY:

  • 24 Months
