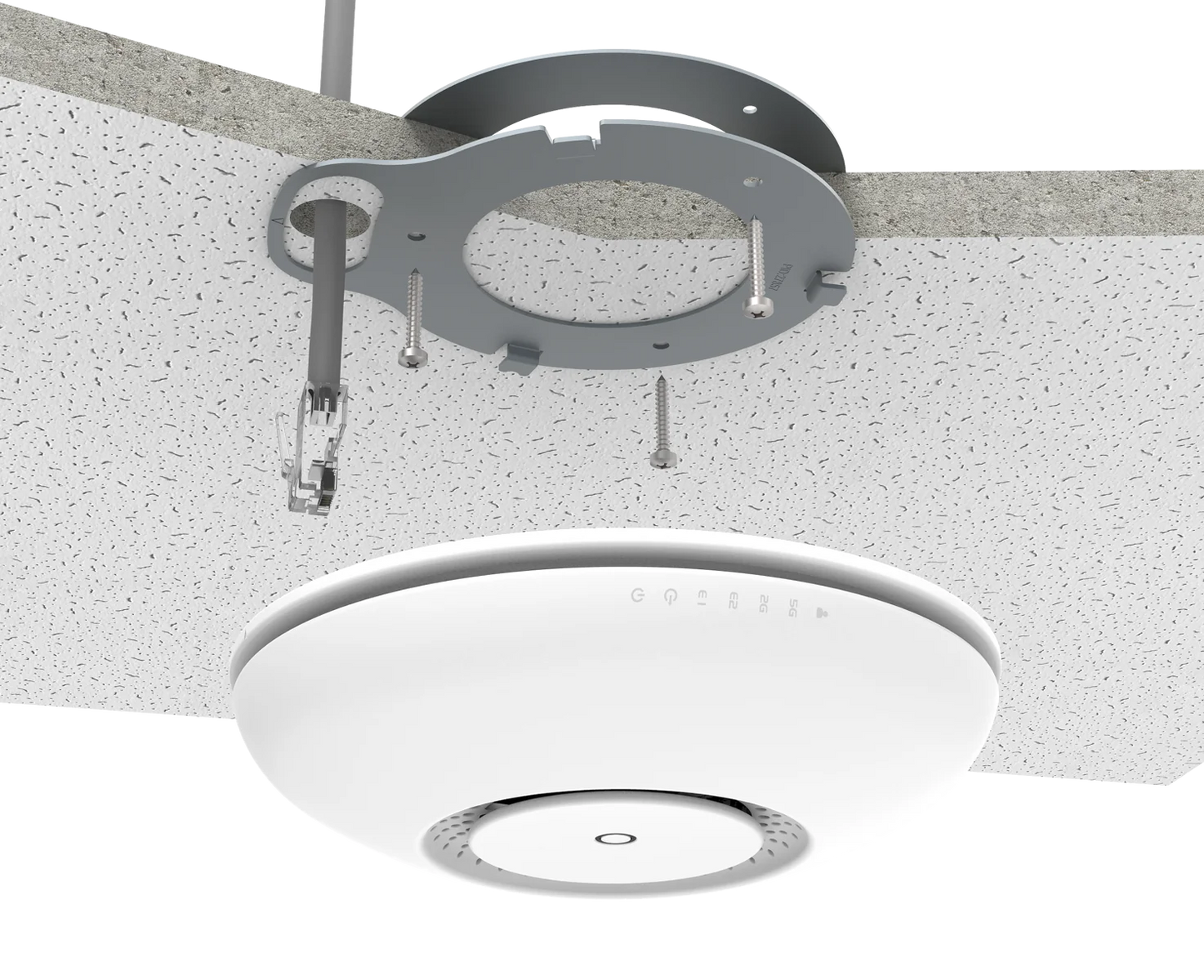

MikroTik cAP ac Dual Band Ceiling AP

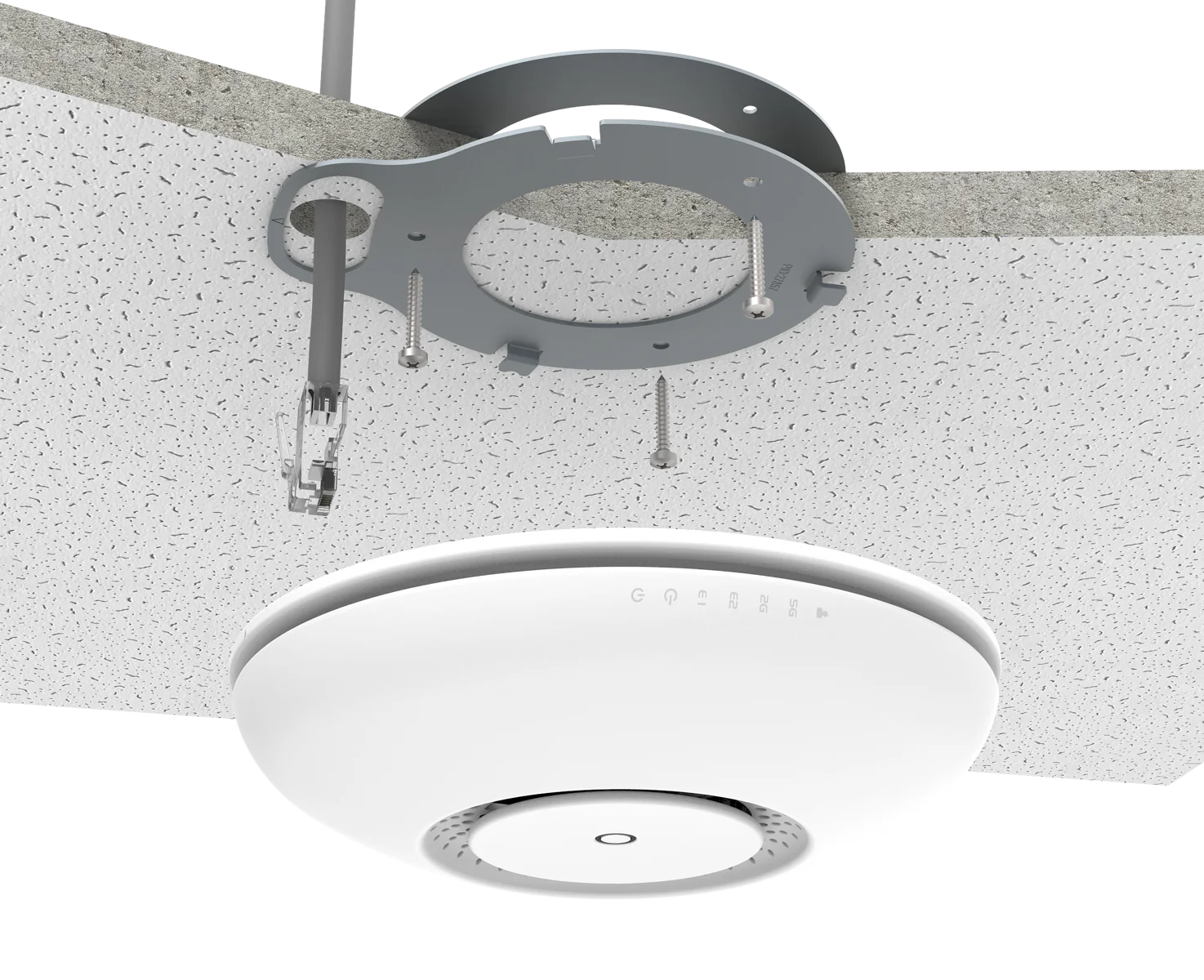

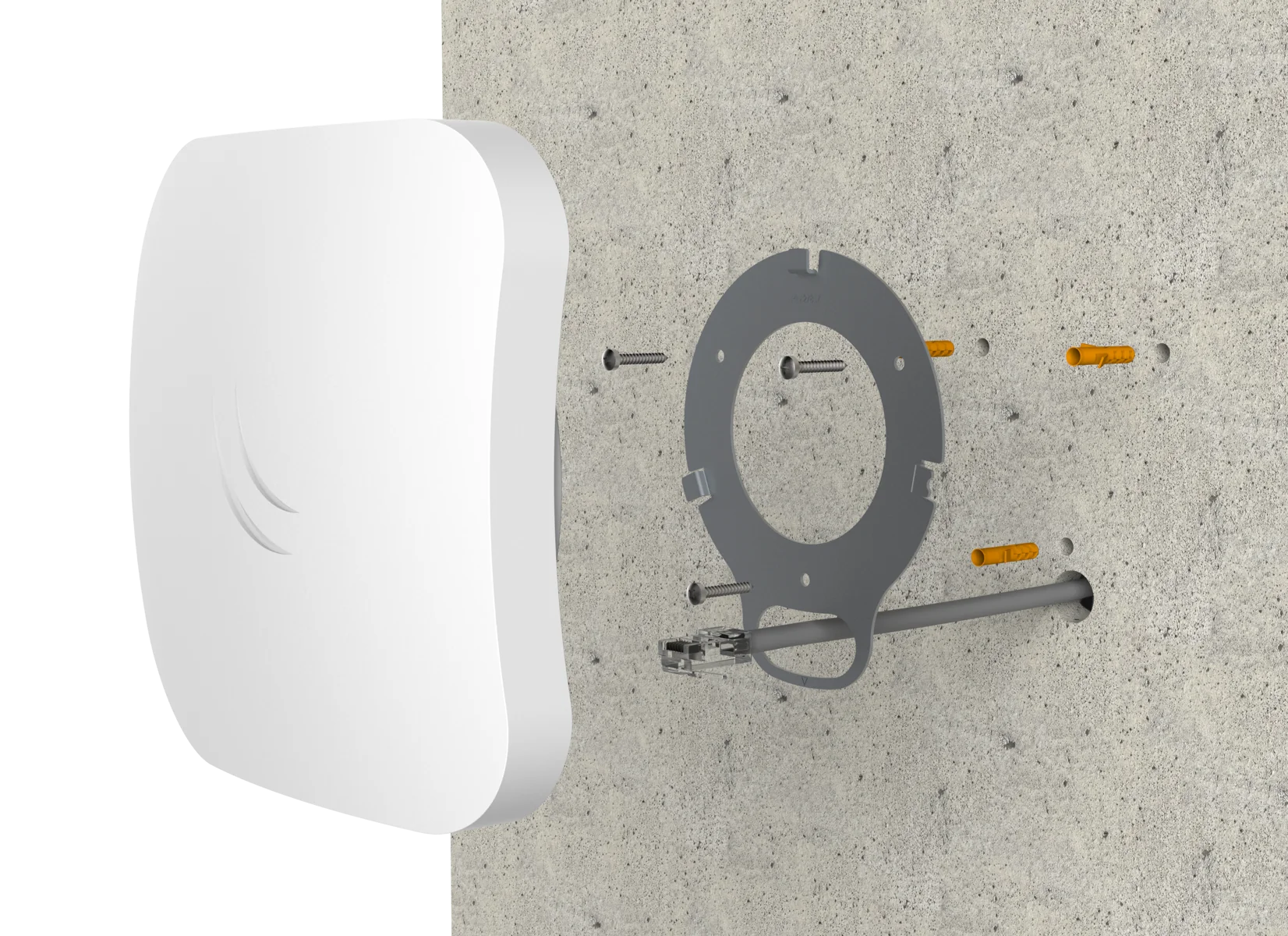

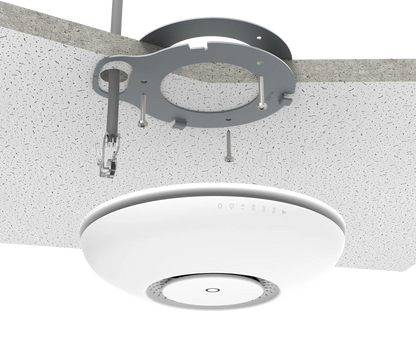

Dual-band 2.4 / 5GHz wireless access point for mounting on a ceiling or wall with two Gigabit Ethernet ports (one with PoE output), 802.11ac support and IPsec hardware encryption support.

The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz 802.11b/g/n and 5 GHz in a/n/ас standards, and will provide coverage in 360 degrees around it.

Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port. Device supports IPsec hardware acceleration too.

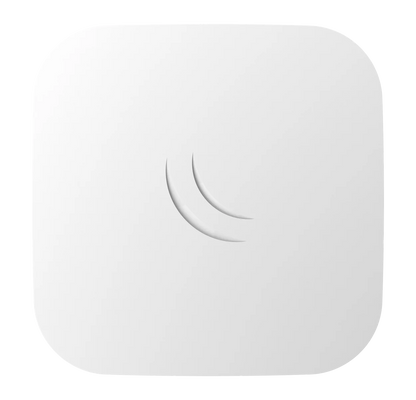

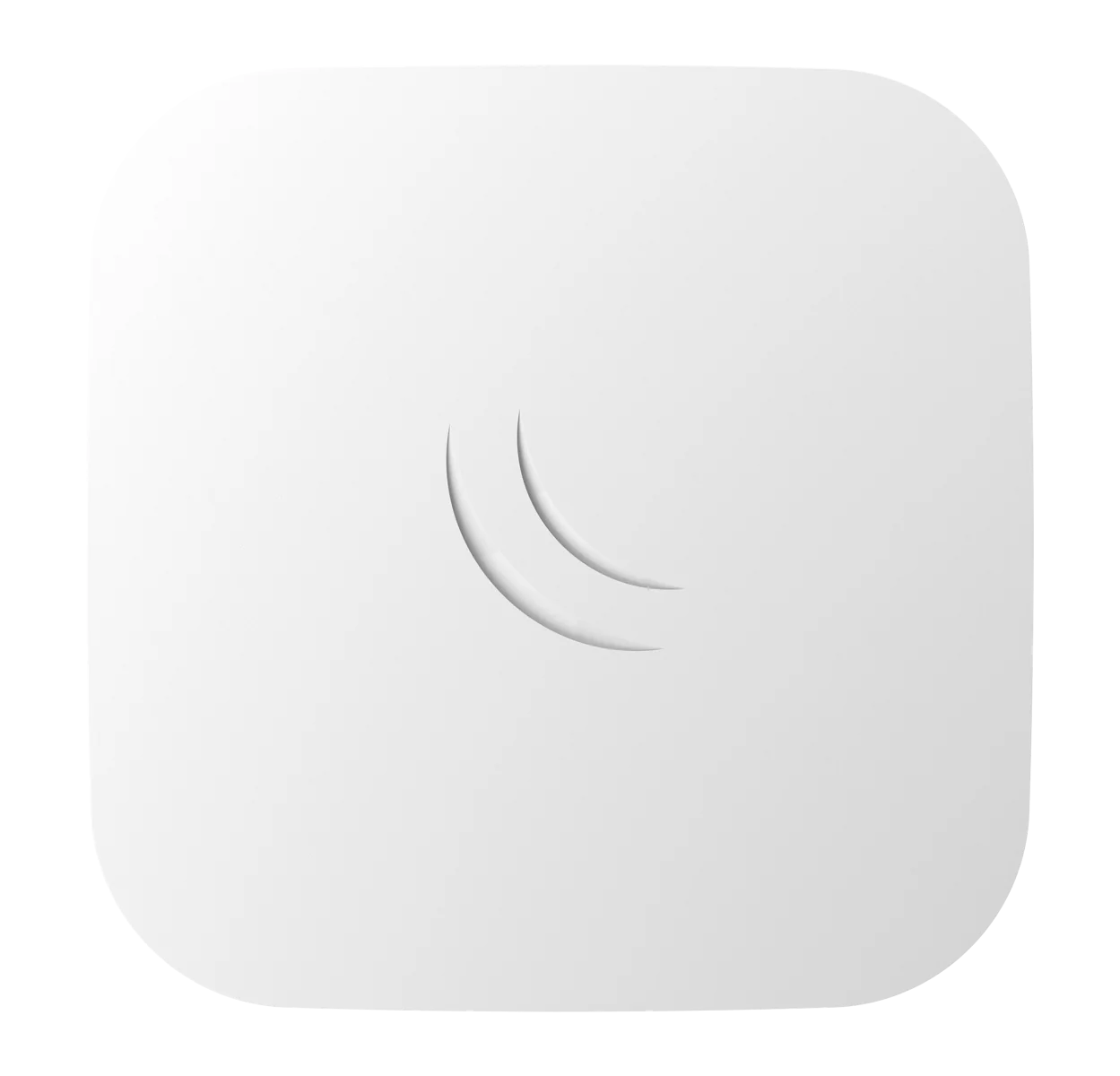

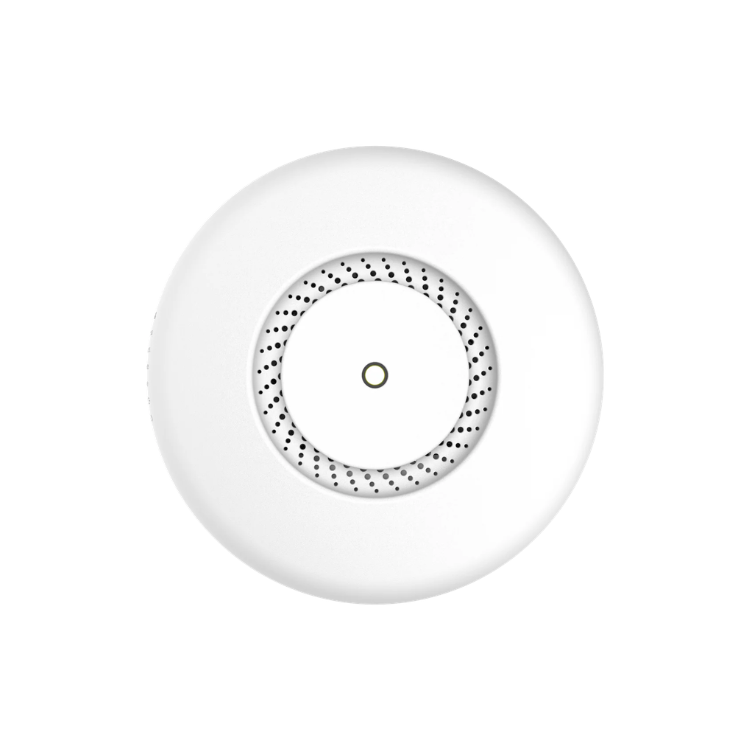

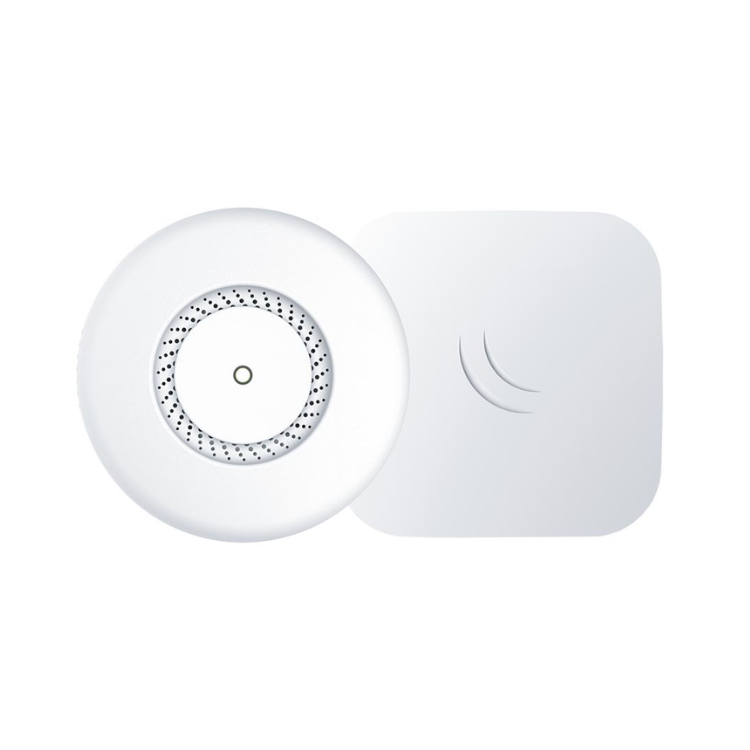

The device comes bundled with two enclosures, so you can choose the design you like best.

SPECIFICATIONS:

• Product code: RBcAPGi-5acD2nD
• 10/100/1000 Ethernet ports: 2
• Architecture: ARM 32bit
• CPU: IPQ-4018
• CPU core count: 4
• CPU nominal frequency: 488-896 (auto) MHz
• CPU Threads count: 4
• Switch chip model: IPQ-4018
• Dimensions: Round case: ⌀ 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm
• RouterOS license: 4
• Operating System: RouterOS
• Size of RAM: 128 MB
• Storage size: 16 MB
• Storage type: FLASH
• MTBF: Approximately 100'000 hours at 25C
• Tested ambient temperature: -40°C to 50°C
• Wireless 2.4 GHz Max data rate: 300 Mbit/s
• Wireless 2.4 GHz Number of chains: 2
• Wireless 2.4 GHz standards: 802.11b/g/n
• Antenna gain dBi for 2.4 GHz: 2
• Wireless 2.4 GHz chip model: IPQ-4018
• Wireless 2.4 GHz generation: Wi-Fi 4
• Wireless 5 GHz Max data rate: 867 Mbit/s
• Wireless 5 GHz Number of chains: 2
• Wireless 5 GHz standards: 802.11a/n/ac
• Antenna gain dBi for 5 GHz: 2.5
• Wireless 5 GHz chip model: IPQ-4018
• Wireless 5 GHz generation: Wi-Fi 5
• WiFi speed: AC1200
• Number of DC inputs: 1 (PoE-IN)
• Max power consumption: 24 W
• Max power consumption without attachments: 12 W
• PoE in: 802.3af/at
• Cooling type: Passive
• PoE in input Voltage: 17-57 V
• PoE-out ports: Ether2
• PoE out: Passive PoE up to 57V
• Low voltage PoE-Out current limit: 500 mA
• High voltage PoE-Out current limit: 400 mA
• Max total out (A): 500 mA

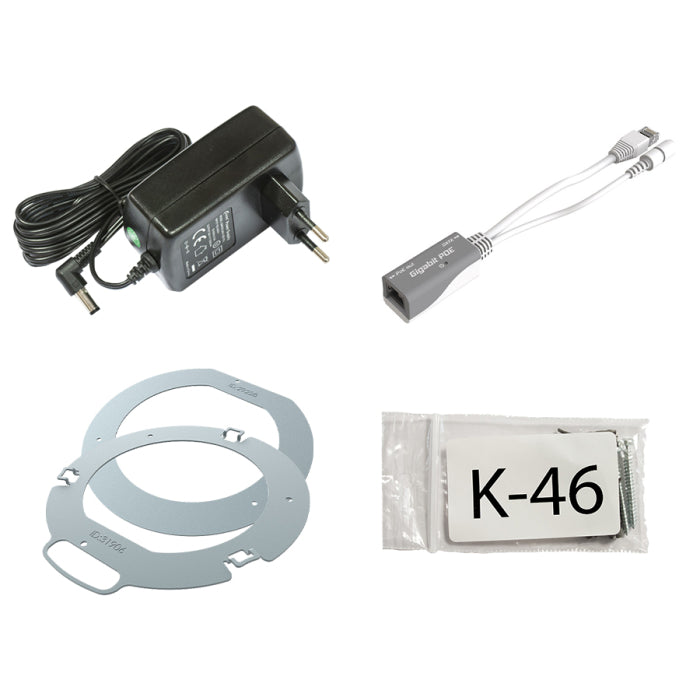

WHAT’S IN THE BOX:

• MikroTik cAP ac Dual Band Ceiling AP x1

• Mounting Accessories x1
• Power Adapter x1

WARRANTY:

• 12 Months
