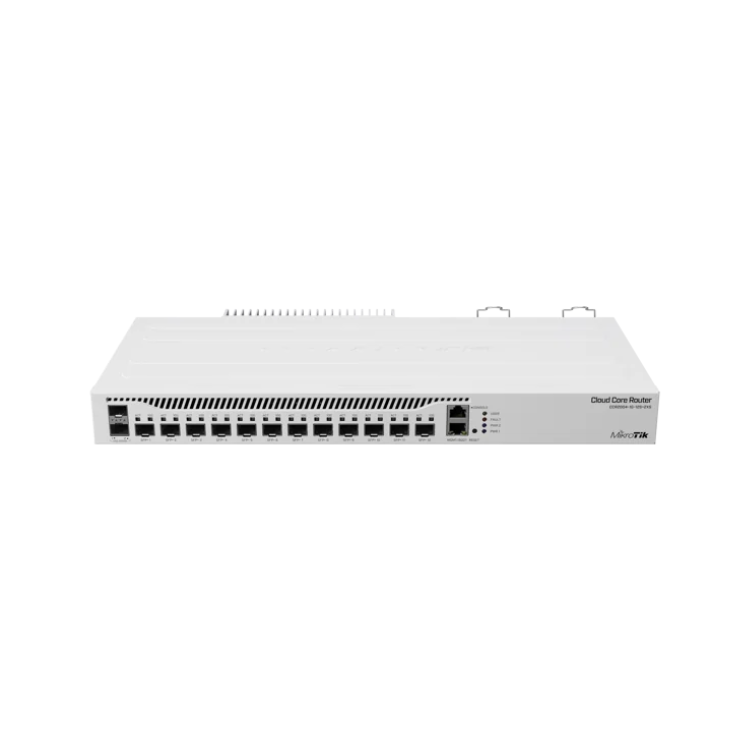

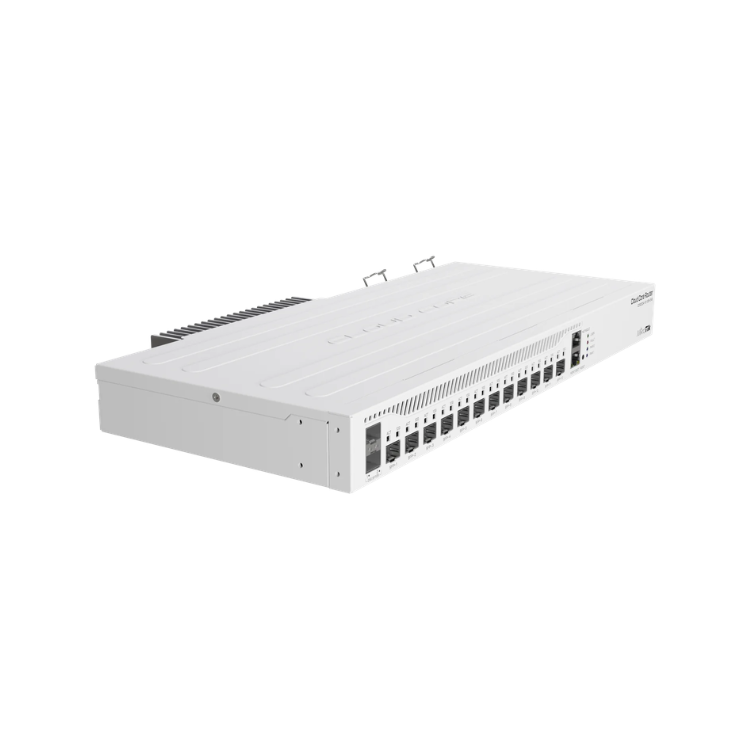

MikroTik CCR2004-1G-12S+2XS - Cloud Core 12 x SFP+, 2 x SFP28 Quad Core Router

The Connectivity Router - your best companion when it comes to SFP, SFP+ and SFP28 management! 1, 10 and 25 Gbps ports in a single device to make your life easier.

The “Improvise. Adapt. Overcome.” mindset can be very helpful, but sometimes you simply need a device that works and solves the problem without additional tinkering. The CCR2004-1G-12S+2XS does just that – forget about all connectivity troubles and expand your setup in any way you please. This handy router features 12 x 10G SFP+ and 2 x 25G SFP28 ports.

CCR2004-1G-12S+2XS is our router with the most powerful single-core performance so far. It provides incredible results in single tunnel (up to 3.4 Gbps) and BGP feed processing.

Be prepared for anything: 10G, 40G and now 25G! Paired with such MikroTik multiport products as CRS317-1G-16S+RM, CRS312-4C+8XG-RM and CRS326-24S+2Q+RM, your networking setup will know no bounds. Performance-wise, CCR2004-1G-12S+2XS is on par with the renowned CCR1009/CCR1016 routers. And with dual redundant power supply you can forget about unexpected downtime! With its elaborate port configuration, the new CCR2004-1G-12S+2XS is the perfect addition to any professional networking arsenal – it will save you tons of time in some tricky situations! Size of RAM in RouterOS v7 4GB ECC

FEATURES:

• 4-core ARM64 CPU
• RouterOS L6
• 4GB of onboard RAM
• 12 x 10Gbps SFP+ ports
•  2 x 25Gbps SFP28 ports

SPECIFICATIONS:

• Product code: CCR2004-1G-12S+2XS
• 10/100/1000 Ethernet ports: 1
• SFP+ ports: 12
• Number of 25G SFP28 ports: 2
• Serial console port: RJ45
• Architecture: ARM 64bit
• CPU: AL32400
• CPU core count: 4
• CPU nominal frequency: 1700 MHz
• CPU Threads count: 4
• Dimensions: 443 x 224 x 44 mm
• RouterOS license: 6
• Operating System: RouterOS v7
• Size of RAM: 4 GB
• Storage size: 128 MB
• Storage type: NAND
• MTBF: Approximately 200'000 hours at 25C
• Tested ambient temperature: -20°C to 60°C
• Number of AC inputs: 2
• AC input range: 100-240
• Max power consumption: 60 W
• Max power consumption without attachments: 31 W
• Cooling type: 2 fans
• CPU temperature monitor: Yes
• PCB temperature monitor: Yes
• Voltage Monitor: Yes
• PoE Input: None
• PoE Output: None

WHAT’S IN THE BOX:

• MikroTik CCR2004 - Cloud Core 12 x SFP+, 2 x SFP28 Quad Core Router x1

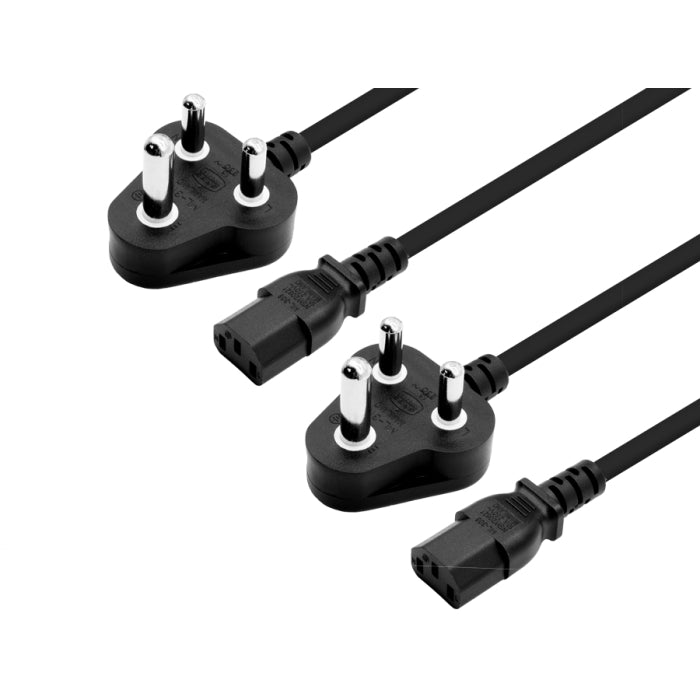

• Power Adapter x2

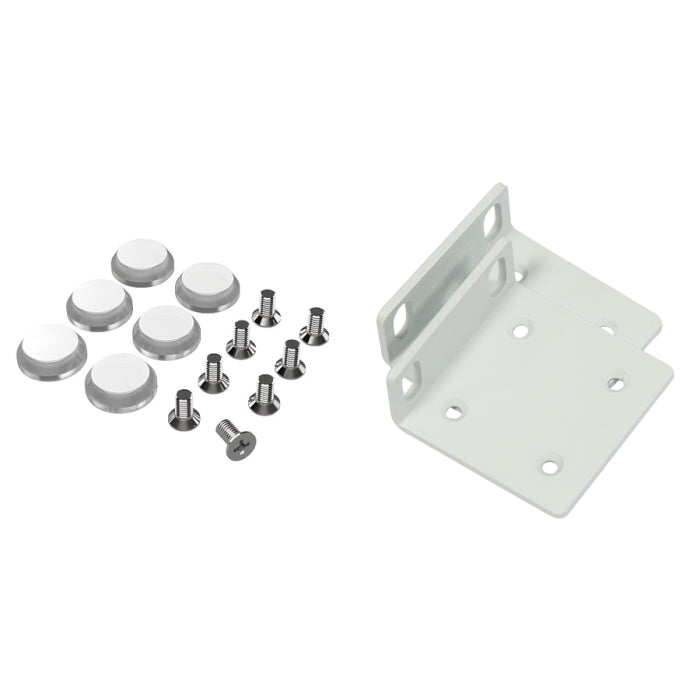

• Mounting Accessories x1
• Installation Guide x1

WARRANTY:

• 12 Months
