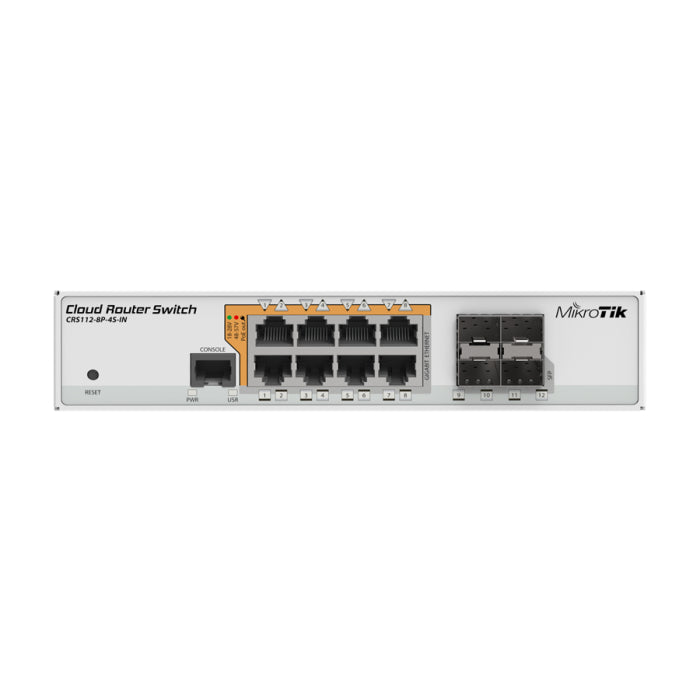

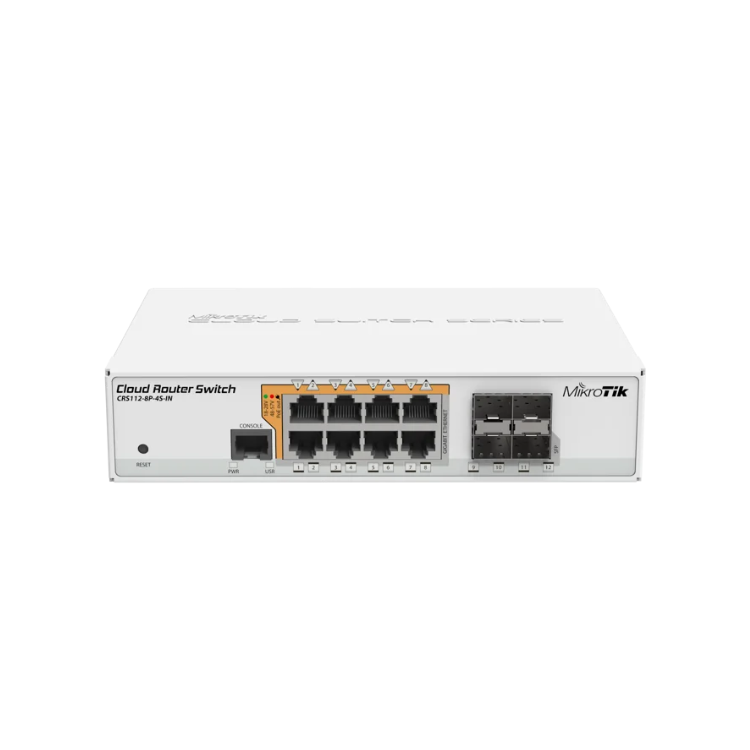

MikroTik CRS112-8P-4S-IN - 5 Port Gigabit PoE, 4 x SFP Cloud Router Switch

CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

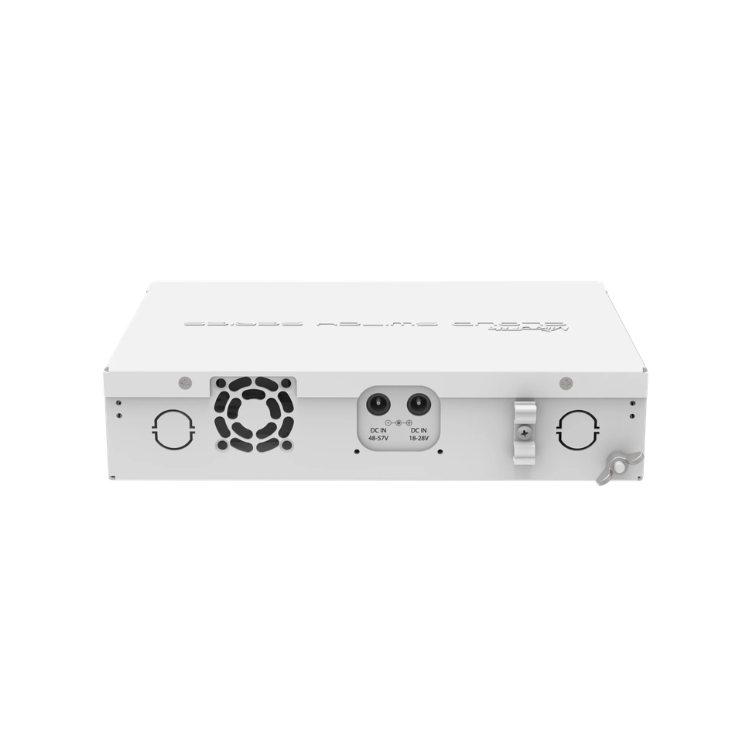

CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately - product codes 48POW (1.46A 70W) and 48V2A96W (2A 96W)). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V. PoE-Out is passed over mode B 4,5 (+) and 7,8 (-) pins

Cloud Router Switch featuring 8x Gigabit PoE ports and 4x 1.25Gbps SFP ports. The 8 PoE ports support both passive PoE (with the included Power Supply) and 802.3af/at when powered by a 48-57V power supply. The unit is powered by RouterOS with a Level 5 License.

Note: Both 24V and 52V  PSU's can be used simultaneously to make use of both voltages for POE devices.

FEATURES:

• 8 x Gigabit Ethernet Smart Switch with PoE-out
• 4 x SFP cages
• 400MHz CPU
• 128MB RAM
• RouterOS L5

SPECIFICATIONS:

• Product code: CRS112-8P-4S-IN
• 10/100/1000 Ethernet ports: 8
• Number of 1G Ethernet ports with PoE-out: 8
• SFP ports: 4
• Serial console port: RJ45
• PoE-out portsEther1-Ether: 8
• PoE out: 802.3af/at
• Low voltage PoE-Out current limit: 1 A
• High voltage PoE-Out current limit: 450 mA
• Max total out (A): 2.8A (18V-28V) & 1.4A (48V-57V) A

• Architecture: MIPSBE
• CPU: QCA8511
• CPU core count: 1
• CPU nominal frequency: 400 MHz
• Switch chip model: QCA8511
• Dimensions: 200 x 142 x 44 mm
• RouterOS license: 5
• Operating System: RouterOS
• Size of RAM: 128 MB
• Storage size: 16 MB
• Storage type: FLASH
• MTBF: Approximately 200'000 hours at 25C
• Tested ambient temperature: -20°C to 60°C
• Number of DC inputs: 2 (DC jack)
• DC jack input Voltage: 18-28 V / 48-57 V
• Max power consumption: 160 W
• Max power consumption without attachments: 10 W
• Cooling type: Passive

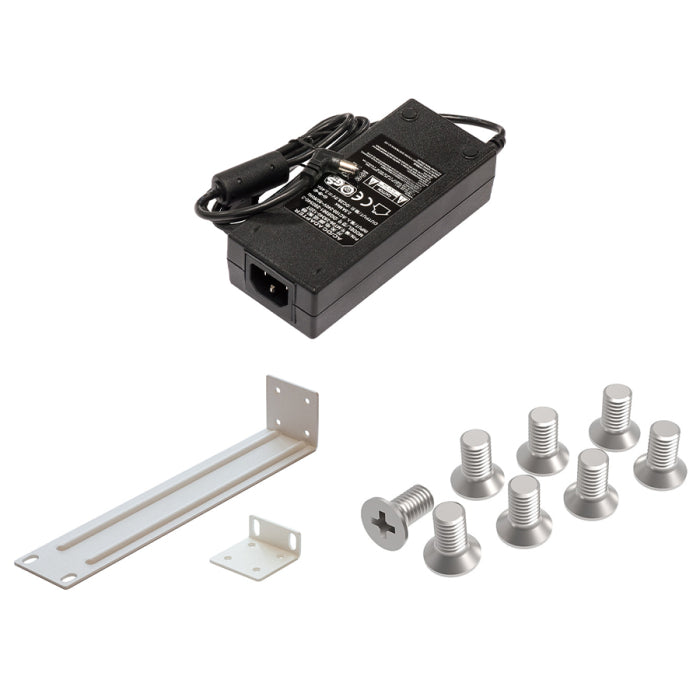

WHAT’S IN THE BOX:

• MikroTik CRS112-8P-4S-IN x1

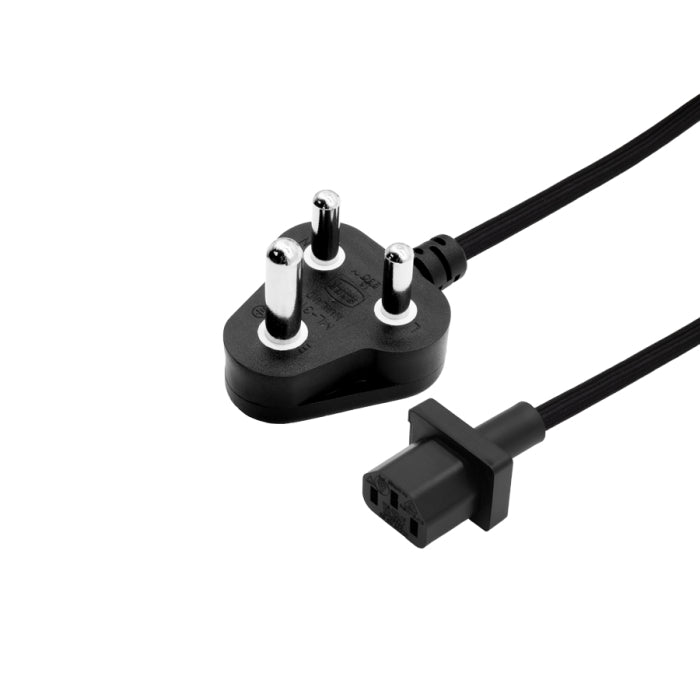

• Power Adapter x1
• Mounting Accessories x1

WARRANTY:

• 12 Months
