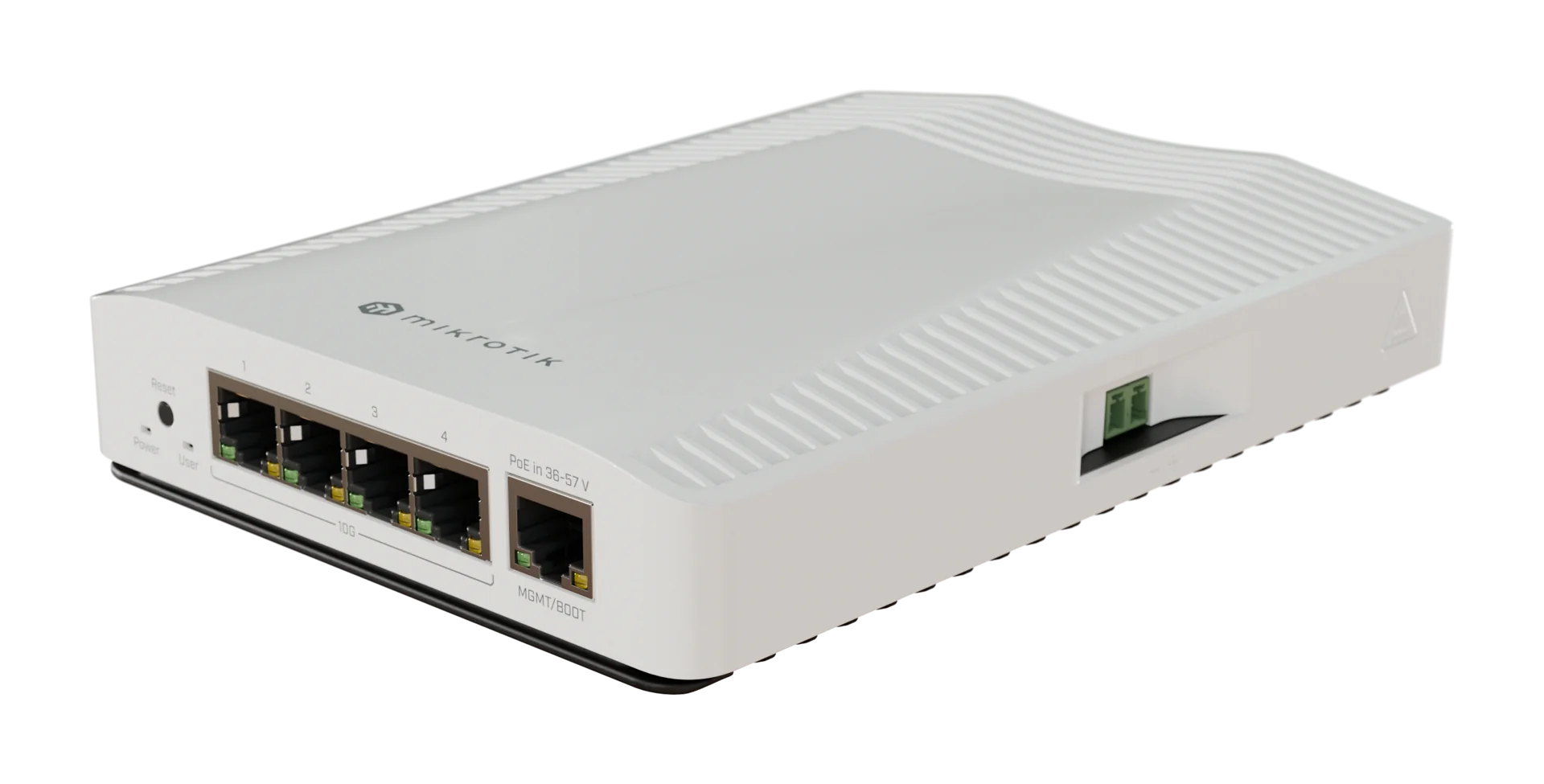

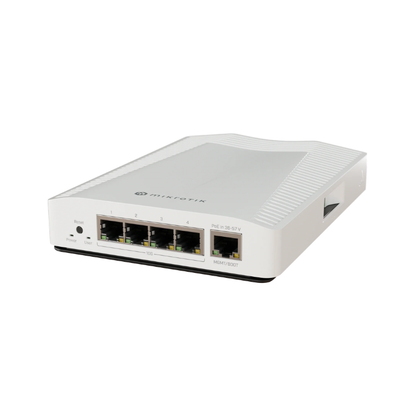

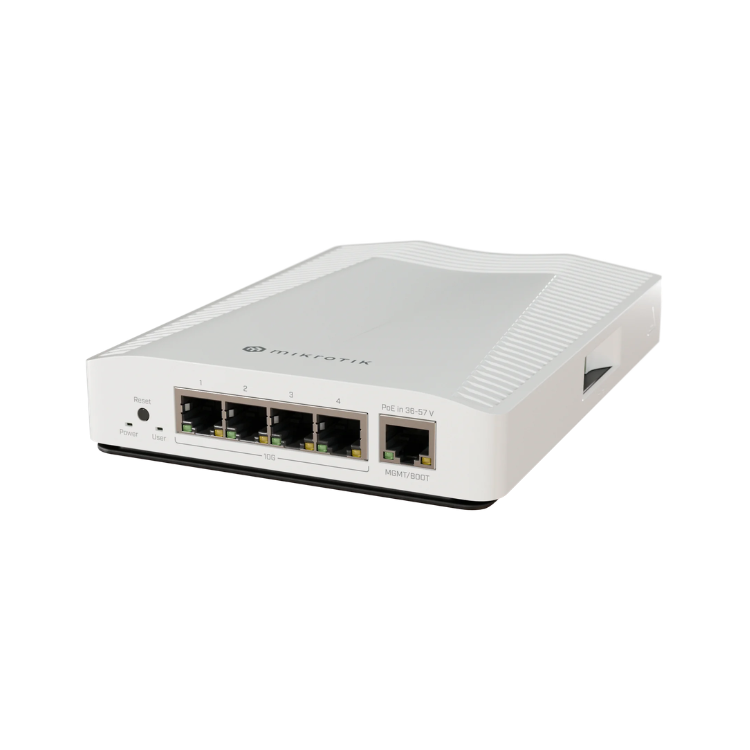

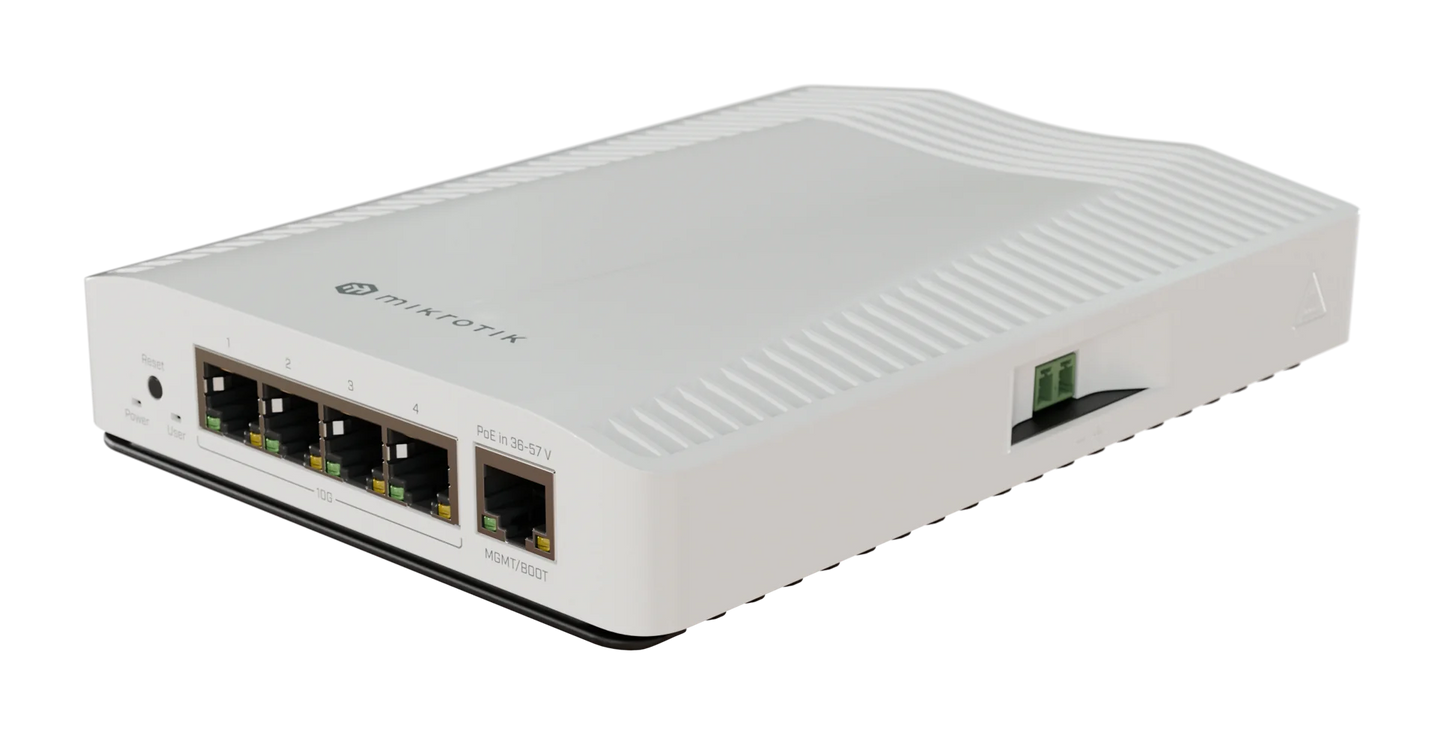

MikroTik CRS304 - 4 x 10Gbps Ethernet Ports, 1 x Gigabit Management Port Cloud Router Switch

Compact, powerful, and ready to simplify your 10 Gigabit network setups with 4x10G Ethernet ports ready to use out-of-the-box. No extra modules needed!

The CRS304 features an enclosure that doubles as a robust, lightweight heat sink, eliminating the need for active cooling. This fanless design ensures silent operation, making it ideal for any environment where noise is a concern – offices, libraries, or even your bedroom homelab! The sturdy form-factor provides a premium feel, balancing comfortable weight and durability, all at an accessible price point.

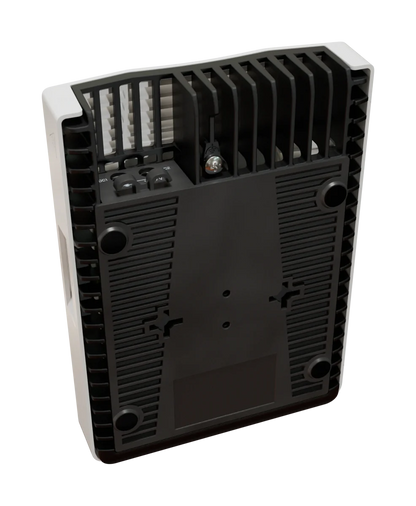

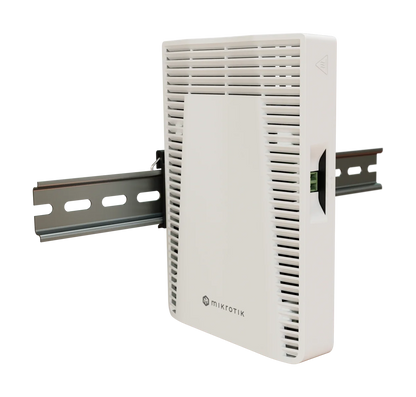

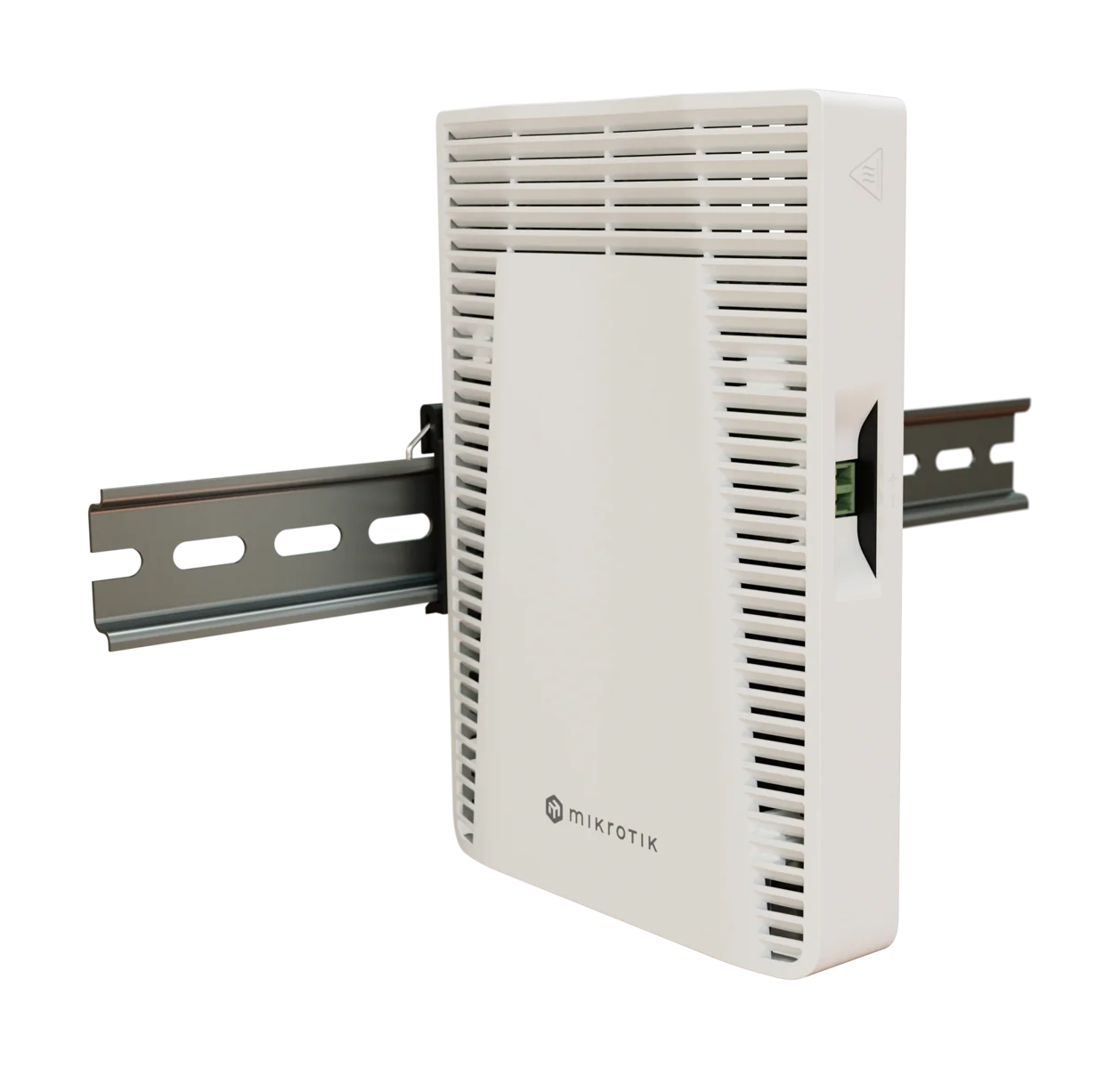

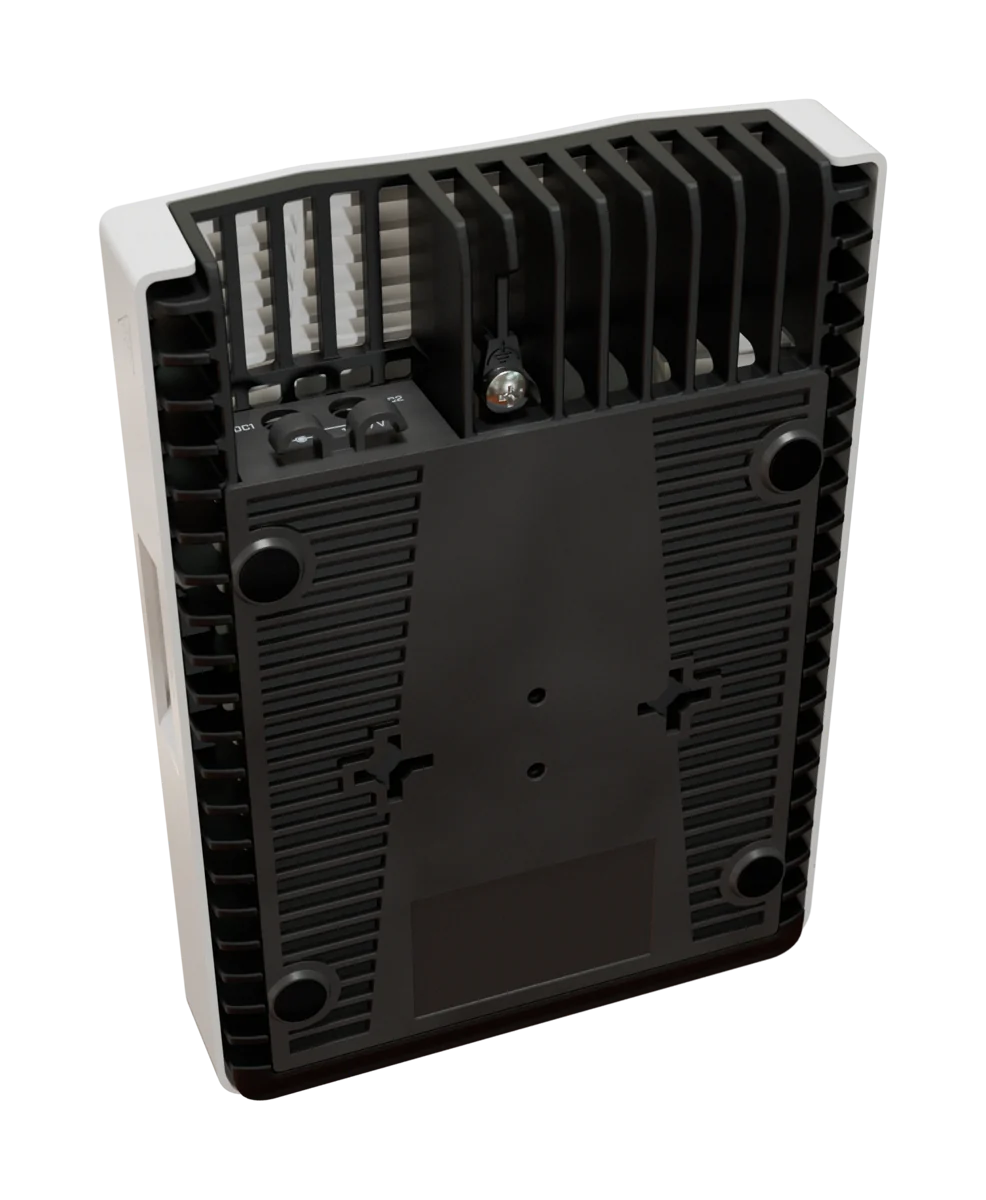

This switch includes a convenient DIN rail mount on the sideand standard screw attachment points on the back, allowing for seamless integration literally anywhere. Furthermore, the side DIN rail mount can be moved to the back of the switch.

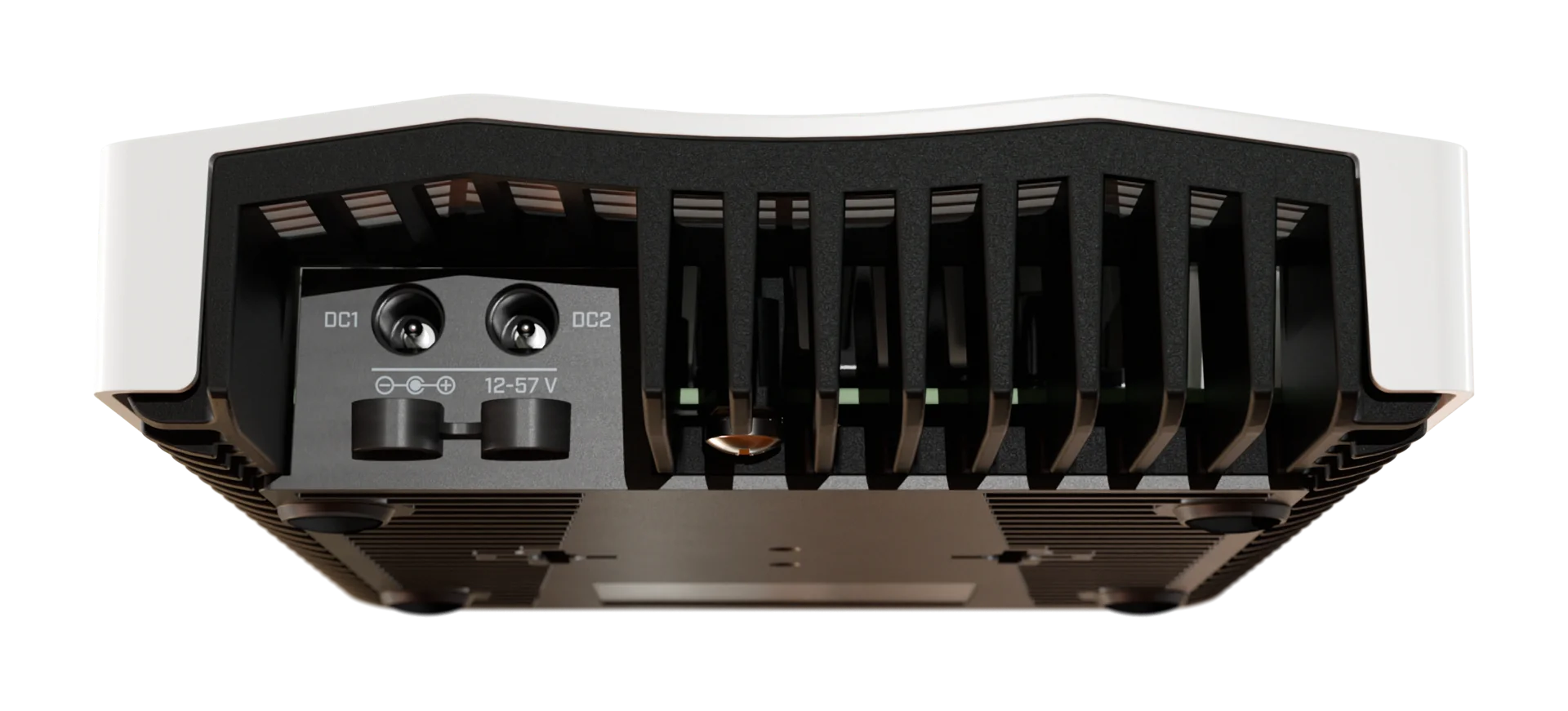

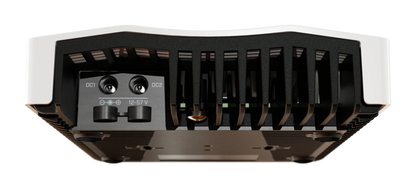

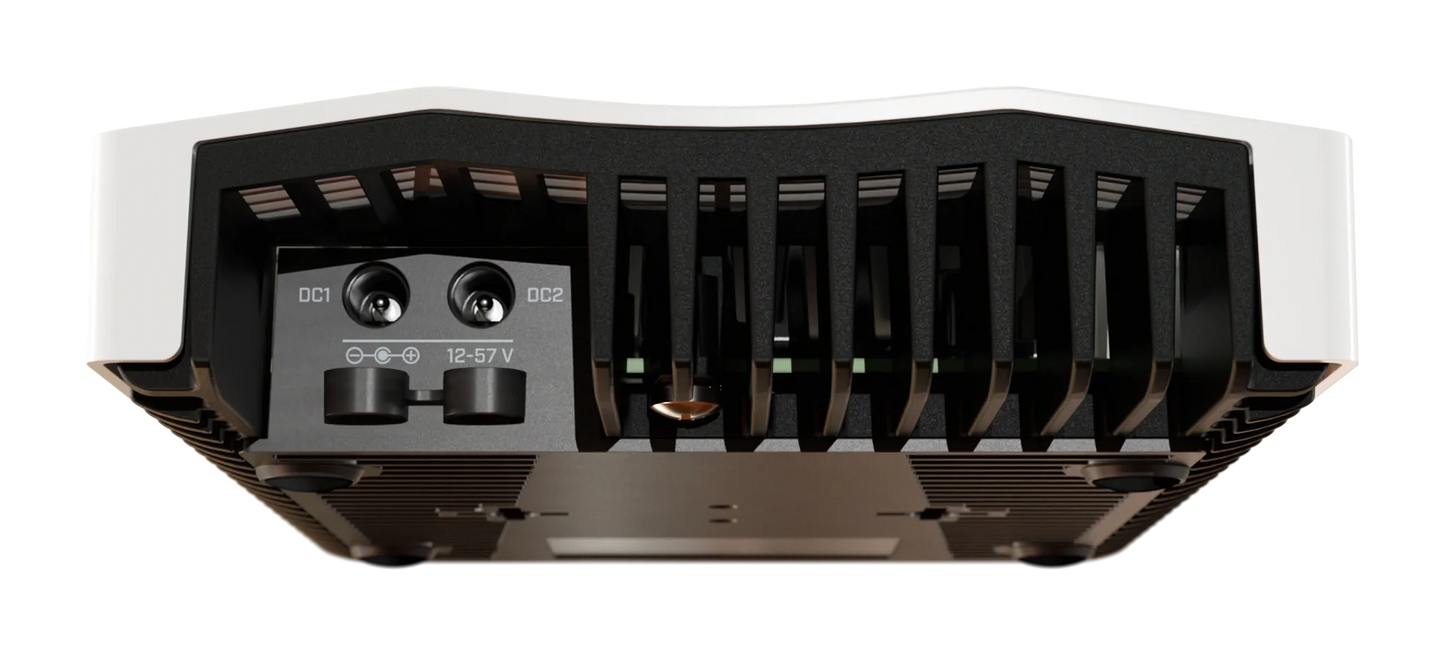

Power redundancy is a key feature of the CRS304. It offers four different power input options: two DC jacks, a 2-pin terminal, and PoE-in. The switch automatically selects the power source with the highest voltage, ensuring uninterrupted operation.

Powered by a dual-core ARM CPU and the mighty Marvell Prestera switch chip, the CRS304 delivers exceptional performance for its tiny size. Port-to-port forwarding, broadcast storm control, MAC filtering, VLANs, traffic mirroring, bandwidth limitations, and even some Layer 3 hardware offloading – not a problem for the CRS304-4XG-IN!

The CRS304’s small form factor and enhanced durability makes it an ideal choice for both stationary and mobile applications. Place it on your desk or keep it in your backpack for on-the-go networking – this is a must-have switch for any network administrator.

FEATURES:

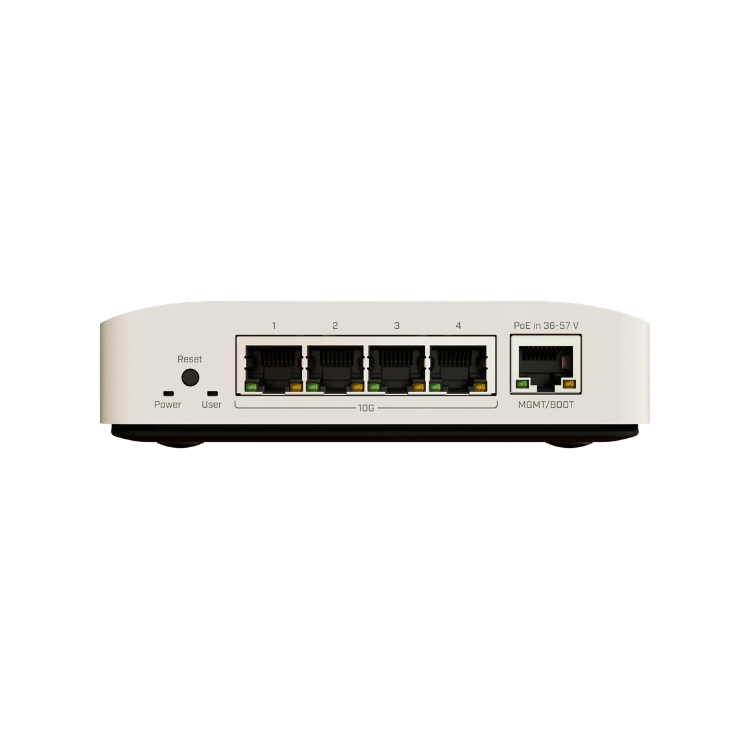

• 4 x 10G Ethernet ports
• 1Gbit management port
• Massive fanless heat sink
• RouterOS v7 and SwOS dual-boot
• 4x ways of powering
• Durable lightweight enclosure

SPECIFICATIONS:

• Product code: CRS304-4XG-IN
• 10/100/1000 Ethernet ports: 1
• Number of 1G/2.5G/5G/10G Ethernet ports: 4

• Architecture: ARM 64bit
• CPU: 98DX2528
• CPU core count: 2
• CPU nominal frequency: 1200 MHz
• CPU Threads count: 2
• Switch chip model: 98DX2528
• RouterOS license: 5
• Operating System: RouterOS v7
• Size of RAM: 512 MB
• Storage size: 32 MB
• Storage type: FLASH
• MTBF: Approximately 200'000 hours at 25C
• Tested ambient temperature: -40°C to 70°C
• Number of DC inputs: 4 (DC jack, PoE-IN, 2-pin terminal)
• DC jack input Voltage: 12-57 V / 12-57 V
• 2-pin terminal input Voltage: 12-57 V
• Max power consumption: 21 W
• Max power consumption without attachments: 15 W
• PoE in: 802.3af/at
• PoE Output: None
• Cooling type: Passive
• PoE in input Voltage: 36-57 V

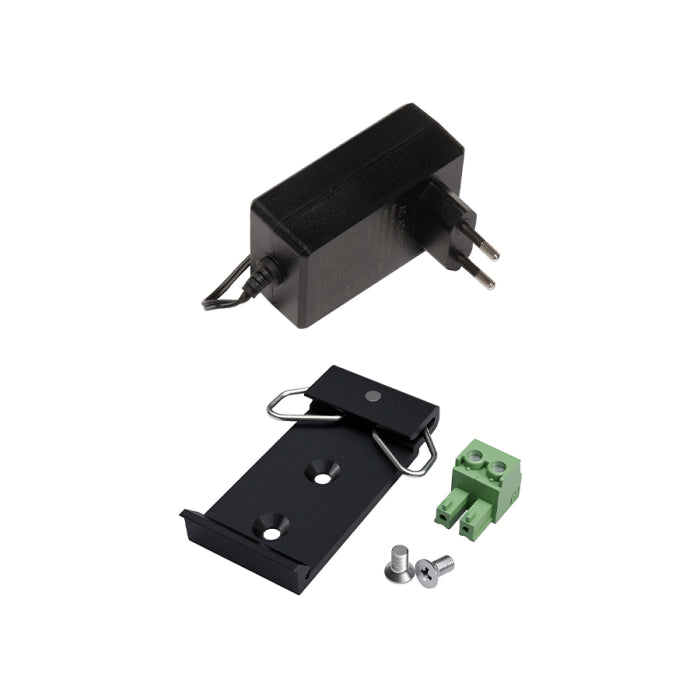

WHAT’S IN THE BOX:

• MikroTik CRS304 x1
• Power Adapter x1


WARRANTY:

• 12 Months
