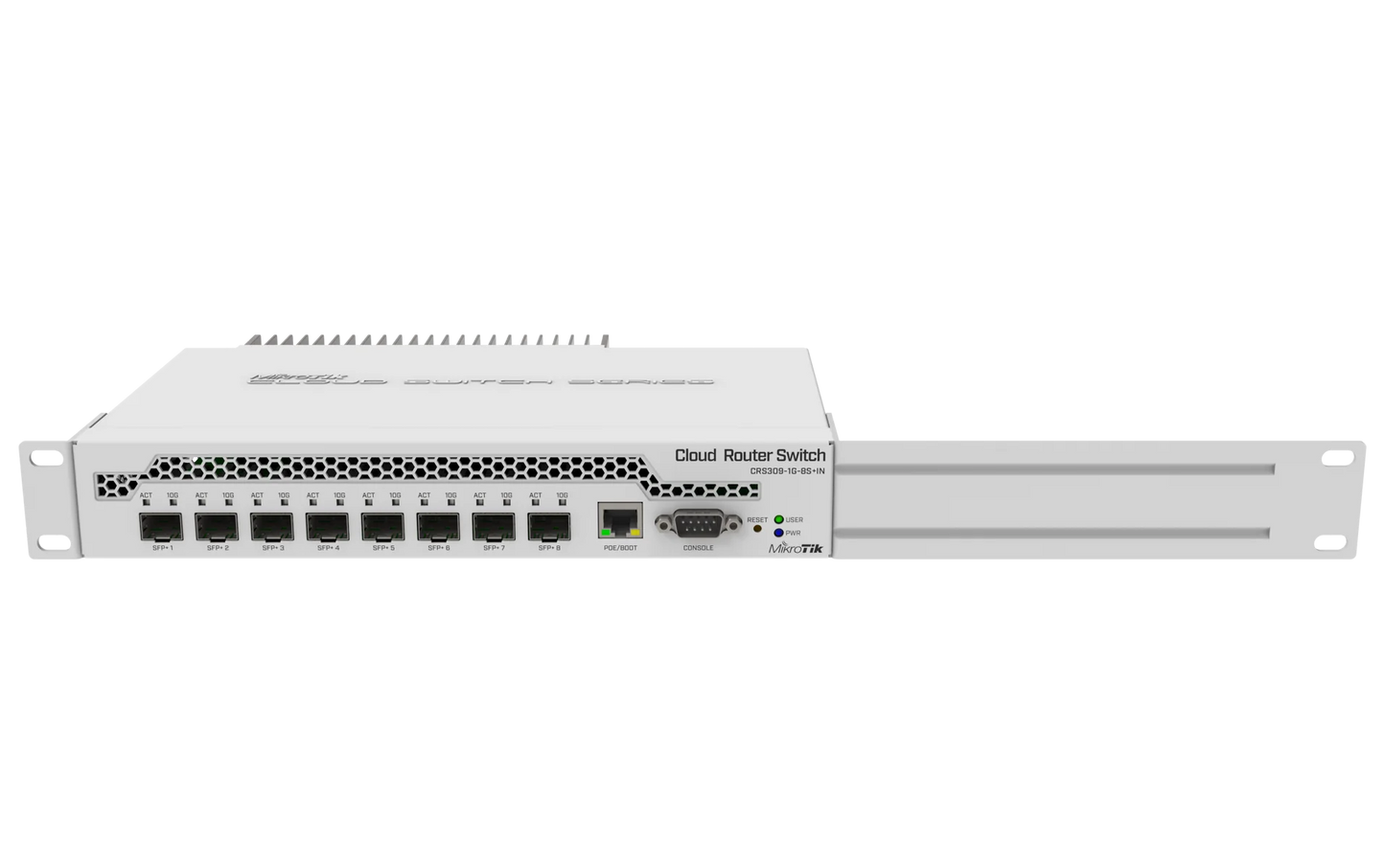

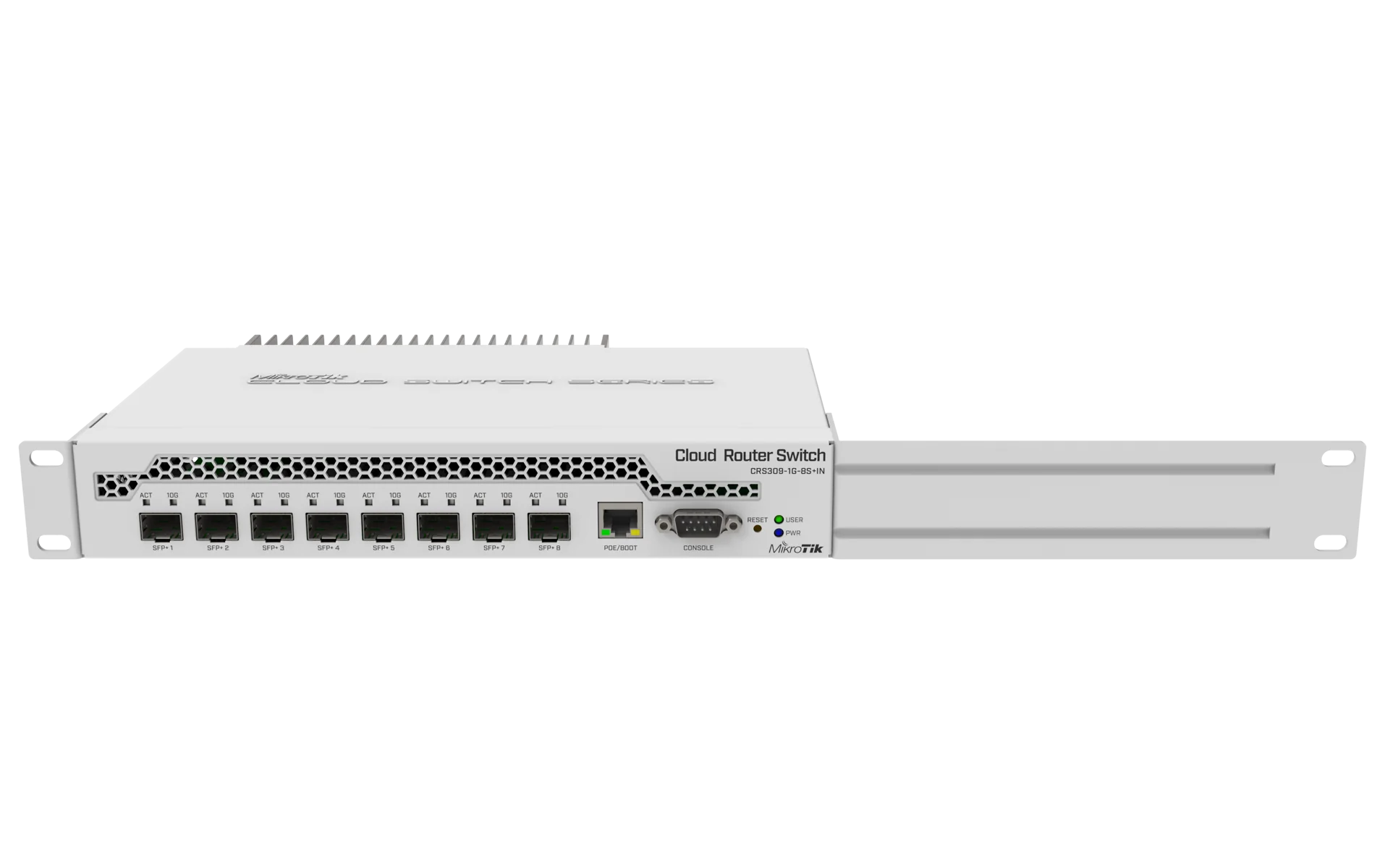

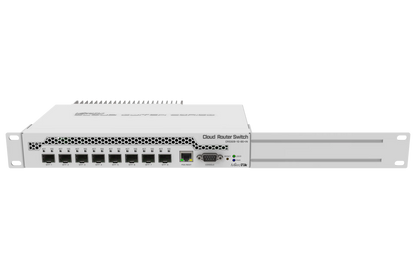

MikroTik CRS309-1G-8S+IN - 8 x SFP+ 10Gbps Ports, 1 x Gigabit Port Cloud Router Switch

Desktop switch with one Gigabit Ethernet port and eight SFP+ 10Gbps ports.

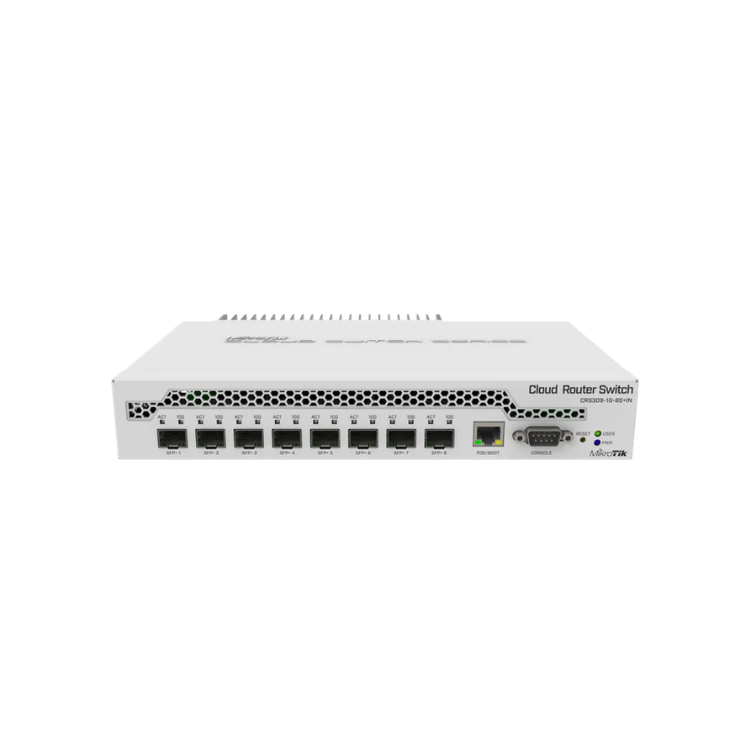

The CRS309-1G-8S+ is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.

The device also has dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS).

Cloud Router Switch featuring 8x 10Gbps SFP+ ports and 1x Gigabit Ethernet port for either management or PoE Input. The unit supports the dual boot function which supports either SwOS or RouterOS with a Level 5 License.

FEATURES:

• 8 x 10Gbps SFP+ ports
• 1 x Gigabit Ethernet port for either management or PoE Input
• 800 MHz CPU
• 512 MB RAM

SPECIFICATIONS:

• Product code: CRS309-1G-8S+IN
• 10/100/1000 Ethernet ports: 1
• SFP+ ports: 8
• Serial console port: RS232
• Architecture: ARM 32bit
• CPU: 98DX8208
• CPU core count: 2
• CPU nominal frequency: 800 MHz
• CPU Threads count: 2
• Switch chip model: 98DX8208
• Dimensions: 272 x 191 x 44 mm
• RouterOS license: 5
• Operating System: RouterOS / SwitchOS
• Size of RAM: 512 MB
• Storage size: 16 MB
• Storage type: FLASH
• MTBF: Approximately 200'000 hours at 25C
• Tested ambient temperature: -40°C to 70°C

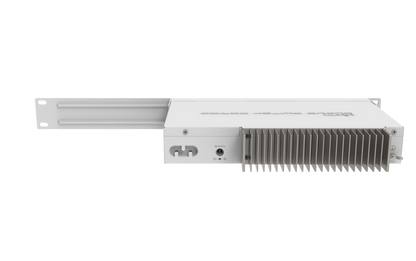

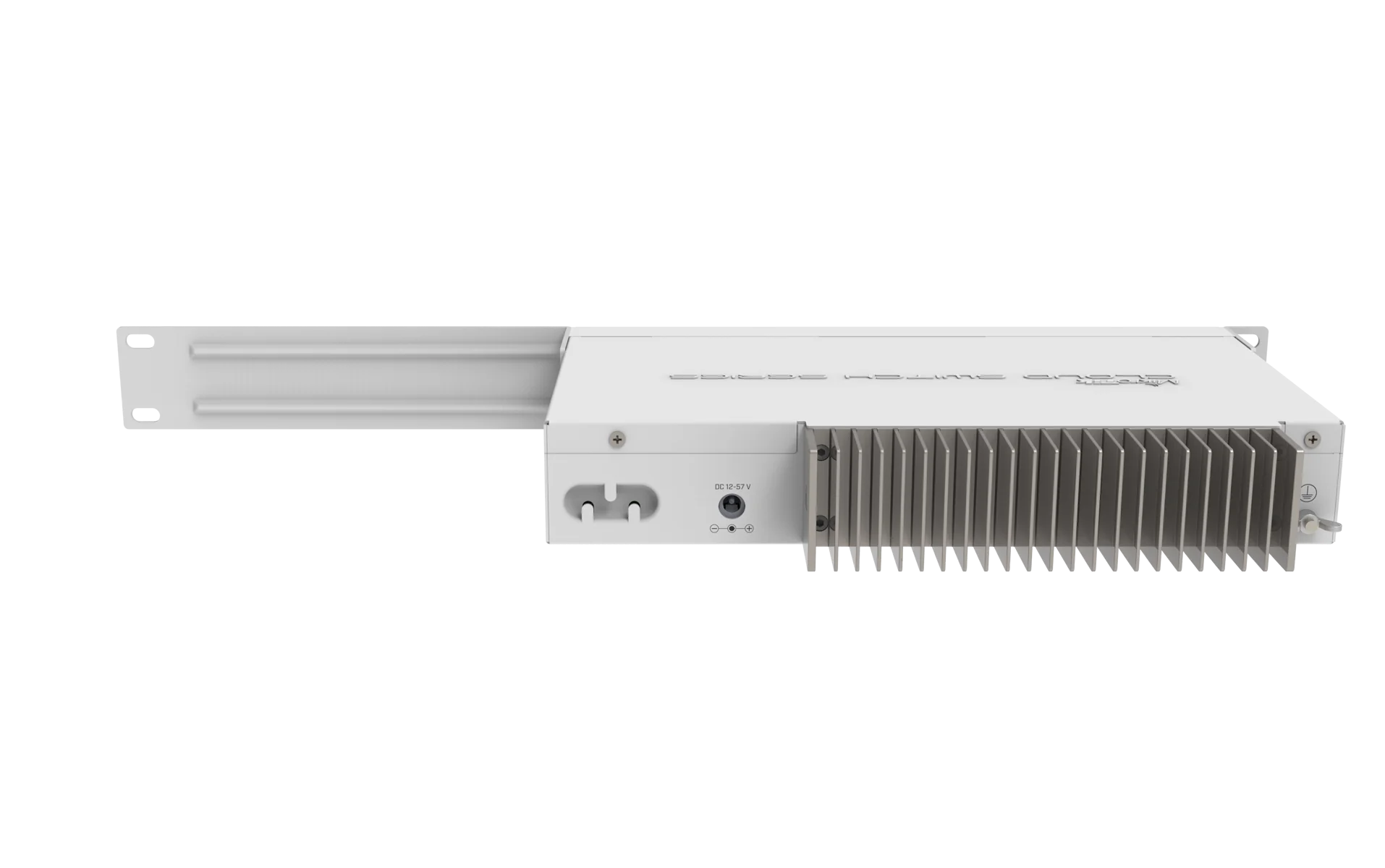

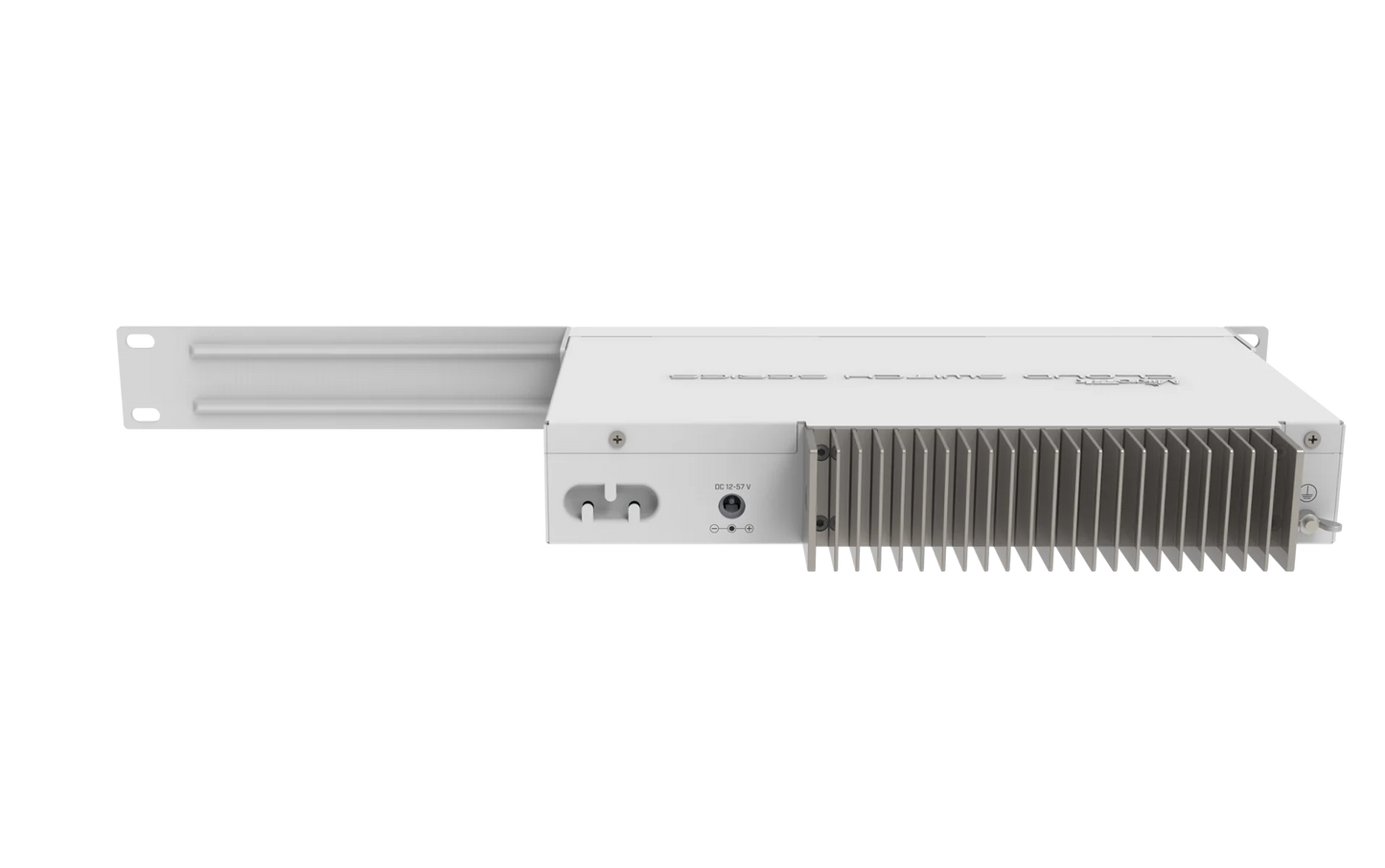

• Number of DC inputs: 2 (DC jack, PoE-IN)
• DC jack input Voltage: 12-57 V
• Max power consumption: 23 W
• Max power consumption without attachments: 17 W
• PoE in: 802.3af/at

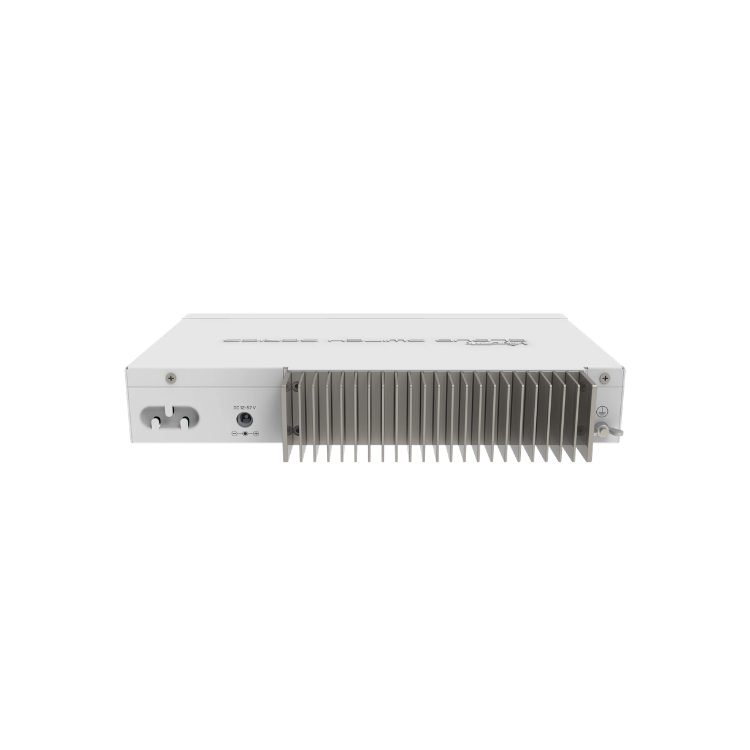

• Cooling type: Passive
• PoE in input Voltage: 18-57 V
• PoE Output: None
• CPU temperature monitor: Yes
• Beeper: Yes

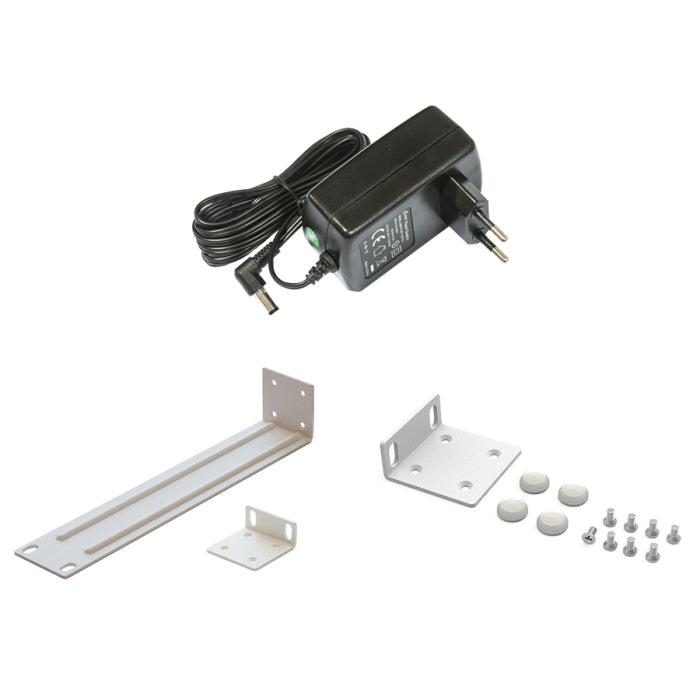

WHAT’S IN THE BOX:

• MikroTik CRS309-1G-8S+IN x1
• Power Adapter x1

• Mounting Accessories x1

WARRANTY:

• 12 Months
