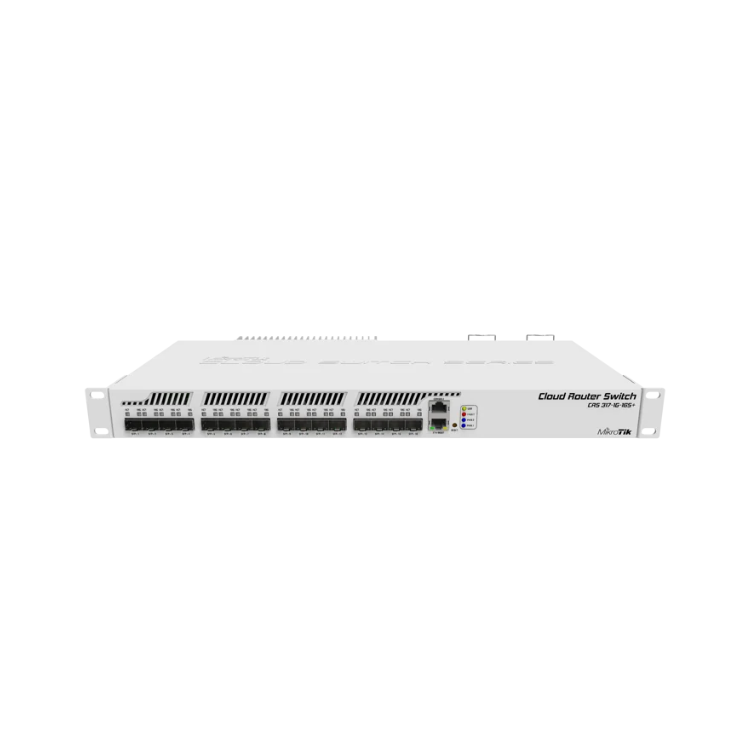

MikroTik CRS317-1G-16S+RM - 16 x SFP+ Ports, 1 x Gigabit Port for Management Cloud Router Switch

Smart Switch, 1 x Gigabit LAN, 16 x SFP+ cages, Dual Core 800MHz CPU, 1GB RAM, 1U rackmount passive cooling case, Dual Power Supplies.

The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management.

CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.

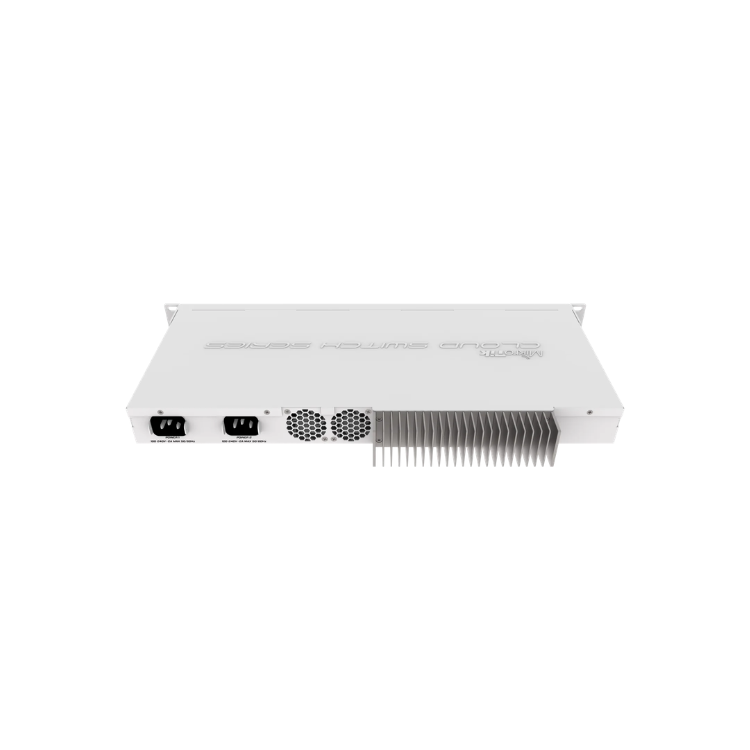

The unit has dual redundant power supplies and passive cooling case - for hot environments two redundant fans will automatically keep the system cool if needed.

Cloud Router Switch featuring 16x SFP+ ports and 1x Gigabit Ethernet Port for management. The Router has dual power supplies for power redundancy and supports the dual boot function which supports either SwOS or RouterOS with a Level 6 License.

FEATURES:

• 16 x SFP+ ports
• 1 x Gigabit Ethernet port for management
• Dual Core 800MHz CPU
• 1GB RAM
• Dual Power Supplies

SPECIFICATIONS:

• Product code: CRS317-1G-16S+RM
• 10/100/1000 Ethernet ports: 1
• SFP+ ports: 16
• Serial console port: RJ45
• Architecture: ARM 32bit
• CPU: 98DX8216
• CPU core count: 2
• CPU nominal frequency: 800 MHz
• CPU Threads count: 2
• Switch chip model: 98DX8216
• Dimensions: 443 x 224 x 44 mm
• RouterOS license: 6
• Operating System: RouterOS / SwitchOS
• Size of RAM: 1 GB
• Storage size: 16 MB
• Storage type: FLASH
• MTBF: Approximately 200'000 hours at 25C
• Tested ambient temperature: -20°C to 60°C
• Number of AC inputs: 2
• AC input range: 100-240
• Number of PSU slots: 2
• Frequency (Hz): 50-60
• Max power consumption: 44 W
• Cooling type: 2 fans
• CPU temperature monitor: Yes
• Beeper: Yes
• PoE Input: None
• PoE Output: None

WHAT’S IN THE BOX:

• MikroTik CRS317-1G-16S+RM x1

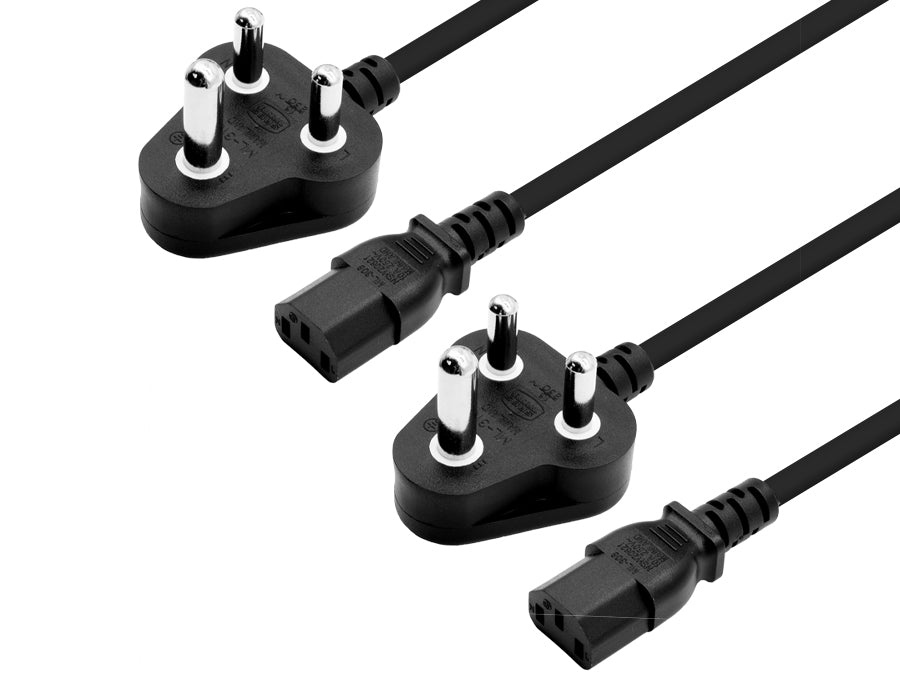

• Power Adapter x2

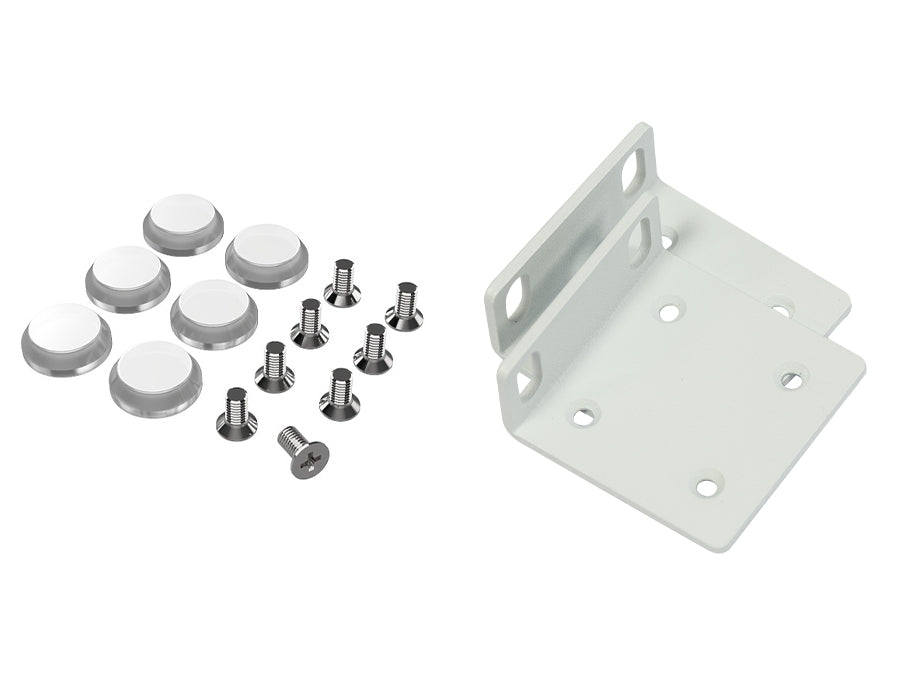

• Mounting Accessories x1

WARRANTY:

• 12 Months
