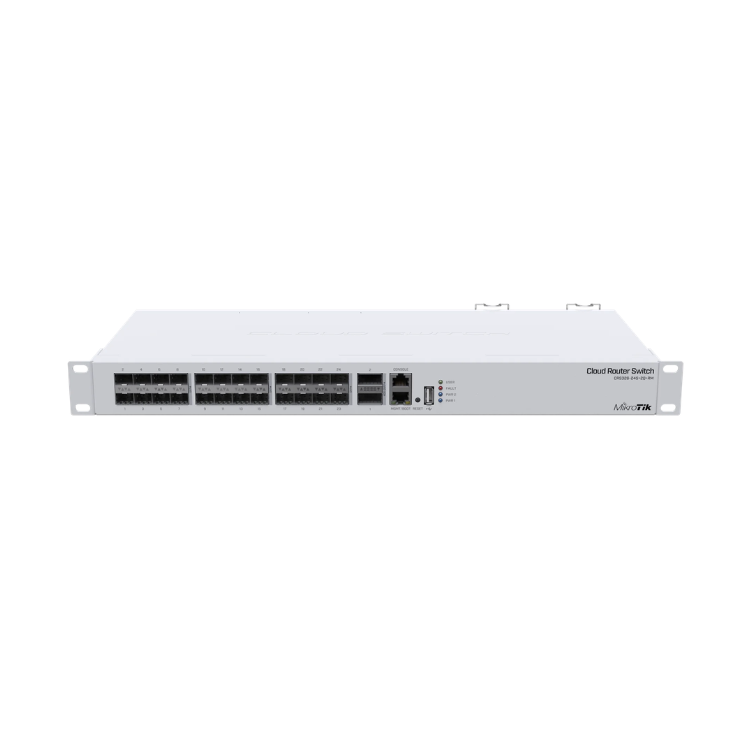

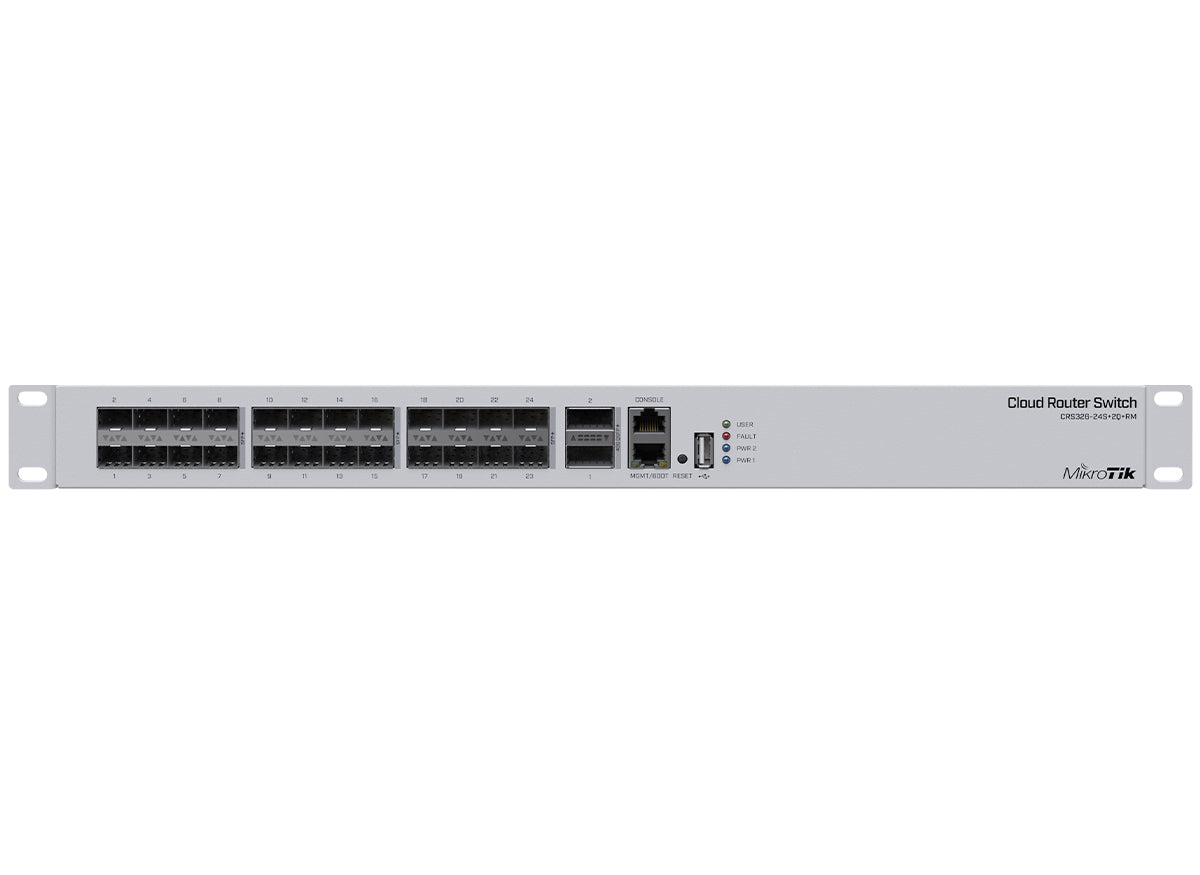

MikroTik CRS326-24S+2Q+RM - 24 x SFP+ Ports, 2 x QSFP+ Ports Cloud Router Switch

One of our faster switches for the most demanding setups.

If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.

Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.

CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!

You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS

Cloud Router Switch featuring 24x 10Gbps SFP+ Ports and 2x 40Gbps QSFP+ ports. The Router has dual power supplies for power redundancy and a full-sized USB port for configuration. The unit supports the dual boot function which supports either SwOS or RouterOS with a Level 5 License.

FEATURES:

• 24 x 10Gbps SFP+ Ports
• 2 x 40Gbps QSFP+ Ports

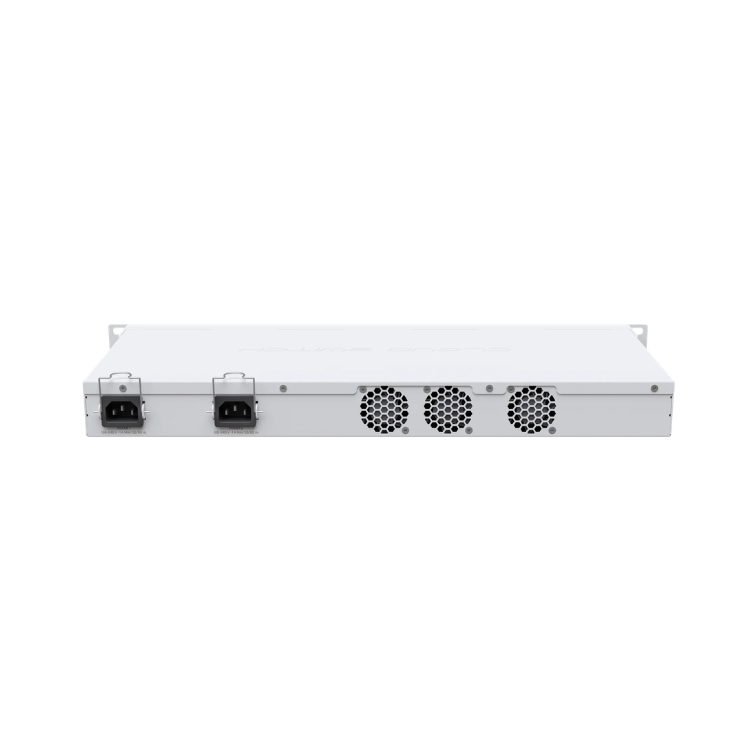

• Dual power supplies for power redundancy
• USB port for configuration

SPECIFICATIONS:

• Product code: CRS326-24S+2Q+RM
• 10/100 Ethernet ports: 1
• SFP+ ports: 24
• Number of 40G QSFP+ ports: 2
• Serial console port: RJ45
• Number of USB ports: 1
• USB Power Reset: Yes
• USB slot type: USB type A
• Max USB current (A): 1
• Architecture: MIPSBE
• CPU: QCA9531
• CPU core count: 1
• CPU nominal frequency: 650 MHz
• Switch chip model: 98DX8332
• Dimensions: 443 x 200 x 44 mm
• RouterOS license: 5
• Operating System: RouterOS v7 / SwitchOS
• Size of RAM: 128 MB
• Storage size: 32 MB
• Storage type: FLASH
• MTBF: Approximately 200'000 hours at 25C
• Tested ambient temperature: -20°C to 60°C
• Number of AC inputs: 2
• AC input range: 100-240
• Number of PSU slots: 2
• Frequency (Hz): 50-60
• Max power consumption: 69 W
• Max power consumption without attachments: 42 W
• Cooling type: 3 fans
• PoE Input: None
• PoE Output: None

WHAT’S IN THE BOX:

• MikroTik CRS326-24S+2Q+RM x1

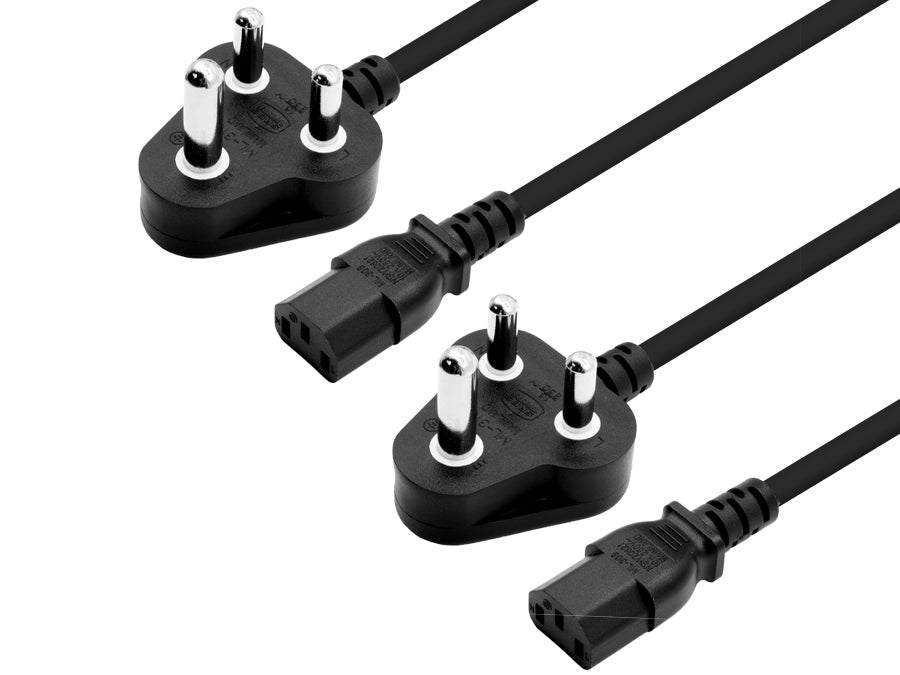

• Power Adapter x2

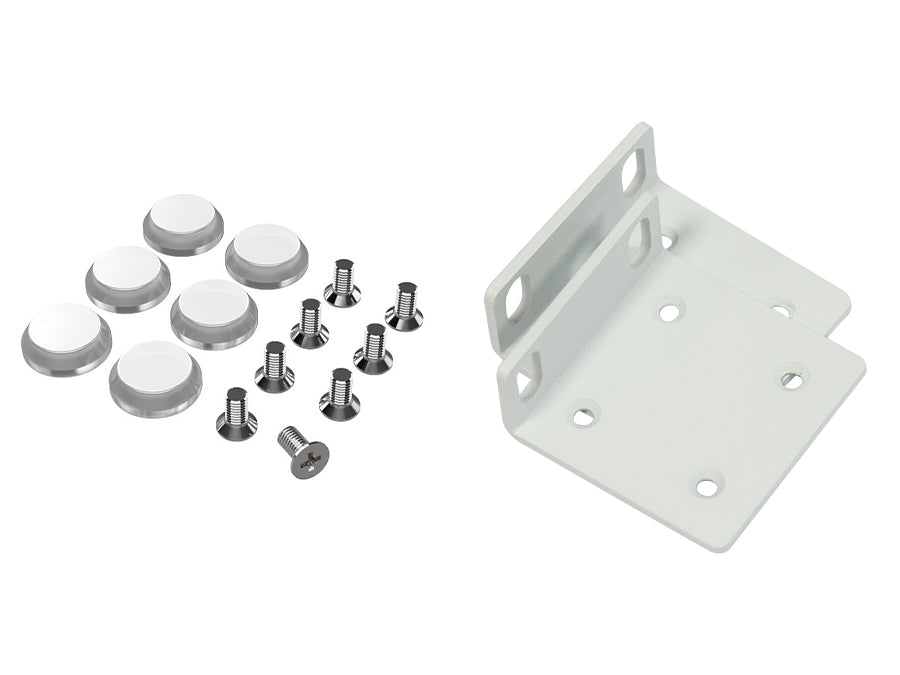

• Mounting Accessories x1

WARRANTY:

• 12 Months
