MikroTik GPEN21 Smart Power Injector with PoE Pass-through

Smart power injector that serves as an advanced software controlled repeater.

The GPEN21 is a smart power injector that serves as an advanced software controlled repeater. Not only can it power your uplink devices via PoE, it can also provide a range of useful software features:

• Interface management and monitoring
• GPEN link fault detection
• VLAN support
• SNMP reporting
• Basic traffic shaping

GPEN21 has an Ethernet and SFP port for fiber connectivity. Customers can choose to use GPEN21 to power optical module for uplink to provider, or to provide PoE to power Ethernet uplink to provider (that uses our GPeR and/or netPower products) The GPEN unit can be securely attached to a wall or the communications cabinet. The Ethernet cable can be routed either directly through its bottom cable opening or into the wall, as preferred.

*Note: Power supply not included.

SPECIFICATIONS:

• Product code: GPEN21
• 10/100/1000 Ethernet ports: 2
• Number of 1G Ethernet ports with PoE-out: 1
• SFP ports: 1
• Switch chip model: 88E6341
• Operating System: SwitchOS Lite
• Input voltage: 12 - 57 V, Passive or 802.3af/at
• MTBF: Approximately 100'000 hours at 25C
• Tested ambient temperature: -20°C to 70°C
• Number of DC inputs: 2 (DC jack, PoE-IN)
• DC jack input Voltage: 12-57 V
• Max power consumption: 30 W
• Max power consumption without attachments: 3 W
• PoE in: 802.3af/at
• Cooling type: Passive
• PoE in input Voltage: 12-57 V
• PoE-out ports: Ether2
• PoE out: Passive PoE up to 57V
• Low voltage PoE-Out current limit: 850 mA
• High voltage PoE-Out current limit: 625 mA
• Max total out (A): 850 mA
• Output Voltage: Yes, Passive PoE up to 57 V
• Mode button: Yes

WHAT’S IN THE BOX:

• MikroTik GPEN21 x1

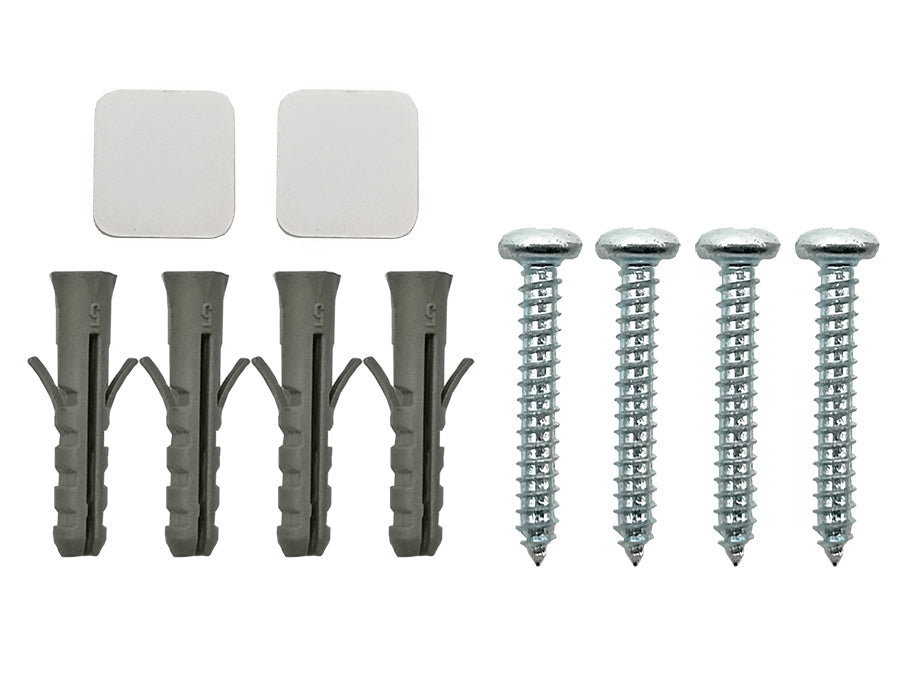

• Mounting Accessories x1

WARRANTY:

• 12 Months
