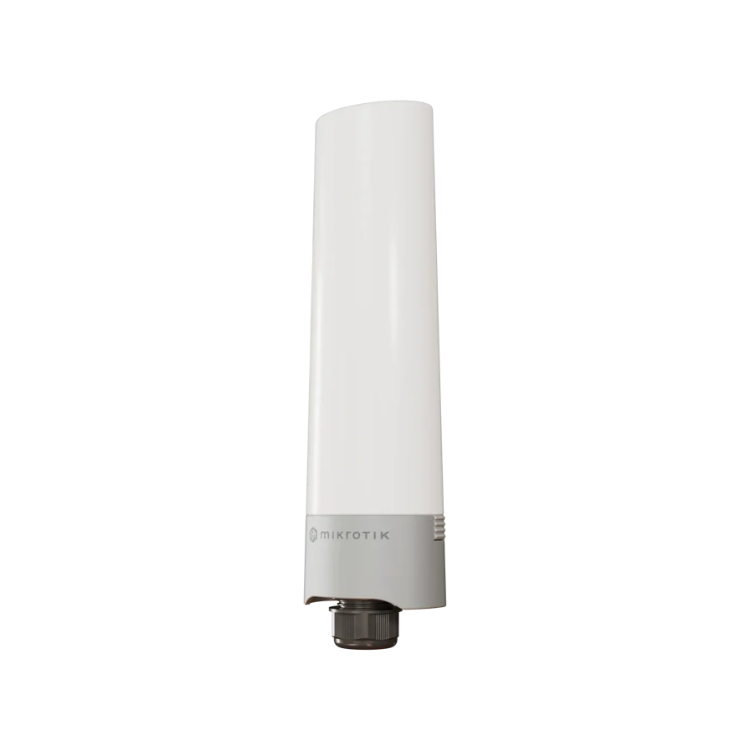

MikroTik GPeRx4 Outdoor PoE Splitter/ Extender

*Please note: The ports are isolated and communicate only with the first port. This device functions as an extender, not a traditional switch

Effortlessly split a single high-power PoE port into multiple standard PoE connections with the compact and durable GPeRx4. Expand, extend, and power your network with ease!

The GPeRx4 is not your average Ethernet extender. This compact, outdoor-ready device is designed to split a single 90W PoE-out port into multiple 30W PoE-out ports, providing cost-effective flexibility for powering cameras, access points, and other devices.

Power and Expand with Ease

Take advantage of your high-power PoE-out port by splitting it into three standard PoE-out connections, ideal for adding more devices without upgrading your switch.

Built for Rough Conditions

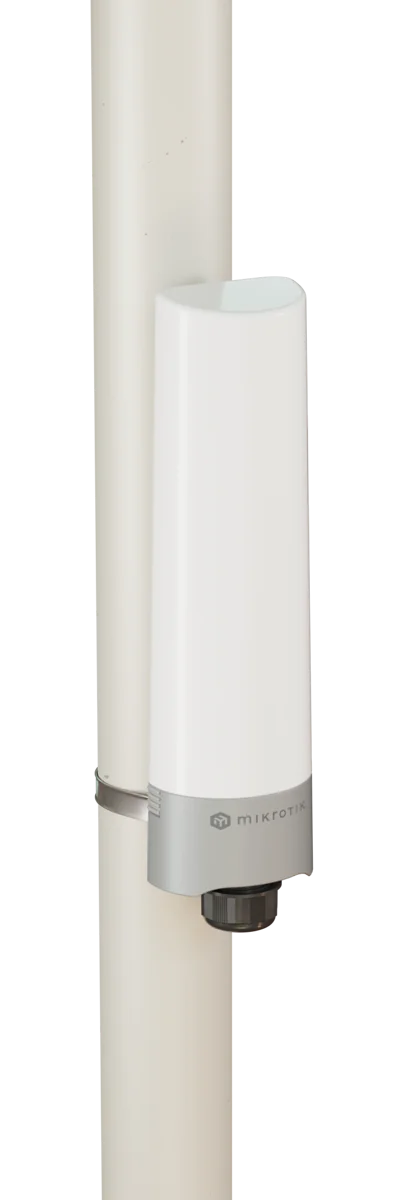

Housed in a robust enclosure, the GPeRx4 can handle tough environments, making it the perfect choice for outdoor setups.

Flexible Power Options

Supports PoE-in and a 2-pin terminal, ensuring versatility for different power sources.

Advanced SwOS Lite Management

Manage your network effortlessly via Web with SwOS Lite, providing:

• Interface monitoring
• VLAN support
• Traffic shaping
• SNMP reporting
• Fault detection for GPEN links

A compact, outdoor-ready IP68, Gigabit device designed to split a single 90W PoE-out port into 3x 30W PoE-out ports, providing cost-effective flexibility for powering cameras, access points, and other devices. The GPERX4 supports PoE-in as well as 2-pin terminal and is equipped with SwOS Lite for advanced management.

SPECIFICATIONS:

• Product code: GPER14i
• PoE-out ports: Ether2-Ether4
• PoE out: 802.3af/at
• Low voltage PoE-Out current limit: 0.7 A
• High voltage PoE-Out current limit: 0.6 A
• Max total out (A): 2.0 A
• 10/100/1000 Ethernet ports: 4
• Number of 1G Ethernet ports with PoE-out: 3

• CPU nominal frequency: 200 MHz
• Switch chip model: 88E6341
• Storage size: 64 KB
• Storage type: FLASH
• MTBF: Approximately 100'000 hours at 25C
• Tested ambient temperature: -40°C to 70°C
• Number of DC inputs: 2 (PoE-IN, 2-pin terminal)
• 2-pin terminal input Voltage: 24-57 V
• Max power consumption: 115 W
• Max power consumption without attachments: 4 W
• PoE in: 802.3 bt
• PoE in input Voltage: 48-57 V
• Certification: CE, EAC, ROHS
• IP: 68

WHAT’S IN THE BOX:

• MikroTik GPeRx4 x1

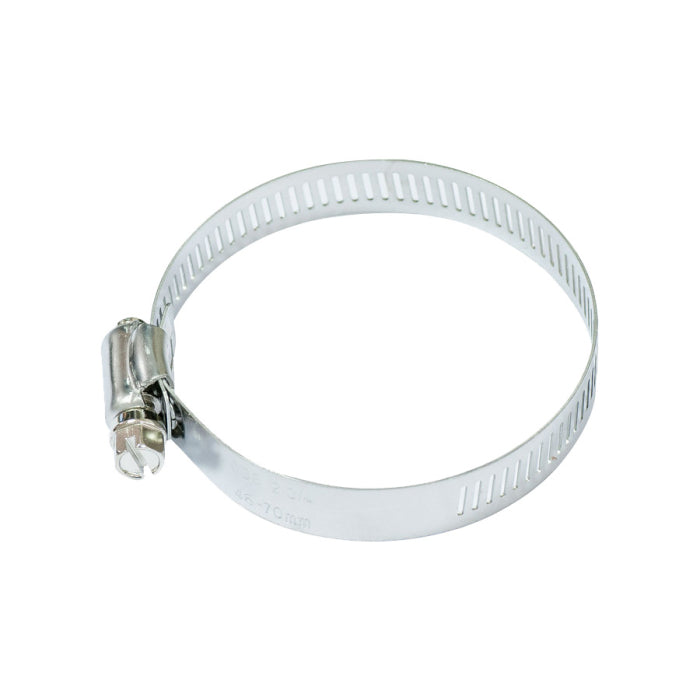

• Mounting Accessories x1

WARRANTY:

• 12 Months
