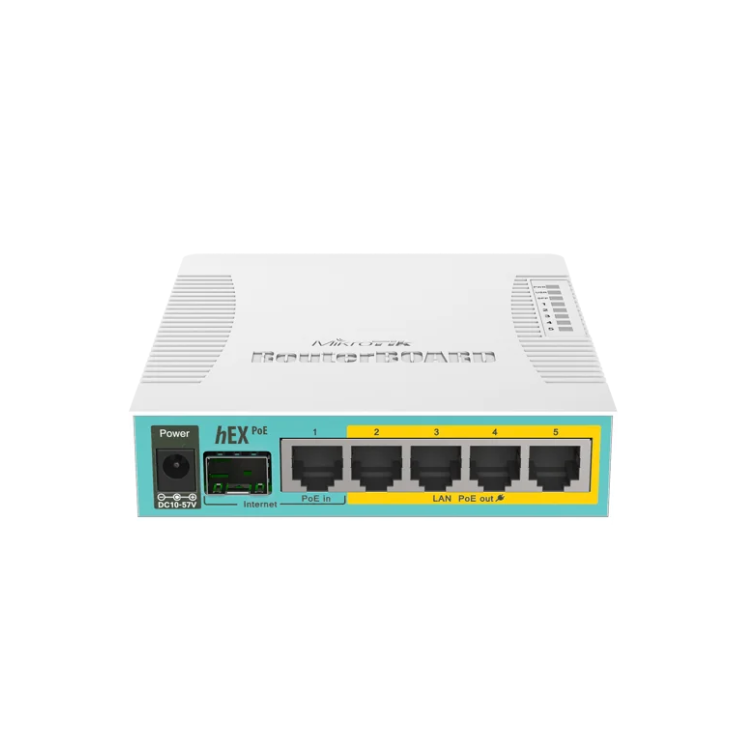

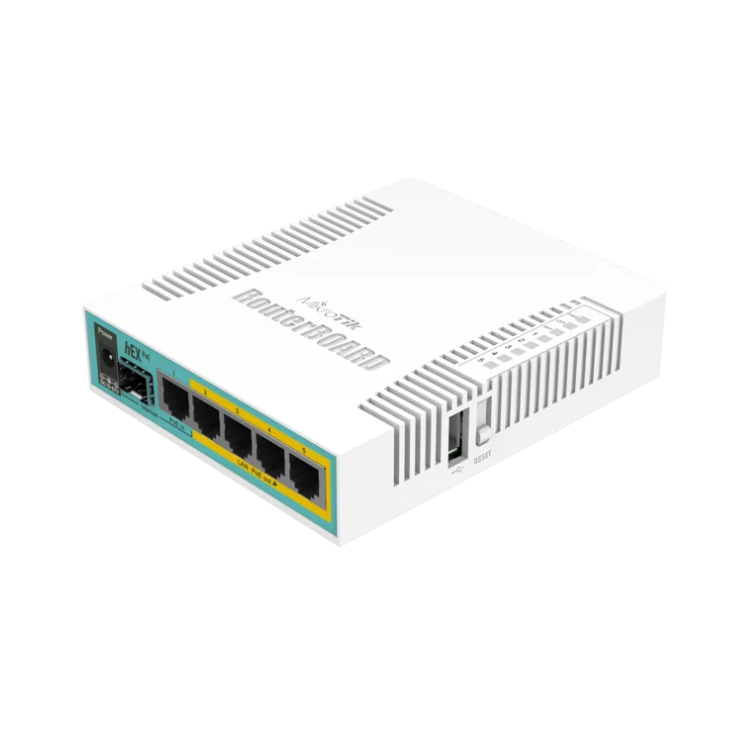

MikroTik hEX PoE - 5 Port Gigabit, 1 SFP PoE Out Desktop Router

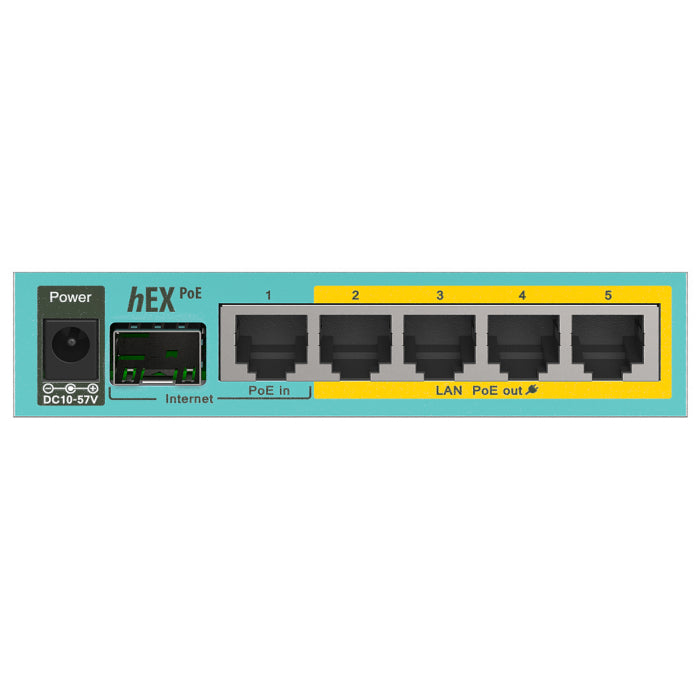

hEX PoE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and a SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.

It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.

It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power at/af mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.

FEATURES:

• 5x Gigabit Ethernet with PoE output for four ports
• SFP
• USB
• 800MHz CPU
• 128MB RAM
• RouterOS L4

SPECIFICATIONS:

• Product code: RB960PGS
• 10/100/1000 Ethernet ports: 5
• SFP ports: 1
• Architecture: MIPSBE
• CPU: QCA9557
• CPU core count: 1
• CPU nominal frequency: 800 MHz
• Switch chip model: QCA8337
• RouterOS license: 4
• Operating System: RouterOS
• Size of RAM: 128 MB
• Storage size: 16 MB
• Storage type: FLASH
• MTBF: Approximately 100'000 hours at 25C
• Tested ambient temperature: -40°C to 60°C
• Number of DC inputs: 2 (DC jack, PoE-IN)
• DC jack input Voltage: 12-57 V
• Max power consumption: 54 W
• Max power consumption without attachments: 6 W
• PoE in: Passive PoE
• Cooling type: Passive
• PoE in input Voltage: 12-57 V
• PoE-out ports: Ether2-Ether5
• PoE out: 802.3af/at
• Low voltage PoE-Out current limit: 1 A
• High voltage PoE-Out current limit: 450 mA
• Max total out (A): 2 A
• Number of USB ports: 1
• USB Power Reset: Yes
• USB slot type: USB type A
• Max USB current (A): 1

WHAT’S IN THE BOX:

• MikroTik hEX PoE x1

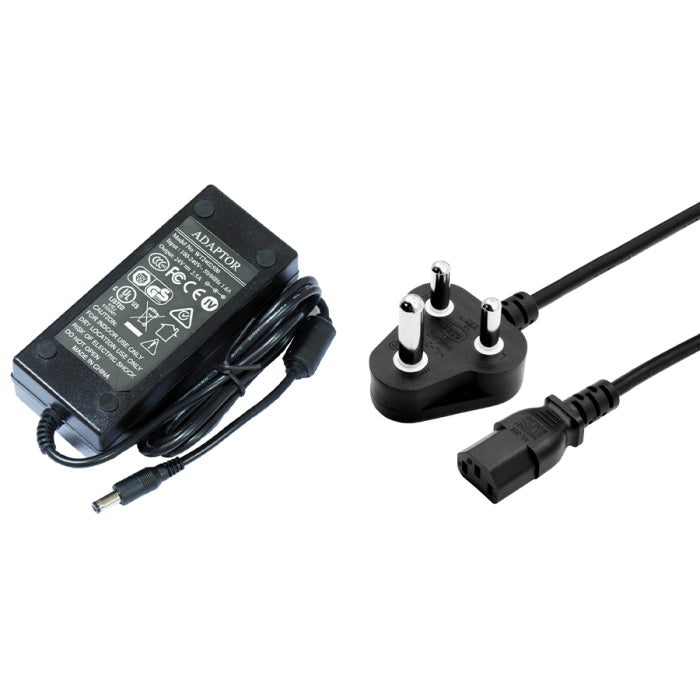

• Power Adapter x1

• Installation Guide x1

WARRANTY:

• 12 Months
