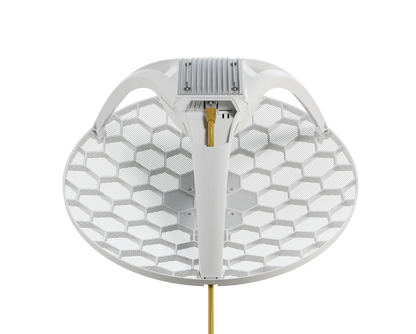

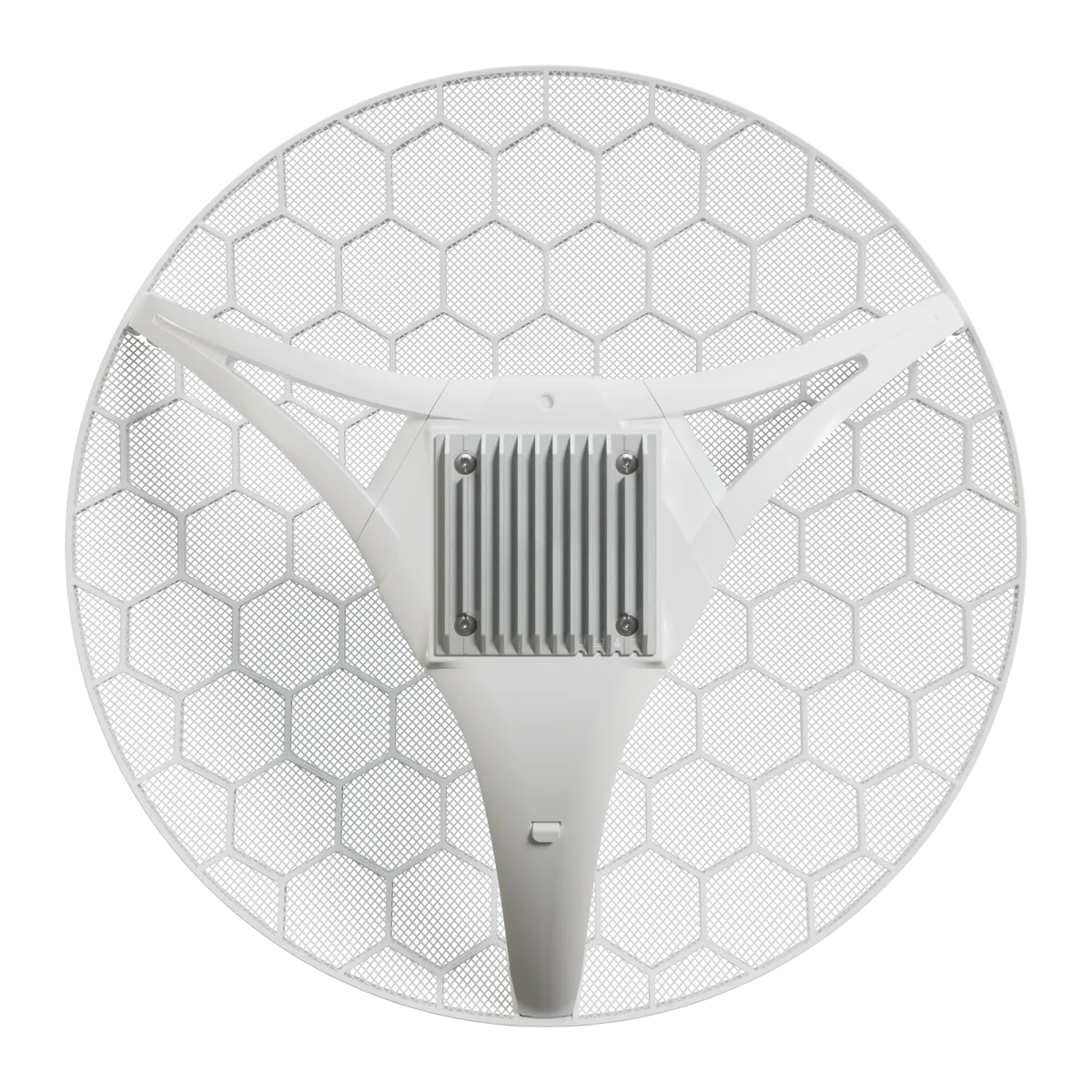

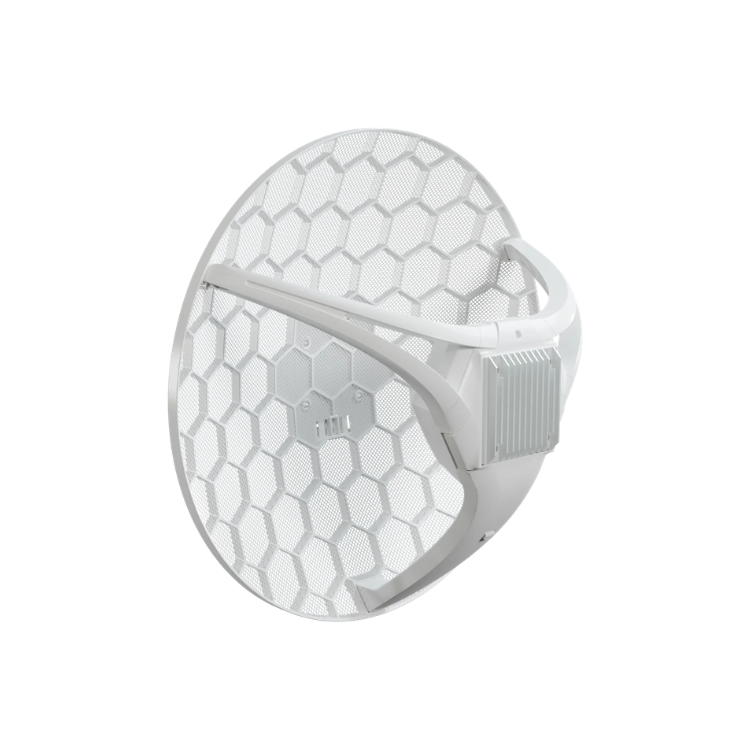

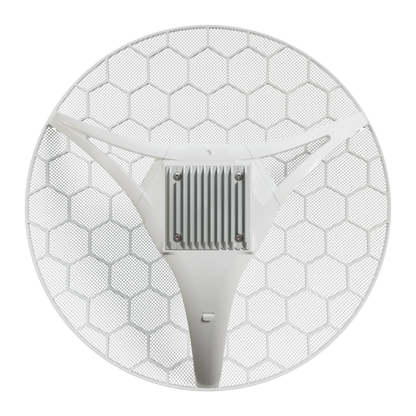

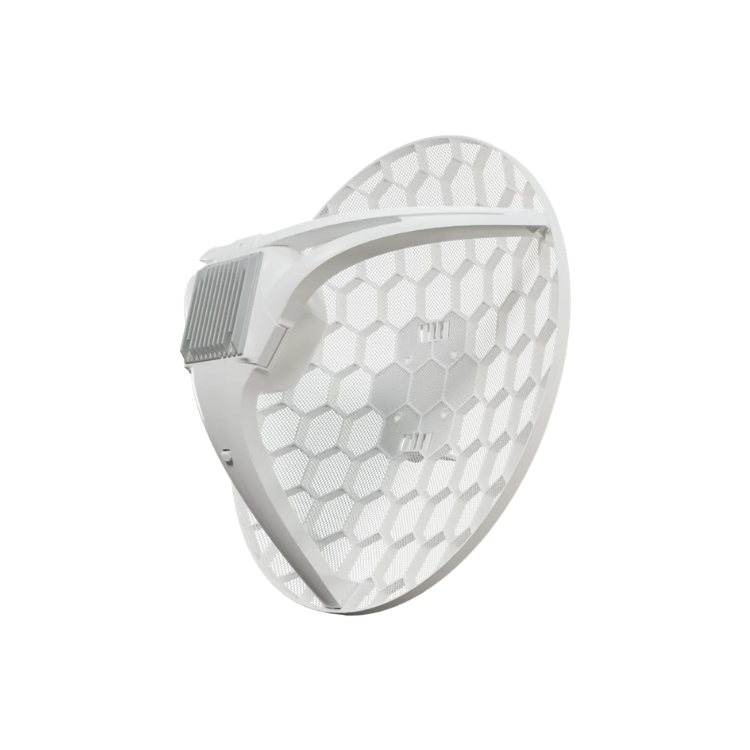

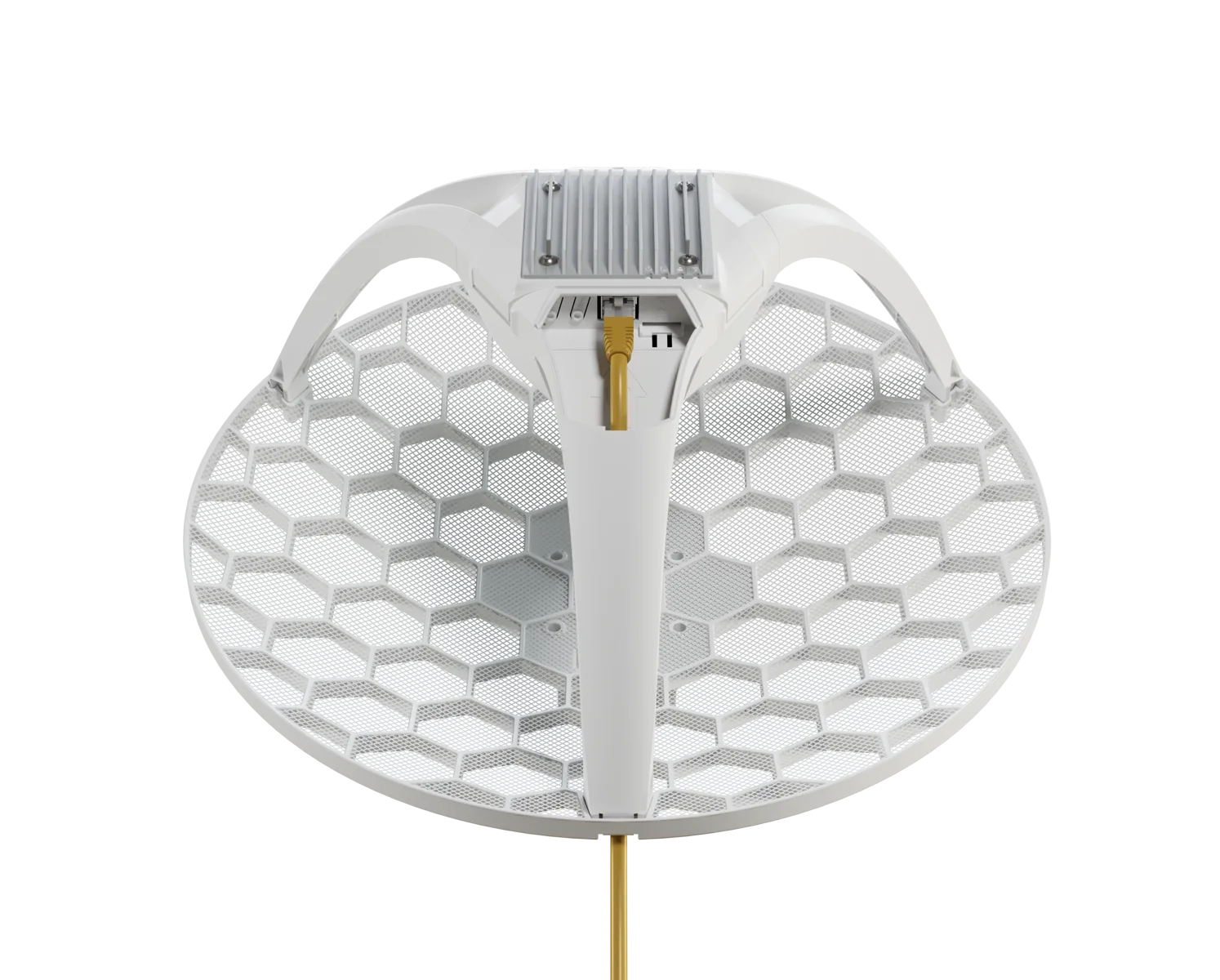

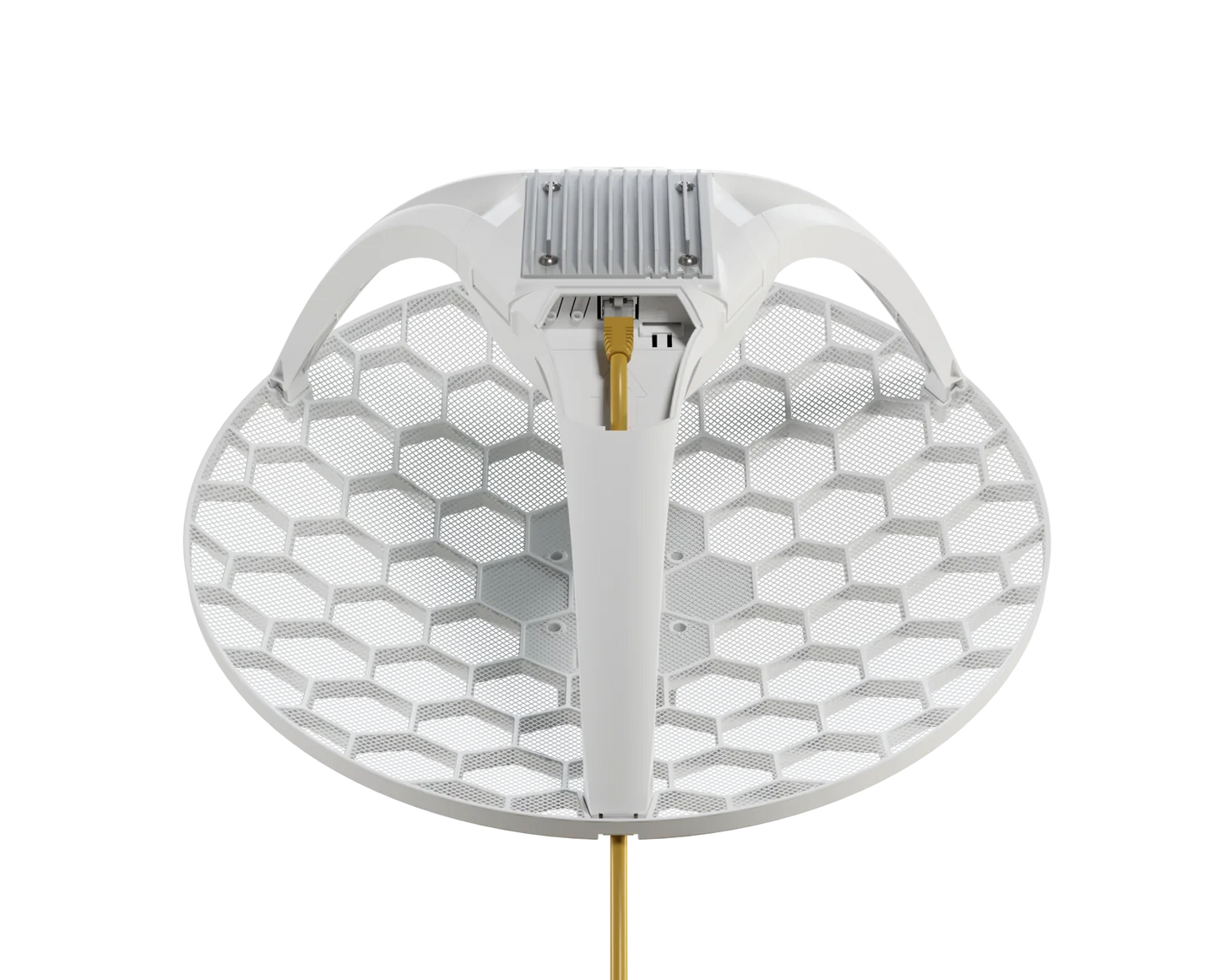

MikroTik LHGG LTE6 Kit 17dBi Outdoor CPE

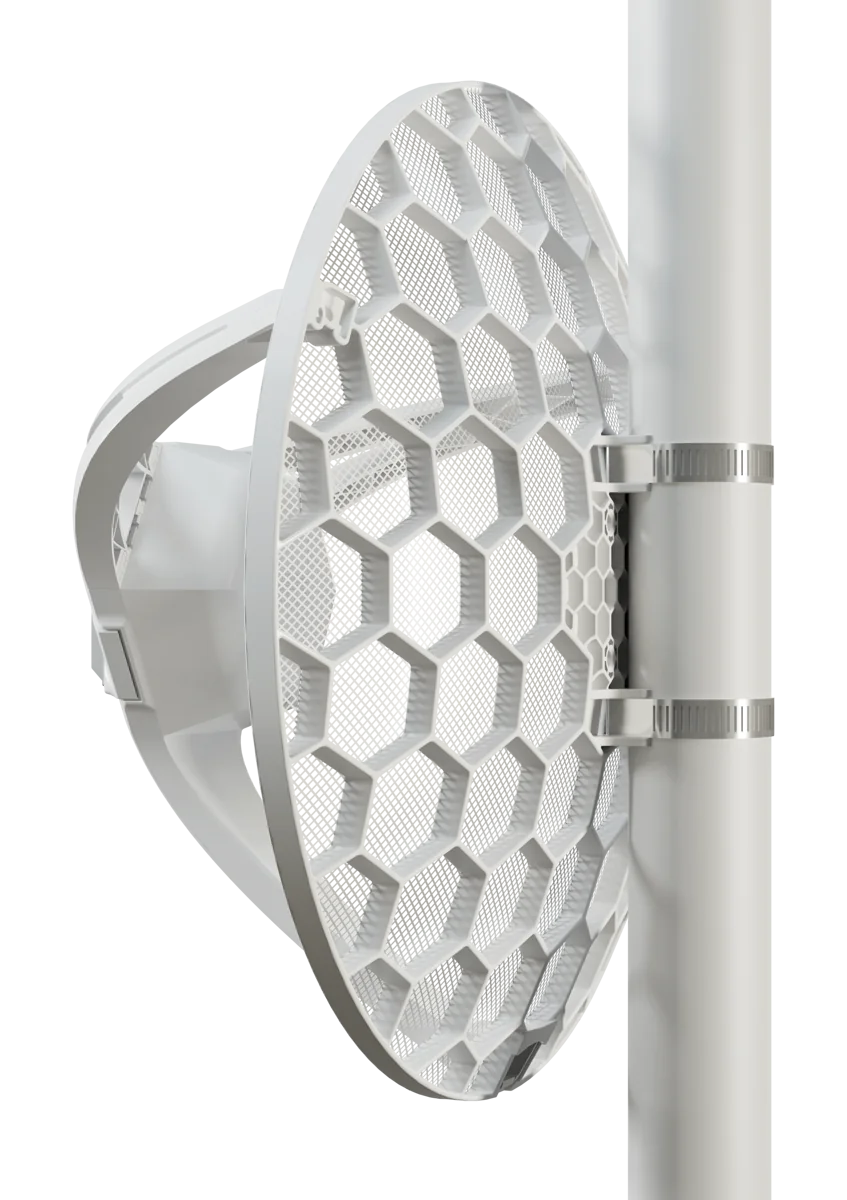

Ideal for remote locations within cellular network coverage. Mount it outdoors, on a pole, mast or any tall structure, to enable connection even where cell phones fail. Due to its large-sized, high-gain antenna, the MikroTik LHGG LTE6 kit can connect to cell towers in extremely rural locations, giving you the ability to provide last mile internet access where nothing else is available.

Features a Cat6 LTE modem which enables carrier aggregation, allowing a device to use multiple bands simultaneously - A great advantage when there are multiple LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency in weaker signal situations.

When mobile phone reception fails, the LHGG LTE6 kit steps in as your reliable last-mile-internet solution. Its large 17 dBi antenna and our latest Cat6 LTE modem with the ability to use multiple LTE bands at the same time ensure fast and reliable connectivity when all other options fail. Mount it on a pole, a mast, on your roof or any other tall structure – and always stay connected!

This kit is an update that combines the strengths of our previous LHG bestsellers. It has gained Gigabit Ethernet – so you can harness the full speed potential of the LTE modem, which has also been upgraded from Cat4 to Cat6! The new LTE modem allows us to drive the price down, boost performance, and offer further discounts on mobile operator project volume orders!

The sleek and unobtrusive weatherproof design has proven its resilience across various climate zones, enduring even the harshest winds effortlessly. This translates to significant time and cost savings on maintenance for you or your team.

The mighty high-gain antenna boasts broad support for a versatile range of LTE bands, spanning from 2.7 GHz to 700 MHz. With such extensive coverage, you can expect to capture a signal virtually anywhere across the globe!

Cable networks and phones can no longer limit you. Choose an LHG – and always stay connected!

SPECIFICATIONS:

• Product code: LHGGR&FG621-EA
• 10/100/1000 Ethernet ports: 1
• Architecture: ARM 64bit
• CPU: 88F3720
• CPU core count: 2
• CPU nominal frequency: 800 MHz
• CPU Threads count: 2
• RouterOS license: 3
• Operating System: RouterOS v7
• Size of RAM: 256 MB
• Storage size: 16 MB
• Storage type: FLASH
• MTBF: Approximately 200'000 hours at 25C
• Tested ambient temperature: -40°C to 70°C
• Number of DC inputs: 1 (PoE-IN)
• Max power consumption: 8 W
• Max power consumption without attachments: 8 W
• PoE in: 802.3af/at
• PoE Output: None
• Cooling type: Passive
• PoE in input Voltage: 12-57 V
• 3G Category: R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
• 3G bands: 1 (2100MHz)
  3 (1800MHz)
  5 (850MHz)
  8 (900MHz)

• LTE Category: 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
• MIMO DL: 2x2
• MIMO UL: 1x1
• LTE FDD bands: 1 (2100MHz)
  3 (1800MHz)
  5 (850MHz)
  7 (2600MHz)
  8 (900 MHz)
  20 (800MHz)
  28 (700MHz)

• LTE TDD bands: 38 (2600MHz)
  40 (2300MHz)
  41 (2500MHz)

• TAC: 86335904
• Number of SIM slots: 1 Modem (Micro SIM)
• MiniPCI-e slots: 1
• Mode button: Yes

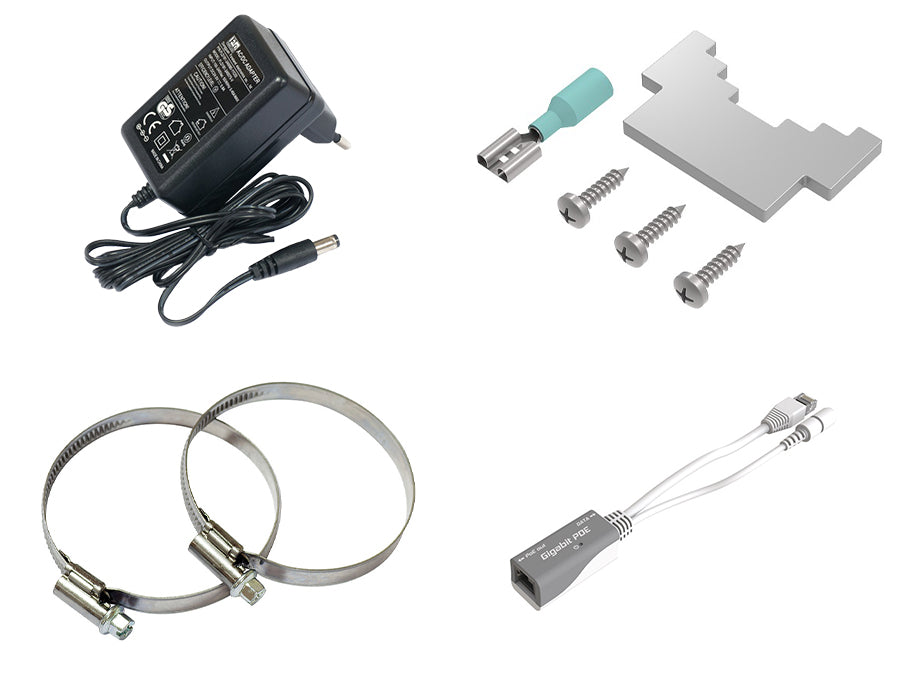

WHAT’S IN THE BOX:

• MikroTik LHGG LTE6 Kit 17dBi Outdoor CPE x1

• Mounting Accessories x1
• Power Adapter x1
• PoE Injector x1

WARRANTY:

• 12 Months
