MikroTik mANT30 PA - 5.8GHz 30dBi Precision Alignment Dish

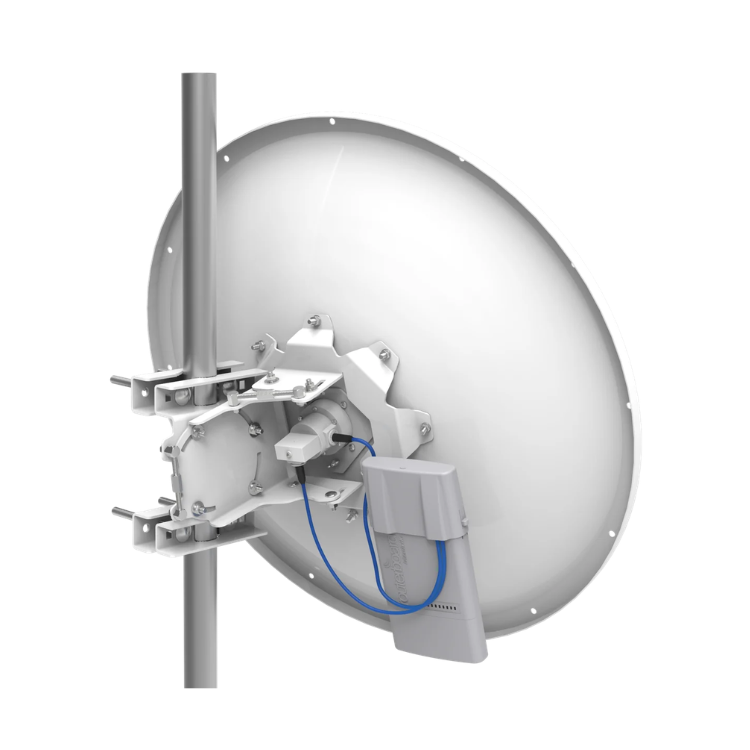

Note: Basebox wireless device pictured for illustrative purposes. It is not included

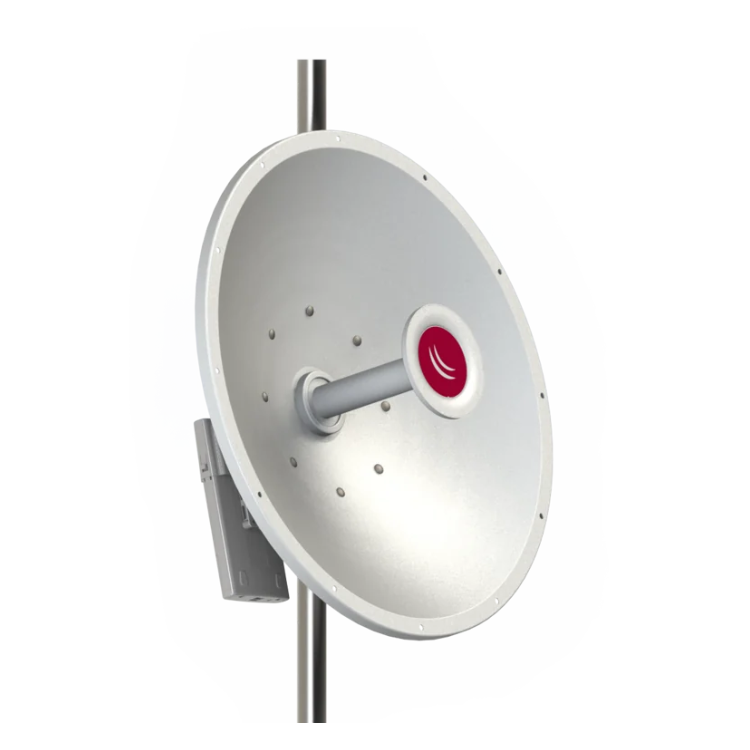

Parabolic dish antenna for 5GHz, 30dBi gain. This model includes precision alignment mount.

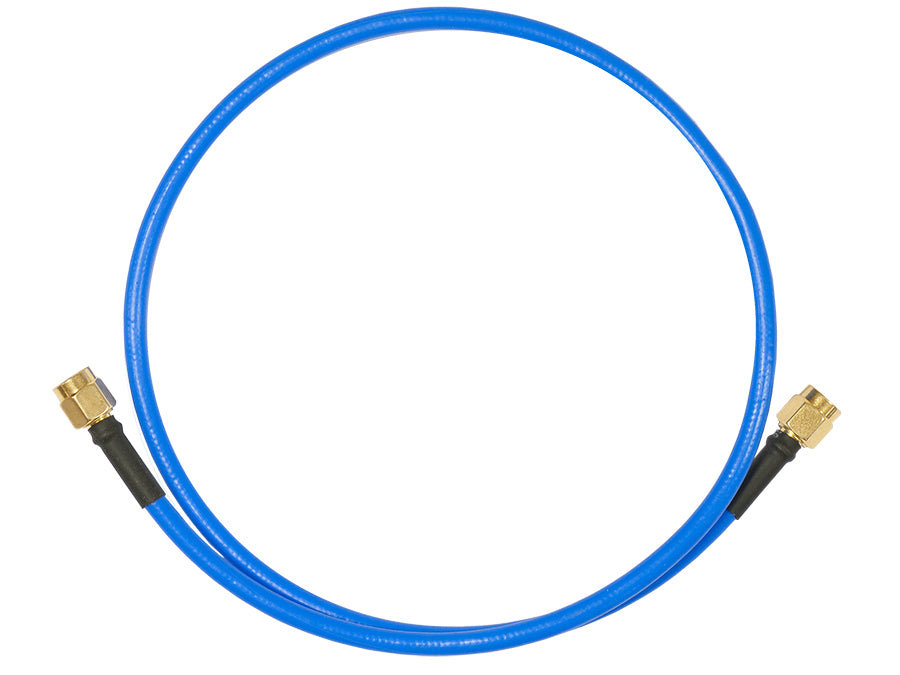

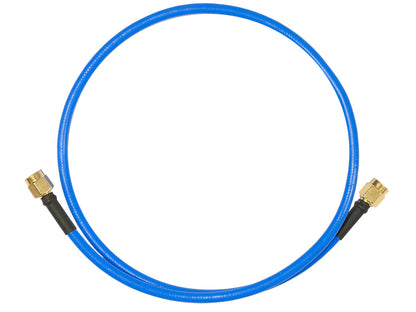

mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.

The unit comes with a precision alignment mount and all the necessary accessories and cables.

SPECIFICATIONS:

• Product code: MTAD-5G-30D3-PA
• Beamwidth: +/-2.5 deg
• Connector: 2x RP-SMA Female (outside thread)
• Cross Polarization: >40 dB
• Diameter x Depth: 70 x 45cm (27.5 x 17.8in)
• Elevation adjustment range: +/- 15 deg
• Frequency Range: 4.7-5.875 GHz
• Front-to-Back Ratio: >30 dB
• Impedance: 50 ohms
• Outdoor Rating: ETSI EN 300 019-2-4
• Packaged size: 73x73x20cm (29x29x8in)
• Packaged weight: 8.4 kg (18,5)
• Polarization: Vertical and Horizontal
• Pole Mount Diameter Range: 3 to 10cm (1.2 to 3.9in)
• Port to Port Isolation: >40dB min
• Power Rating: 100W
• Reflector: Aluminum
• Standards: EN 302 326 DN1, DN2, DN3, DN5
• Tested ambient temperature: -50°C to 80°C(-49°F to 158°F)
• VSWR: ≤ 1.4 typ, ≤ 1.8 max
• Weight: 5.7kg (12.6 lbs)
• Wind Load (125 mph): 181.4kg (400 lbs), 50 kg at 40 m/s, 28 kg at 30 m/s
• Wind Survivability: 201kph (125mph)

WHAT’S IN THE BOX:

• MikroTik mANT30 PA x1

• Mounting Accessories x1

WARRANTY:

• 12 Months
