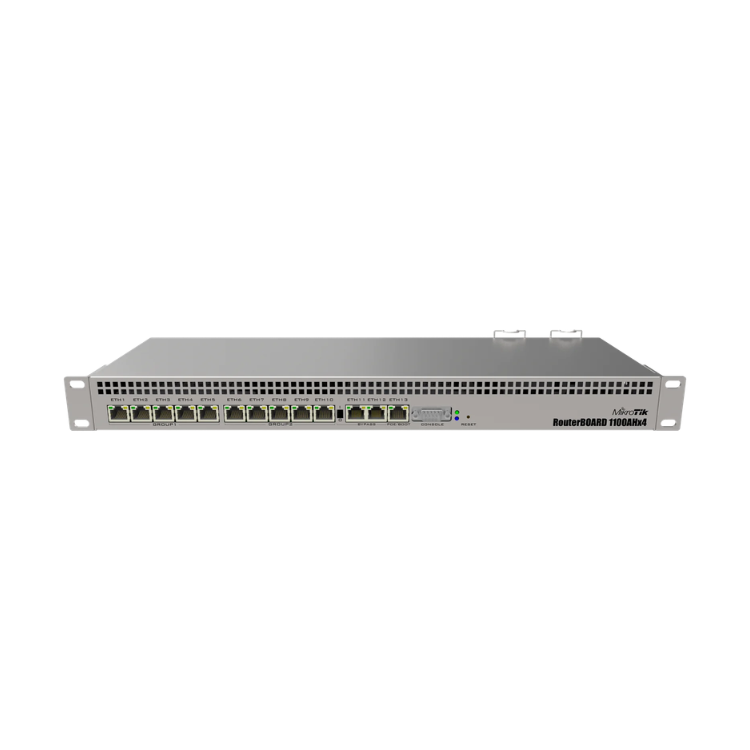

MikroTik RB1100AHx4 - 13 Port Gigabit Quad Core L6 Rack-Mount Router

Powerful 1U rackmount router with 13x Gigabit Ethernet ports.

Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).

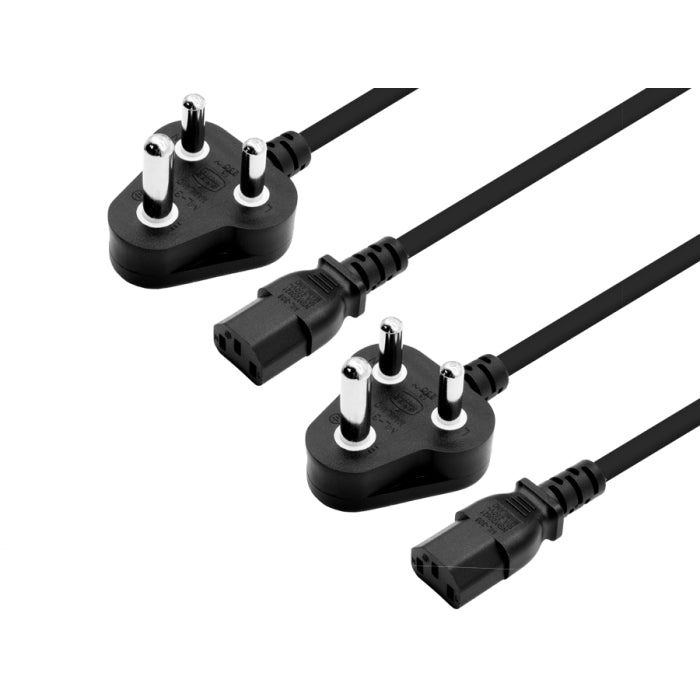

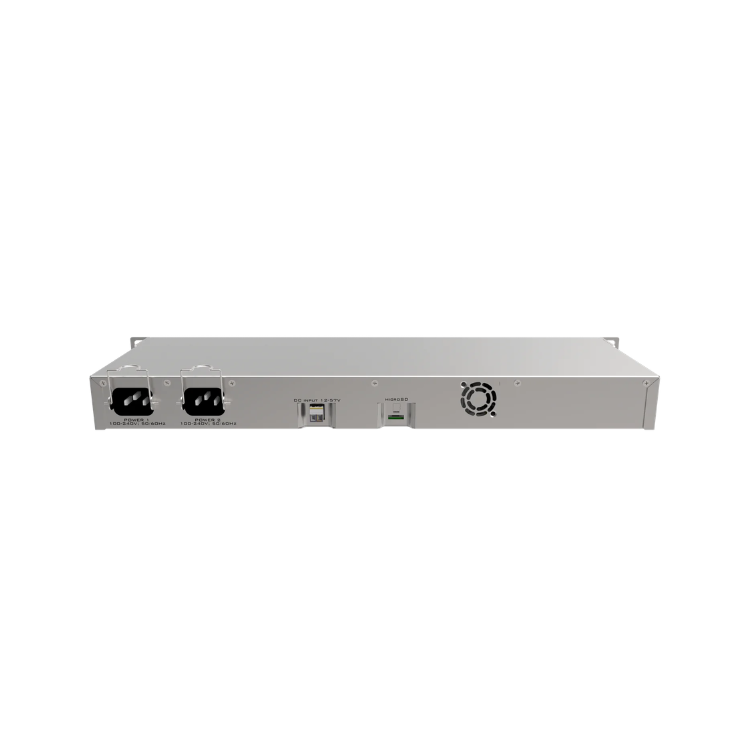

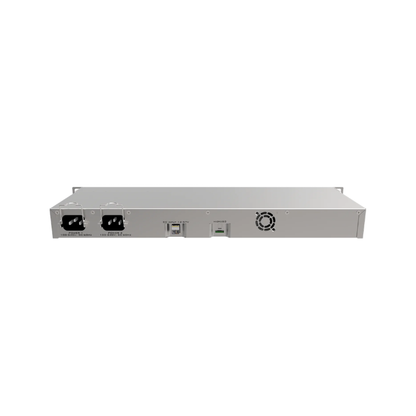

1x Micro SD card slot and supports multiple power options for redundancy. Dual IEC power supplies, PoE input or 2 pin DC terminal.

SPECIFICATIONS:

• Product code: RB1100x4
• 10/100/1000 Ethernet ports: 13
• Memory card type: microSD
• Memory Cards: 1
• Serial console port: RS232
• Architecture: ARM 32bit
• CPU: AL21400
• CPU core count: 4
• CPU nominal frequency: 1.4 GHz
• CPU Threads count: 4
• Switch chip mode: lRTL8367
• Dimensions: 443 x 148 x 44 mm
• RouterOS license: 6
• Operating System: RouterOS
• Size of RAM: 1 GB
• Storage size: 128 MB
• Storage type: NAND
• MTBF: Approximately 200'000 hours at 25C
• Tested ambient temperature: -40°C to 70°C
• Number of AC inputs: 2
• AC input range: 100-240
• Number of DC inputs: 2 (PoE-IN, 2-pin terminal)
• 2-pin terminal input Voltage: -48, 12-57 V
• Max power consumption: 20 W
• PoE in: 802.3af/at
• PoE Output: None
• Cooling type: Passive
• PoE in input Voltage: 20-57 V
• Current Monitor: Yes
• PCB temperature monitor: Yes
• Voltage Monitor: Yes
• Mode button: Yes
• Beeper: Yes

WHAT’S IN THE BOX:

• MikroTik RB1100AHx4 x1
• Power Adapter x1

• Installation Guide x1

WARRANTY:

• 12 Months
