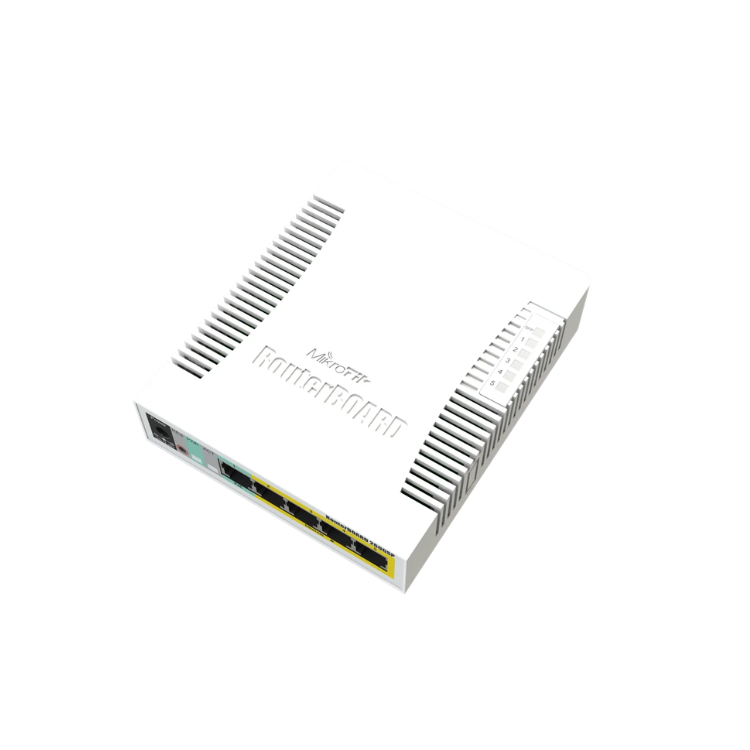

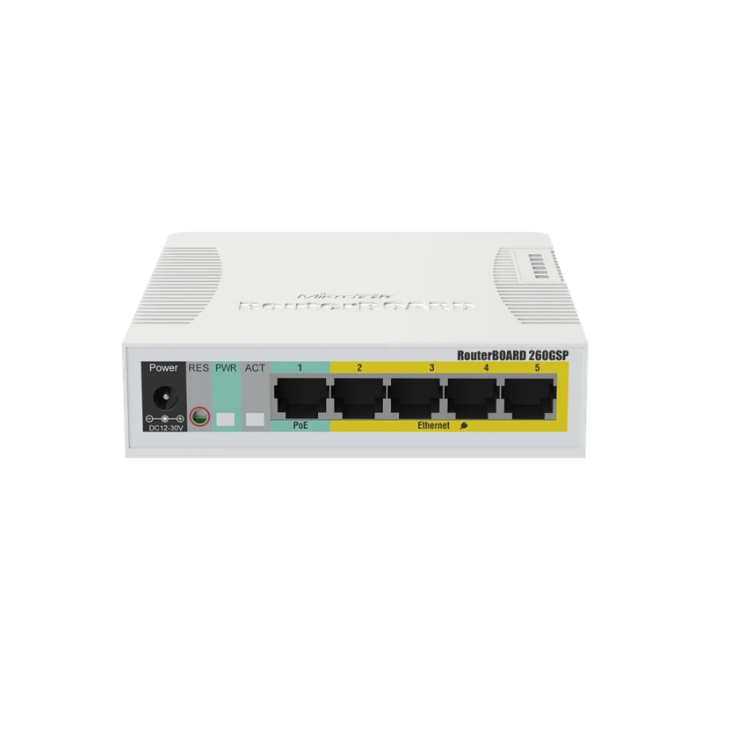

MikroTik RB260GSP - 5 Port Gigabit, 1 x SFP Smart PoE Out Switch

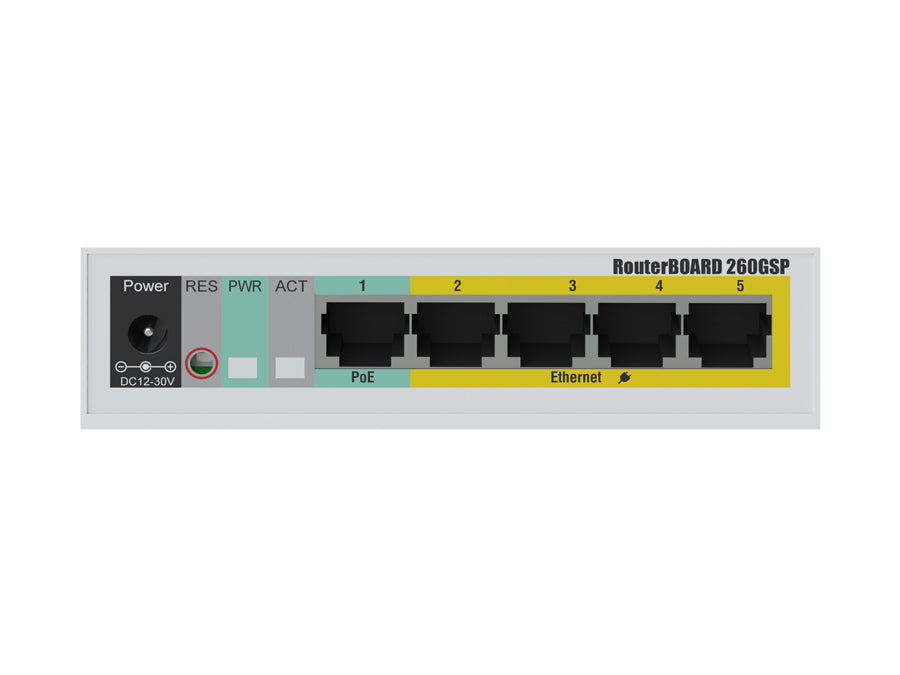

The RB260GSP is a small SOHO switch, which features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit (passive PoE over datalines only). The RB260GSP has five Gigabit Ethernet ports and one SFP cage, switching is done by an Atheros Switch Chip. The device is running an operating system designed specifically for MikroTik Switch products - SwOS.

SwOS is configurable from your web browser. It gives you all the basic functionality for a managed switch, plus more: Allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields.

FEATURES:

• 5 x Gigabit Ethernet Smart Switch

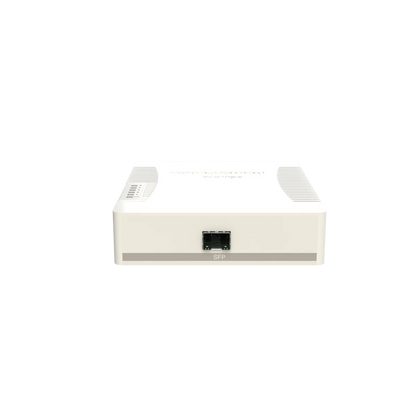

• SFP cage
• Powered by SwOS
• PoE passthrough on ports 2 to 5

SPECIFICATIONS:

• Product code: CSS106-1G-4P-1S
• PoE-out ports: Ether2-Ether5
• PoE out: Passive PoE
• Low voltage PoE-Out current limit: 1 A
• Max total out (A: )2 A
• 10/100/1000 Ethernet ports: 5
• SFP DDMI: Yes
• SFP ports: 1
• Switch chip model: QCA8337
• Dimensions: 113x139x28mm
• Operating System: MikroTik SwOS
• Storage size: 128 KB
• Storage type: FLASH
• MTBF: Approximately 100'000 hours at 25C
• Tested ambient temperature: -20°C to 70°C
• Number of DC inputs: 2 (DC jack, PoE-IN)
• DC jack input Voltage: 11-30 V
• Max power consumption: 53 W
• Max power consumption without attachments: 5 W
• PoE in: Passive PoE
• Cooling type: Passive
• PoE in input Voltage: 11-30 V
• PCB temperature monitor: Yes
• Voltage Monitor: Yes

WHAT’S IN THE BOX:

• MikroTik RB260GSP x1

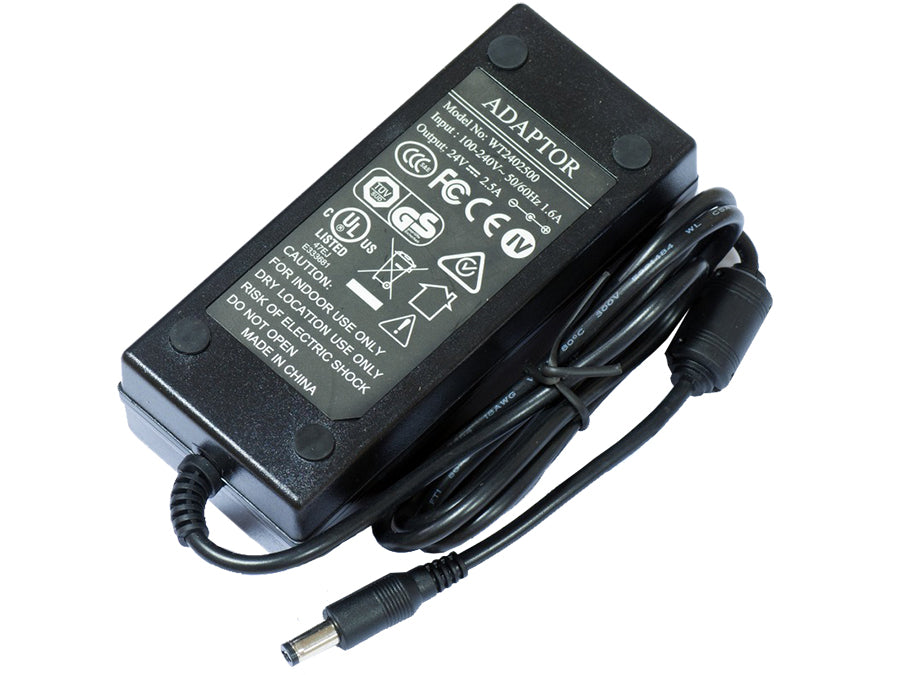

• Power Adapter x1

WARRANTY:

• 12 Months
