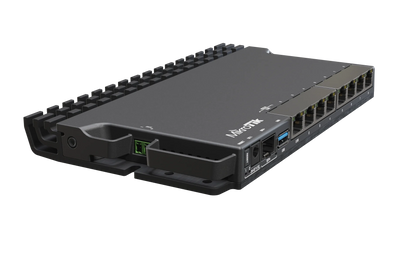

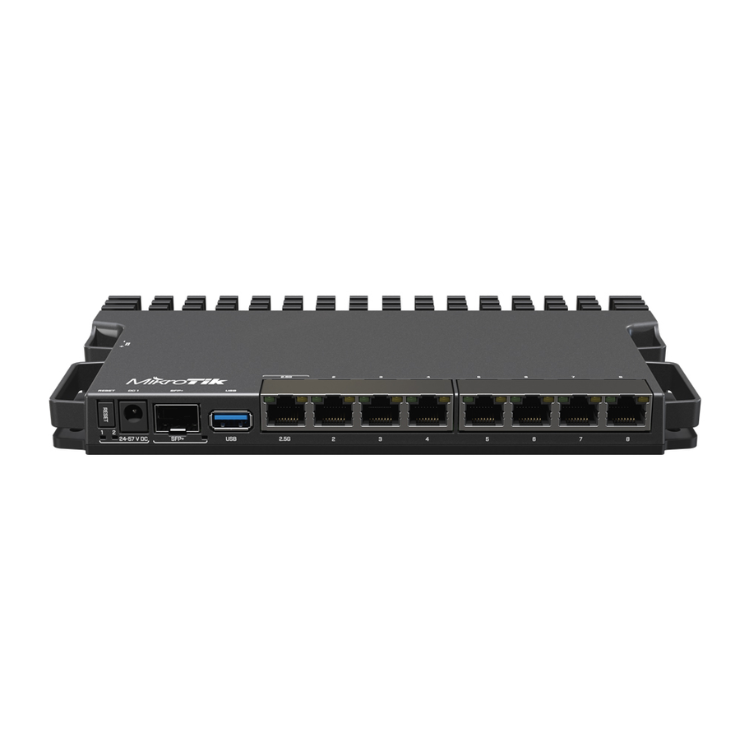

MikroTik RB5009 - 7 Gigabit, 1 x 2.5Gbps SFP+ Quad Core Router

The ultimate heavy-duty home lab router with USB 3.0, 1G and 2.5G Ethernet and a 10G SFP+ cage. You can mount four of these new routers in a single 1U rackmount space! Unprecedented processing power in such a small form factor.

RB5009 has it all, and even more!

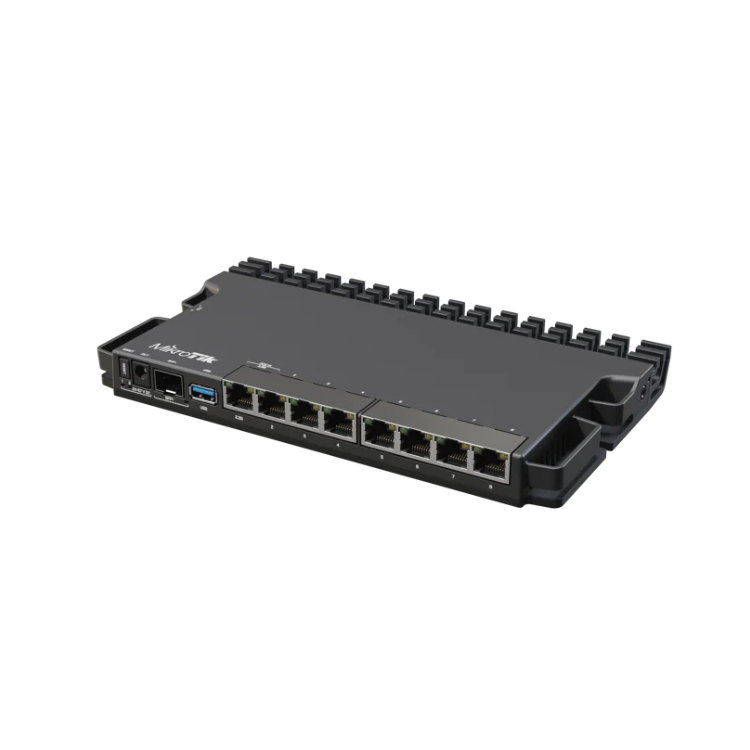

The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!

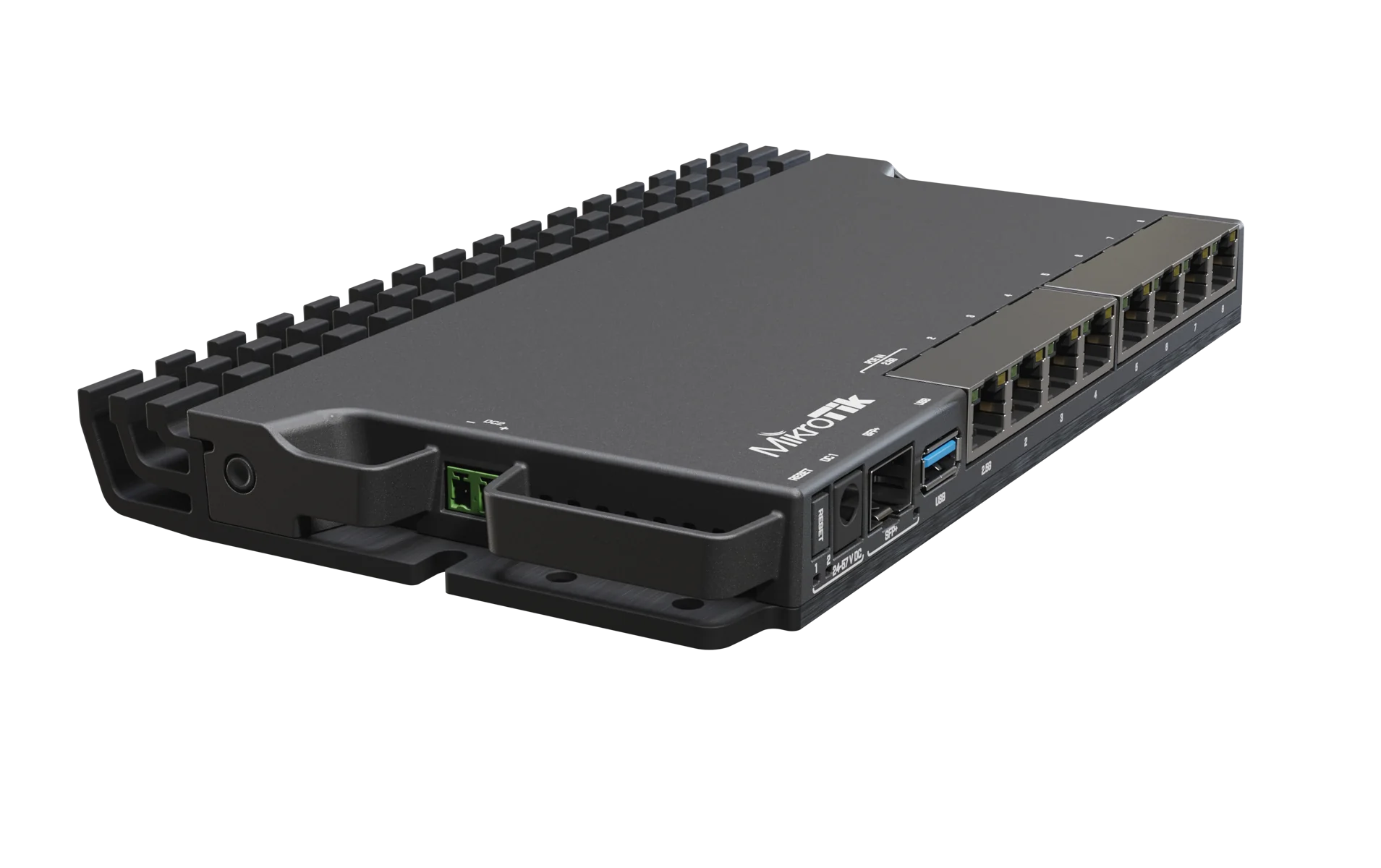

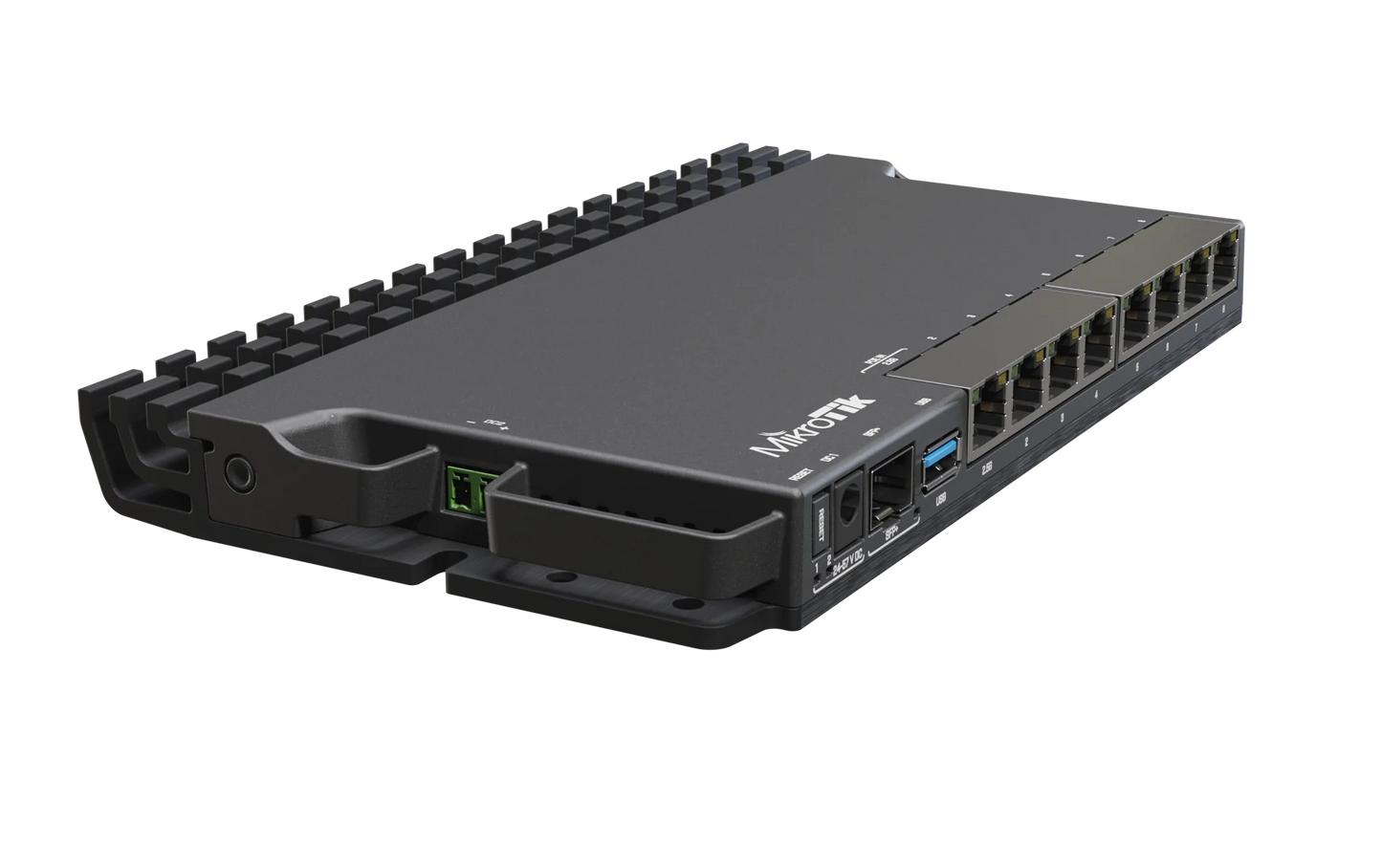

RB5009UG+S+IN can be powered in 3 different ways:
a) PoE-in from Ethernet port #1
b) DC Jack
c) 2-pin terminal (5.08mm 1x2pin) on the side

Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.

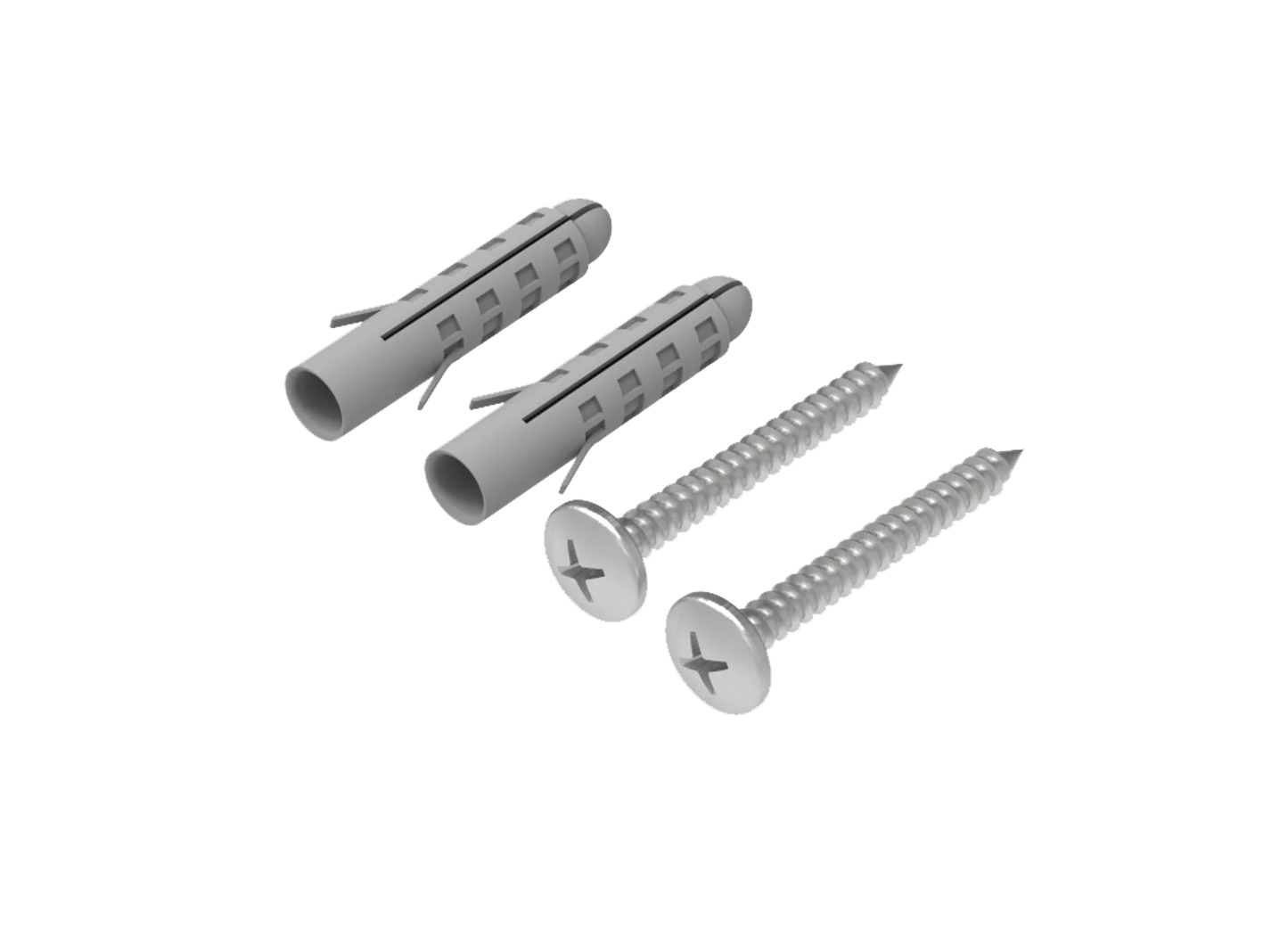

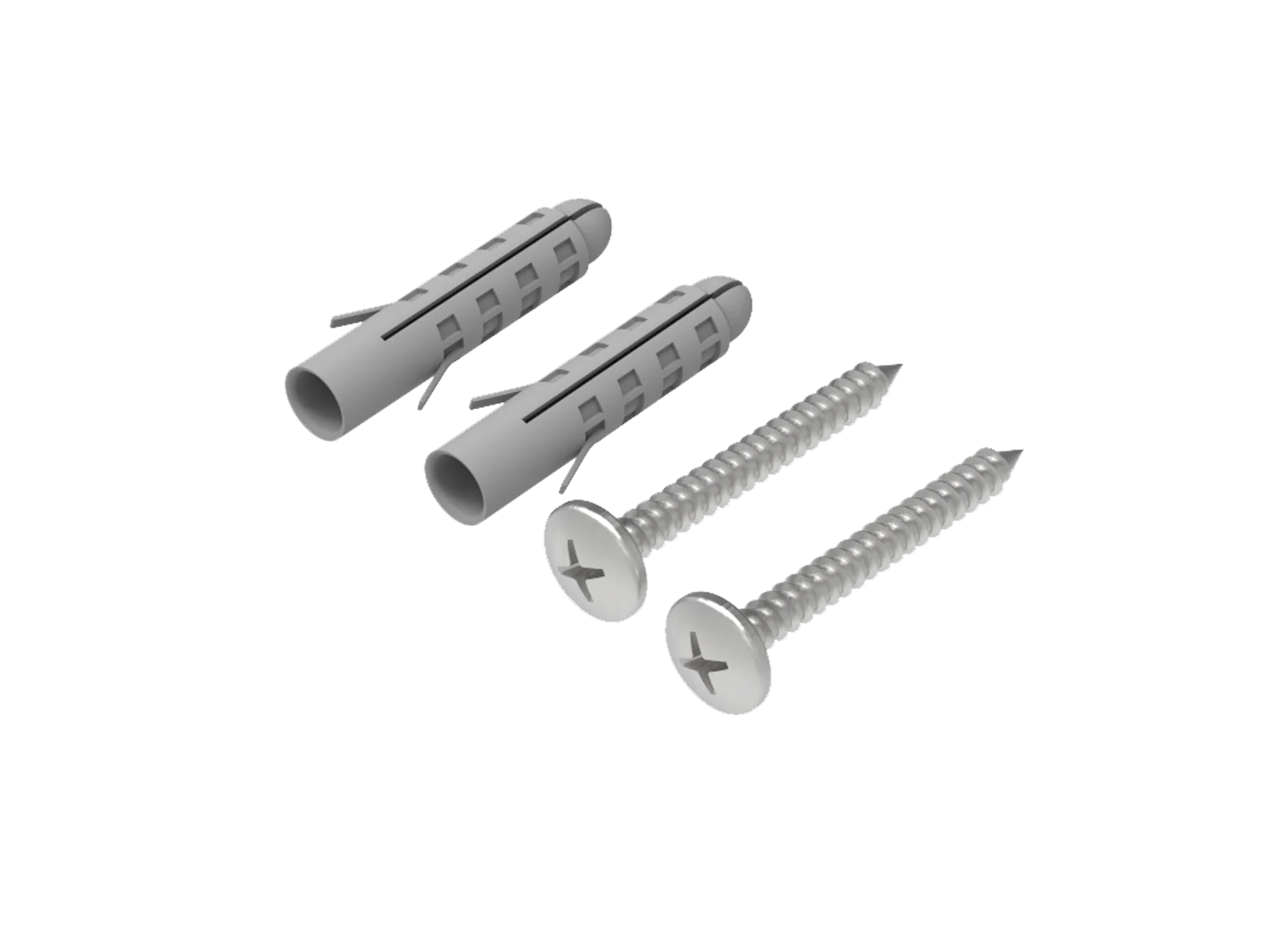

With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.

FEATURES:

• Quad Core CPU
• Heavy-duty
• 7 x Gigabit Ethernet Ports
• 1 x 2.5Gbps Ethernet port
• 1 x 10Gbps SFP+ port
• USB 3.0 slot

SPECIFICATIONS:

• Product code: RB5009UG+S+IN
• 10/100/1000 Ethernet ports: 7
• Number of 2.5G Ethernet ports: 1
• SFP+ ports: 1
• Number of USB ports: 1
• USB Power Reset: Yes
• CPU temperature monitor: Yes
• USB slot type: USB 3.0 type A
• Max USB current (A: )1.5
• Architecture: ARM 64bit
• CPU: 88F7040
• CPU core count: 4
• CPU nominal frequency: 350-1400 (auto) MHz
• CPU Threads count: 4
• Switch chip model: 88E6393
• Dimensions: 220 x 125 x 22 mm
• RouterOS license: 5
• Operating System: RouterOS v7
• Size of RAM: 1 GB
• Storage size: 1 GB
• Storage type: NAND
• MTBF: Approximately 200'000 hours at 25C
• Tested ambient temperature: -40°C to 60°C
• Number of DC inputs: 3 (DC jack, PoE-IN, 2-pin terminal)
• DC jack input Voltage: 24-57 V
• 2-pin terminal input Voltage: 24-57 V
• Max power consumption: 25 W
• Max power consumption without attachments: 14 W
• PoE in: 802.3af/at
• PoE Output: None
• Cooling type: Passive
• PoE in input Voltage: 24-57 V

WHAT’S IN THE BOX:

• MikroTik RB5009 x1

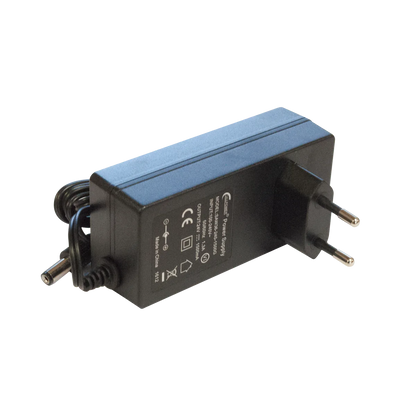

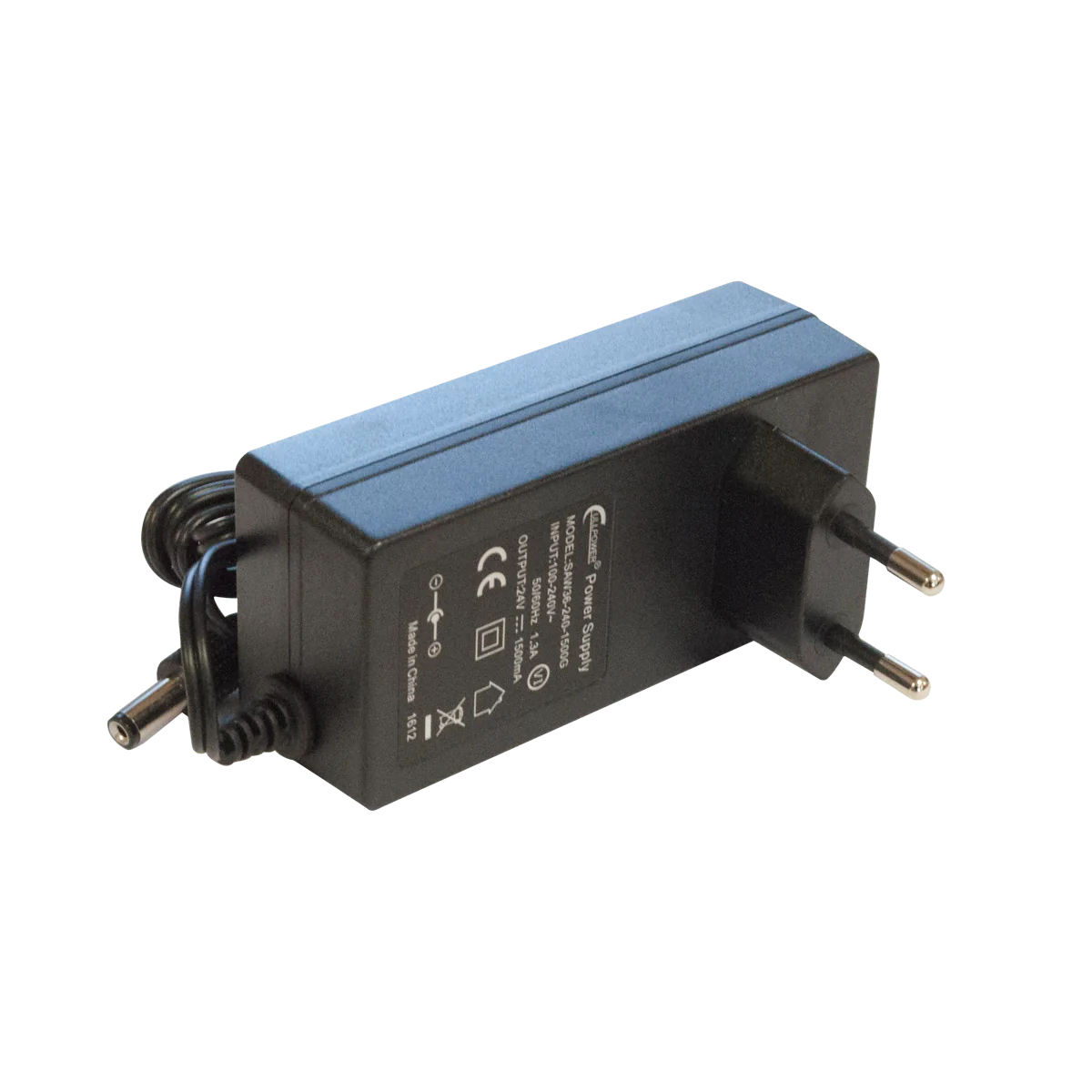

• Power Adapter x1

• Installation Guide x1

WARRANTY:

• 12 Months
