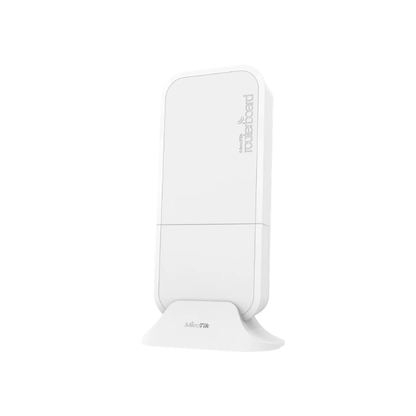

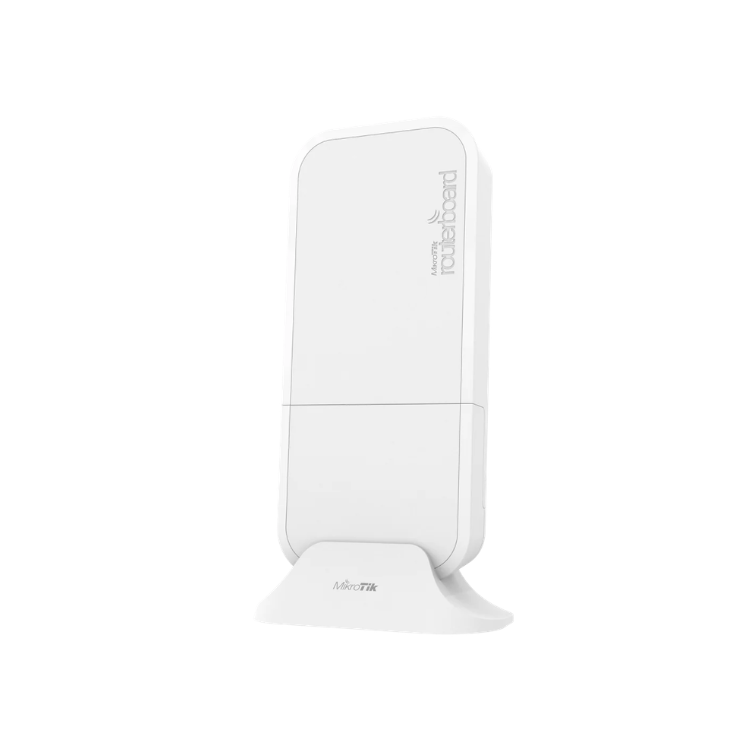

MikroTik wAP ac LTE6 Kit Dual Band Router with LTE6 Modem

Powerful and versatile dual-band wireless access point with CAT6 LTE support.

A small package with huge ambition – the wAP ac LTE6 kit is an upgrade of our extremely cost-effective dual-band (2.4 / 5 GHz) home access point based on the popular weatherproof wAP form factor. Its new CAT6 LTE modem enables even greater download speed – up to 300 Mbps!

CAT6 also enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside.

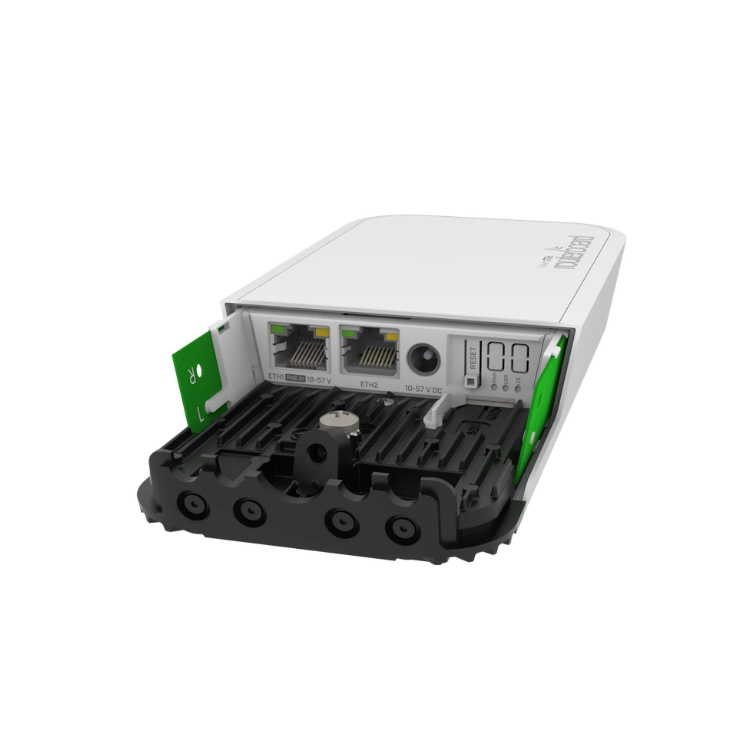

wAP ac LTE6 kit has two Gigabit Ethernet ports – you can use the device as a wired router with LTE backup via the Micro SIM slot. Alternatively, you can enjoy smooth wireless experience anywhere – indoors or outdoors. wAP ac LTE is designed to deliver strong and reliable connection in almost any situation and weather conditions. It can withstand temperatures from -30 C° to +60 C° and can be easily mounted on walls, ceilings or poles.

SPECIFICATIONS:

• Product code: RBwAPGR-5HacD2HnD&R11e-LTE6
• 10/100/1000 Ethernet ports: 2
• Architecture: ARM 32bit
• CPU: IPQ-4018
• CPU core count: 4
• CPU nominal frequency: 488-896 (auto) MHz
• CPU Threads count: 4
• Switch chip model: IPQ-4018
• RouterOS license: 4
• Operating System: RouterOS
• Size of RAM: 128 MB
• Storage size: 16 MB
• Storage type: FLASH
• MTBF: Approximately 100'000 hours at 25C
• Tested ambient temperature: -30°C to 60°C
• Number of DC inputs: 2 (DC jack, PoE-IN)
• DC jack input Voltage: 10-57 V
• Max power consumption: 16 W
• Max power consumption without attachments: 10 W
• PoE in: 802.3af/at
• PoE Output: None
• Cooling type: Passive
• PoE in input Voltage: 18-57 V
• 2G Category: Class12
• 2G bands: 2 (1900MHz)
  3 (1800MHz)
  5 (850MHz)
  8 (900MHz)

• 3G Category: R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
• 3G bands: 1 (2100MHz)
  2 (1900MHz)
  5 (850MHz)
  8 (900MHz)

• LTE Category: 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
• LTE FDD bands: 1 (2100MHz)
  2 (1900MHz)
  3 (1800MHz)
  7 (2600MHz)
  8 (900 MHz)
  20 (800MHz)
  5 (850MHz)
  12 (700MHz)
  17 (700MHz)
  25 (1900MHz)
  26 (850MHz)

• LTE TDD bands: 38 (2600MHz)
  40 (2300MHz)
  39 (1900MHz)
  41n (2500MHz)

• TAC: 35666210
• Wireless 2.4 GHz Max data rate: 300 Mbit/s
• Wireless 2.4 GHz Number of chains: 2
• Wireless 2.4 GHz standards: 802.11b/g/n
• Antenna gain dBi for 2.4 GHz: 2.5
• Wireless 2.4 GHz chip model: IPQ-4018
• Wireless 2.4 GHz generation: Wi-Fi 4
• Wireless 5 GHz Max data rate: 867 Mbit/s
• Wireless 5 GHz Number of chains: 2
• Wireless 5 GHz standards: 802.11a/n/ac
• Antenna gain dBi for 5 GHz: 2.5
• Wireless 5 GHz chip model: IPQ-4018
• Wireless 5 GHz generation: Wi-Fi 5
• Number of SIM slots: 1 Modem (Micro SIM)
• MiniPCI-e slots: 1
• PCB temperature monitor: Yes
• Voltage Monitor: Yes

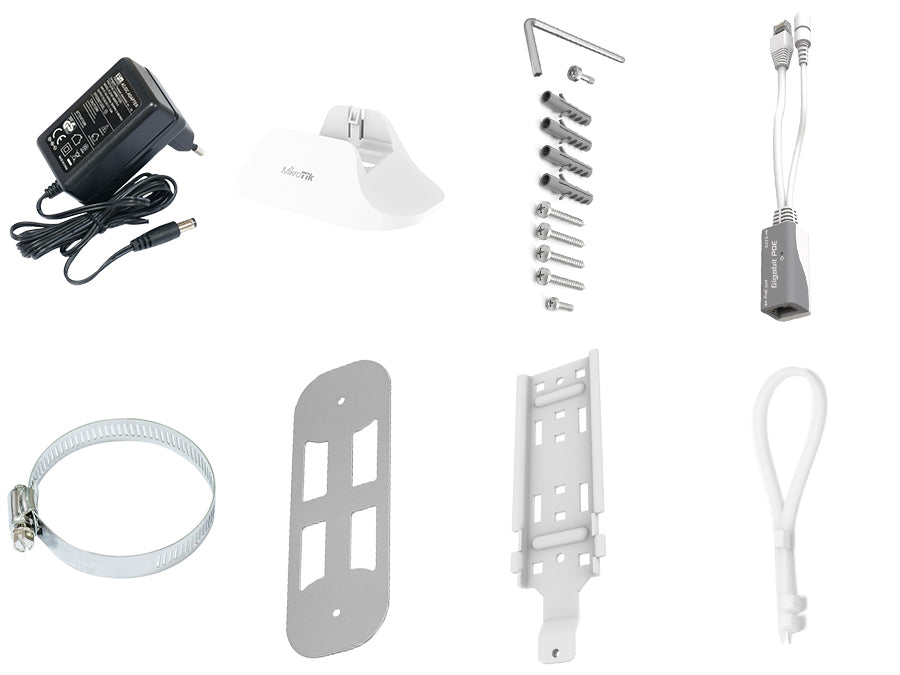

WHAT’S IN THE BOX:

• MikroTik wAP ac LTE6 Kit Dual Band Router with LTE6 Modem x1

• Mounting Accessories x1
• Power Adapter x1
• PoE Injector x1

WARRANTY:

• 12 Months
