Details matter, and with 2K 5MP clarity, D235 exceeds traditional Full HD resolution with finer details and incredible clarity. Experience the full picture with our 180° ultra-wide field of view, capturing every detail from head to toe in a single sweeping glance.
Different wedge choices give users possibilities to make the doorbell suits more placement scenarios. Users can also use these wedges to adjust the views.
Save recorded videos on the microSD Card* (up to 512 GB, purchased separately) or use Tapo Care cloud storage services (subscribe separately).

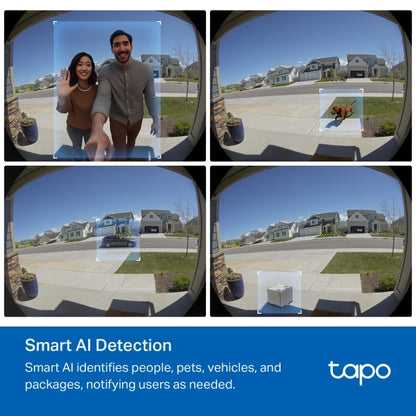

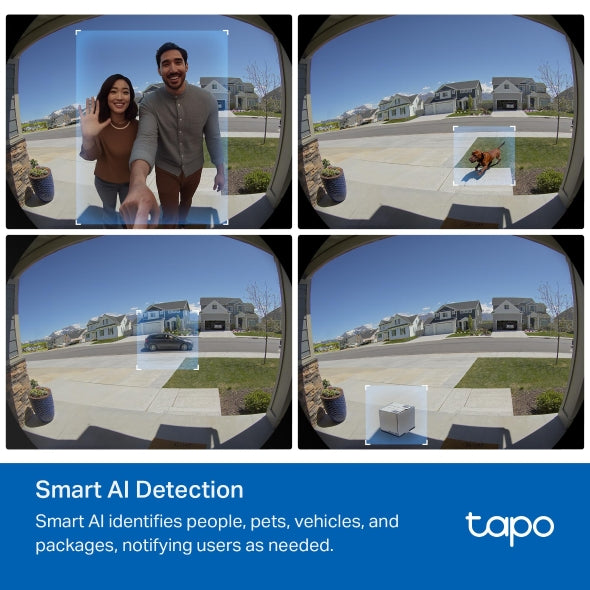

Smart AI identifies people, pets, vehicles, and packages, notifying users as needed.
SPECIFICATIONS:
- Image Sensor: 1/2.7" Progressive Scan CMOS Sensor
- Lens: 1.18 mm Focal Length, F1.8 Aperture
- Field of View: 170.6° Horizontal, 140.1° Vertical
- Night Vision: 850 nm IR LED, Up to 33 ft (10 m), Full-Color Night Vision
- Lighting: Built-in Spotlights

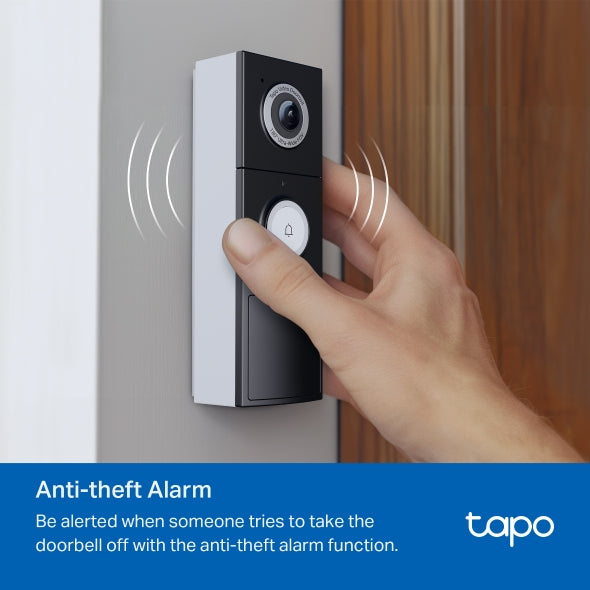

- Interface & Buttons: RESET/SYNC Button, Doorbell Button, Anti-Theft Button, Power ON/OFF Button
- Maximum Resolution: 2K 5MP (2560 × 1920 px)
- Frame Rate: 15/20 fps
- Video Compression: H.264
- Live View: Yes
- Image Enhancement: 3DNR, WDR
- Audio Input & Output: Built-in Microphone and Speaker

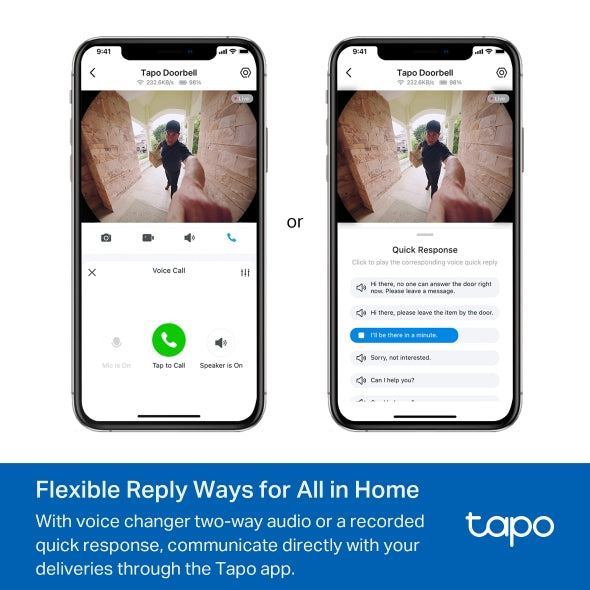

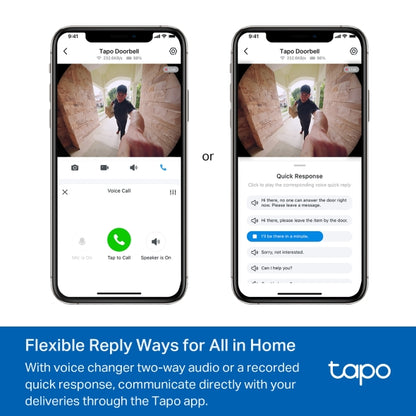

- Audio Communication: Two-Way Audio with Noise Cancellation
- Siren Volume: 98 dB
- Local Storage: MicroSD Card Slot (Up to 512 GB)
- Cloud Storage: Tapo Care Cloud Storage (Subscription Required)
- Sensors: Single PIR Motion Sensor (130° Horizontal FOV), Ambient Light Sensor
- AI Detection: Motion Detection, Person Detection, Pet Detection, Vehicle Detection, Package Detection
- Activity Zones: Yes
- Notifications: System Notifications, Snapshot Notifications (Tapo Care Required)
- Network Connectivity: IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
- Security: On-Device Machine Learning, 128-bit AES Encryption with SSL/TLS, WPA/WPA2-PSK

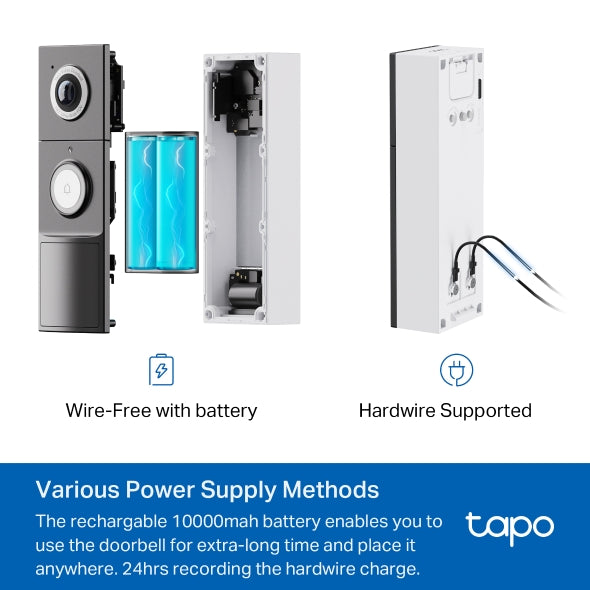

- Power Source: 10000 mAh Built-in Rechargeable Lithium-ion Battery

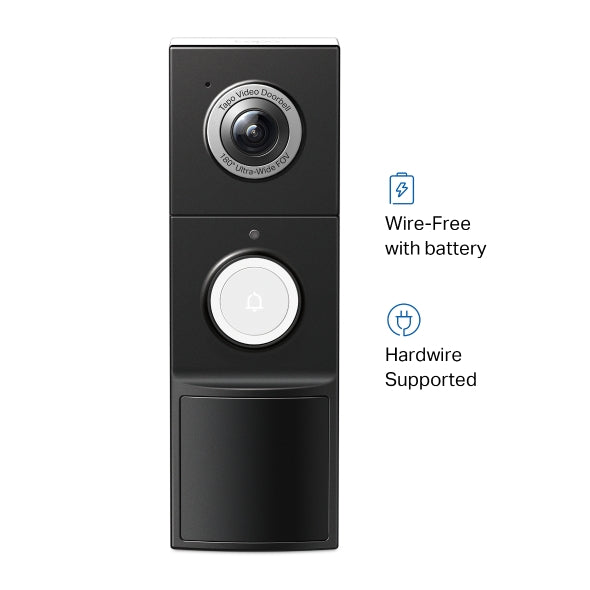

- Charging Options: Hardwire Charging, Hardwire Power Supply
- Input Voltage: 100–240 V, 50/60 Hz
- Output Voltage: 5.0 V, 2.0 A
- Smart Integration: Google Assistant, Amazon Alexa
- Weather Resistance: IP66
- App Requirements: Tapo App for iOS 13.0+ and Android 7.0+
- Mounting Options: Stick to Wall, Wall-Mounted
- Operating Temperature: -20°C to 45°C
- Storage Temperature: -40°C to 60°C
- Charging Temperature: 0°C to 45°C
- Operating Humidity: 10%–90% RH, Non-condensing
- Storage Humidity: 0%–90% RH, Non-condensing
- Doorbell Dimensions: 150 × 50 × 38.4 mm (5.91 × 1.97 × 1.52 in)
- Chime Dimensions:
- US/JP: 73 × 46.9 × 43.5 mm
- EU: 73 × 54.6 × 48 mm
- UK: 73 × 62.3 × 43.5 mm
- KR: 73 × 62.4 × 43.5 mm
- AU: 73 × 51 × 43.5 mm
- Certifications: CE, RoHS, RCM, R-NZ, FCC, EAC, Triman, UKCA
WHAT'S IN THE BOX:

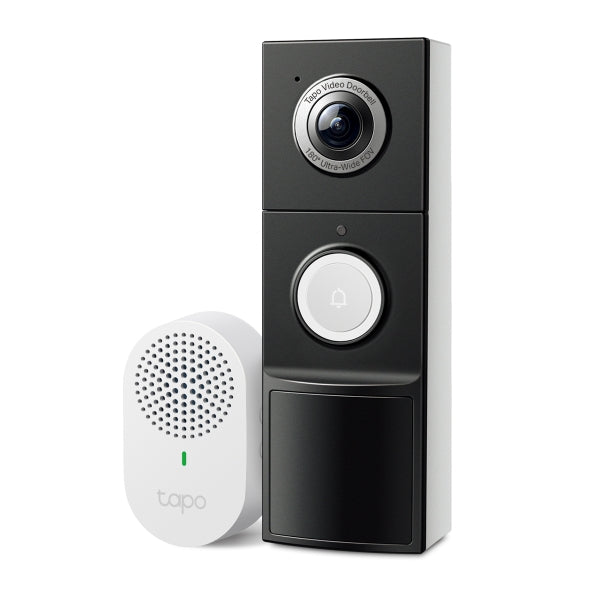

- Tapo Video Doorbell x1
- Tapo Chime x1
- Mounting Template x1
- Mounting Bracket x1
- Vertical Mounting Wedge x1
- Horizontal Mounting Wedge x1
- USB Adapter Cable x1
- Jumper for Existing Chime x1
- Extension Wires x2
- Mounting Screws and Anchors x3
- Hardwire Installation Screws x2
- Doorbell Detaching Pin x1
- Mounting Wedge Screws x5
- 3M Adhesive, Foam Pad x1
- Wire Nuts x2
- Quick Start Guide x1
WARRANTY:
- 24 Months
