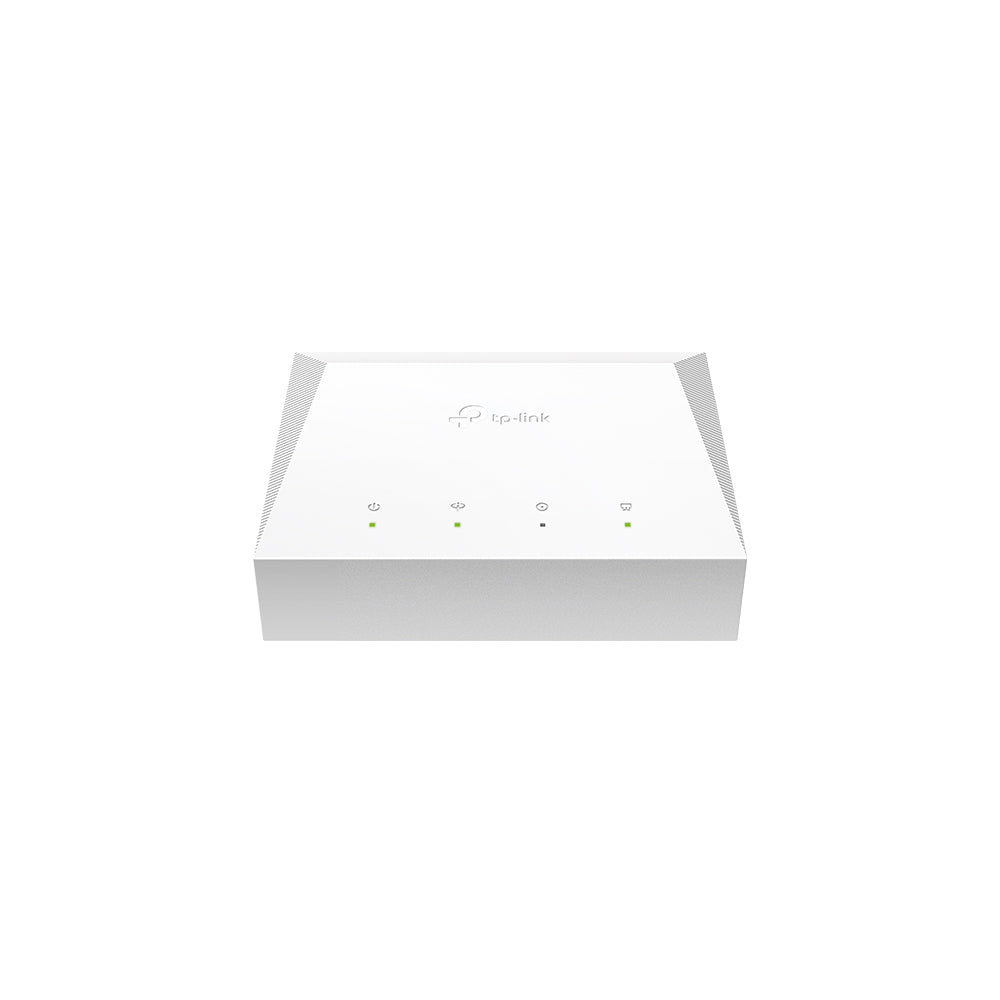

TP-Link 1-Port 2.5GE LAN XPON Terminal - XZ005-G6

High-Speed GPON Access: Enables multi-gig internet connections up to 2.5 Gbps downstream and 1.25 Gbps upstream.

XPON Support: EPON + GPON dual mode offers greater flexibility for fiber internet access.

2.5G Wired Connections: 1× 2.5 GbE LAN port enables fast network sharing and reliable connections.

Ease of Use: Quick and hassle-free installation with intelligent power-saving.

Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management.

Crafted with GPON + EPON dual-mode capability, XGZ005-G6 delivers up to 2.5 Gbps of internet access via GPON, catering to your high-speed home networking needs, while the EPON mode improves flexibility with an automatic switch.

XZ005-G6 features a 2.5 GbE LAN port that maximizes XPON access, delivering transmission speeds of up to 2.5 Gbps to support triple play services—high-speed broadband, television, and low-latency telephone services—ideal for FTTH applications.

Service providers can remotely configure and manage devices via the OMCI (ONU Management Control Interface) protocol, delivering a more efficient service experience for home users.

Under the Aginet flagship, TP-Link offers comprehensive one-stop solutions for FTTH applications to service providers, whether based on GPON or XGS-PON. Service providers can roll out their service plans with reduced operation and maintenance costs and increase ARPU with improved user satisfaction, while home users can enjoy a better networking experience.

*Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.

SPECIFICATIONS:

• Interface: 1× PON port, 1× 2.5 Gigabit RJ45 LAN port
• Buttons: Power On/Off button, Reset button
• Power Supply: 9V DC / 0.6A
• IEEE Standards: IEEE 802.3, 802.3u, 802.1p, 802.1Q
• Data Rates: Downstream – 2.488 Gbps (GPON), 1.25 Gbps (EPON); Upstream – 1.244 Gbps (GPON), 1.25 Gbps (EPON)
• Wavelength: Upstream – 1310 nm, Downstream – 1490 nm
• Dimensions: 95 × 75 × 29.3 mm
• Maximum Distance: Up to 20 km
• GPON Standards: ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4
• Optical Module: Class B+
• Receiver: Super-TIA
• Transmitter: DFB Laser
• Advanced Features: Upstream/Downstream FEC, Dynamic Bandwidth Allocation (DBA), NSR/SR support, Up to 16 T-CONTs, 256 GEM Ports, Optical power detection, Dying Gasp, Terminal Silent mechanism
• VLAN Support: 802.1Q Tag VLAN, VLAN transparent/translation/trunk modes, SN & password authentication, VLAN Auto Detect
• Security: AES encryption, VLAN-based packet filtering
• Management: Local (WebGUI, Telnet), Remote (OMCI)
• IGMP: IGMP v1/v2/v3

• System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, macOS, NetWare, UNIX or Linux; Internet Explorer 11, Firefox 12+, Chrome 20+, Safari 4+, or other Java-enabled browser; Internet service provider subscription
• Certifications: CE, RoHS
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 60°C
• Operating Humidity: 10%–90% non-condensing
• Storage Humidity: 5%–90% non-condensing

WHAT’S IN THE BOX:

• 1-Port 2.5GE LAN XPON Terminal XZ005-G6 x1
• Power Adapter x1
• Quick Installation Guide x1

WARRANTY:

• 24 Months
