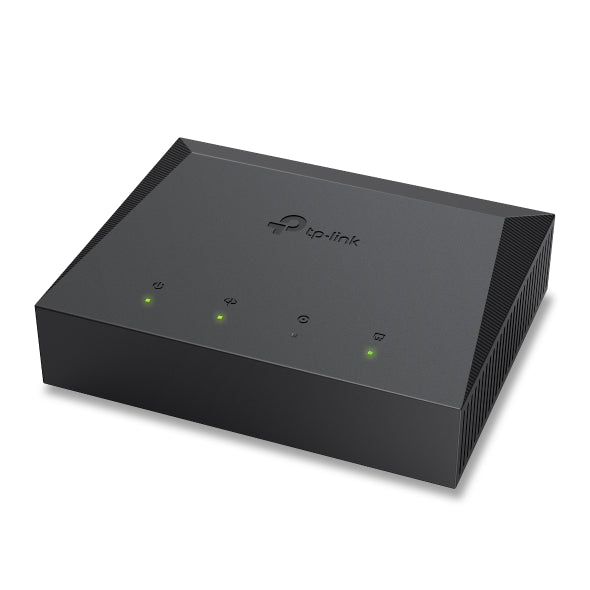

TP-Link 1-Port Gigabit XPON Terminal - XZ000-G6

Gigabit Internet Access: One PON port and one gigabit LAN port provide fast transfer speeds.

XPON Support: EPON + GPON dual mode offers greater flexibility for fiber internet access.

Ease of Use: Quick and hassle-free installation with easy setup.

Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management.

Crafted with GPON + EPON dual-mode capability, XZ000-G6 delivers up to 2.5 Gbps of internet access via GPON, catering to your high-speed home networking needs, while the EPON mode improves flexibility with automatic detection and switch.

XZ000-G6 features a gigabit Ethernet LAN port that utilizes XPON technology, delivering transmission speeds of up to 1 Gbps for high-speed internet access and a flawless streaming experience—ideal for FTTH (Fiber to the Home) applications.

Service providers can remotely configure and manage devices using the OMCI (ONU Management Control Interface) protocol, streamlining operations and delivering a smoother service experience for home users.

Under the Aginet flagship, TP-Link offers comprehensive one-stop solutions for FTTH applications to service providers, whether based on GPON or XGS-PON. Service providers can roll out their service plans with reduced operation and maintenance costs and increase ARPU with improved user satisfaction, while home users can enjoy a better networking experience.

*Multi-gig or 1 Gbps internet speeds require compatible service plans and equipment. Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.

SPECIFICATIONS:

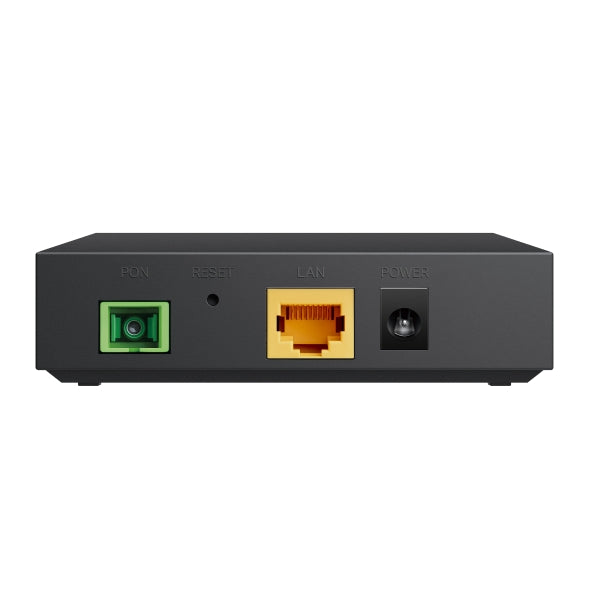

• Interface: 1× PON port, 1× Gigabit Ethernet (GbE) LAN port
• Buttons: Reset button
• Power Supply: 9V DC / 0.6A
• IEEE Standards: IEEE 802.3, 802.3u, 802.1p, 802.1Q
• Data Rates: Downstream – 2.488 Gbps (GPON), 1.25 Gbps (EPON); Upstream – 1.244 Gbps (GPON), 1.25 Gbps (EPON)
• Wavelength: Upstream – 1310 nm, Downstream – 1490 nm
• Dimensions: 95 × 75 × 29.3 mm
• Maximum Distance: Up to 20 km
• GPON Standards: ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4
• Optical Module: Class B+
• Receiver: Super-TIA
• Transmitter: DFB Laser
• Advanced Features: Upstream/Downstream FEC, Dynamic Bandwidth Allocation (DBA), NSR/SR support, Up to 16 T-CONTs, 256 GEM Ports, Optical power detection, Dying Gasp, Terminal Silent mechanism
• VLAN Support: 802.1Q Tag VLAN, VLAN transparent/translation/trunk modes, SN & password authentication, VLAN Auto Detect
• Security: AES encryption, VLAN-based packet filtering
• Management: Local (WebGUI, Telnet), Remote (OMCI)
• IGMP: IGMP v1/v2/v3

• Certifications: CE, RoHS
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 60°C
• Operating Humidity: 10%–90% non-condensing
• Storage Humidity: 5%–90% non-condensing

WHAT’S IN THE BOX:

• XPON Terminal XZ000-G6 x1
• Power Adapter x1

WARRANTY:

• 24 Months
