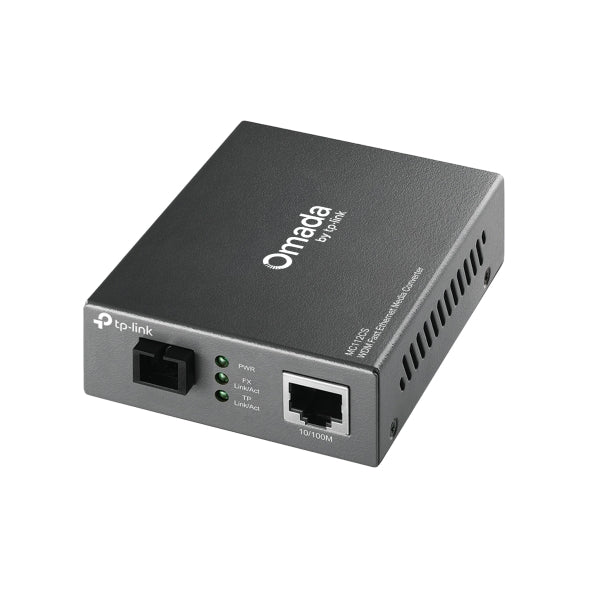

TP-Link 10/100Mbps Single-Mode Media Converter - MC110CS

Complies with 802.3u 10/100Base-TX, 100Base-FX standards

Auto-negotiation of Half-Duplex / Full-Duplex transfer mode

Extends fiber distance up to 20km

The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s MC1400 chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.

SPECIFICATIONS:

• Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Basic Function: Auto-Negotiation (Half/Full Duplex), IEEE 802.3x Full Duplex Flow Control, Backpressure Half Duplex Flow Control, Extends Fiber Distance up to 20 km
• Interface: 1× 100M SC/UPC Port, 1× 10/100M RJ45 Port (Auto MDI/MDIX)
• Wavelength: 1310 nm
• Network Media (10BASE-T): UTP Category 3/4/5, EIA/TIA-568 100Ω STP (up to 100 m)
• Network Media (100BASE-T): UTP Category 5/5e, EIA/TIA-568 100Ω STP (up to 100 m)
• Network Media (100BASE-FX): Single-Mode Fiber
• Dimensions: 94.5 × 73.0 × 27.0 mm (3.7 × 2.9 × 1.1 in)
• Power Supply: External Power Supply
• Max. Power Consumption: 2.4 W
• LED: Power, Link/Activity
• Certification: FCC, CE, RoHS
• Package Content: MC110CS, Power Adapter, Installation Guide
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10%–90% RH, non-condensing
• Storage Humidity: 5%–90% RH, non-condensing

WHAT’S IN THE BOX:

• MC110CS x1
• Power Adapter x1
• Installation Guide x1

WARRANTY:

• 24 Months
