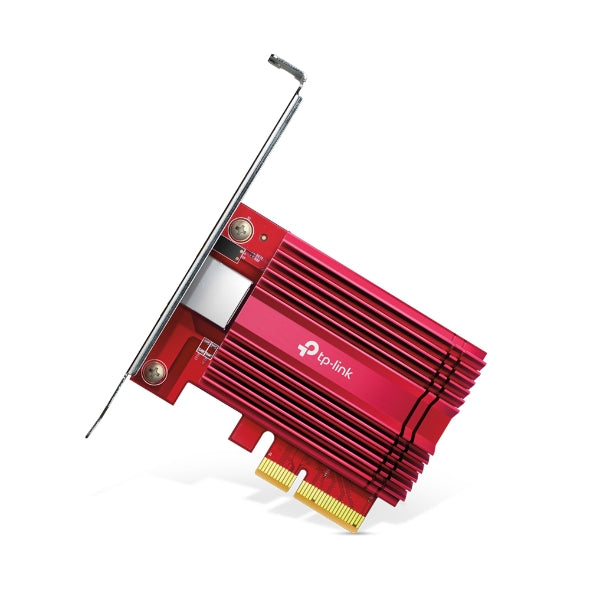

TP-Link 10 Gigabit PCI Express Network Adapter - TX401

10 Gbps Networking - Combined with the latest 10GBase-T Technology, TX401 delivers extreme speeds of up to 10 Gbps, which is 10× faster than typical Gigabit adapters, guaranteeing smooth data transmissions for both internet access and local data transmissions.

Versatile Compatibility - With extreme speed and ultra-low latency, 10GBase-T is backwards compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between higher and lower speed connections.

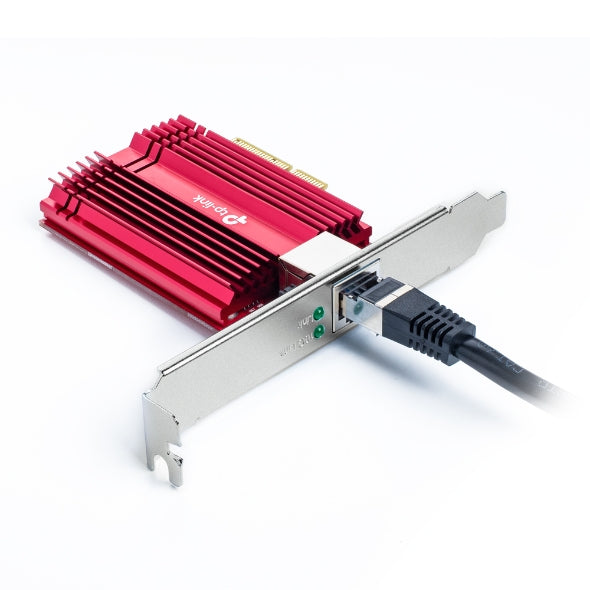

CAT6A Ethernet Cable - To maximize TX401's performance, a 1.5 m CAT6A Ethernet Cable is included—rated for up to 10 Gbps while a regular cable is only rated for 1 Gbps.

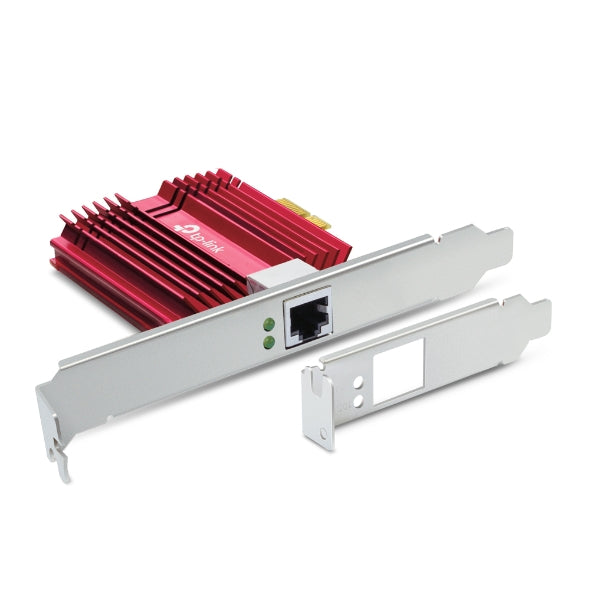

Low-Profile and Full-Height Brackets - In addition to the standard bracket, a low-profile bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design.

Comprehensive System Support - Fully compatible with Windows 11/10/8.1/8/7, Windows Servers 2019/2016/2012 R2, and Linux to meet your diverse operating system needs.

10 Gigabit Ethernet reaches blazing-fast data rates up to 10 billion bits per second—10× faster than standard Gigabit Ethernet. It’s a brand-new era for all your bandwidth-intensive tasks from local data transfers to internet access.

With 10 Gbps internet access, your gaming will be fully optimized with a large boost in speed, latency, and responsiveness. Large-sized game downloads, seamless live streaming, and massive data backups via the cloud are as easy as choosing your character.

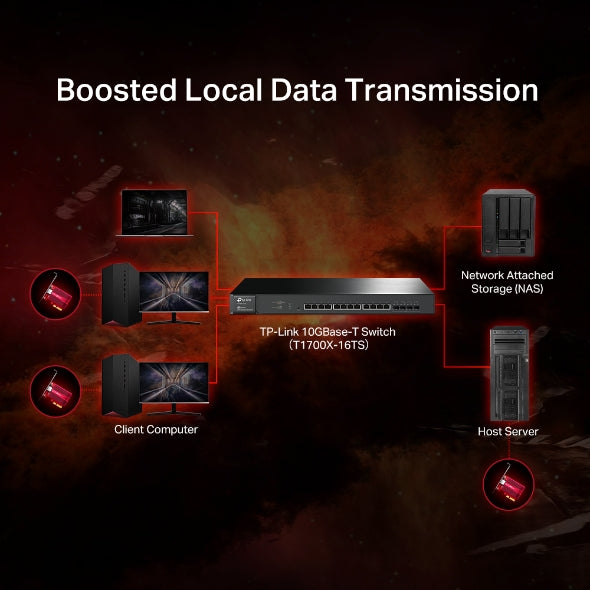

For local connections, a 10G PCIe adapter helps build a lightning fast transport channel between a central server and other working machines in your local network. Local data transmissions will be a breeze for you as you handle bandwidth-intensive tasks easily at your home or office.

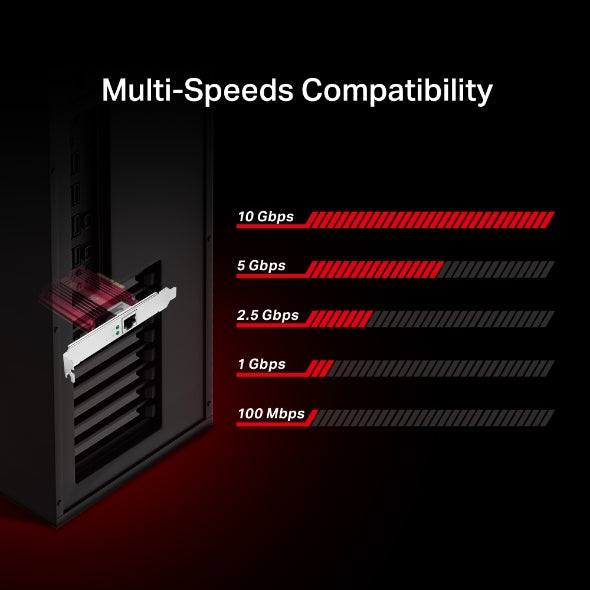

10GBase-T is backwards compatible with multiple data rates, including 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps Base-T connectivity. The 10G Ethernet port automatically negotiates between higher and lower speed connections, allowing you to upgrade to 10G networking smoothly.

Quality of Service technology ensures enough bandwidth and avoids network congestion for PC gaming. It delivers prioritized performance for gamers.

Supports PCI Express Gen3 ×4 for more efficient data transmissions.

Simple software installation with the intuitive Utility on the provided CD.

Fully compatible with Windows 11/10/8.1/8/7, Windows Servers 2019/2016/2012 R2, Linux.

o ensure compatibility, you may need to update the adapter’s drivers after an OS update. You can check the full list of the supported OS in the download center at tp-link.com/download-center.

Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.

SPECIFICATIONS:

• Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3az, IEEE 802.3x
• Interface: 1× PCI Express 3.0 x4, 1× RJ45 Gigabit/Megabit Port
• Network Media: 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX
• LED: 10 Gbps Link/Act, 5/2.5/1 Gbps and 100 Mbps Link/Act
• Data Rates: 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps (Half-Duplex); 200 Mbps, 2 Gbps, 5 Gbps, 10 Gbps, 20 Gbps (Full-Duplex)
• Dimensions: 120.8 × 98.2 × 21.5 mm (4.8 × 3.9 × 0.8 in)
• Flow Control: IEEE 802.3x
• Certification: FCC, CE, RoHS

• System Requirements: Windows 11/10/8.1/8/7, Windows Server 2019/2016/2012 R2, Linux
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Operating Humidity: 10%–90% RH, non-condensing
• Storage Humidity: 5%–90% RH, non-condensing

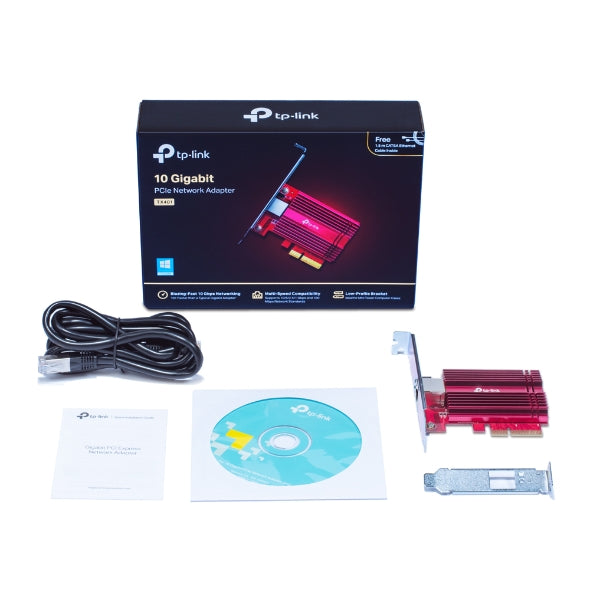

WHAT’S IN THE BOX:

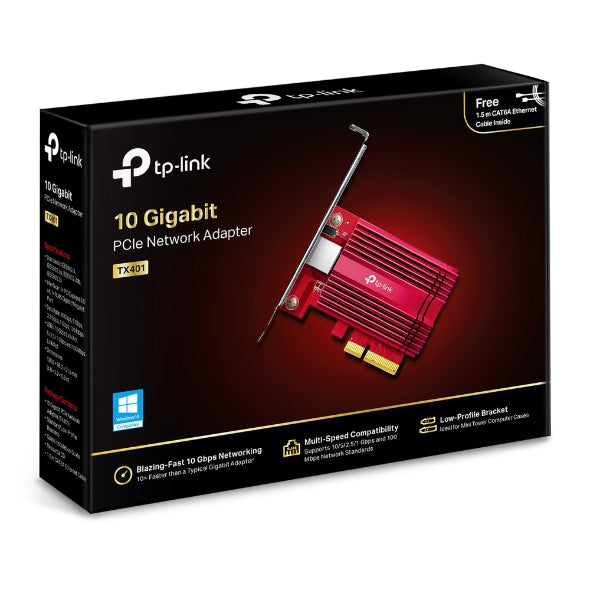

• 10 Gigabit PCIe Network Adapter (TX401) x1
• Standard Bracket x1
• Low-Profile Bracket x1
• Quick Installation Guide x1
• Resource CD x1
• 1.5 m CAT6A Ethernet Cable x1

WARRANTY:

• 24 Months
