TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+ - TL-SG1210MP

TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+ - TL-SG1210MP

R 1,829.00 ZAR
R 1,829.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Ready to ship tomorrow

9× gigabit RJ45 ports, and 1× gigabit combo SFP/RJ45 Port

8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W

Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port

Up to 250 m data and power transmission range under Extend Mode

Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications

Isolation Mode allows one-click client traffic separation for higher security and performance

Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.

Plug and play with no configuration required

Fanless design reduces power consumption and works silently in its location

TP-Link TL-SG1210MP is an unmanaged switch with 9× gigabit RJ45 ports and 1× gigabit combo SFP/RJ45 port that requires no configuration. With 8× PoE (Power over Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 123 W PoE power budget for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

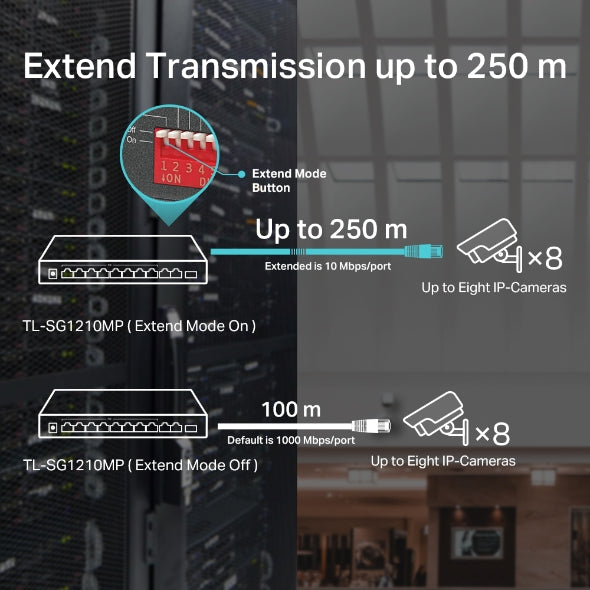

With extend mode, the PoE transmission distance reaches up to 250 m —perfect for IP Camera deployment in large areas.

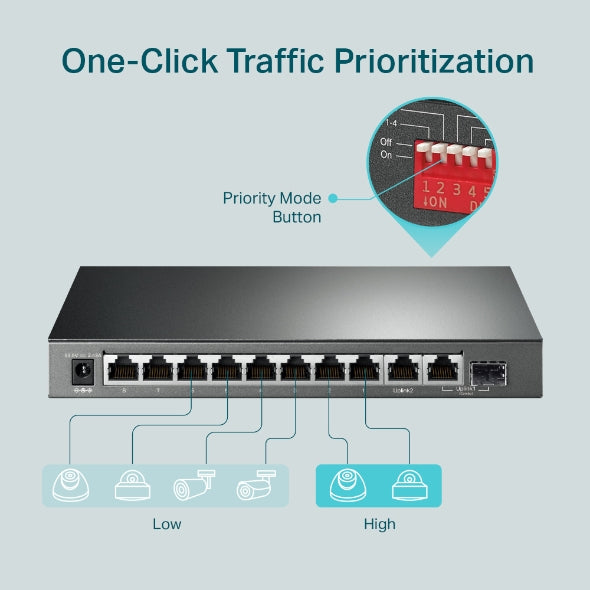

Guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports 1-2.

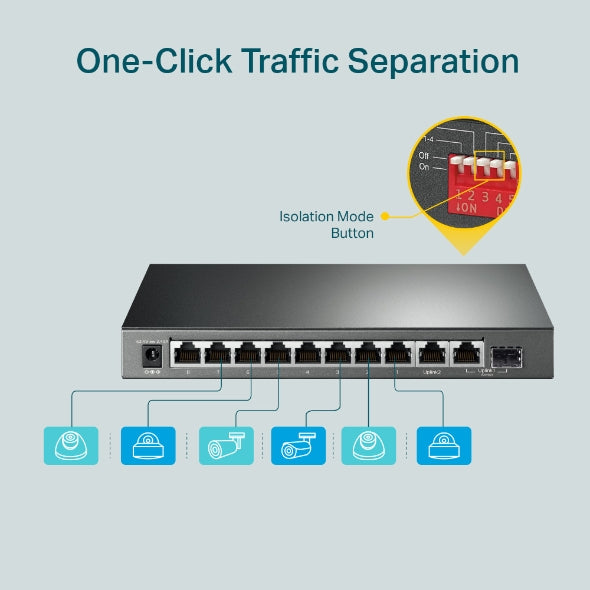

Isolation Mode easily divides traffic for ports 1-4 or 5-8 to avoid snooping/tampering and isolates broadcast storm for higher security.

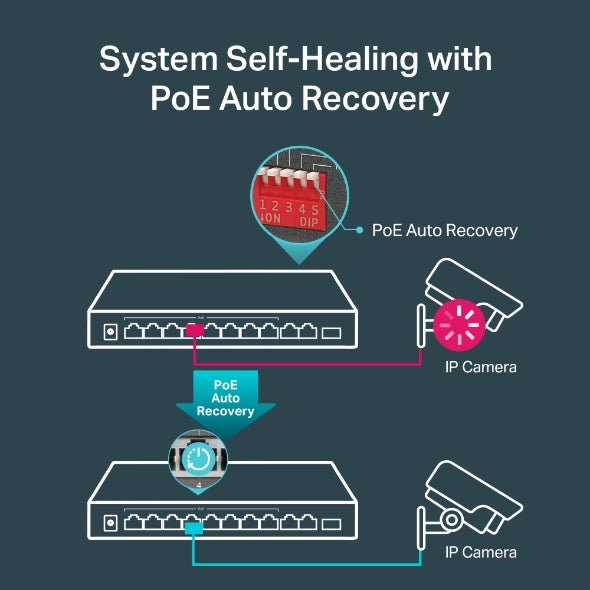

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without the need for manual monitoring and restart.

The interior components of TL-SG1210MP are protected by high-quality metal casing to ensure a long product life. Its fanless design delivers zero added noise in its locations. Having passed an array of stringent reliability tests, TL-SG1210MP delivers switching performance you can depend on.

When total power consumption exceeds 123 W, intelligent power management will cut the lower priority port power. This ensures the high-priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

SPECIFICATIONS:

  • Interface: 9× 10/100/1000 Mbps RJ45 Ports, 1× 1000 Mbps Combo SFP/RJ45 Port, Auto Negotiation, Auto MDI/MDIX
  • Network Media: 10BASE-T (UTP Cat 3/4/5, STP, up to 100 m), 100BASE-TX (UTP Cat 5/5e, STP, up to 100 m)
  • Fan: Fanless
  • Physical Security Lock: Yes
  • External Power Supply: 53.5 VDC / 2.43 A Power Adapter
  • Packet Forwarding Rate: 14.88 Mpps
  • PoE: IEEE 802.3af/at, Ports 1–8, 123 W PoE Budget
  • MAC Address Table: 4K
  • Jumbo Frame: 16 KB
  • Switching Capacity: 20 Gbps
  • Dimensions: 209 × 126 × 26 mm (8.2 × 4.9 × 1.0 in)
  • Max. Power Consumption: 7.93 W (no PD connected), 141.40 W (123 W PD connected)
  • Max. Heat Dissipation: 27.04 BTU/h (no PD connected), 482.17 BTU/h (123 W PD connected)
  • Advanced Features: IEEE 802.3af/at PD Compatible, Extend Mode (Ports 1–4, up to 250 m), Priority Mode (Ports 1–2), Isolation Mode (Ports 1–4/5–8), PoE Auto Recovery (Ports 1–8), MAC Address Auto-Learning & Auto-Aging, IEEE 802.3x Flow Control & Backpressure
  • Transmission Method: Store-and-Forward
  • Certification: FCC, CE, RoHS
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Humidity: 10%–90% RH, non-condensing
  • Storage Humidity: 5%–90% RH, non-condensing

WHAT’S IN THE BOX:

  • TL-SG1210MP x1
  • Power Adapter x1
  • Installation Guide x1

WARRANTY:

  • 24 Months
