TP-Link 10-Port Gigabit Easy Smart Switch with 8-Port PoE+ - TL-SG1210MPE

TP-Link 10-Port Gigabit Easy Smart Switch with 8-Port PoE+ - TL-SG1210MPE

Regular price R 1,929.00 ZAR
Regular price Sale price R 1,929.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Ready to ship in 2-4 days

9× gigabit RJ45 ports and 1× combo gigabit SFP/RJ45 port

Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable

Supports PoE power up to 123 W for all PoE ports

Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery

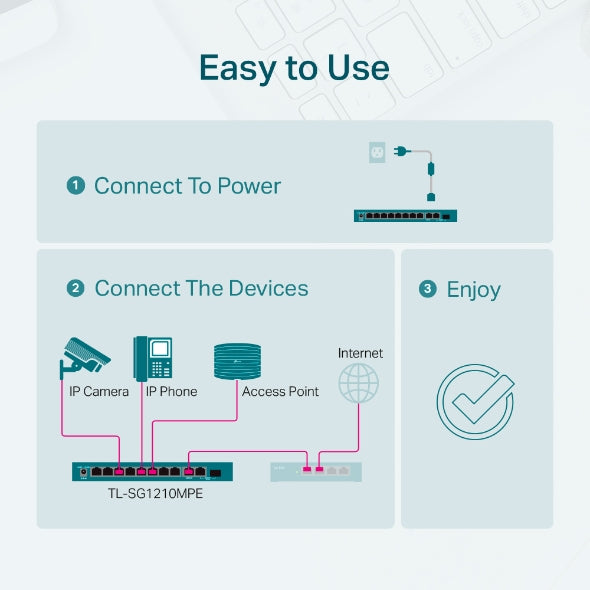

Simple network set-up on top of plug-and-play connectivity

Web-based user interface and Easy Smart Configuration Utility simplify configuration

Fanless design lowers energy consumption and eliminates operating noise

Easy to Use, Multi-Purpose PoE Switch with Powerful Performance

The TL-SG1210MPE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.

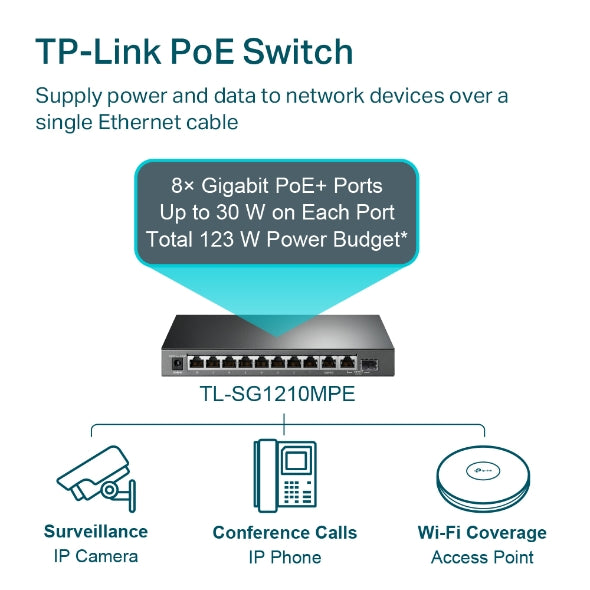

Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 123 W PoE power budget for the 8× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

Ensures smooth traffic for latency-sensitive applications, such as voice and video.

Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.

Helps to create network with higher security and better overall performance by dividing network into smaller groups.

TL-SG1210MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1210MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

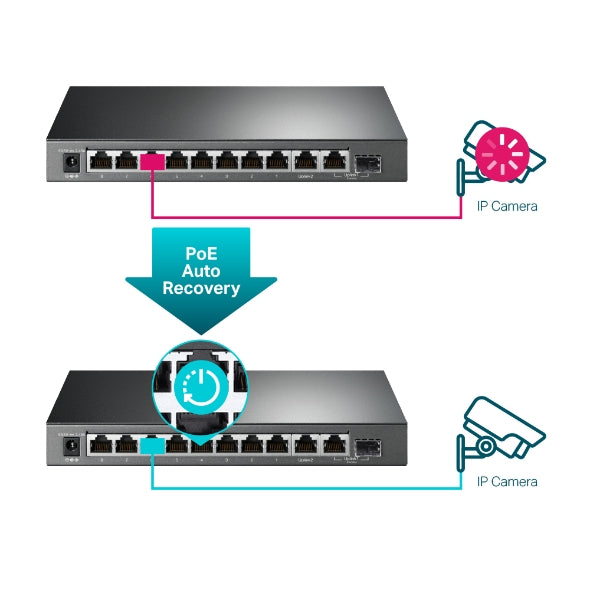

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 123 W. This protects the device from power overload operation.

Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

The interior components of TL-SG1210MPE are protected by a high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1210MPE delivers switching performance you can depend on.

SPECIFICATIONS:

  • Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z
  • Interface: 9× 10/100/1000 Mbps RJ45 Ports, 1× 1000 Mbps Combo SFP/RJ45 Port, Auto Negotiation, Auto MDI/MDIX
  • Network Media: 10BASE-T (UTP Cat 3/4/5, STP, up to 100 m), 100BASE-TX (UTP Cat 5/5e, STP, up to 100 m), 1000BASE-T (UTP Cat 5/5e/6 or higher, STP, up to 100 m)
  • Fan: Fanless
  • Power Supply: External Power Adapter (53.5 VDC / 2.43 A)
  • PoE: IEEE 802.3af/at, Ports 1–8, 123 W PoE Budget

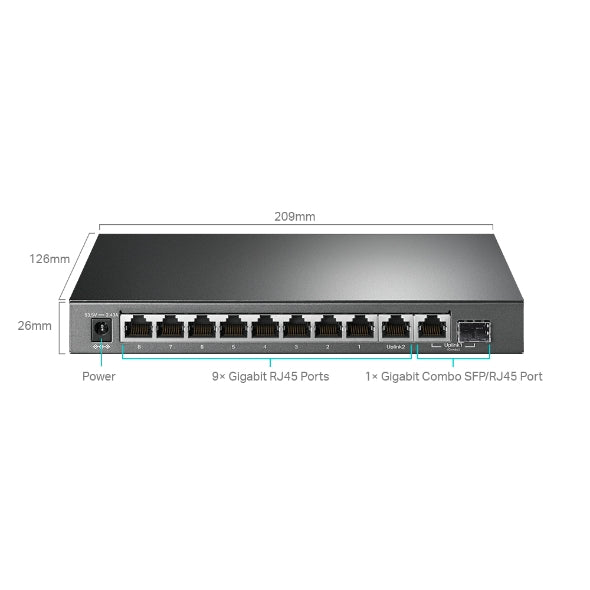

  • Dimensions: 209 × 126 × 26 mm (8.2 × 4.9 × 1.0 in)
  • Max. Power Consumption: 7.66 W (no PD connected), 141.54 W (123 W PD connected)
  • Max. Heat Dissipation: 26.12 BTU/h (no PD connected), 482.65 BTU/h (123 W PD connected)
  • Switching Capacity: 20 Gbps
  • Packet Forwarding Rate: 14.88 Mpps
  • MAC Address Table: 4K
  • Jumbo Frame: 16 KB
  • Quality of Service: Port-Based/802.1p/DSCP Priority, 4 Priority Queues, Rate Limit, Storm Control
  • L2 Features: IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention
  • VLAN: Up to 32 VLANs Simultaneously (out of 4K VLAN IDs), MTU VLAN, Port VLAN, Tag VLAN
  • PoE Features: Extend Mode, PoE Auto Recovery
  • Management Features: Web-Based GUI, Easy Smart Configuration Utility
  • Transmission Method: Store-and-Forward
  • Certification: FCC, CE, RoHS
  • System Requirements: Microsoft Windows (for Easy Smart Configuration Utility)
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Humidity: 10%–90% RH, non-condensing
  • Storage Humidity: 5%–95% RH, non-condensing

WHAT’S IN THE BOX:

  • TL-SG1210MPE x1
  • Power Adapter x1
  • Installation Guide x1
  • Rubber Feet x1

WARRANTY:

  • 24 Months
