TP-Link 10GBase-LR SFP+ LC Transceiver - TL-SM5110-LR

TP-Link 10GBase-LR SFP+ LC Transceiver - TL-SM5110-LR

R 589.00 ZAR
R 589.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Ready to ship tomorrow

Single-mode SFP+ LC Transceiver

Hot-Pluggable with maximum flexibility

Supports Digital Diagnostic Monitoring (DDM)

Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)

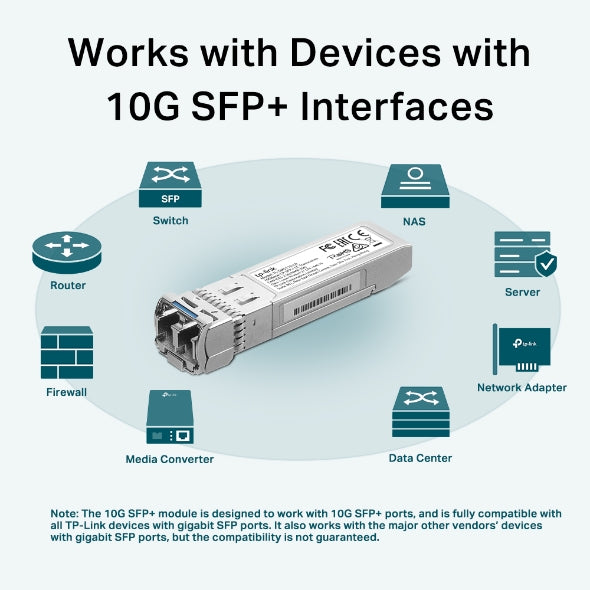

Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.

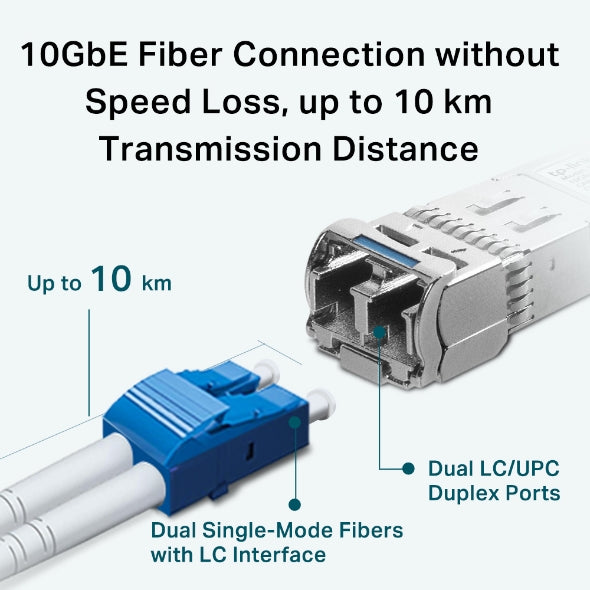

The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.

SPECIFICATIONS:

  • DDM: Yes
  • SFP-MSA: Yes
  • Hot Swappable: Yes

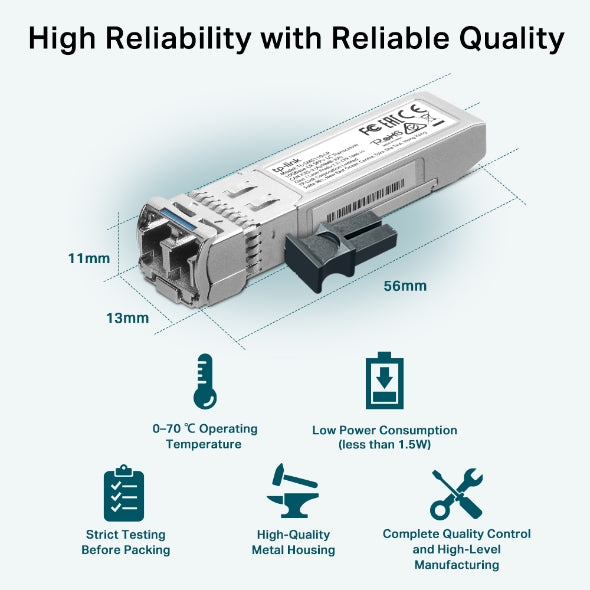

  • Dimensions: 56.7 × 13.9 × 10.35 mm (2.2 × 0.5 × 0.4 in)
  • Standards and Protocols: IEEE 802.3ae, TCP/IP
  • Wavelength: 1310 nm
  • Power Supply: 3.3 V
  • Fiber Type: 9/125 μm Single-Mode
  • Max. Cable Length: 10 km
  • Data Rate: 10 Gbps
  • Port Type: LC Duplex
  • Certification: FCC, CE
  • Operating Temperature: 0°C to 70°C (32°F to 158°F)
  • Storage Temperature: -40°C to 85°C (-40°F to 185°F)
  • Operating Humidity: 10%–90% RH, Non-Condensing
  • Storage Humidity: 5%–90% RH, Non-Condensing

WHAT’S IN THE BOX:

  • 10G SFP+ Module (TL-SM5110-LR) x1
  • Installation Guide x1

WARRANTY:

  • 24 Months
