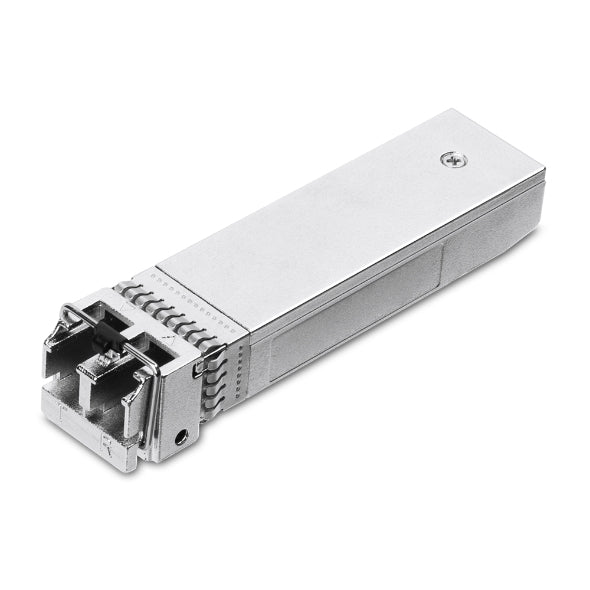

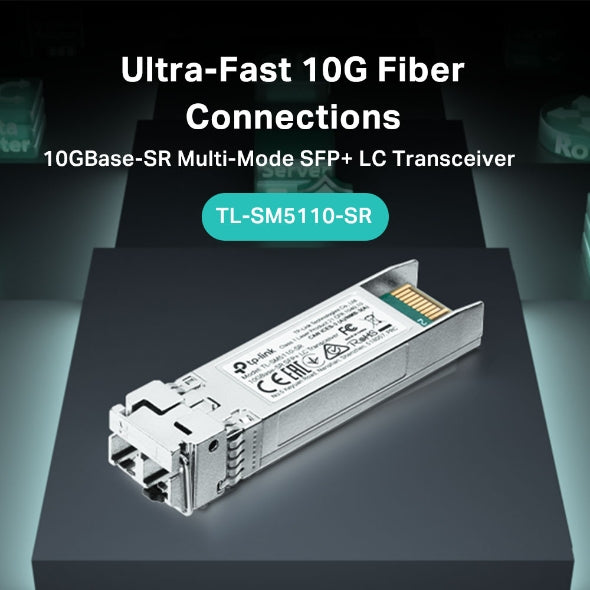

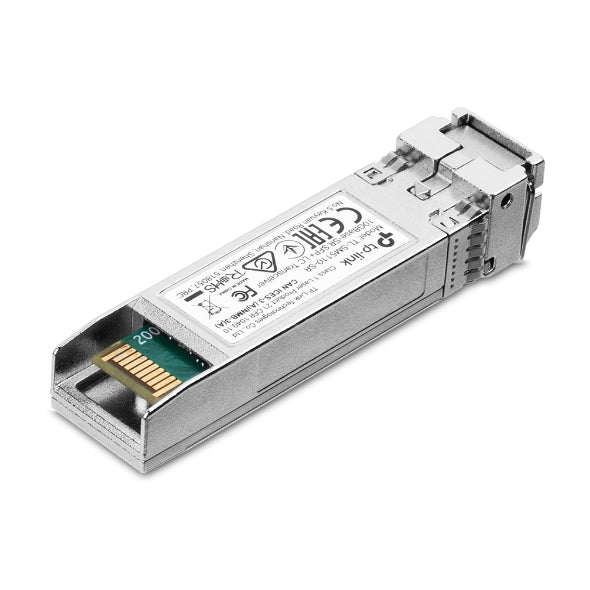

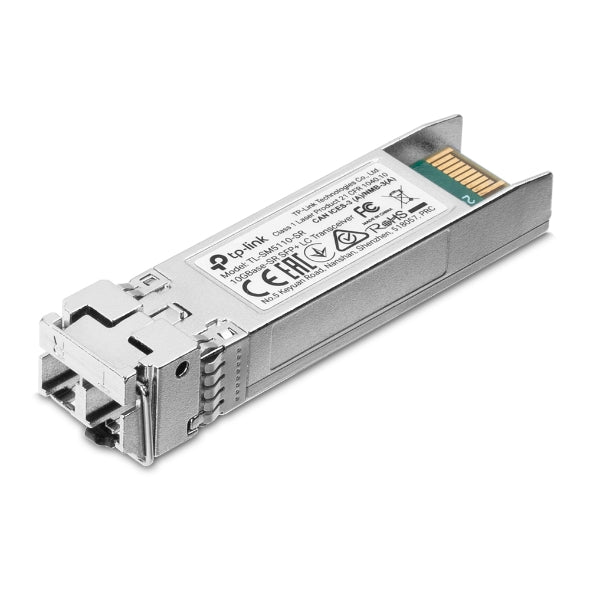

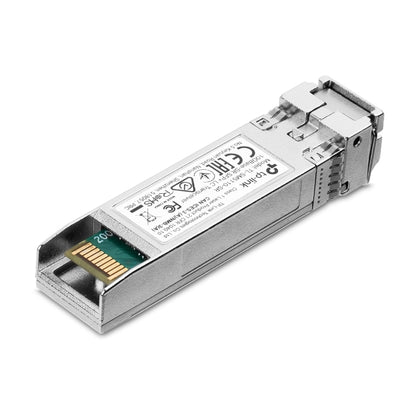

TP-Link 10GBase-SR SFP+ LC Transceiver - TL-SM5110-SR

Multi-mode SFP+ LC Transceiver

Hot-Pluggable with maximum flexibility

Supports Digital Diagnostic Monitoring (DDM)

Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)

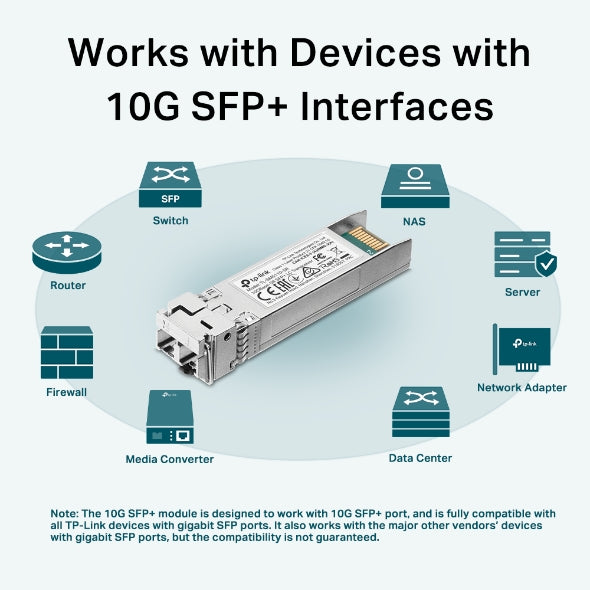

Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.

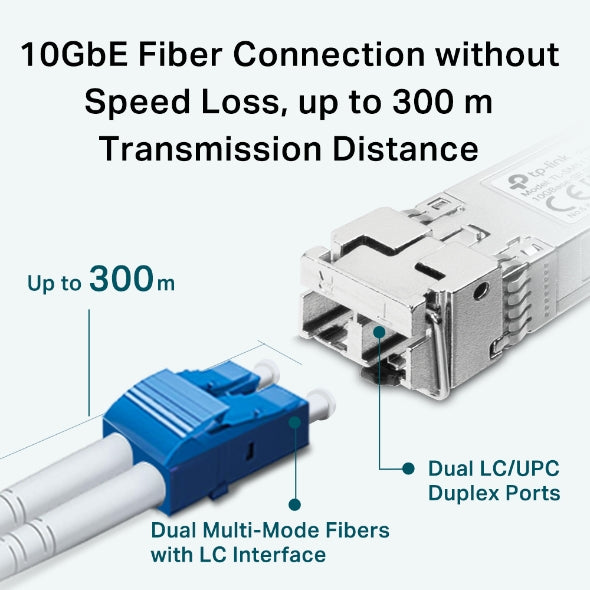

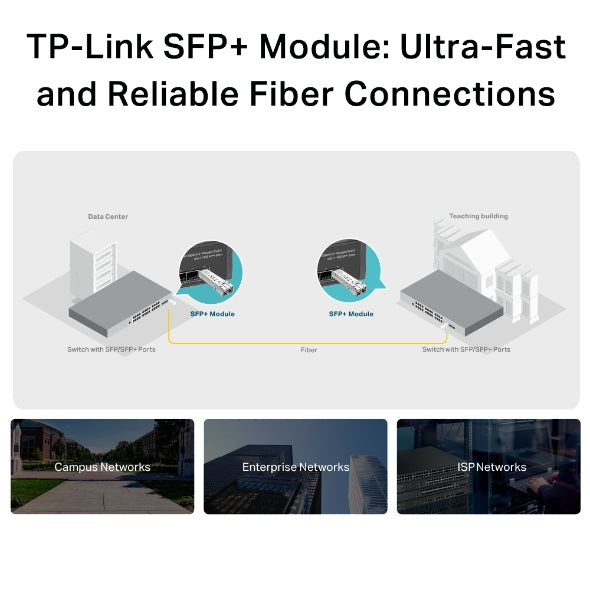

The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.

SPECIFICATIONS:

• DDM: Yes
• SFP-MSA: Yes
• Hot Swappable: Yes

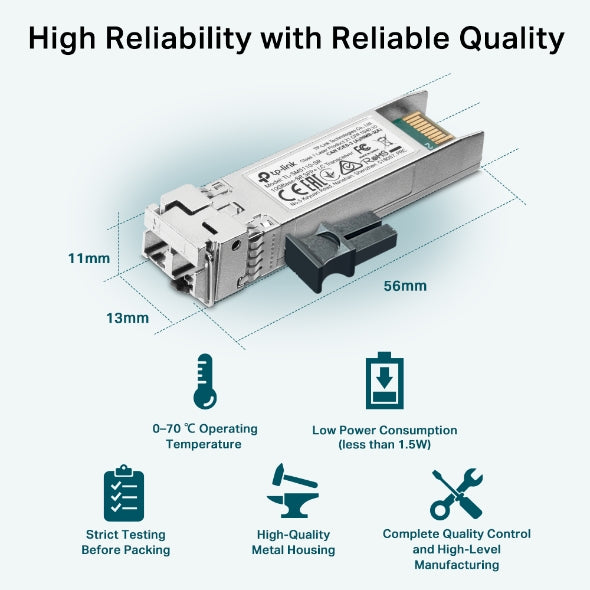

• Dimensions: 61.3 × 14.5 × 12.2 mm (2.4 × 0.6 × 0.5 in)
• Standards and Protocols: IEEE 802.3ae, TCP/IP, SFF-8472
• Wavelength: 850 nm
• Power Supply: 3.3 V
• Fiber Type: 50/125 μm or 62.5/125 μm Multi-Mode
• Max. Cable Length: 300 m (OM3)
• Data Rate: 10 Gbps
• Port Type: LC/UPC
• Certification: FCC, CE
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 80°C (-40°F to 176°F)
• Operating Humidity: 10%–90% RH, non-condensing
• Storage Humidity: 5%–90% RH, non-condensing

WHAT’S IN THE BOX:

• 10G SFP+ Module (TL-SM5110-SR) x1
• Installation Guide x1

WARRANTY:

• 24 Months
