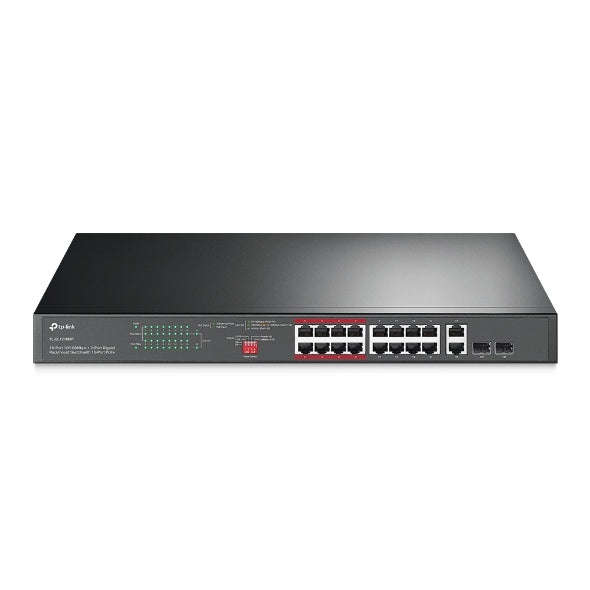

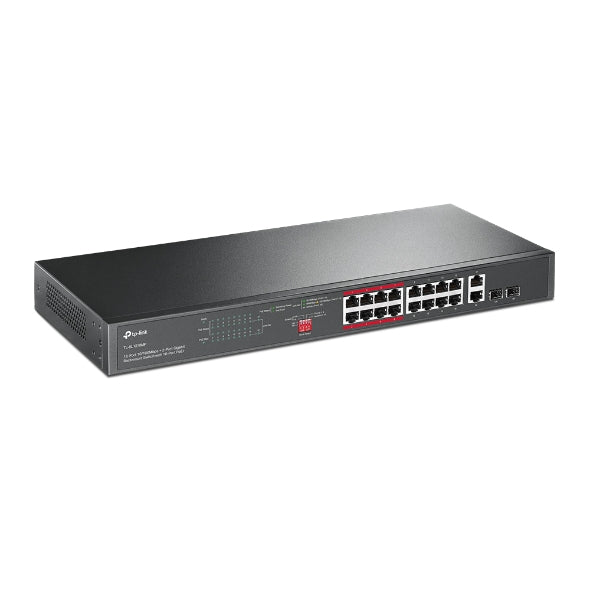

TP-Link 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch - TL-SL1218MP

16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots.

High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports.

Up to 250 m data and power transmission under extend mode specially designed for surveillance system.

Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.

Isolation Mode allows one-click client traffic separation for higher security and performance.

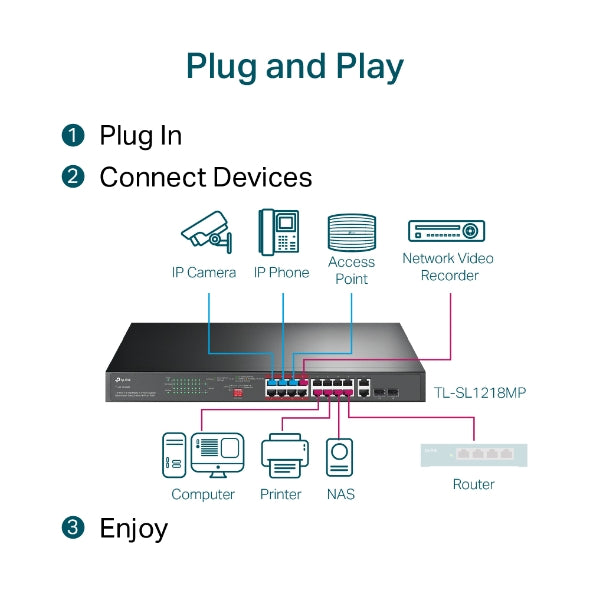

Easy to use, with no configuration and installation needed.

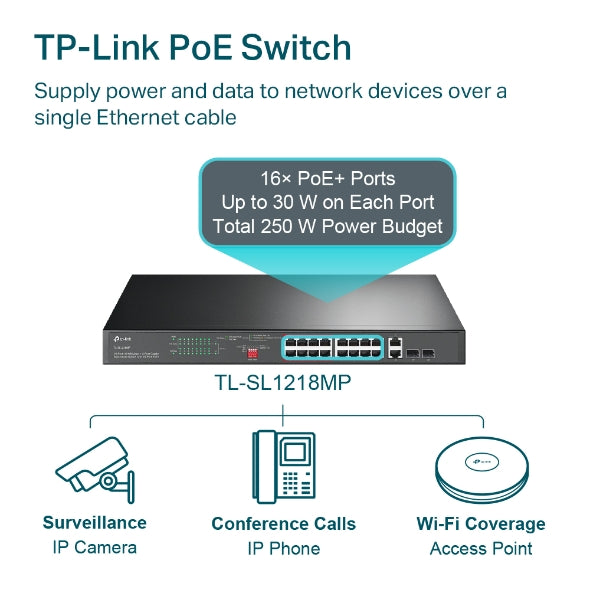

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 16× PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

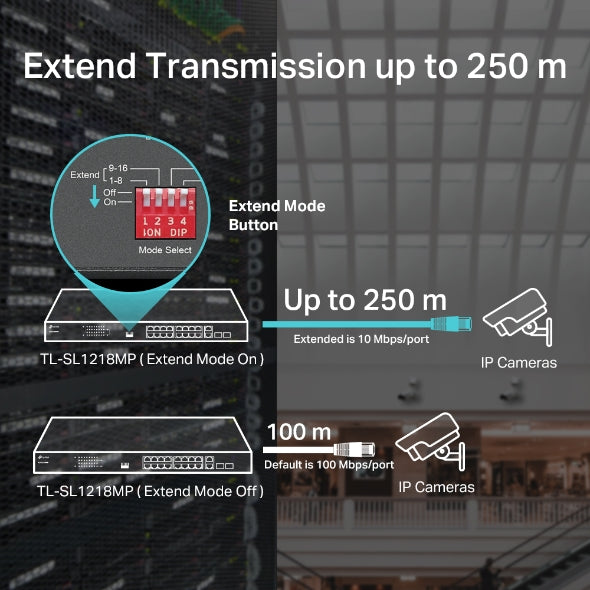

With extend mode, the PoE transmission distance reaches up to 250 m—perfect for IP Camera deployment in large areas.

Priority Mode and Isolation Mode make surveillance smoother and safer.

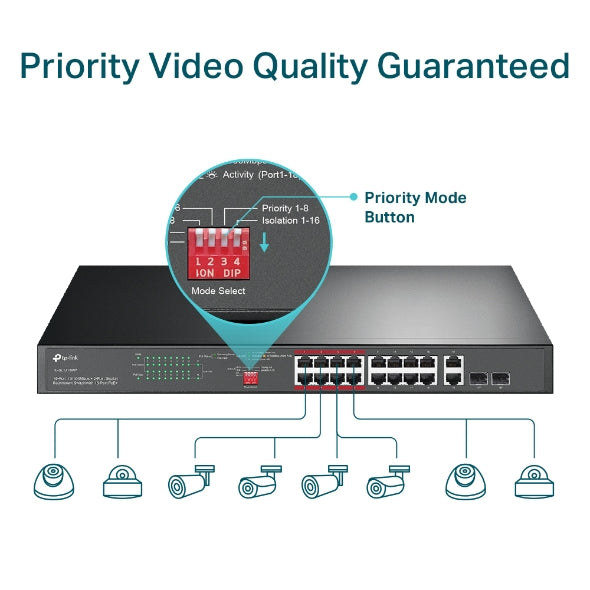

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–8 when one-touch Priority Mode is on.

With one click, Isolation Mode easily divides traffic for ports 1–16 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.

2× gigabit RJ45 ports and 2× combo gigabit SFP ports ensure smooth streaming even when 16× HD IP cameras work simultaneously.

When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

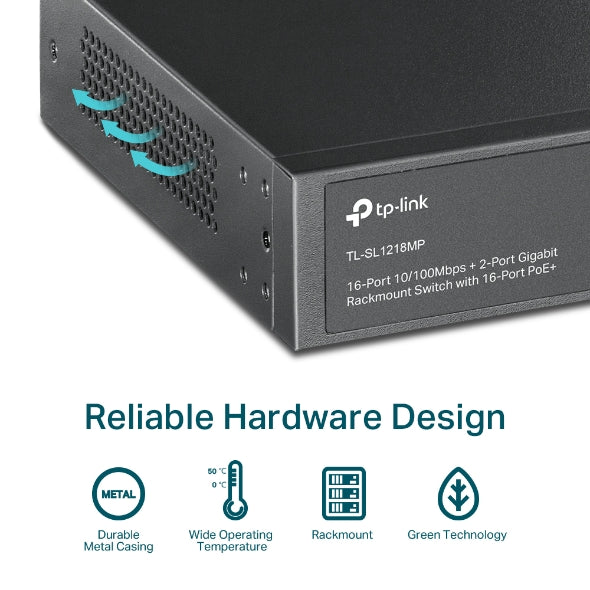

Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

The TL-SL1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

SPECIFICATIONS:

• Interface: 16× PoE+ 10/100 Mbps RJ45 Ports, 2× 10/100/1000 Mbps RJ45 Ports, 2× Combo Gigabit SFP Slots
• Network Media: 10BASE-T (Cat 3/4/5 UTP or STP, up to 100 m), 100BASE-TX (Cat 5/5e UTP or STP, up to 100 m), 1000BASE-T (Cat 5/5e/6+ UTP or STP, up to 100 m), 1000BASE-X MMF/SMF
• Fan Quantity: 2
• Physical Security Lock: Yes
• Power Supply: 100–240 V AC, 50/60 Hz
• PoE Ports: 16× 802.3af/at compliant (Ports 1–16)
• PoE Power Budget: 250 W
• Dimensions: 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in)
• Max. Power Consumption: 14.97 W (no PD connected), 285.8 W (250 W PD connected)
• Max. Heat Dissipation: 51.05 BTU/h (no PD connected), 974.58 BTU/h (250 W PD connected)
• Switching Capacity: 7.2 Gbps
• Packet Forwarding Rate: 5.36 Mpps
• MAC Address Table: 8K
• Jumbo Frame: 10 KB
• Advanced Features: IEEE 802.3af/at PD Compatibility, Extend Mode (up to 250 m), Priority Mode, Isolation Mode, MAC Address Auto-Learning & Auto-Aging, IEEE 802.3x Flow Control
• Transmission Method: Store-And-Forward
• Certification: CE, FCC, RoHS

• Operating Temperature: 0–50°C (32–122°F)
• Storage Temperature: -40–70°C (-40–158°F)
• Operating Humidity: 10–90% RH, Non-condensing
• Storage Humidity: 5–90% RH, Non-condensing

WHAT’S IN THE BOX:

• TL-SL1218MP x1
• Power Cable x1
• Installation Guide x1
• Two Mounting Brackets and Fittings x1

WARRANTY:

• 24 Months
