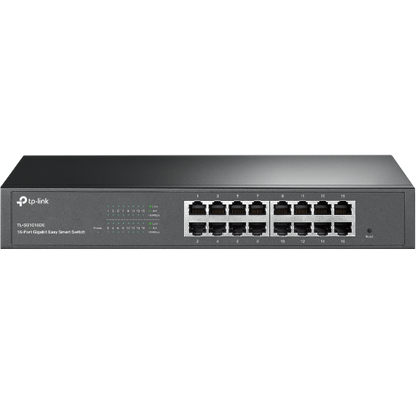

TP-Link 16-Port Gigabit Easy Smart Switch - TL-SG1016DE

TP-Link 16-Port Gigabit Easy Smart Switch - TL-SG1016DE

R 1,279.00 ZAR
R 1,279.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Ready to ship in 2-4 days

16 10/100/1000Mbps RJ45 ports

Provides network monitoring, traffic prioritization, loop preventoin and VLAN features

Green technology reduces power consumption

Simple network set-up on top of plug-and-play connectivity

Web-based user interface and management utility simplify configuration

The TL-SG1016DE 16-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG1016DE offers Port Priority/802.1P Priority and DSCP QoS1 to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG1016DE can save power consumption, making it an eco-friendly solution for your business network.

TP-LINK’s Gigabit Easy Smart switch, TL-SG1016DE offers network monitoring for users to observe traffic behavior. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG1016DE can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic based on Port Priority and Port/ 802.1p/ DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG1016DE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG1016DE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.

You now have the choice to go green when upgrading to a gigabit network! This new generation of TL-SG1016DE 16-Port Gigabit Easy Smart Switch features the latest energy-efficient technologies that can greatly expand your network’s capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1016DE can automatically detect the link status of each port and reduce the power consumption of idle ports.
Power Budget According to Cable Length
Ideally, shorter cables would use less power with less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SG1016DE analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.
TL-SG1016DE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminates the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space while also being Rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

SPECIFICATIONS:

  • Standards & Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
  • Interface: 16× 10/100/1000 Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
  • Network Media: 10BASE-T (Cat 3/4/5 UTP or STP, up to 100 m), 100BASE-TX (Cat 5/5e UTP or STP, up to 100 m), 1000BASE-T (Cat 5/5e/6+ UTP or STP, up to 100 m)
  • Fan Quantity: Fanless
  • Physical Security Lock: No
  • Power Supply: 100–240 VAC, 50/60 Hz
  • Dimensions: 294 × 140 × 44 mm (11.6 × 5.5 × 1.7 in)
  • Mounting: Rack Mountable
  • Max. Power Consumption: 10.54 W
  • Max. Heat Dissipation: 35.94 BTU/h
  • Switching Capacity: 32 Gbps
  • Packet Forwarding Rate: 23.8 Mpps
  • MAC Address Table: 8K
  • Packet Buffer Memory: 4.1 Mbit
  • Jumbo Frame: 10 KB
  • Quality of Service: Port-Based/802.1p/DSCP Priority, 4 Priority Queues, Rate Limit, Storm Control
  • L2 Features: IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention
  • VLAN: Up to 32 VLANs, MTU VLAN, Port VLAN, Tag VLAN
  • Transmission Method: Store-And-Forward
  • Certification: FCC, CE, RoHS
  • System Requirements: Microsoft® Windows® (for Easy Smart Configuration Utility)
  • Operating Temperature: 0–40°C (32–104°F)
  • Storage Temperature: -40–70°C (-40–158°F)
  • Operating Humidity: 10–90% RH, Non-condensing
  • Storage Humidity: 5–90% RH, Non-condensing

WHAT’S IN THE BOX:

  • TL-SG1016DE x1
  • Power Cord x1
  • Installation Guide x1
  • Rackmount Kit x1
  • Rubber Feet x1

WARRANTY:

  • 24 Months
