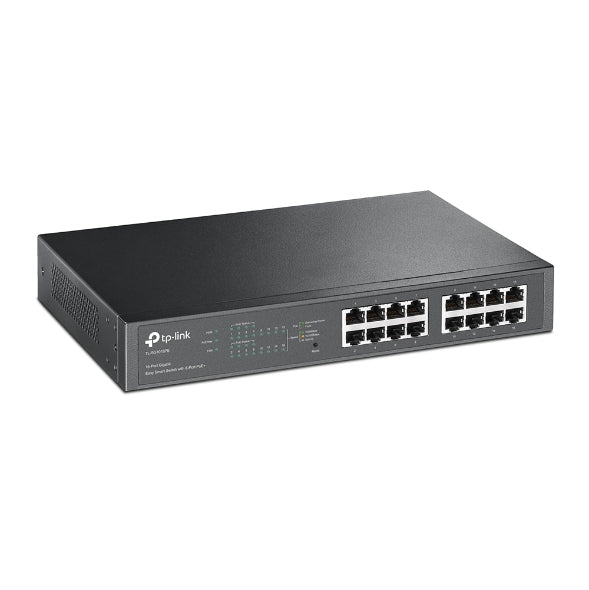

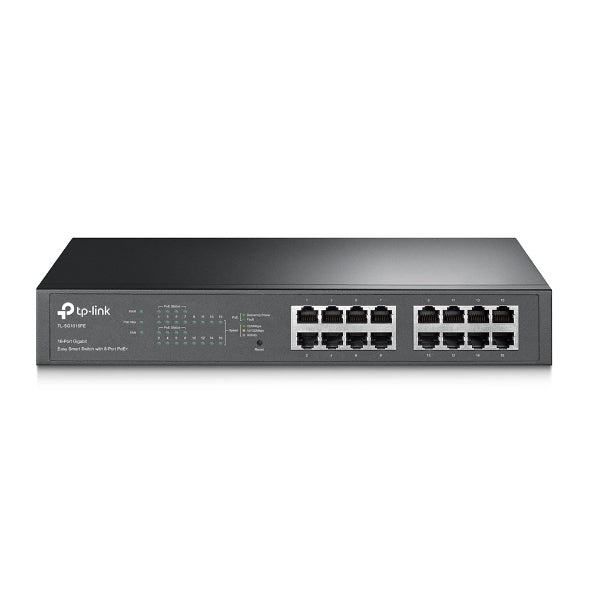

TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ - TL-SG1016PE

16× 10/100/1000Mbps RJ45 ports

Equipped with 8× PoE+ supported ports to transfer data and power over a single cable

With a total PoE power budget of 150 W, up to 30 W per port

Works with IEEE 802.3af/at compliant devices

Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto recovery

Simple network set-up on top of plug-and-play connectivity

Web-based user interface and management utility simplify configuration

The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 150 W*, up to 30 W per port, TL-SG1016PE powers more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE saves the power consumption, making it an eco-friendly solution for your business network.

8 ports of TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.

TL-SG1016PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices’ power consumption is greater than or equal to 150 W, a priority will be arranged among the 8 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.

Priority (port 1>port 2>port 3>port 4> port 5>port 6>port 7>port 8): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2, 3, 4, and 6 are using 30 W (maximum power per port is 30 W), the system power is 150 W in total (PoE max LED will be green if all PoE PDs power consumption is >= 150W). If there is an additional PD inserted to Port 5 with 20 W then the system will cut off Port 6 to protect the system, this means Port 1, 2 ,3, and 4 will use 120 W, and Port 5 will use 20 W, and no power will be supplied to Port 6.

TL-SG1016PE is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-LINK TL-SG1016PE 16-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE+ is a great choice for expanding your network.

SPECIFICATIONS:

• Standards & Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Interface: 16× 10/100/1000 Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
• Network Media: 10BASE-T (Cat 3/4/5 UTP or STP, up to 100 m), 100BASE-TX (Cat 5/5e UTP or STP, up to 100 m), 1000BASE-T (Cat 5/5e/6+ UTP or STP, up to 100 m)
• Fan Quantity: 1
• Physical Security Lock: Yes
• PoE Ports: 8× 802.3af/at compliant (Ports 1–8)
• PoE Power Budget: 150 W
• Dimensions: 294 × 180 × 44 mm (11.6 × 7.1 × 1.7 in)
• Mounting: Rack Mountable, Desktop
• Max. Power Consumption: 8.8 W (no PD connected), 172.26 W (150 W PD connected)
• Max. Heat Dissipation: 30.01 BTU/h (no PD connected), 587.41 BTU/h (150 W PD connected)
• Switching Capacity: 32 Gbps
• Packet Forwarding Rate: 23.8 Mpps
• MAC Address Table: 8K
• Packet Buffer Memory: 4.1 Mbit
• Jumbo Frame: 10 KB
• Quality of Service: Port-Based/802.1p/DSCP Priority, 4 Priority Queues, Rate Limit, Storm Control
• L2 Features: IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention
• VLAN: Up to 32 VLANs, MTU VLAN, Port VLAN, Tag VLAN
• PoE Features: PoE Management, Extend Mode, PoE Auto Recovery
• Management Features: Web-based GUI, Easy Smart Configuration Utility
• Transmission Method: Store-And-Forward
• Certification: FCC, CE, RoHS

• System Requirements: Microsoft® Windows® (for Easy Smart Configuration Utility)
• Operating Temperature: 0–40°C (32–104°F)
• Storage Temperature: -40–70°C (-40–158°F)
• Operating Humidity: 10–90% RH, Non-condensing
• Storage Humidity: 5–90% RH, Non-condensing

WHAT’S IN THE BOX:

• TL-SG1016PE x1
• Power Cord x1
• Installation Guide x1
• Rackmount Kit x1
• Rubber Feet x1

WARRANTY:

• 24 Months
