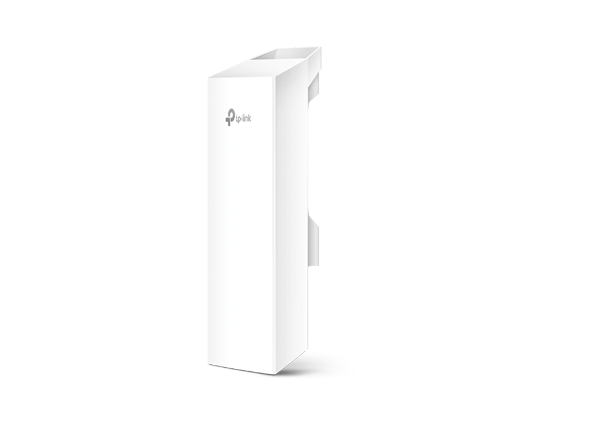

TP-Link 2.4GHz 300Mbps 12dBi Outdoor CPE - CPE220

Built-in 12dBi 2x2 dual-polarized directional MIMO antenna

Adjustable transmission power from 0 to 30dBm/1000mw

System-level optimizations for more than 13km long range wireless transmission

TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications

Centralized Management System – Pharos Control

AP / Client / AP Router / AP Client Router (WISP) operation modes

Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

SPECIFICATIONS:

• Processor: Qualcomm Atheros 560 MHz CPU (MIPS 74Kc)
• Memory: 64 MB DDR2 RAM, 8 MB Flash

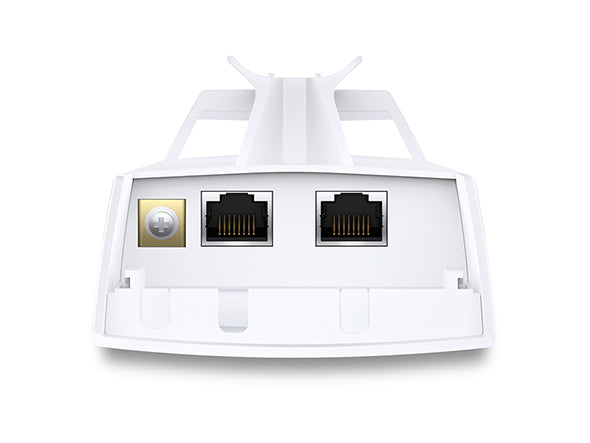

• Interface: 1× 10/100 Mbps Shielded Ethernet Port (LAN0, Passive PoE In), 1× 10/100 Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough), 1× Grounding Terminal, 1× Reset Button
• Power Supply: Passive PoE via LAN0 (+4,5 Pins / -7,8 Pins), 16–27 VDC
• Max. Power Consumption: 10.8 W
• Dimensions: 276 × 79 × 60 mm (11 × 3.1 × 2.1 in)
• Antenna: Built-in 12 dBi 2×2 Dual-Polarized Directional Antenna, 60° (H-Plane) / 30° (E-Plane) Beam Width
• Protection: 15 kV ESD Protection, 6 kV Lightning Protection
• Enclosure: Outdoor ASA Stabilized Plastic, IPX5 Waterproof
• Wireless Standards: IEEE 802.11b/g/n
• Proprietary Protocol: Pharos MAXtream TDMA
• Wireless Speeds: Up to 300 Mbps (40 MHz), 144.4 Mbps (20 MHz), 72.2 Mbps (10 MHz), 36.1 Mbps (5 MHz)
• Frequency: 2.4–2.483 GHz
• Transmission Power: Up to 30 dBm (1000 mW), Adjustable in 1 dBm Steps
• Wireless Configurations: Pharos MAXtream TDMA, 802.11b/g/n Modes, 5/10/20/40 MHz Channel Width, Automatic Channel Selection, Transmission Power Control, DFS, WDS, WPA/WPA2/WPA-PSK/WPA2-PSK, WEP (64/128/152-bit), Multi-SSID with VLAN, MAC Filtering, Advanced Wireless Settings
• Management Features: Pharos Control, HTTP/HTTPS, System Log, SNMP v2c, Ping Watchdog, Dynamic DDNS, SSH Server
• System Tools: Signal Quality Indicators, Throughput Monitoring, Spectrum Analyzer, Speed Test, Ping, Traceroute
• System Optimizations: Optimized IGMP Snooping/Proxy, Hardware Watchdog
• PoE Adapter: 24 VDC, 1.0 A Max, 100–240 VAC Input, Supports Passive PoE up to 60 m
• PoE Adapter Dimensions: 85.8 × 43.9 × 31.9 mm
• PoE Adapter Interfaces: 1× AC Jack with Earth Ground, 2× 10/100/1000 Mbps Shielded Ethernet Ports (Power+Data / Data)
• PoE Adapter Button: Remote Reset Button
• PoE Adapter LED: Green Power Status LED
• PoE Adapter Efficiency: >80%
• PoE Adapter Certifications: CE, FCC, UL, IC, GS, PSB, C-Tick, SAA, S-Mark, KC-Mark
• Certification: CE, FCC, RoHS, IPX5

• System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/10, macOS, NetWare, UNIX, Linux
• Operating Temperature: -30°C to 70°C (-22°F to 158°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10–90% RH, Non-condensing
• Storage Humidity: 5–95% RH, Non-condensing

WHAT’S IN THE BOX:

• Outdoor Wireless CPE x1
• 24 V 1 A Passive PoE Adapter x1
• Pole Mounting Straps x1
• AC Power Cord x1
• Installation Guide x1

WARRANTY:

• 24 Months
