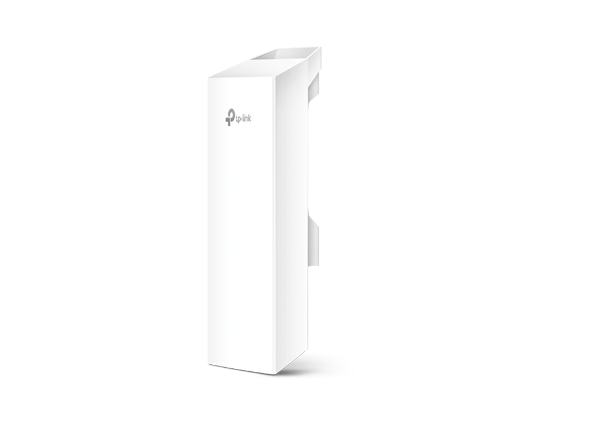

TP-Link 2.4GHz 300Mbps 9dBi Outdoor CPE - CPE210

TP-Link 2.4GHz 300Mbps 9dBi Outdoor CPE - CPE210

R 599.00 ZAR
R 599.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Ready to ship in 2-4 days

Built-in 9dBi 2x2 dual-polarized directional MIMO antenna

Adjustable transmission power from 0 to 25dBm/500mw

System-level optimizations for more than 5km long-range wireless transmission

TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications

Centralized Management System – Pharos Control

AP / Client / AP Router / AP Client Router (WISP) operation modes

Passive PoE Adapter supports up to 60 meters (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

SPECIFICATIONS:

  • Processor: Qualcomm Atheros 560 MHz CPU (MIPS 74Kc)
  • Memory: 64 MB DDR2 RAM, 8 MB Flash
  • Interface: 1× 10/100 Mbps Shielded Ethernet Port (LAN0, Passive PoE In), 1× Grounding Terminal, 1× Reset Button
  • Power Supply: Passive PoE via LAN0 (+4,5 Pins / -7,8 Pins), 16–27 VDC
  • Max. Power Consumption: 5 W
  • Dimensions: 224 × 79 × 60 mm
  • Antenna: Built-in 9 dBi 2×2 Dual-Polarized Directional Antenna, 65° (H-Plane) / 40° (E-Plane) Beam Width
  • Protection: 15 kV ESD Protection, 6 kV Lightning Protection
  • Enclosure: Outdoor ASA Stabilized Plastic, IPX5 Waterproof
  • Wireless Standards: IEEE 802.11b/g/n
  • Proprietary Protocol: Pharos MAXtream TDMA
  • Wireless Speeds: Up to 300 Mbps (40 MHz), 144.4 Mbps (20 MHz), 72.2 Mbps (10 MHz), 36.1 Mbps (5 MHz)
  • Frequency: 2.4–2.483 GHz
  • Transmission Power: Up to 25 dBm (316 mW), Adjustable in 1 dBm Steps
  • Wireless Configurations: Pharos MAXtream TDMA, 802.11b/g/n Modes, 5/10/20/40 MHz Channel Width, Automatic Channel Selection, Transmission Power Control, DFS, WDS, WPA/WPA2/WPA-PSK/WPA2-PSK, WEP (64/128/152-bit), Multi-SSID with VLAN, MAC Filtering, Advanced Wireless Settings
  • Management Features: Pharos Control, HTTP/HTTPS, System Log, SNMP v2c, Ping Watchdog, Dynamic DDNS, SSH Server
  • System Tools: Signal Quality Indicators, Throughput Monitoring, Spectrum Analyzer, Speed Test, Ping, Traceroute
  • System Optimizations: Optimized IGMP Snooping/Proxy, Hardware Watchdog
  • PoE Adapter: 24 VDC, 0.6 A Max, 100–240 VAC Input, Supports Passive PoE up to 60 m
  • PoE Adapter Interfaces: 1× AC Jack with Earth Ground, 2× 10/100 Mbps Shielded Ethernet Ports (Power+Data / Data)
  • PoE Adapter Button: Remote Reset Button
  • PoE Adapter LED: Green Power Status LED
  • PoE Adapter Efficiency: >80%
  • PoE Adapter Certifications: CE, FCC, UL, IC, GS, PSB, C-Tick, SAA, S-Mark, KC-Mark
  • Certification: CE, FCC, RoHS, IPX5
  • System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/10, macOS, NetWare, UNIX, Linux
  • Operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Storage Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Humidity: 10–90% RH, Non-condensing
  • Storage Humidity: 5–95% RH, Non-condensing

WHAT’S IN THE BOX:

  • Outdoor Wireless CPE x1
  • 24 V 0.6 A Passive PoE Adapter x1
  • Pole Mounting Straps x1
  • AC Power Cord x1
  • Installation Guide x1

WARRANTY:

  • 24 Months
