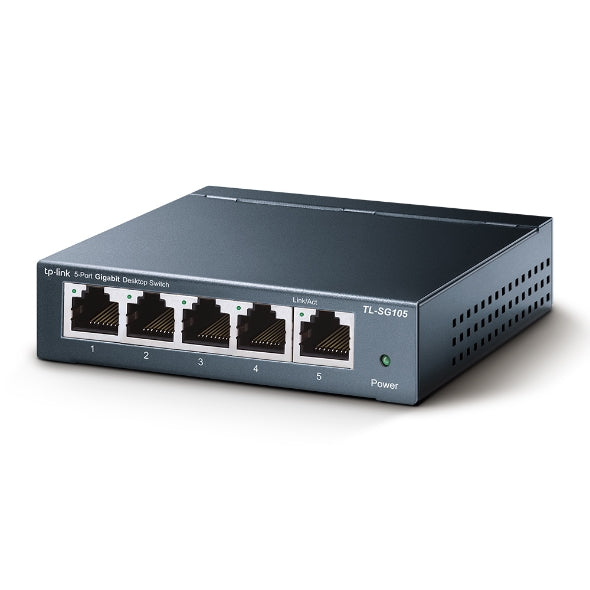

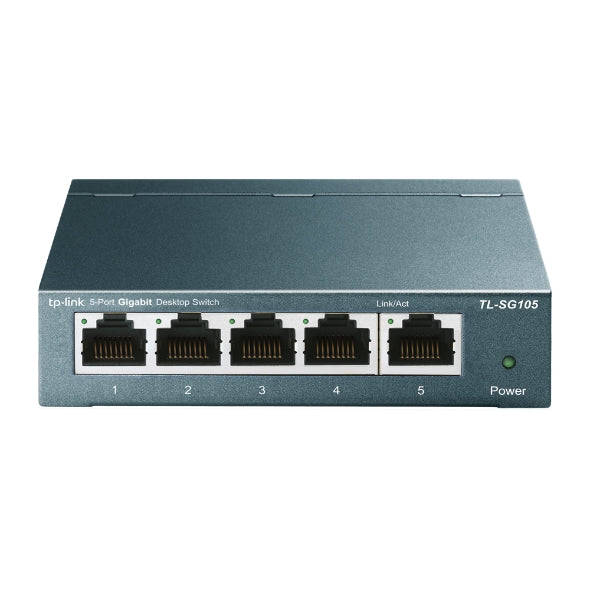

TP-Link 5-Port 10/100/1000Mbps Desktop Switch - TL-SG105

5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX

Plug and play, no configuration needed

Supports 802.1p/DSCP QoS and IGMP Snooping functions

Durable metal casing, desktop/wall-mounting options, and a fanless design

IEEE 802.3x flow control provides reliable data transfer

Green Ethernet technology reduces power consumption

Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping

The TL-SG105 Desktop Switch provides an easy way to increase the speed of your network server and backbone connections. Whether you are at home or in the office, the TL-SG105 helps you deal with your business quickly and easily, any time.

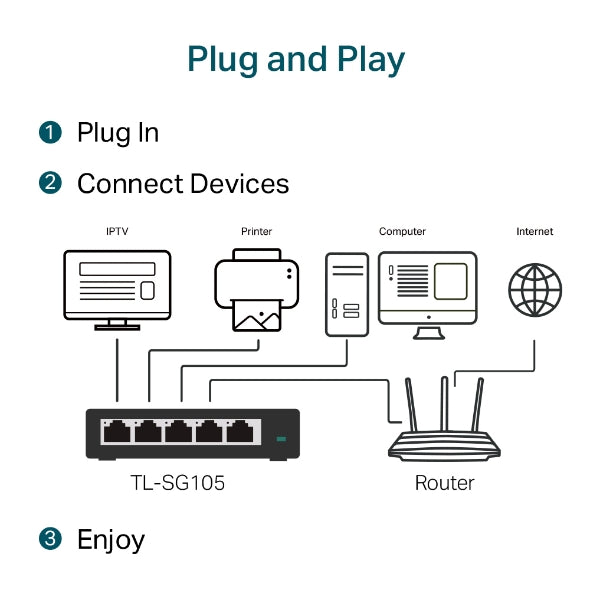

A plug-and-play design makes for easy deployment, no technician needed. Auto-negotiation on each port senses the link speed of a network device and intelligently adjusts to ensure full compatibility and optimal performance.

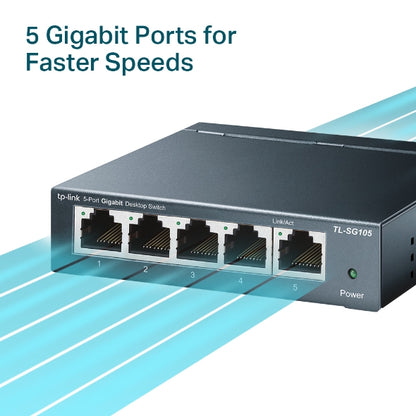

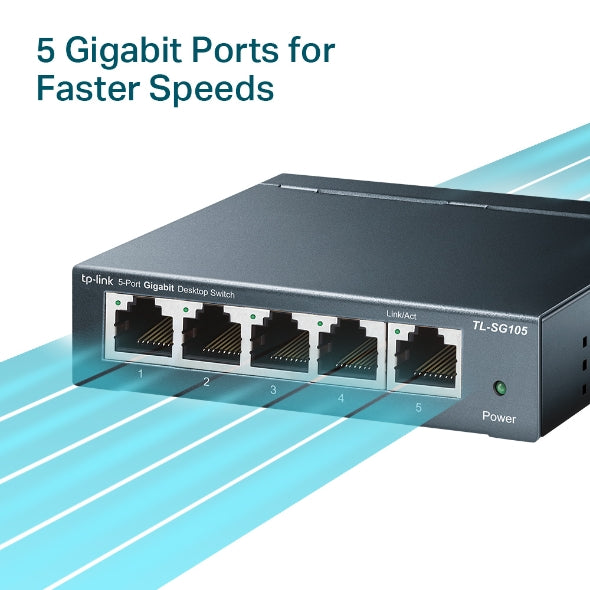

Increase the speed of your network with the TL-SG105 5-port Gigabit desktop switch. 5 non-blocking 10/100/1000 Mbps ports enable instant transferring of large, bandwidth intensive files without interference.

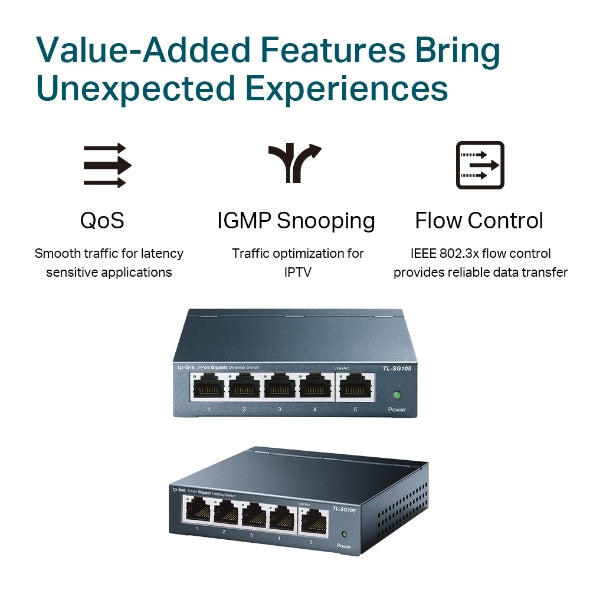

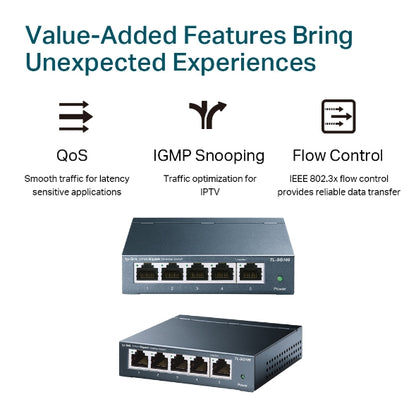

Ensures smooth traffic for latency sensitive applications, such as voice and video.

Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.

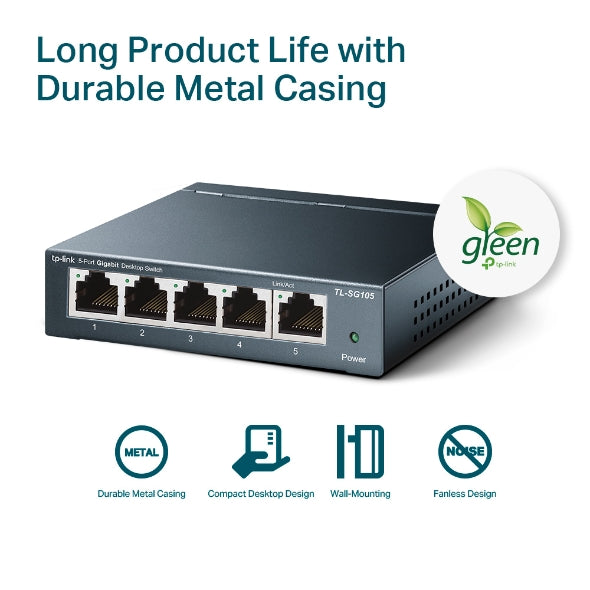

Interior components of TL-SG105 are protected by high-quality metal casing to ensure a product longevity. Having passed an array of stringent reliability tests, TL-SG105 delivers switching performance you can depend on.

TP-Link’s latest generation of Unmanaged Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint.

SPECIFICATIONS:

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
• Interface: 5 × 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX Ports
• Fan Quantity: Fanless
• Power Supply: External Power Adapter (5V DC / 0.6A)
• LED Indicators: System Power, Link/Act Indicators per Port
• Dimensions (W × D × H): 3.9 × 3.9 × 1.0 in. (100 × 98 × 25 mm)
• Packet Forwarding Rate: 7.4 Mpps
• MAC Address Table: 2K
• Packet Buffer Memory: 1 Mb
• Jumbo Frame: 16 KB
• Max. Power Consumption: 3.0 W (220V / 50Hz)
• Max. Heat Dissipation: 10.23 BTU/h
• Advanced Features: Green Technology, 802.3X Flow Control, 802.1P/DSCP QoS (V2 and later), IGMP Snooping, Loop Prevention
• Transmission Method: Store and Forward
• Certification: CE, FCC, RoHS

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10%–90% RH non-condensing
• Storage Humidity: 5%–90% RH non-condensing

WHAT’S IN THE BOX:

• 5-Port 10/100/1000Mbps Desktop Switch x1
• Power Adapter x1
• Installation Guide x1

WARRANTY:

• 24 Months
