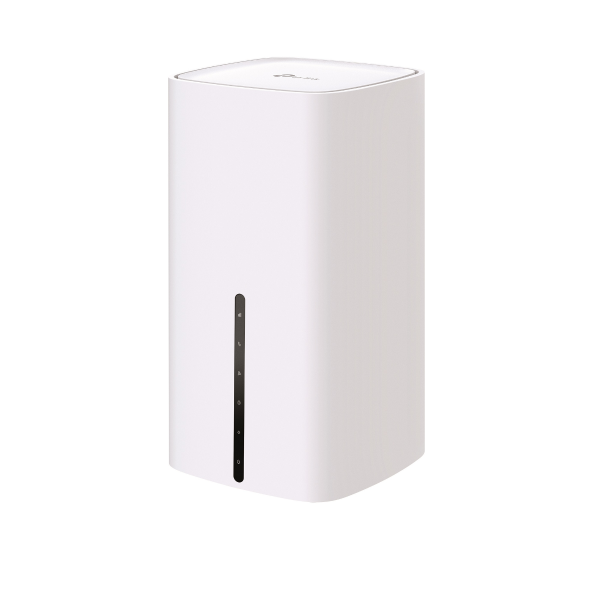

TP-Link 5G AX1800 Wi-Fi6 Telephony Router - NX220v

Boost Your 5G Speed: Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences.

AX1800 Wi-Fi 6 Speed: 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).^†

VoLTE/CSFB Telephony: With 1 Voice port, users can make or receive phone calls over the internet simply by connecting the device to their existing telephone set.

Plug & Play: Enjoy 5G network right after inserting a SIM card.

Support EasyMesh: Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.

Fully Gigabit Ports for Consummate Connectivity: Fully gigabit Ethernet ports provide warp speeds and reliable connections for high-intensive wired devices such as your smart TV, game console, NAS, and more.

Easy Remote Management: TR-069 and TR-369 protocols and TAUC (TP-Link Aginet Unified Cloud) are supported.

5G greatly boosts the download speed up to 4.67 Gbps–31x faster than 4G LTE. It brings fast responsive network connections to tomorrow’s mobile devices, with only 1 ms latency.

Traditional broadband or cable installation is expensive and time-consuming for your vacation home, farm, or suburban warehouse. Long contract periods also create headaches for short-rentals, pop-up venues, and temporary shops to access the internet. NX220v ensures a comfortable and no-block network installation. Plug in your SIM card and enjoy high-speed internet!

Armed with WiFi 6 technology, NX220v is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh WiFi to enjoy the future network that loads faster and connects more.

NX220v is not only a WiFi router and modem combo, but also a phone. It has a phone port to connect your existing landline phone so that you can make phone calls and surf the internet at the same time. Moreover, various voice functions are supported including VoLTE and CSFB. Simply enjoy a professional and high-quality voice call as you like.

Working with other EasyMesh-compatible devices, NX220v creates a unified mesh WiFi network for seamless whole home coverage. No more searching for a stable connection.

The WAN/LAN port enables NX220v to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 4G/3G connection works as a backup to provide a sustained and reliable internet connection for you.

You can set up your device and network in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage your network from a smartphone or tablet.

ISPs can remotely configure and manage devices via their ACS (Auto-Configuration Server) system or the Aginet ACS. High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols.

The Aginet solution offers ISPs powerful and flexible platforms to manage multiple devices for connected homes, such as dynamic service provisioning, zero-touch firmware upgrading, and remote troubleshooting and mesh WiFi diagnostics.

SPECIFICATIONS:

• CPU: 2.0GHz Quad-Core CPU
• Interface: 3 × 10/100/1000Mbps RJ45 LAN Ports (1 × WAN/LAN Auto-Sensing)
• Buttons: 1 × RESET/Wi-Fi Multiplex Button, 1 × WPS Button
• Power Supply: Input: 100–240V~50–60Hz 0.8A, Output: 12V/2A
• Dimensions (W × D × H): 3.9 × 3.9 × 7.5 in. (99 × 99 × 190 mm)
• Antenna: Internal Wi-Fi Antennas, Optional Internal/External LTE/5G Antennas
• Wireless Standards: IEEE 802.11a/n/ac/ax (5GHz), IEEE 802.11b/g/n/ax (2.4GHz)
• Frequency: 2.4GHz and 5GHz
• Cellular Speeds: 5G: Up to 4.67Gbps Downstream / 1.25Gbps Upstream, LTE: Up to 1.6Gbps Downstream / 200Mbps Upstream
• Wireless Security: WPA/WPA2-PSK/WPA3
• Transmission Power: CE: ≤20dBm (2.4GHz), ≤23dBm (5GHz Band 1/2), ≤30dBm (5GHz Band 3); RCM: ≤30dBm (2.4GHz), ≤23dBm (5GHz Band 1/2), ≤30dBm (5GHz Band 3/4)
• Network Type: 5G (N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78), 4G FDD-LTE (B1/B3/B5/B7/B8/B20/B23/B28), 4G TDD-LTE (B38/B40/B41/B42/B43), 3G (DC-HSDPA, HSPA+, HSDPA, HSUPA, WCDMA B1/B5/B8)
• Mesh Technology: 802.11k/v/r, EasyMesh Support
• Working Modes: 5G/4G/3G Router, Wi-Fi Router
• Multi SSID: Up to 3 Additional 2.4GHz/5GHz Networks
• Features: Parental Controls, QoS, Address Reservation, Port Forwarding, Dynamic DDNS, SIM Management, SMS, Cloud Upgrade, EasyMesh, VoLTE, IPTV, IPv6, NAT Forwarding, Firewall, LED Control, Network Diagnostics, CWMP, SNMP, Traffic Statistics, WPS, 1024-QAM, OFDMA, IPSEC VPN, Web Remote Control
• WAN Type: Dynamic IP, Static IP, PPPoE, L2TP, PPTP
• Protocols: IPv4, IPv6
• Certification: CE, RoHS

• System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, Mac OS, NetWare, UNIX/Linux, Internet Explorer 11, Firefox 12+, Chrome 20+, Safari 4+
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10%–90% non-condensing
• Storage Humidity: 5%–90% non-condensing

WHAT’S IN THE BOX:

• 5G AX1800 WiFi 6 Telephony Router NX220v x1
• RJ45 Ethernet Cable x1
• Power Adapter x1
• RJ11 Cable x1
• Quick Installation Guide x1

WARRANTY:

• 24 Months
