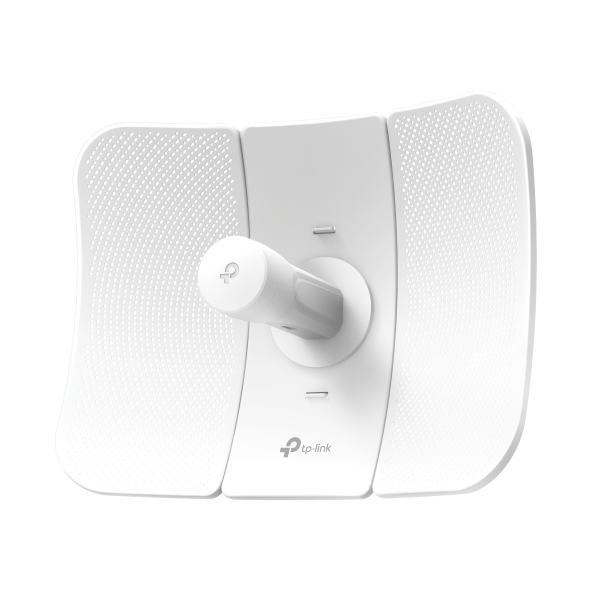

TP-Link 5GHz 300Mbps 23dBi Outdoor CPE - CPE610

Up to 300Mbps on 5GHz wireless data rates

23dBi high-gain directional 2×2 MIMO antenna and a dedicated metal reflector, ideal for long-distance application

Excellent beam directivity, improved latency and noise cancellation

Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds

Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability

TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance

Pharos Control gives administrators a free, centralized management system

Passive PoE supports to allow flexible deployment and convenient installation

With 23dBi high-gain directional 2×2 MIMO Cassegrain antenna and dedicated metal reflector, the CPE610 provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 300Mbps 23dBi Outdoor CPE610 an ideal choice and cost effective solution for outdoor wireless networking applications.

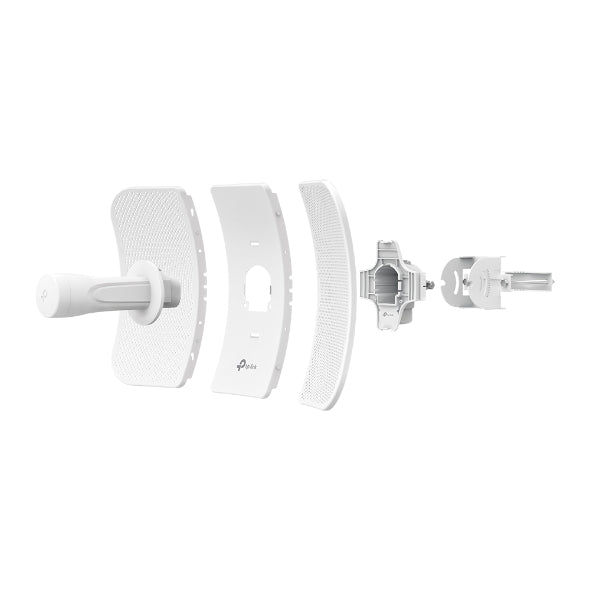

Snap-lock parts make assembly simple and convenient

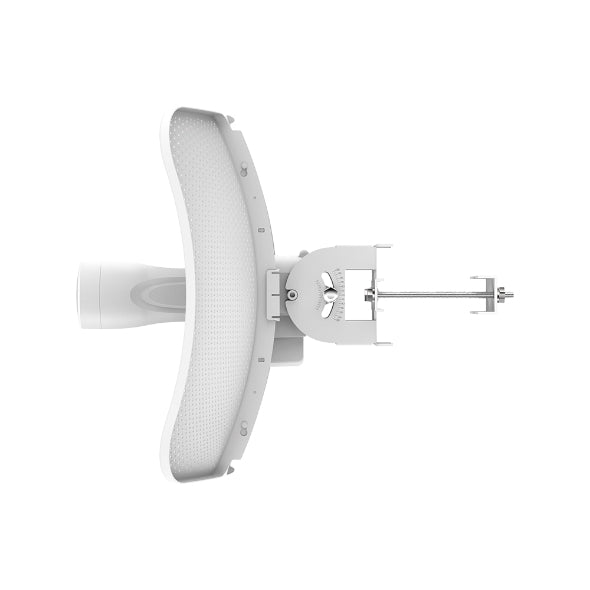

Pole mount kits and the freedom of three-axis alignment facilitate flexible installation

Sturdy design ensures stability in windy conditions

Small and lightweight boxes benefit shipping, logistics and retail.

CPE610 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method, and allows professionals to access more detailed configurations.

SPECIFICATIONS:

• Processor: Qualcomm 560MHz CPU, MIPS 74Kc
• Memory: 64MB DDR2 RAM, 8MB Flash
• Interface: 1 × 10/100Mbps Shielded Ethernet Port (LAN/PoE), 1 × Reset Button
• Power Supply: Passive PoE via LAN (+4,5 pins; -7,8 pins), 16–27V DC
• Max. Power Consumption: 7.41W
• Dimensions (W × D × H): 366 × 280 × 207 mm (14.4 × 11.0 × 8.1 in.)
• Antenna Gain: 23dBi
• Antenna Beamwidth: 9° (Azimuth), 7° (Elevation)
• Protection: 15KV ESD Protection, 6KV Lightning Protection
• Enclosure: Outdoor PC Stabilized Plastic, IP65 Weatherproof
• Wireless Standards: IEEE 802.11a/n
• Proprietary Protocol: TDMA Mode (Pharos MAXtream)
• Wireless Speeds: Up to 300Mbps (40MHz), 144.4Mbps (20MHz), 72.2Mbps (10MHz), 36.1Mbps (5MHz)
• Frequency: 5.15–5.85GHz
• Transmission Power: Up to 25dBm (Adjustable in 1dBm Steps)
• Network Configuration: Static/Dynamic IP, PPPoE, L2TP, PPTP, ALG, UPnP, Virtual Server, Port Trigger, Firewall, Static Routing, Bandwidth Control, IP & MAC Binding
• Wireless Features: Pharos MAXtream TDMA, 5/10/20/40MHz Channel Width, Auto Channel Selection, DFS, WDS, WPA/WPA2 Security, Multi-SSID with VLAN, MAC Filtering
• Management Features: Pharos Control, HTTP/HTTPS Management, SNMP v2c, SSH, DDNS, Ping Watchdog, System Log
• System Tools: Signal Indicators, Spectrum Analyzer, Speed Test, Ping, Traceroute
• System Optimization: IGMP Snooping/Proxy Optimization, Hardware Watchdog
• PoE Adapter: 24V DC, 0.6A Max, 10/100Mbps Data + Power, Remote Reset, Supports up to 60m PoE
• PoE Adapter Efficiency: >84.29%
• Certification: CE, FCC, IC, RoHS, IP65

• System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/10, Mac OS, NetWare, UNIX, Linux
• Environment: Operating Temperature: -40°C to 70°C, Storage Temperature: -40°C to 70°C, Operating Humidity: 10–90% Non-Condensing, Storage Humidity: 5–95% Non-Condensing

WHAT’S IN THE BOX:

• Outdoor Wireless CPE x1
• 24V 0.5A Passive PoE Adapter x1
• Pole Mounting Straps x1
• AC Power Cord x1
• Installation Guide x1

WARRANTY:

• 24 Months
