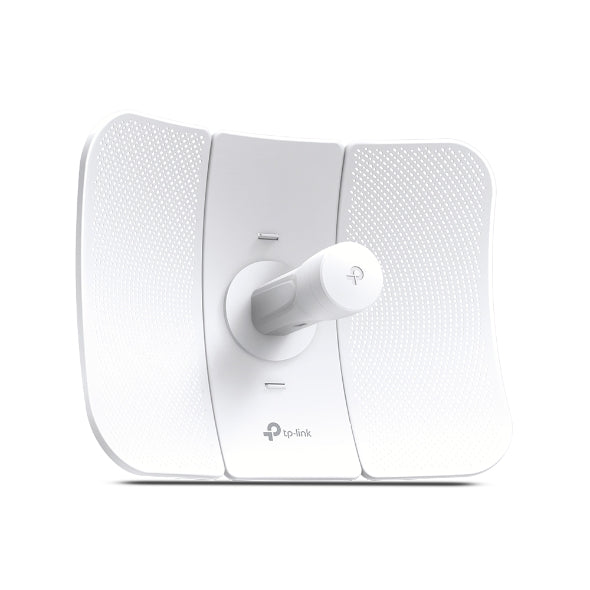

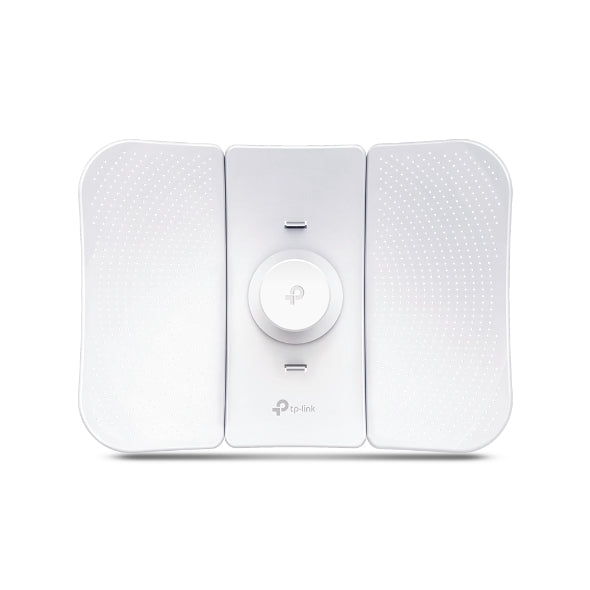

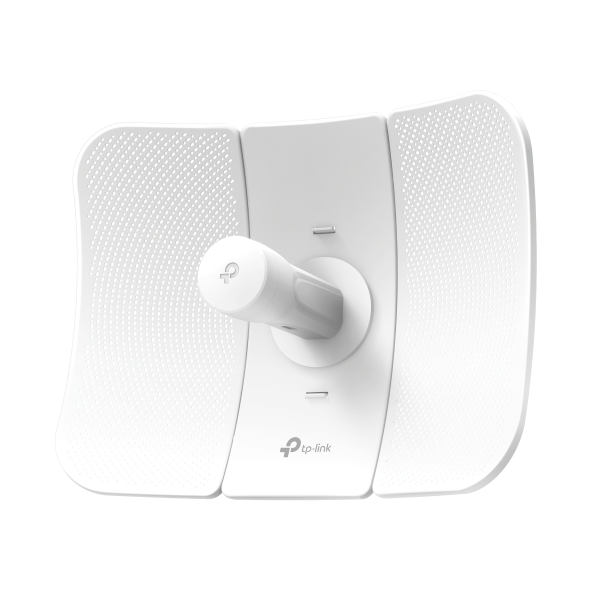

TP-Link 5GHz AC 867Mbps 23dBi Outdoor CPE - CPE710

TP-Link 5GHz AC 867Mbps 23dBi Outdoor CPE - CPE710

R 1,449.00 ZAR
R 1,449.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Ready to ship in 2-4 days
802.11ac for up to 867Mbps on 5GHz wireless data rate
23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
Excellent beam directivity, improved latency and noise cancellation
Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
Pharos Control gives administrators a free, centralized management system
Passive PoE supports to allow flexible deployment and convenient installation



With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.

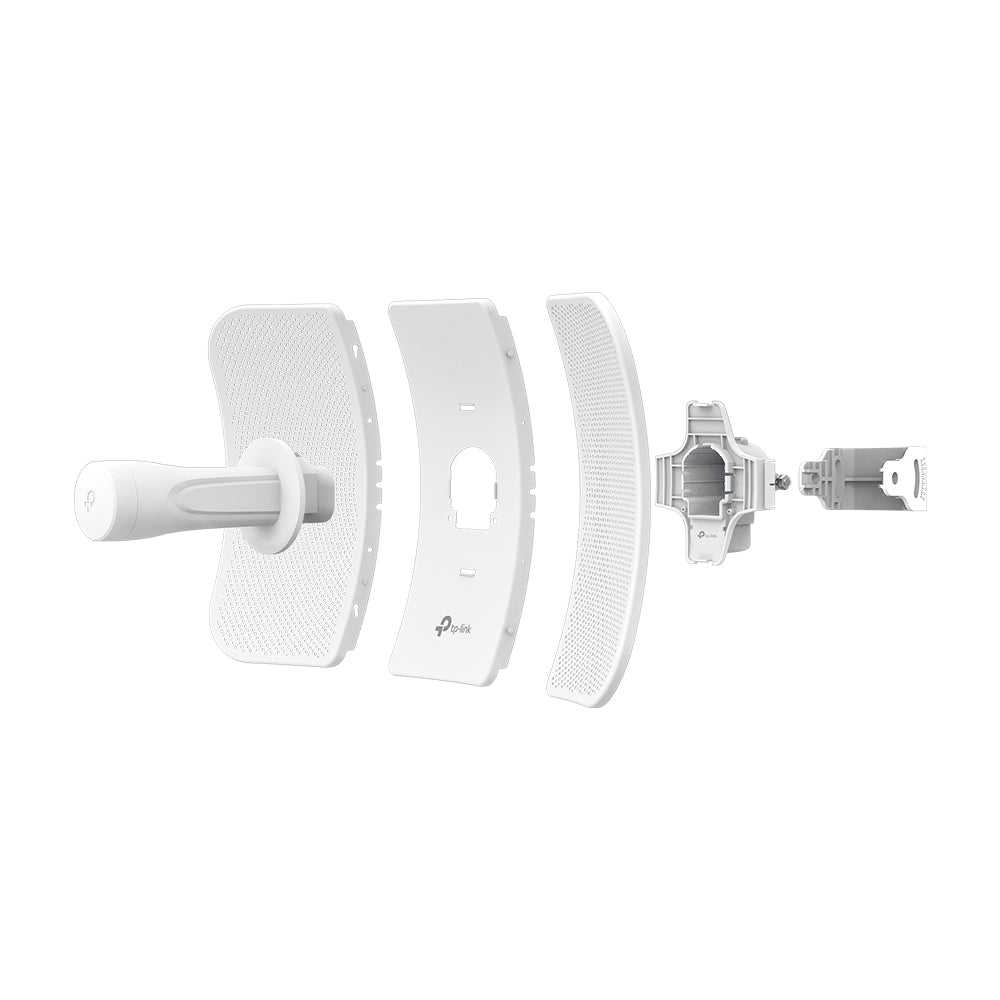

Snap-lock parts make assembly simple and convenient

Pole mount kits and the freedom of three-axis alignment facilitate flexible installation

Sturdy design ensures stability in windy conditions

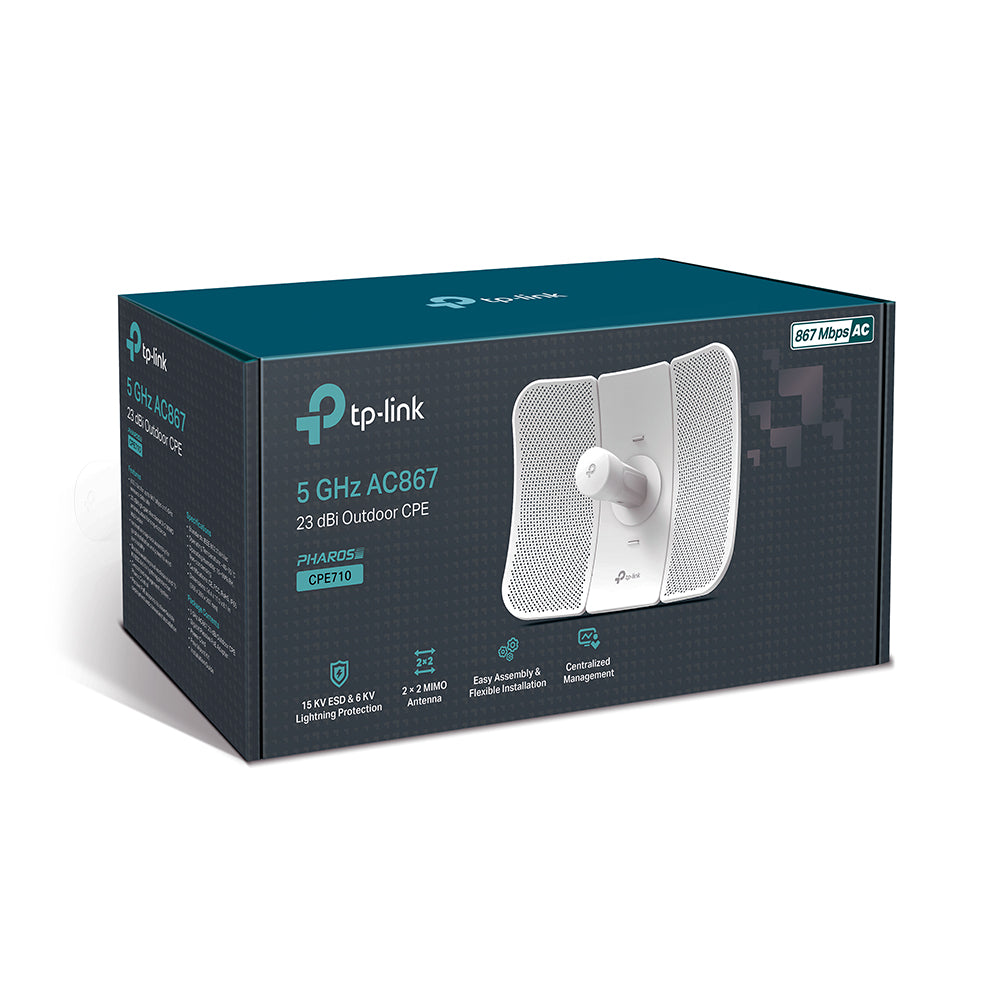

Small and lightweight boxes benefit shipping, logistics, and retail.

CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.

SPECIFICATIONS:

  • Processor: Qualcomm 750MHz CPU, MIPS 74Kc
  • Memory: 128MB DDR2 RAM, 16MB Flash
  • Interface: 1 × 10/100/1000Mbps Shielded Ethernet Port (LAN/PoE), 1 × Reset Button
  • Power Supply: Passive PoE via LAN (+4,5 pins; -7,8 pins), 16–27V DC
  • Dimensions (W × D × H): 366 × 280 × 207 mm (14.4 × 11.0 × 8.1 in.)
  • Antenna Gain: 23dBi
  • Antenna Beamwidth: 9° (Azimuth), 7° (Elevation)
  • Protection: 15KV ESD Protection, 6KV Lightning Protection
  • Enclosure: Outdoor PC Stabilized Plastic, IP65 Weatherproof
  • Wireless Standards: IEEE 802.11a/n/ac
  • Wireless Speeds: Up to 867Mbps (80MHz), 400Mbps (40MHz), 173.4Mbps (20MHz)
  • Frequency: 5.15–5.85GHz
  • Transmission Power: Up to 27dBm (Adjustable in 1dBm Steps)
  • Network Configuration: Static/Dynamic IP, PPPoE, ALG, UPnP, Virtual Server, Port Trigger, Firewall, Static Routing, Bandwidth Control, IP & MAC Binding
  • Wireless Features: 20/40/80MHz Channel Width, Auto Channel Selection, DFS, WDS, WPA/WPA2 Security, Multi-SSID with VLAN, MAC Filtering, Long Range PtP
  • Management Features: Pharos Control, HTTP/HTTPS Management, SNMP v2c, SSH, DDNS, Ping Watchdog, System Log
  • System Tools: Signal Indicators, Spectrum Analyzer, Speed Test, Ping, Traceroute, Antenna Alignment
  • System Optimization: IGMP Snooping/Proxy Optimization
  • PoE Adapter: 24V DC, 0.5A Max, Gigabit Data + Power, Remote Reset, Supports up to 60m PoE
  • PoE Adapter Efficiency: >84.29%
  • Certification: CE, FCC, RoHS, IP65, IC
  • System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/10, Mac OS, NetWare, UNIX, Linux
  • Environment: Operating Temperature: -40°C to 70°C, Storage Temperature: -40°C to 70°C, Operating Humidity: 10–90% Non-Condensing, Storage Humidity: 5–95% Non-Condensing

WHAT’S IN THE BOX:

  • Outdoor Wireless CPE x1
  • 24V 0.5A Passive PoE Adapter x1
  • Pole Mounting Kits x1
  • AC Power Cord x1
  • Installation Guide x1

WARRANTY:

  • 24 Months
