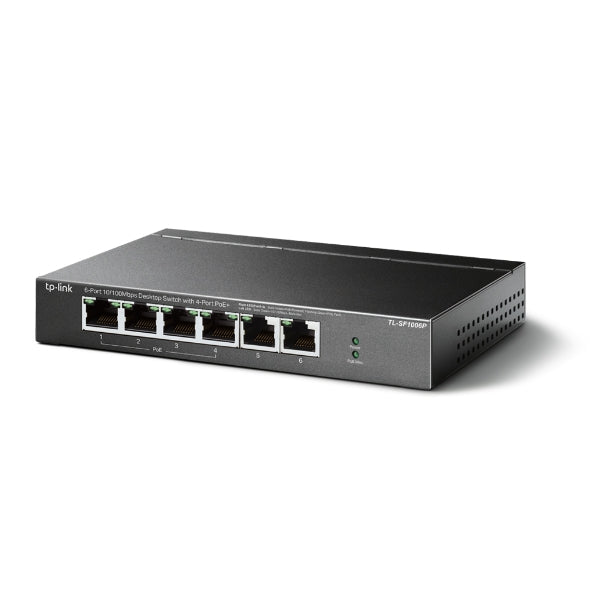

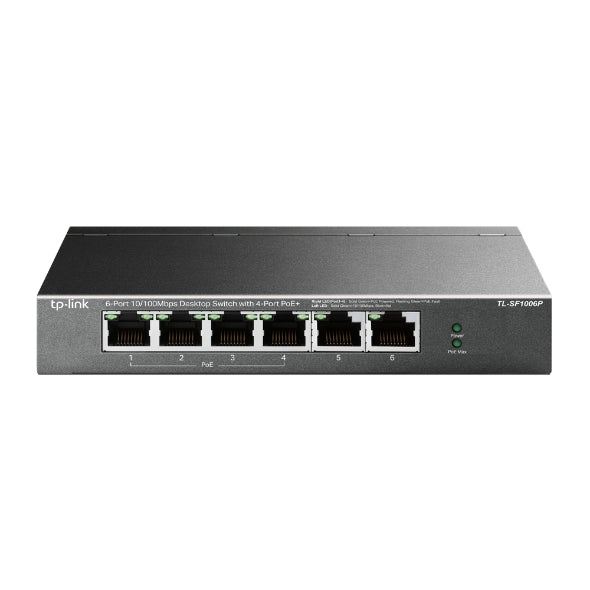

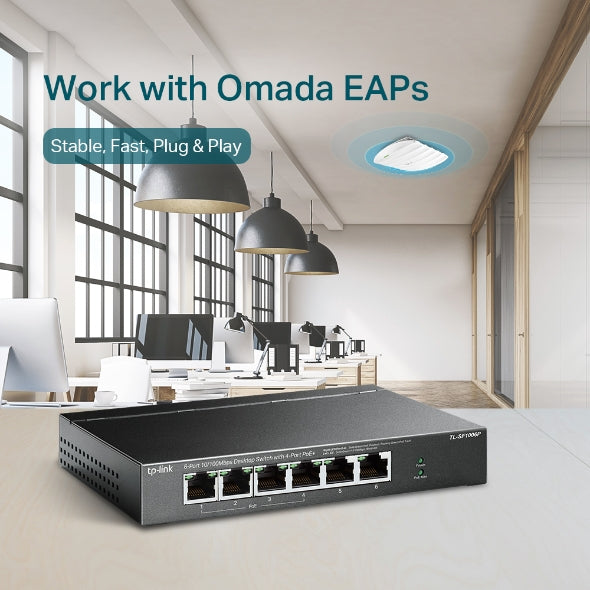

TP-Link 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ - TL-SF1006P

6× 10/100 Mbps RJ45 ports

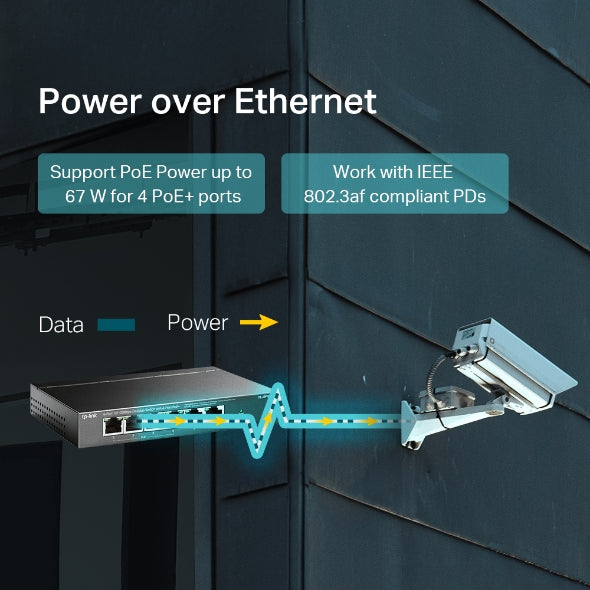

4× PoE+ ports transfer data and power on individual cables

Works with IEEE 802.3af/at compliant PDs

Up to 250m data and power transmitting range under Extend Mode

Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application

PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

Supports PoE Power up to 30 W for each PoE port

Supports PoE Power up to 67 W for all PoE ports

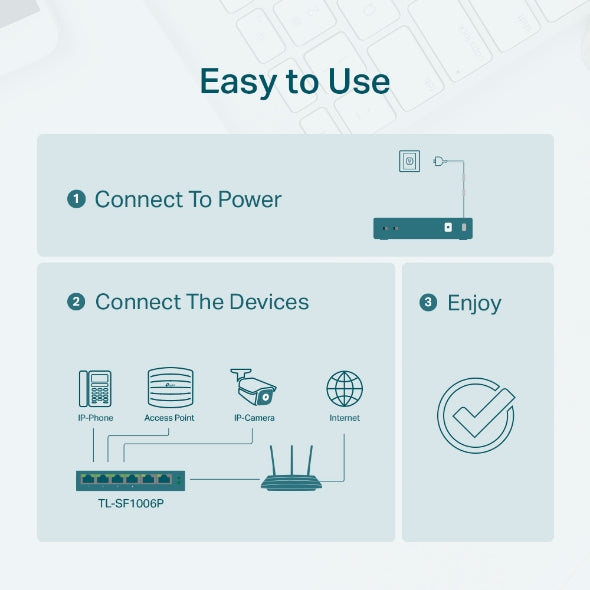

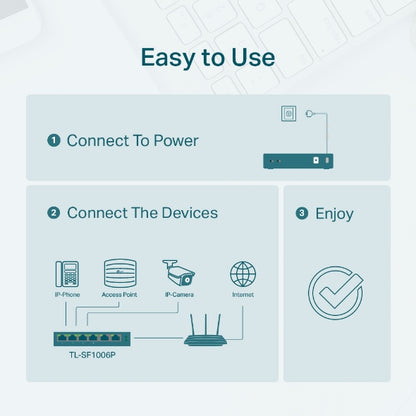

Plug and play with no configuration required

The TP-Link TL-SF1006P is a 6-port 10/100 Mbps desktop switch, featuring 4 PoE+ ports compliant with the 802.3af/at standard, delivering up to 30W per port with a total power budget of 67W for powering devices like IP cameras and VoIP phones. It offers a 1.2 Gbps switching capacity and a 0.89 Mpps forwarding rate, along with a 2K MAC address table. This unmanaged switch provides a simple and cost-effective solution for small businesses needing to integrate PoE-enabled devices into their 10/100 Mbps network infrastructure. Its plug-and-play design and compact size allow for easy deployment.

SPECIFICATIONS:

• Interface: 6 × 10/100Mbps RJ45 Ports (Ports 1–4 Support 802.3af/at PoE+), Auto Negotiation, Auto MDI/MDIX
• Network Media: 10BASE-T (Cat 3/4/5 UTP, STP), 100BASE-TX (Cat 5/5e UTP, STP), Maximum Cable Length 100m
• Fan: Fanless
• Physical Security: Security Lock Slot
• Power Supply: External Power Adapter (53.5V DC / 1.31A)
• PoE Support: IEEE 802.3af/at, Ports 1–4, 67W Total PoE Budget
• Switching Capacity: 1.2Gbps
• Packet Forwarding Rate: 0.8928Mpps
• MAC Address Table: 2K
• Jumbo Frame: 2KB
• Dimensions (W × D × H): 158 × 101 × 25 mm (6.2 × 4.0 × 1.0 in.)
• Max. Power Consumption: 2.52W (No PD), 75.4W (With 67W PoE Load)
• Max. Heat Dissipation: 8.59BTU/h (No PD), 257.11BTU/h (With 67W PoE Load)
• Advanced Features: IEEE 802.3af/at PD Compatibility, Extend Mode, Priority Mode, PoE Auto Recovery, MAC Auto-Learning & Auto-Aging, IEEE 802.3x Flow Control, Backpressure
• Transmission Method: Store-and-Forward
• Certification: FCC, CE, RoHS

• Environment: Operating Temperature: 0°C to 40°C, Storage Temperature: -40°C to 70°C, Operating Humidity: 10–90% RH Non-Condensing, Storage Humidity: 5–90% RH Non-Condensing

WHAT’S IN THE BOX:

• TL-SF1006P x1
• Power Adapter x1
• Installation Guide x1

WARRANTY:

• 24 Months
