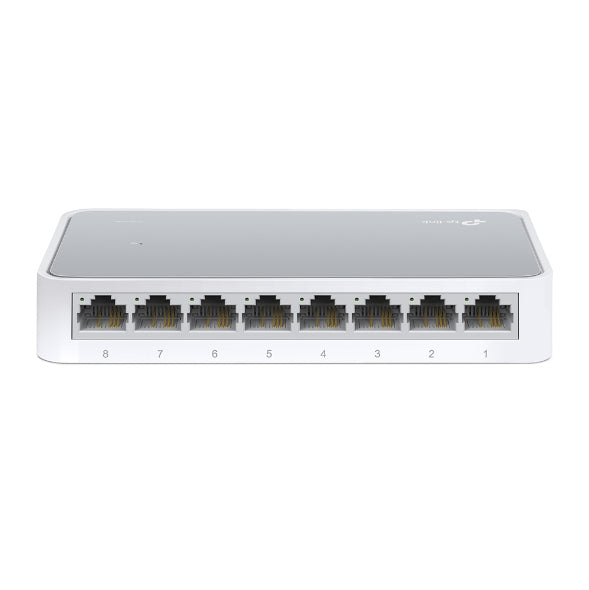

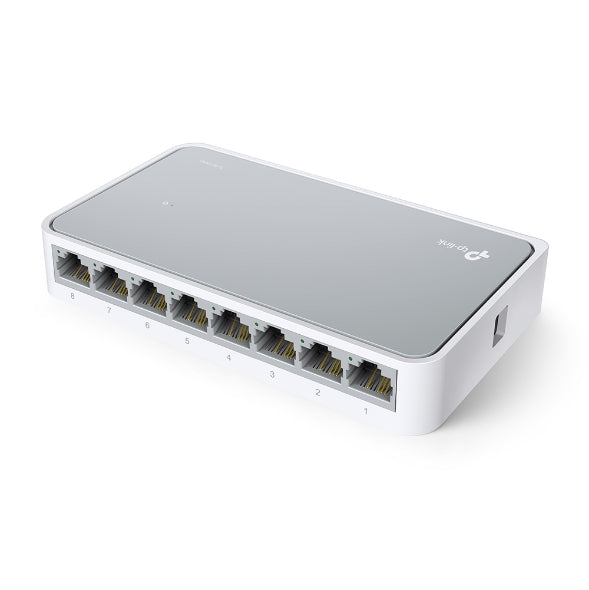

TP-Link 8-Port 10/100Mbps Desktop Switch - TL-SF1008D

8 10/100Mbps auto-negotiation RJ45 ports, supports auto MDI/MDIX

Green Ethernet technology saves power consumption

IEEE 802.3x flow control provides reliable data transfer

Plastic case, desktop design

Plug and play, no configuration required

The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save power consumption, making it an eco-friendly solution for your business network.

TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.

The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

SPECIFICATIONS:

• Standards & Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, CSMA/CD
• Interface: 8 × 10/100Mbps RJ45 Ports with Auto-Negotiation and Auto-MDI/MDIX
• Fan: Fanless
• Power Supply: External Power Adapter (5V DC / 0.6A), Input: 100–240V AC, 50/60Hz
• LED Indicators: Power, Port 1–8
• Buffer Size: 768Kb
• Data Rates: 10/100Mbps Half Duplex, 20/200Mbps Full Duplex
• Dimensions (W × D × H): 134.5 × 79 × 22.5 mm (5.3 × 3.1 × 0.9 in.)
• Max. Power Consumption: 2.05W
• Max. Heat Dissipation: 6.99BTU/h
• Advanced Features: Green Technology, 802.3x Flow Control, Back Pressure
• Transmission Method: Store-and-Forward
• Certification: FCC, CE, RoHS

• Environment: Operating Temperature: 0°C to 40°C, Storage Temperature: -40°C to 70°C, Operating Humidity: 10–90% Non-Condensing, Storage Humidity: 5–90% Non-Condensing

WHAT’S IN THE BOX:

• 8-Port 10/100Mbps Desktop Switch x1
• Power Adapter x1
• Installation Guide x1

WARRANTY:

• 24 Months
