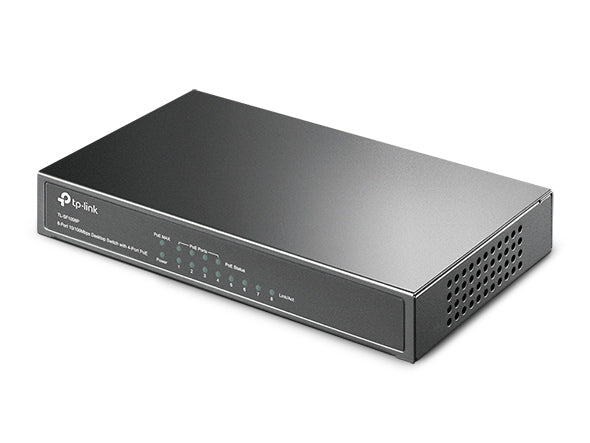

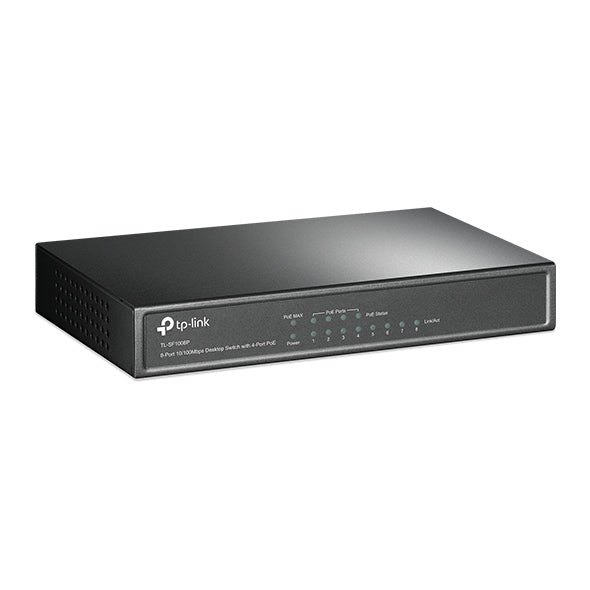

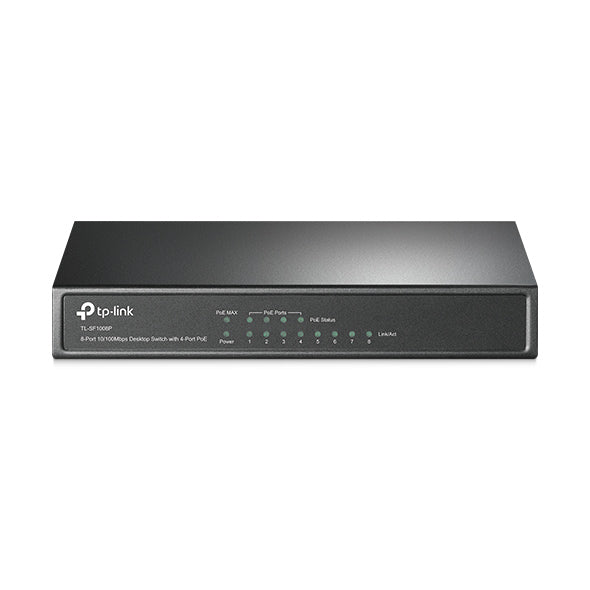

TP-Link 8-Port 10/100Mbps Desktop Switch with 4-Port PoE - TL-SF1008P

With four PoE ports, transfers data and power on one single cable

Working with IEEE 802.3af compliant PDs, expands home and office network

Supports PoE power up to 15.4W for each PoE port

Supports PoE power up to 57W for all PoE ports

Requires no configuration and installation

Work with IP Cameras, IP Phones and Omada EAPs!

4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

When total power consumption excels 57W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

SPECIFICATIONS:

• Interface: 8 × 10/100Mbps RJ45 Ports with Auto Negotiation and Auto MDI/MDIX
• Network Media: 10BASE-T (Cat 3/4/5 UTP, STP), 100BASE-TX (Cat 5/5e UTP, STP), Maximum Cable Length 100m
• Fan: Fanless
• Physical Security: No Security Lock
• Power Supply: External Power Adapter (48V DC / 1.25A)
• PoE Support: IEEE 802.3af, Ports 1–4, 57W Total PoE Budget
• Switching Capacity: 1.6Gbps
• Backplane Bandwidth: 1.6Gbps
• Packet Forwarding Rate: 1.1904Mpps
• MAC Address Table: 2K
• Jumbo Frame: 2KB
• Dimensions (W × D × H): 171 × 98 × 27 mm (6.7 × 3.9 × 1.1 in.)
• Max. Power Consumption: 2.66W (No PD), 65.92W (With 57W PoE Load)
• Max. Heat Dissipation: 9.08BTU/h (No PD), 224.92BTU/h (With 57W PoE Load)
• Advanced Features: IEEE 802.3af PD Compatibility, Priority Function, MAC Auto-Learning & Auto-Aging, IEEE 802.3x Flow Control, Backpressure
• Transmission Method: Store-and-Forward
• Certification: FCC, CE, RoHS

• Environment: Operating Temperature: 0°C to 40°C, Storage Temperature: -40°C to 70°C, Operating Humidity: 10–90% Non-Condensing, Storage Humidity: 5–90% Non-Condensing

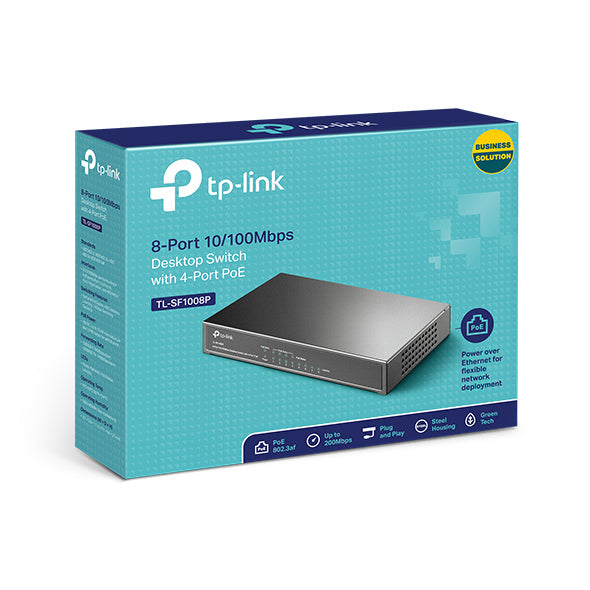

WHAT’S IN THE BOX:

• TL-SF1008P x1
• Power Adapter x1
• User Guide x1

WARRANTY:

• 24 Months
