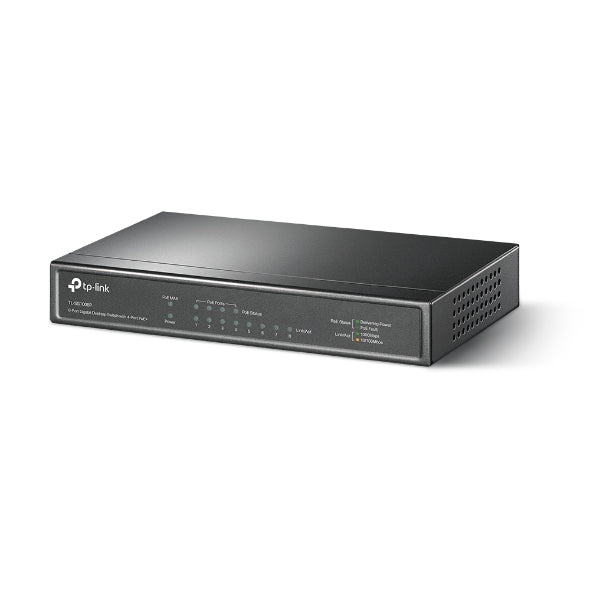

TP-Link 8-Port Gigabit Desktop Switch with 4-Port PoE+ - TL-SG1008P

8× 10/100/1000 Mbps RJ45 ports.

4× PoE+ ports transfer data and power on individual cables.

Works with IEEE 802.3af/at compliant PDs.

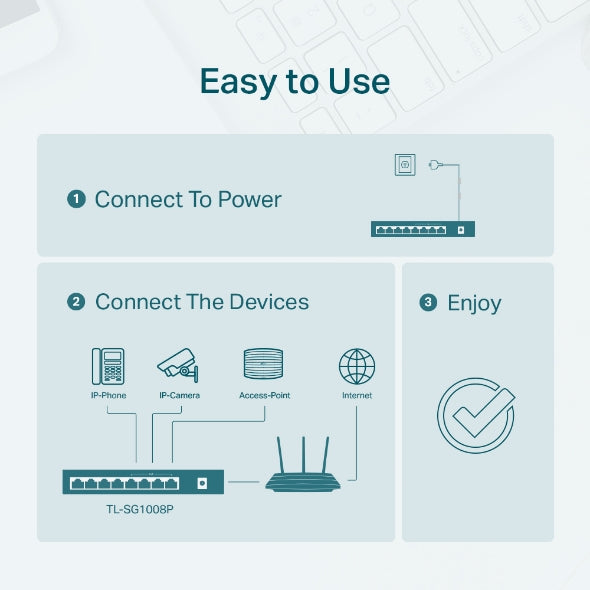

Plug and Play, no configuration and installation required.

802.1p/DSCP QoS enable smooth latency-sensitive traffic.

Supports PoE power up to 30 W for each PoE port.

Supports PoE power up to 64 W for all PoE ports.

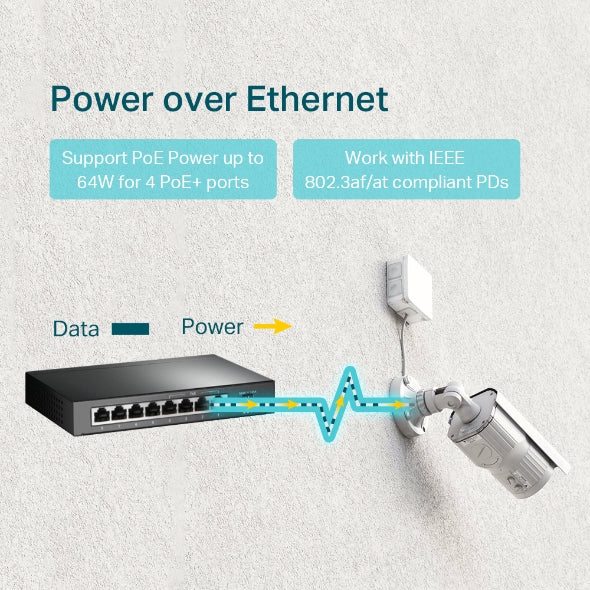

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 64 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

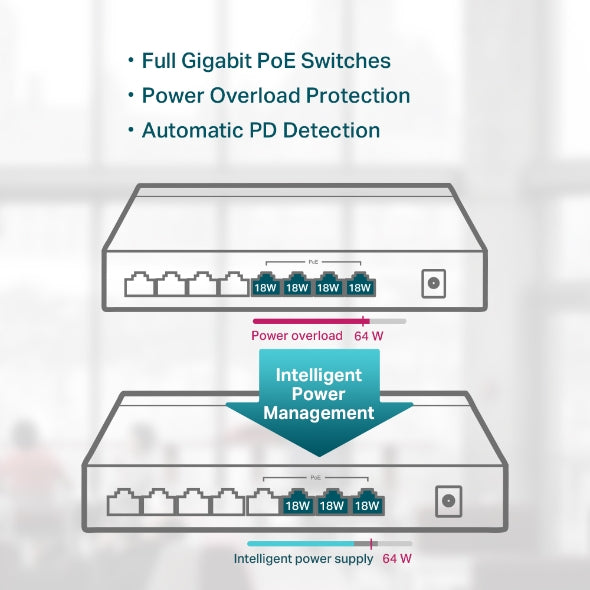

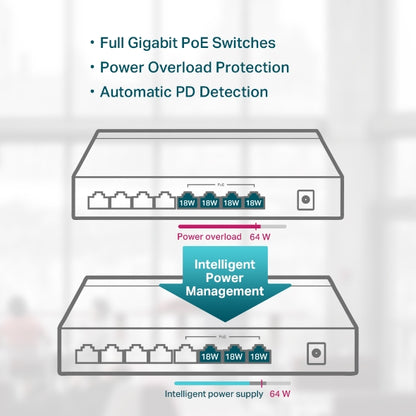

When total power consumption exceeds 64 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.

IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

The interior components of TL-SG1008P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1008P delivers switching performance you can depend on.

SPECIFICATIONS:

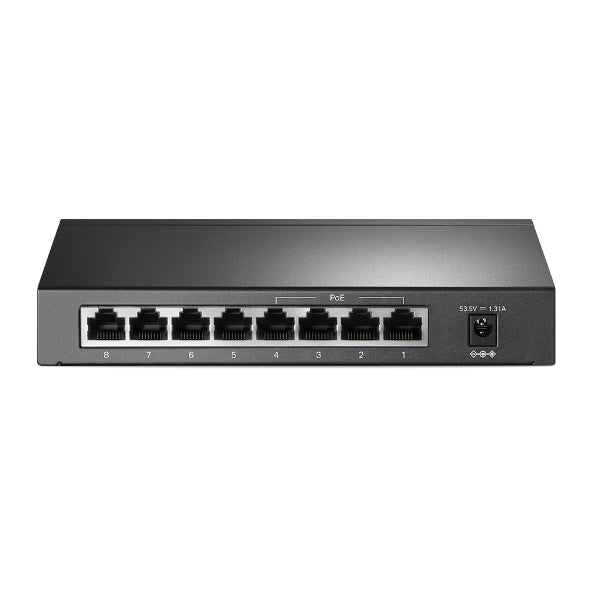

• Interface: 8 × 10/100/1000Mbps RJ45 Ports with Auto Negotiation and Auto MDI/MDIX
• Network Media: 10BASE-T (Cat 3/4/5 UTP, STP), 100BASE-TX (Cat 5/5e UTP, STP), 1000BASE-T (Cat 5/5e/6+ UTP, STP), Maximum Cable Length 100m
• Fan: Fanless
• Physical Security: Security Lock Slot
• Power Supply: External Power Adapter (53.5V DC / 1.31A)
• PoE Support: IEEE 802.3af/at, Ports 1–4, 64W Total PoE Budget
• Switching Capacity: 16Gbps
• Packet Forwarding Rate: 11.904Mpps
• MAC Address Table: 4K
• Jumbo Frame: 16KB
• Dimensions (W × D × H): 171 × 98 × 27 mm (6.7 × 3.9 × 1.1 in.)
• Max. Power Consumption: 8.68W (No PD), 73.74W (With 64W PoE Load)
• Max. Heat Dissipation: 29.60BTU/h (No PD), 251.45BTU/h (With 64W PoE Load)
• Advanced Features: IEEE 802.3af/at PD Compatibility, IGMP Snooping, MAC Auto-Learning & Auto-Aging, IEEE 802.3x Flow Control, 802.1p/DSCP QoS
• Transmission Method: Store-and-Forward
• Certification: CE, FCC, RoHS

• Environment: Operating Temperature: 0°C to 40°C, Storage Temperature: -40°C to 70°C, Operating Humidity: 10–90% RH Non-Condensing, Storage Humidity: 5–90% RH Non-Condensing

WHAT’S IN THE BOX:

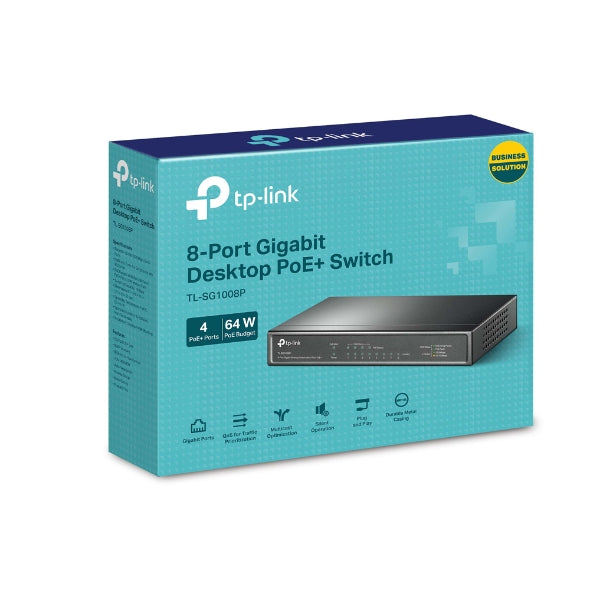

• TL-SG1008P x1
• Power Adapter x1
• Installation Guide x1

WARRANTY:

• 12 Months
