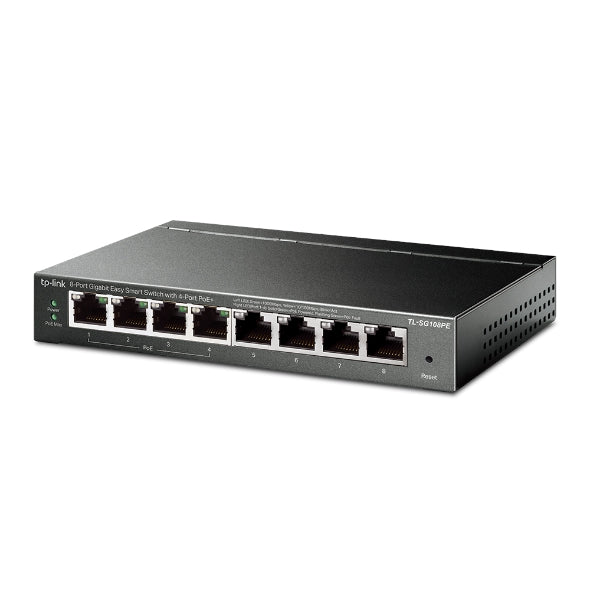

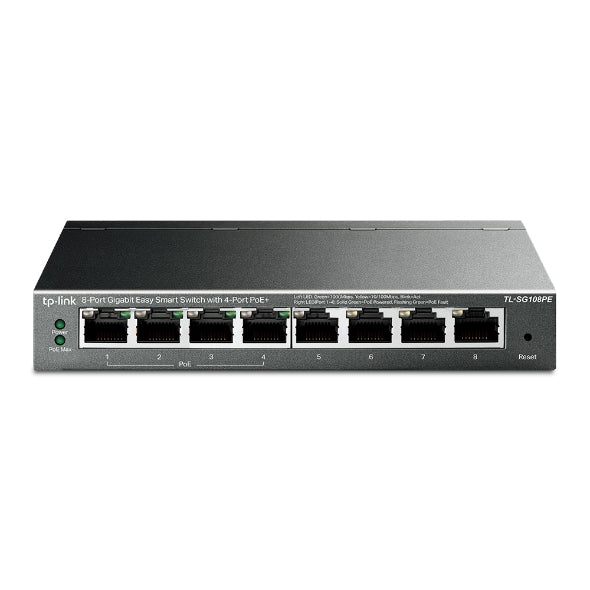

TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE+ - TL-SG108PE

Eight 10/100/1000Mbps RJ45 ports

Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable

Supports PoE power up to 64 W for all PoE ports

Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery

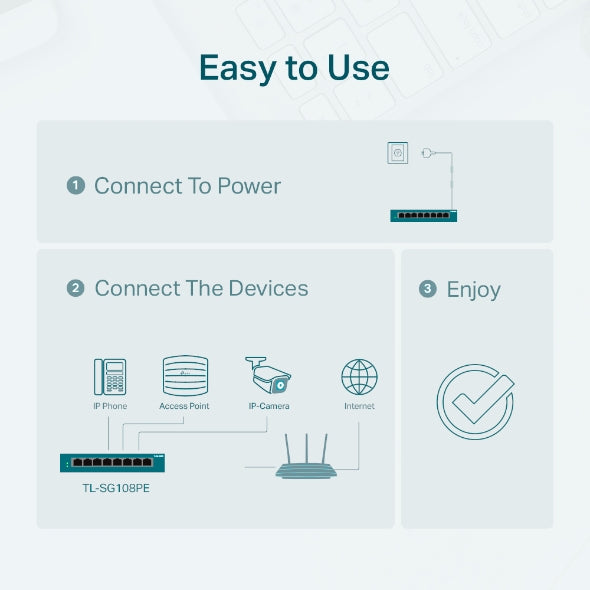

Simple network set-up on top of plug-and-play connectivity

Web-based user interface and Easy Smart Configuration Utility simplify configuration

Fanless design lowers energy consumption and eliminates operating noise

The TL-SG108PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.

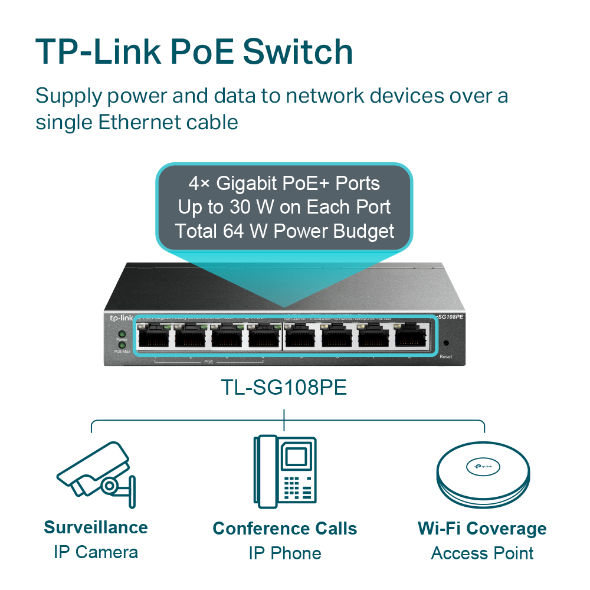

Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 64 W PoE power budget for the 4× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

Ensures smooth traffic for latency sensitive applications, such as voice and video

Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.

Helps to create network with higher security and better overall performance by dividing network into smaller groups

TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

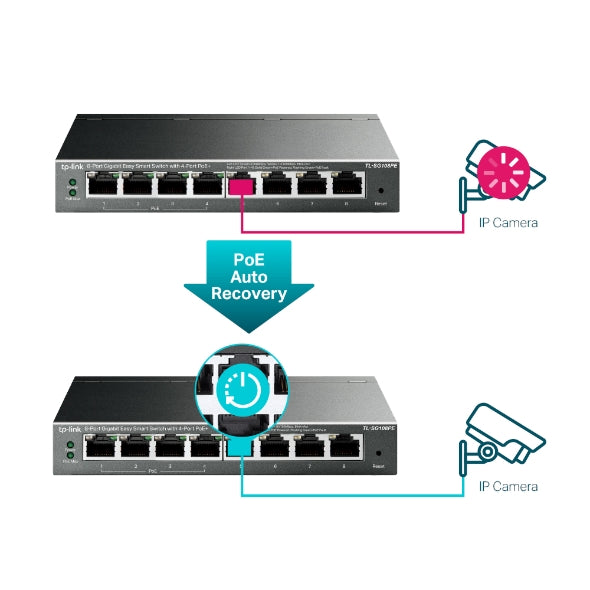

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 64 W. This protects the device from power overload operation.

Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

The interior components of TL-SG108PE are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG108PE delivers switching performance you can depend on.

SPECIFICATIONS:

• Standards & Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
• Interface: 8 × 10/100/1000Mbps RJ45 Ports with Auto Negotiation and Auto MDI/MDIX
• Network Media: 10BASE-T (Cat 3/4/5 UTP, STP), 100BASE-TX (Cat 5/5e UTP, STP), 1000BASE-T (Cat 5/5e/6+ UTP, STP), Maximum Cable Length 100m
• Fan: Fanless
• Power Supply: External Power Adapter (53.5V DC / 1.31A)
• PoE Support: IEEE 802.3af/at, Ports 1–4, 64W Total PoE Budget
• Switching Capacity: 16Gbps
• Packet Forwarding Rate: 11.9Mpps
• MAC Address Table: 4K
• Packet Buffer Memory: 1.5Mb
• Jumbo Frame: 16KB
• Dimensions (W × D × H): 158 × 101 × 25 mm (6.2 × 4.0 × 1.0 in.)
• Max. Power Consumption: 5.41W (No PD), 74.27W (With 64W PoE Load)
• Max. Heat Dissipation: 18.45BTU/h (No PD), 253.26BTU/h (With 64W PoE Load)
• Quality of Service: Port-Based, 802.1p, DSCP Priority, 4 Priority Queues, Rate Limit, Storm Control
• L2 Features: IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention, PoE Auto Recovery
• VLAN: Supports Up to 32 VLANs Simultaneously (Out of 4K VLAN IDs), MTU/Port/Tag VLAN
• Management Features: Web-Based GUI, Easy Smart Configuration Utility
• Transmission Method: Store-and-Forward
• Certification: FCC, CE, RoHS

• System Requirements: Microsoft Windows (for Easy Smart Configuration Utility)
• Environment: Operating Temperature: 0°C to 40°C, Storage Temperature: -40°C to 70°C, Operating Humidity: 10–90% RH Non-Condensing, Storage Humidity: 5–95% RH Non-Condensing

WHAT’S IN THE BOX:

• TL-SG108PE x1
• Power Adapter x1
• Installation Guide x1
• Rubber Feet x1

WARRANTY:

• 24 Months
