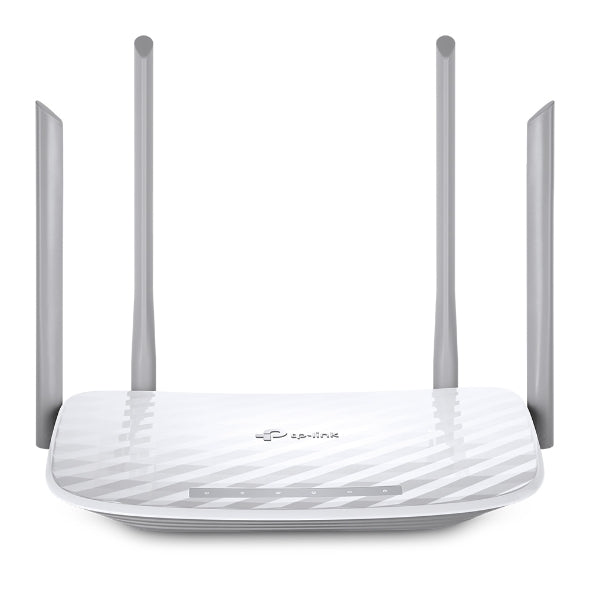

TP-Link AC1200 Dual Band Wi-Fi Router - EC220-F5

Upgrade to fast 5th generation Wi-Fi, 300 Mbps on 2.4GHz + 867 Mbps on 5GHz dual band.

Easy Remote Management, TR-069 protocol enables an operator to remotely configure and manage end-user devices.

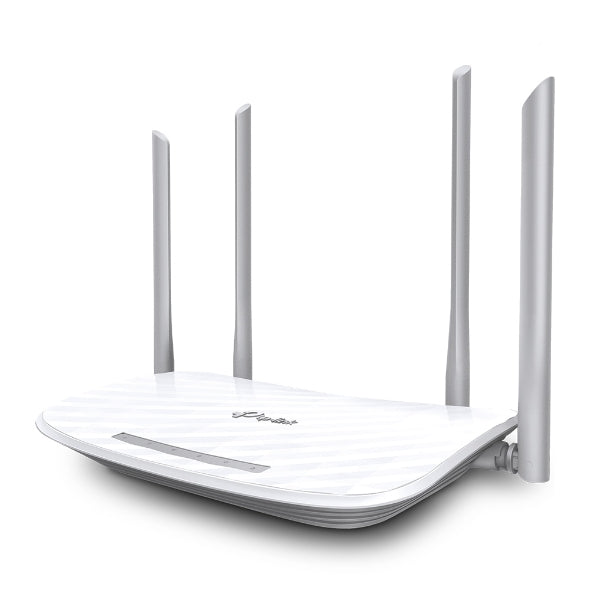

4 external antennas provide stable wireless connections and optimal coverage.

The EC220-F5 lets your PC or laptop enjoy connections 3x faster than Wireless N with Wireless AC technology.
With 300Mbps over the 2.4GHz band and 867Mbps over the the crystal clear 5GHz band, the EC220-F5 is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.

Four well-ordered antennas make all of your connections more efficient and stable. Advanced antenna technology increases the receiving sensitivity to enlarge Wi-Fi coverage for your home.

Supervise children and staff with responsible access, controlled by parents or administrators. Use key words to easily set up a black list and limit the level of web access.

Multiple SSID helps operators easily create separate WLAN networks for various service deployments, such as IPTV, Internet, etc.

The free Tether app is available for both Android and iOS devices, making it easy to set up the EC220-F5 and manage your network settings.

Support TR-069 protocols, enabling ISPs to remotely configure and manage end-user devices. Support TR-098.

Support Aginet Config, enabling ISPs to customize default configurations according to their requirements, and keep the settings after users reset devices.

Support Aginet ACS, enabling ISP to realize remote management of deployed devices and reduce on-site maintenance cost.

SPECIFICATIONS:

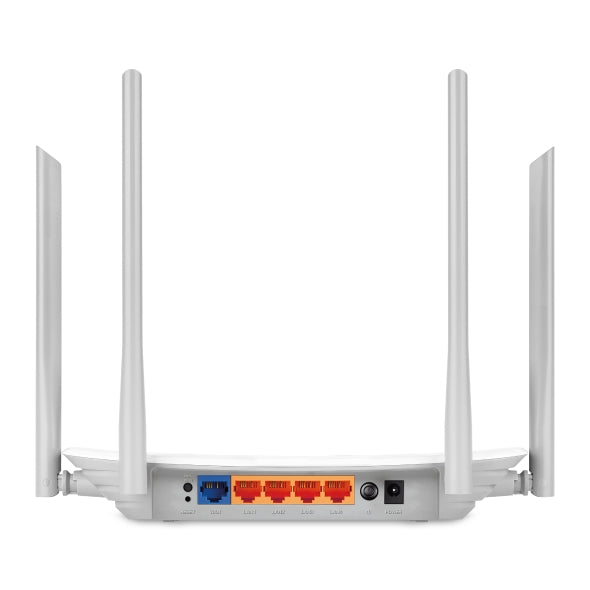

• Interface: 1× 10/100 Mbps WAN Port, 4× 10/100 Mbps LAN Ports
• External Power Supply: 9 V ⎓ 0.85 A
• Dimensions (W×D×H): 9.1 × 5.7 × 1.5 in (229.9 × 144.2 × 36.9 mm)
• Antenna: 4× External Antennas
• Wireless Standards: IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 2.4 GHz: 300 Mbps, 5 GHz: 867 Mbps
• Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Schedule, Wireless Statistics, Access Point Mode
• Wireless Security: WPA/WPA2 Encryptions
• Transmission Power: CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
• Quality of Service: QoS by Device
• WAN Type: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Management Features: Local Management (WebGUI, Tether App), Remote Management (TR-069, TR-181, TR-111, TR-143, Aginet ACS)
• DHCP: Server, Client, DHCP Client List, Address Reservation
• Port Forwarding: Virtual Server, Port Triggering, DMZ, UPnP
• VPN Pass-Through: PPTP, L2TP, IPSec
• Access Control: Parental Controls, Local Management Control, Host List, White List, Black List
• Firewall Security: DoS, SPI Firewall, IP Address Filter, IP and MAC Address Binding
• Protocols: Supports IPv4 and IPv6

• System Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, Mac OS, NetWare, UNIX, or Linux, Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or Other Java-Enabled Browser, Cable or DSL Modem (if needed), Internet Service Provider Subscription
• Certifications: CE, RoHS
• Environment: Operating Temperature: 0°C–40°C (32°F–104°F), Storage Temperature: -40°C–60°C (-40°F–140°F), Operating Humidity: 10%–90% Non-Condensing, Storage Humidity: 5%–90% Non-Condensing

WHAT’S IN THE BOX:

• Wi-Fi Router EC220-F5 x1
• Power Adapter x1
• RJ45 Ethernet Cable x1
• Quick Installation Guide x1

WARRANTY:

• 24 Months
