ISPs can remotely configure and manage the devices via ACS (Auto-Configuration Server). High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols.
Aginet Solutions offer ISPs powerful and flexible platforms to manage multiple devices for connected home, such as dynamic service provisioning, zero-touch firmware upgrading and remote troubleshooting and mesh WiFi diagnostics.
SPECIFICATIONS:

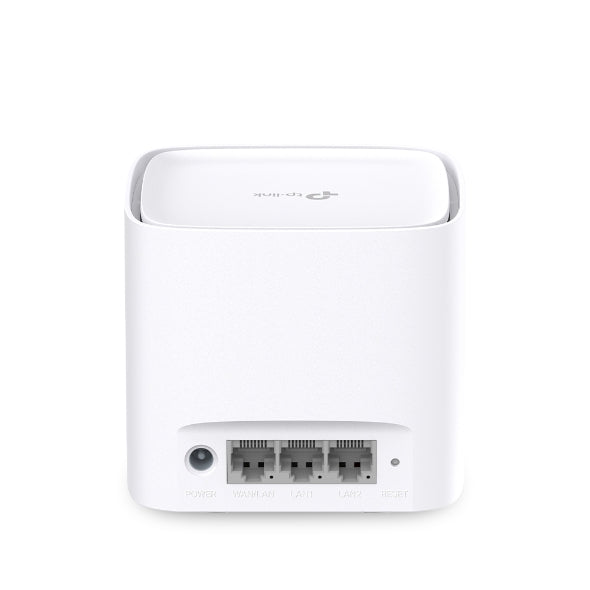

- Interface: 3 × Gigabit Ethernet Ports (Per Unit), including 1 × WAN/LAN Auto-Sensing Port
- Buttons: Reset Button, WPS Button
- Power Supply: 12V ⎓ 1.0A
- Dimensions (W × D × H): 100 × 100 × 89.5 mm (3.9 × 3.9 × 3.5 in.)
- Wi-Fi Standard: Wi-Fi 5 (IEEE 802.11ac/a/n 5 GHz, IEEE 802.11b/g/n 2.4 GHz)
- Frequency: 2.4 GHz and 5 GHz
- Wi-Fi Speed: AC1200 (Up to 867 Mbps on 5 GHz, Up to 300 Mbps on 2.4 GHz)
- Wireless Security: WPA-PSK, WPA2-PSK, WPA3-Personal
- Transmission Power: FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz); CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
- Multi-SSID: 2 × 2.4 GHz Multi-SSID, 2 × 5 GHz Multi-SSID
- Quality of Service: WMM
- Advanced Features: Parental Controls, QoS, Address Reservation, Port Forwarding, Wi-Fi Schedule
- WAN Types: Dynamic IP, Static IP, PPPoE
- Management: Local Management, TAUC Cloud Management, TR-069 (TR-098/TR-181), TR-111, TR-143
- Firewall: SPI Firewall
- Protocols: IPv4, IPv6
- Operating Modes: Router Mode, Access Point Mode
- Smartphone Requirements: Android 4.4 or later, iOS 9.0 or later
- Certifications: CE, FCC, Wi-Fi CERTIFIED™, Wi-Fi CERTIFIED EasyMesh™
- Environment: Operating Temperature: 0°C to 40°C; Storage Temperature: -40°C to 60°C; Operating Humidity: 10–90% Non-Condensing; Storage Humidity: 5–90% Non-Condensing
WHAT’S IN THE BOX:
- HC220-G5 Unit x1
- RJ45 Ethernet Cable x1
- Power Adapter x1
- Quick Installation Guide x1
WARRANTY:
- 24 Months
