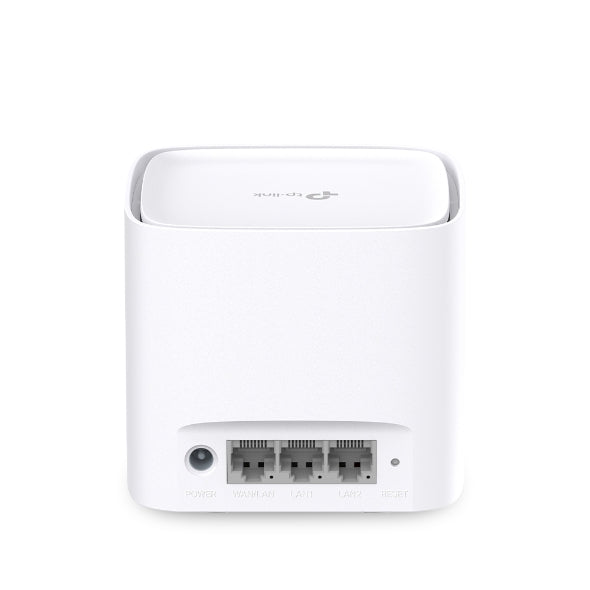

TP-Link AC1200 Whole Home Mesh WiFi System - HC220-G5 (2 Pack)

Faster Connections: Speeds up to 1200 Mbps—867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.

Boosted Seamless Coverage: Achieve seamless whole home coverage with a clearer and stronger WiFi signal.

One Unified Network: Multiple units form a whole-home network that auto-selects the best connection as you move around your home.

Enhanced Security: WPA3 encryption, Multi-SSID, and Parental Controls provide personalized and safer online experience.

EasyMesh Compatible: Provides whole home WiFi coverage with standard mesh technology.

Easy Setup: Set up your mesh WiFi in minutes with the powerful Aginet app.

Remote Management:  TAUC cloud management, TR-098, TR-181, TR-111, and TR-143 are supported.

Empowered by EasyMesh technology, HC220-G5 provides a strong WiFi signal in every corner of your home. Wireless connections and optional Ethernet backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another HC220-G5 whenever you want.

All units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless WiFi experience.

Flexible and multifunctional, HC220-G5 includes a variety of features to serve as a router or access point. Choose the mode for actual network demands and experience maximum wireless flexibility.

You can set up your device in minutes, whether you prefer the intuitive Aginet app or the powerful web interface. The Aginet app allows you to manage network settings from your smart phone or tablet.

ISPs can remotely configure and manage the devices via ACS (Auto-Configuration Server). High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols.

Aginet Solutions offer ISPs powerful and flexible platforms to manage multiple devices for connected home, such as dynamic service provisioning, zero-touch firmware upgrading and remote troubleshooting and mesh WiFi diagnostics.

SPECIFICATIONS:

• Interface: 3 × Gigabit Ethernet Ports (per unit), including 1 × WAN/LAN Auto-Sensing Port
• Buttons: Reset Button, WPS Button
• Power Supply: 12V ⎓ 1.0A
• Dimensions (W × D × H): 100 × 100 × 89.5 mm (3.9 × 3.9 × 3.5 in.)
• Wireless Standards: Wi-Fi 5 (IEEE 802.11ac/a/n 5 GHz, IEEE 802.11b/g/n 2.4 GHz)
• Frequency: 2.4 GHz and 5 GHz
• Wireless Speed: AC1200 (Up to 867 Mbps on 5 GHz, Up to 300 Mbps on 2.4 GHz)
• Wireless Security: WPA-PSK, WPA2-PSK, WPA3-Personal
• Transmission Power: FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz); CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
• Multi-SSID: 2 × 2.4 GHz Multi-SSID, 2 × 5 GHz Multi-SSID
• Quality of Service: WMM
• Advanced Features: Parental Controls, QoS (Quality of Service), Address Reservation, Port Forwarding, Wi-Fi Schedule
• WAN Types: Dynamic IP, Static IP, PPPoE
• Management Features: Local Management, TAUC Cloud Management, TR-069 (TR-098/TR-181), TR-111, TR-143
• Firewall: SPI Firewall
• Protocols: IPv4, IPv6
• Operating Modes: Router Mode, Access Point Mode
• Smartphone/Tablet Requirements: Android 4.4 or later, iOS 9.0 or later
• Certifications: CE, FCC, Wi-Fi CERTIFIED™, Wi-Fi CERTIFIED EasyMesh™
• Environment: Operating Temperature: 0°C to 40°C; Storage Temperature: -40°C to 60°C; Operating Humidity: 10%–90% Non-Condensing; Storage Humidity: 5%–90% Non-Condensing

WHAT’S IN THE BOX:

• HC220-G5 Units x2
• RJ45 Ethernet Cable x1
• Power Adapters x2
• Quick Installation Guide x1

WARRANTY:

• 24 Months
