TP-Link AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point - EAP225-Outdoor

Ideal for Outdoor Environment: IP65 weatherproof enclosure for outdoor Wi-Fi applications.

Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1167 Mbps Wi-Fi speeds.

Long-Range Coverage: Dedicated high-power amplifier and professional antennas along with the latest generation 802.11ac Wave 2 MU-MIMO technology.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Omada Mesh Technology: Enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient.

Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.

PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.

Omada EAPs with Mesh Technology, automatically choose the best route to extend your Wi-Fi further and more flexibly.

If one link has an issue, the system will automatically reroute data via the other Omada devices to make sure you stay online.

Dedicated high-power amplifier and professional antennas along with the latest generation 802.11ac Wave 2 MU-MIMO technology, ensure superior Wi-Fi performance and long-range coverage over 2.4GHz and 5GHz wireless bands.

802.11k, 802.11v, and 802.11r fast roaming switch clients automatically to the access point with the optimal signal and a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.

With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

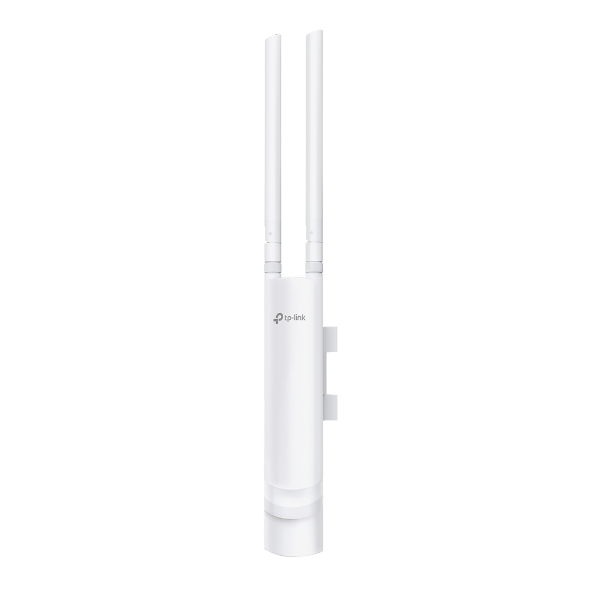

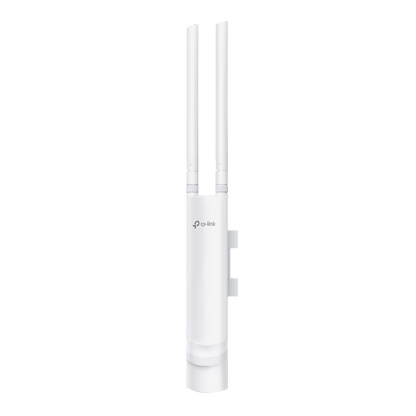

EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

SPECIFICATIONS:

• Interface: 1× Gigabit Ethernet (RJ-45) Port (Supports 802.3af/at PoE (Alternative A) and Passive PoE)
• Button: Reset
• Power Supply: 802.3af PoE; 24V Passive PoE (+4,5 pins; -7,8 pins, PoE Adapter Included)
• Max. Power Consumption: 10.5W
• Dimensions (W × D × H): 1.8 × 1.1 × 8.5 in (46 × 26.7 × 214.9 mm) (without antenna & mounting kit)
• Antenna: 2 Dual-Band External Detachable Omni Antennas (2.4 GHz: 2× 3 dBi, 5 GHz: 2× 5 dBi)
• Weatherproof Enclosure: IP65
• Mounting: Pole/Wall Mounting (Kits included)
• Wireless Standards: IEEE 802.11a/b/g/n/ac
• Frequency: 2.4 GHz, 5 GHz
• Signal Rate: Up to 867 Mbps (802.11ac), 300 Mbps (802.11n), 54 Mbps (802.11a/g), 11 Mbps (802.11b)
• Wireless Functions: Up to 16 SSIDs, Wireless Radio Control, Automatic Channel Assignment, Transmit Power Control, QoS (WMM), MU-MIMO, Seamless Roaming, Omada Mesh, Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics
• Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support
• Transmission Power: CE: <20 dBm (2.4 GHz), <27 dBm (5 GHz); FCC: <23 dBm (2.4 GHz), <22 dBm (5 GHz)
• Omada App: Yes
• Centralized Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller
• Cloud Access: Yes
• Email Alerts: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• System Logging: Local/Remote Syslog
• SSH: Yes
• Web-based Management: Yes
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes
• Zero-Touch Provisioning: Yes (Requires Omada Cloud-Based Controller)
• Certification: CE, FCC, RoHS

• System Requirements: Windows XP/Vista/7/8/10/11, Linux
• Environment: Operating Temperature: -30°C to 70°C; Storage Temperature: -40°C to 70°C; Operating Humidity: 10%–90% RH non-condensing; Storage Humidity: 5%–90% RH non-condensing

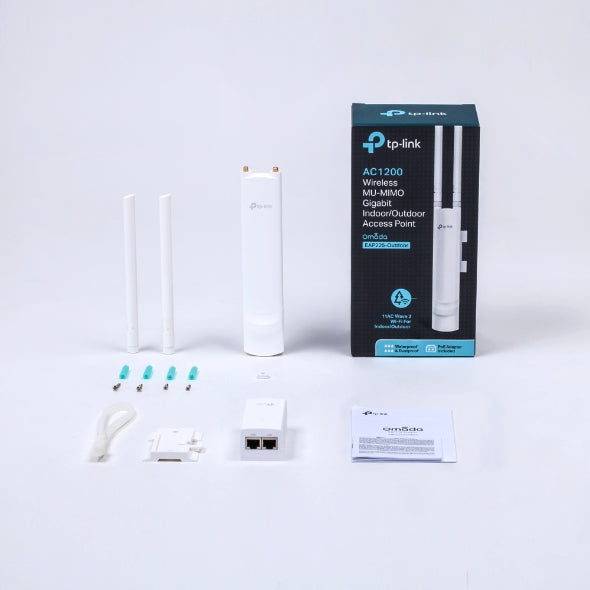

WHAT’S IN THE BOX:

• EAP225-Outdoor Access Point x1
• Passive PoE Adapter x1
• Power Cord x1
• Mounting Kits x1
• Installation Guide x1
• Waterproof Rubber Insert x1
• Waterproof Antenna x1

WARRANTY:

• 24 Months
